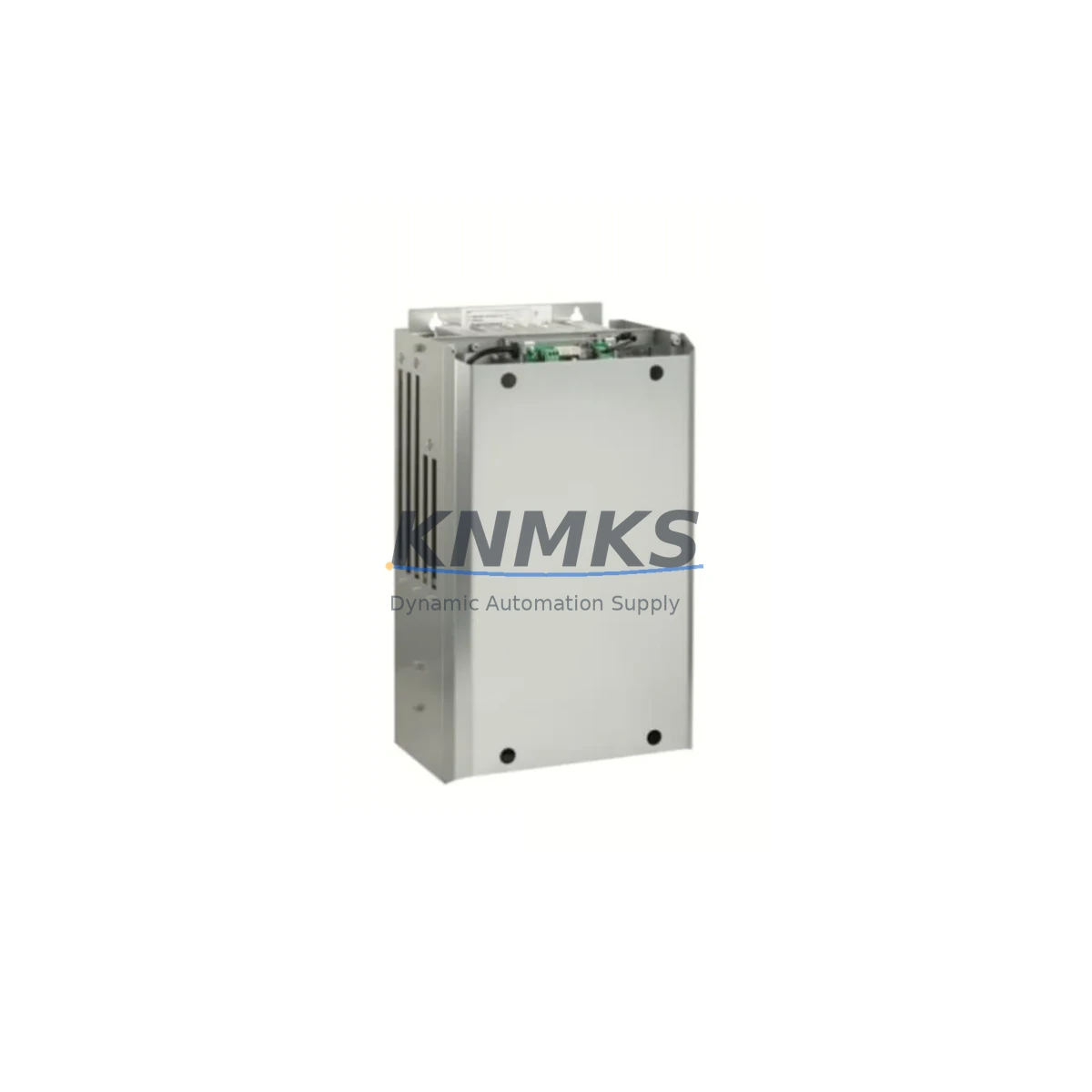

ABB NBRA-669C Fail-Safe Brake Chopper for ACS800 Drives

Overview

ABB NBRA-669C Fail-Safe Brake Chopper for ACS800 Drives: Industrial Fault Protection and Critical Field Reliability

The ABB NBRA-669C is a dedicated brake chopper module engineered for the ACS800 series variable frequency drives, providing essential overvoltage protection during regenerative braking events in demanding industrial environments. In continuous production facilities — from petrochemical processing lines and metallurgical rolling mills to port crane systems and heavy mineral processing — uncontrolled DC bus voltage rise during motor deceleration represents one of the most common causes of drive trips, unplanned shutdowns, and costly equipment damage. The NBRA-669C eliminates this risk by dissipating excess regenerative energy through an external braking resistor, maintaining DC bus voltage within safe operating limits and ensuring the ACS800 drive remains online through the full deceleration cycle.

Designed for installation in high-density control cabinets where space, heat, and electromagnetic interference are constant challenges, the NBRA-669C integrates directly with the ACS800 drive’s internal bus architecture. Its robust construction tolerates the vibration, dust ingress, and humidity fluctuations typical of mining headframes, steel plant auxiliary drives, and water treatment pump stations. The module’s fast-response chopper circuit activates within microseconds of detecting an overvoltage condition, preventing nuisance trips that would otherwise interrupt critical process loops and trigger safety interlock sequences across the wider control system.

In safety-critical applications where the ACS800 drive controls hoists, conveyors, or centrifugal compressors, the NBRA-669C works in concert with the drive’s internal fault management logic and external safety relay circuits. When paired with ABB’s AGPS-11C gate driver power supply board and AINT-02C adapter module, the complete drive assembly maintains coordinated fault response — ensuring that a braking event does not cascade into a wider system fault that could compromise personnel safety or process integrity. For installations requiring SIL-rated safety loops, the reliable operation of the brake chopper is a prerequisite for maintaining the drive’s contribution to the overall safety function.

Control cabinet designers specifying the NBRA-669C for high-inertia load applications — such as large centrifuges, winding machines, or overhead cranes — should also consider the selection of appropriately rated braking resistors and thermal overload protection devices within the same cabinet. The NBRA-669C’s chopper transistor is thermally protected, but the external resistor assembly must be sized for the application’s duty cycle to prevent thermal runaway during repeated braking cycles. Coordinating the NBRA-669C with the ACS800’s programmable braking control parameters ensures optimal energy dissipation without exceeding resistor thermal limits.

For facilities operating in high electromagnetic interference environments — common in arc furnace auxiliary systems, large motor control centers, and variable speed pump stations — the NBRA-669C’s integration within the ACS800 drive frame provides inherent shielding benefits compared to external chopper solutions. Signal integrity across the drive’s DDCS fiber optic communication links, including connections to RDCO-02C communication option boards and master/follower drive configurations, is preserved even during active braking cycles, preventing communication timeouts that could trigger unnecessary drive faults or safety shutdowns.

Every NBRA-669C unit supplied by KNMKS undergoes pre-shipment functional testing to verify chopper transistor switching performance, gate drive signal integrity, and overvoltage threshold response. Units are inspected for physical integrity, connector condition, and firmware compatibility with the target ACS800 drive series before dispatch. This testing protocol ensures that replacement modules arrive ready for immediate installation, minimizing the maintenance window duration in time-critical turnaround situations.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable ACS800 drive installation depends on more than a single component. The NBRA-669C brake chopper module addresses the DC bus overvoltage risk, but a complete cabinet protection strategy requires coordinated selection across the drive’s auxiliary systems. The AGPS-11C gate driver power supply provides stable isolated power to the IGBT gate drive circuits, ensuring consistent switching performance even during voltage transients on the main supply. The AINT-02C adapter module manages the interface between the drive’s control board and optional I/O or communication extensions, maintaining signal integrity during braking events.

For drives operating in multi-drive systems or master/follower configurations, the RDCO-02C DDCS communication option board maintains fiber optic synchronization between drive units, preventing communication loss during active braking cycles that could otherwise trigger follower drive faults. In cabinet assemblies where supply quality is variable — common in remote industrial sites with long cable runs or generator-backed power systems — the addition of ABB’s BAMU-01C battery monitoring unit or appropriate line reactors upstream of the drive input further reduces the risk of supply-side disturbances propagating into the drive’s control circuits. Together, these components form a layered protection architecture that addresses overvoltage, gate drive stability, communication reliability, and supply quality within a single coordinated cabinet design.

Critical Industrial Safety Applications

The NBRA-669C is specified across a broad range of safety-critical and continuous process applications where drive availability directly impacts production output, personnel safety, or environmental compliance. In petrochemical and refinery facilities, ACS800 drives controlling boiler feed pumps, compressor trains, and cooling water systems must remain online through process upsets — the NBRA-669C ensures that a sudden load reduction or emergency stop does not cause a drive trip that could interrupt a critical utility supply. In mining and mineral processing operations, drives controlling conveyor systems, ball mill motors, and hoist drives are subject to frequent regenerative braking cycles; the NBRA-669C’s reliable energy dissipation prevents the DC bus overvoltage faults that are among the most common causes of unplanned conveyor stoppages.

In power generation and electrical utility applications, ACS800 drives managing cooling fans, feedwater pumps, and auxiliary systems in thermal and hydroelectric plants require the highest levels of drive reliability. The NBRA-669C supports this requirement by eliminating a known failure mode that could otherwise force a manual drive reset during a critical operational period. In port and shipyard crane applications, where regenerative braking energy is generated continuously during load lowering cycles, the brake chopper module is an essential component of the drive’s energy management system. Water treatment facilities operating large centrifugal pumps and blowers also benefit from the NBRA-669C’s protection, particularly in installations where sudden valve closures or process demand changes create rapid deceleration events that would otherwise stress the drive’s DC bus capacitors.

Safety and Quality FAQ

Q: What support terms is provided with the NBRA-669C?
A: Every NBRA-669C supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides support for installation queries and fault diagnosis throughout the confirmed support period.

Q: Is the NBRA-669C tested before shipment?
A: Yes. Each unit undergoes pre-shipment functional testing covering chopper transistor switching performance, gate drive signal verification, and overvoltage threshold response. Physical inspection for connector integrity and compatibility with the target ACS800 drive series is also completed before dispatch.

Q: Which ACS800 drive variants is the NBRA-669C compatible with?
A: The NBRA-669C is designed for the ABB ACS800 series variable frequency drives. Compatibility depends on the specific drive frame size and power rating. KNMKS recommends confirming the target drive’s hardware revision and existing brake chopper configuration before ordering. Our technical team can assist with compatibility verification based on your drive’s nameplate data.

Q: Can KNMKS support long-term spare parts supply for the NBRA-669C?
A: Yes. KNMKS maintains stock of the NBRA-669C and related ACS800 drive components to support planned maintenance programs, emergency replacements, and multi-year spare parts agreements. For facilities managing aging ACS800 drive fleets, we recommend establishing a consignment or scheduled supply arrangement to ensure critical spare availability without lead time risk.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

NBRA-669C
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB NBRA-669C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
