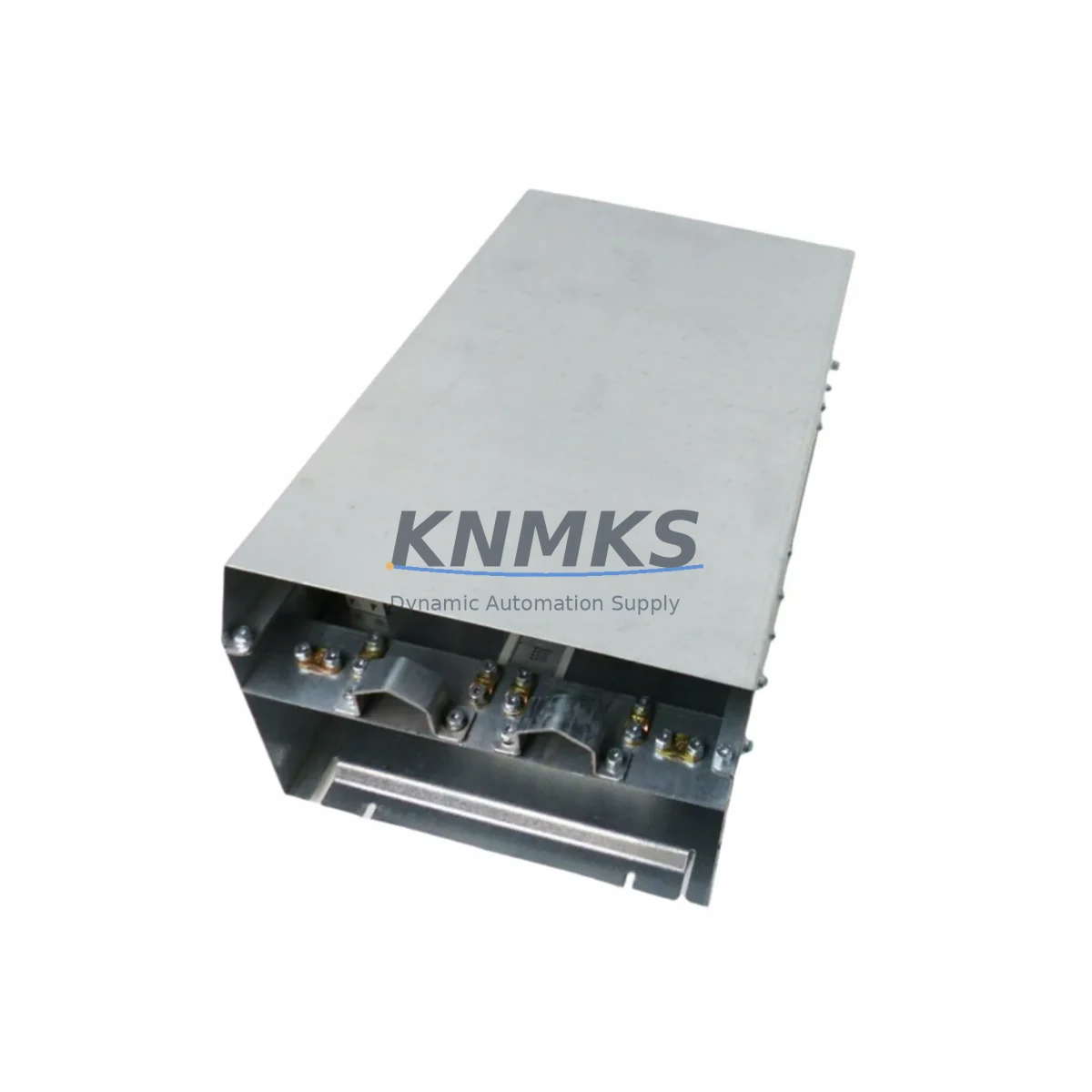

ABB NBRA-659 Migration-Ready Brake Chopper Unit

Overview

ABB NBRA-659 Migration-Ready Brake Chopper Unit: Legacy System Retrofit and Compatible Upgrade

The ABB NBRA-659 is a migration-ready brake chopper unit engineered for direct replacement within the NBRA series drive ecosystem. Designed to dissipate regenerative braking energy in DC bus circuits, this unit is a critical component in legacy ACS800 variable speed drive installations where controlled deceleration and overvoltage protection are essential. As ABB progressively phases out older NBRA-series accessories, the NBRA-659 remains one of the most sought-after spare parts for maintenance engineers managing aging drive cabinets across heavy industry, marine, and process automation environments.

When planning a retrofit or spare parts replacement for an ACS800 drive system, engineers must verify DC bus voltage compatibility, confirm the chopper’s switching threshold against the drive’s overvoltage trip level, and ensure the braking resistor connected downstream is correctly rated for the NBRA-659’s peak power dissipation capacity. The unit interfaces directly with the drive’s DC bus terminals, and terminal block wiring must be cross-referenced against the original NBRA series wiring diagram to avoid polarity errors or ground faults during commissioning.

For installations where the NBRA-659 is being introduced as a replacement for a failed or discontinued chopper module, the drive’s parameter set — particularly the overvoltage control parameters and brake chopper enable settings — must be reviewed and adjusted in DriveWindow or DriveStudio before energizing the system. Firmware version compatibility between the ACS800 main control board and the NBRA-659 should be confirmed, especially in installations running older firmware releases that may not fully support the chopper’s fault reporting protocol.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful NBRA-659 retrofit begins well before the unit arrives on site. Maintenance teams should pull the existing ACS800 drive’s parameter backup using DriveWindow or DriveStudio and document the current brake chopper enable status, overvoltage control mode, and any custom fault response logic. This parameter archive becomes the baseline for post-replacement commissioning and protects against configuration loss during the swap.

In multi-drive installations — common in paper mills, water treatment plants, and steel processing lines — the NBRA-659 may be installed alongside an NBRA-02 braking resistor assembly or an external resistor bank mounted in a separate cabinet. Engineers must confirm that the resistor’s continuous power rating and peak pulse rating are matched to the NBRA-659’s output, and that the resistor cabling is rated for the expected fault current. Undersized resistor cabling is a frequent cause of thermal damage during high-inertia load deceleration cycles.

Where the drive cabinet also houses an AINT-02 or AINT-11 I/O extension module for process feedback signals, the retrofit plan should include a review of the I/O wiring schedule to ensure that the brake chopper’s fault output is correctly mapped to the PLC or DCS input card. In Honeywell Experion or ABB 800xA DCS environments, this signal mapping must be validated in the controller configuration before the drive is returned to service. Similarly, if the installation includes an RDCO-02 DDCS communication module for drive-to-drive communication, the chopper fault signal routing through the DDCS ring should be verified to prevent nuisance trips on adjacent drives.

For cabinets where space is constrained — particularly in retrofit projects involving older ACS600 frames being upgraded to ACS800 architecture — the physical dimensions of the NBRA-659 must be confirmed against the available mounting space. The unit’s cooling airflow path should not be obstructed by adjacent components such as an APBU-44 branching unit or a BAMU-01 battery module used for ride-through applications. Adequate separation from heat-generating components is essential for long-term reliability in high-ambient-temperature environments.

Downtime Control During System Migration

Minimizing unplanned downtime during a brake chopper replacement requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, the replacement NBRA-659 should be bench-tested against a known-good ACS800 drive or verified using the drive’s diagnostic mode to confirm the unit responds correctly to brake enable commands and reports no internal faults. This pre-commissioning step eliminates the risk of discovering a transit-damaged unit after the production line has already been taken offline.

During the outage, the drive’s DC bus must be fully discharged before the NBRA-659 is disconnected. Residual DC bus voltage in ACS800 drives can remain hazardous for several minutes after mains power is removed; the drive’s charge indicator LED and a calibrated DC voltmeter should both confirm safe voltage levels before any terminal work begins. The original unit’s terminal connections should be photographed and documented before removal to provide a reference for the replacement wiring.

After the NBRA-659 is installed and wired, a controlled test deceleration should be performed at reduced load before the drive is returned to full production duty. This step confirms that the chopper activates at the correct DC bus voltage threshold, that the braking resistor reaches expected temperature, and that no fault codes are generated in the drive’s event log. The drive’s parameter set should be re-uploaded from the pre-outage backup to ensure no settings were inadvertently altered during the maintenance window. With proper preparation, a NBRA-659 replacement can typically be completed within a two-to-four-hour planned outage, preserving production continuity and protecting the integrity of the original control program logic.

Retrofit Support FAQ

Q1: Is the NBRA-659 a direct replacement for other NBRA-series brake choppers?
The NBRA-659 is designed as a direct replacement within its rated frame and voltage class. Cross-referencing with NBRA-655 and NBRA-656 variants is recommended to confirm frame-size and DC bus voltage compatibility before ordering. Our technical team can assist with cross-reference verification based on your drive’s nameplate data.

Q2: What commissioning steps are required after installing the NBRA-659?
After physical installation and wiring, verify the brake chopper enable parameter and overvoltage control settings in the ACS800 parameter list. Perform a controlled test deceleration at reduced load to confirm correct chopper activation. Re-upload the pre-outage parameter backup to restore any custom settings. Document the commissioning results in the site maintenance log.

Q3: How is the NBRA-659 tested before shipment?
Every NBRA-659 unit undergoes a full functional pre-shipment test to verify switching performance, fault signal output, and terminal integrity. Units that do not meet ABB’s original performance specification are not dispatched. A support terms confirmed by quotation is included with every unit, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and stock availability for the NBRA-659?
The NBRA-659 is maintained availability confirmed by RFQ for rapid dispatch to support emergency replacement and planned maintenance schedules. Standard orders are processed and dispatched within 1–3 business days. For urgent requirements, expedited shipping options are available. Contact our sales team to confirm current stock levels and delivery timelines for your region.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

NBRA-659
S800 Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB NBRA-659
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
