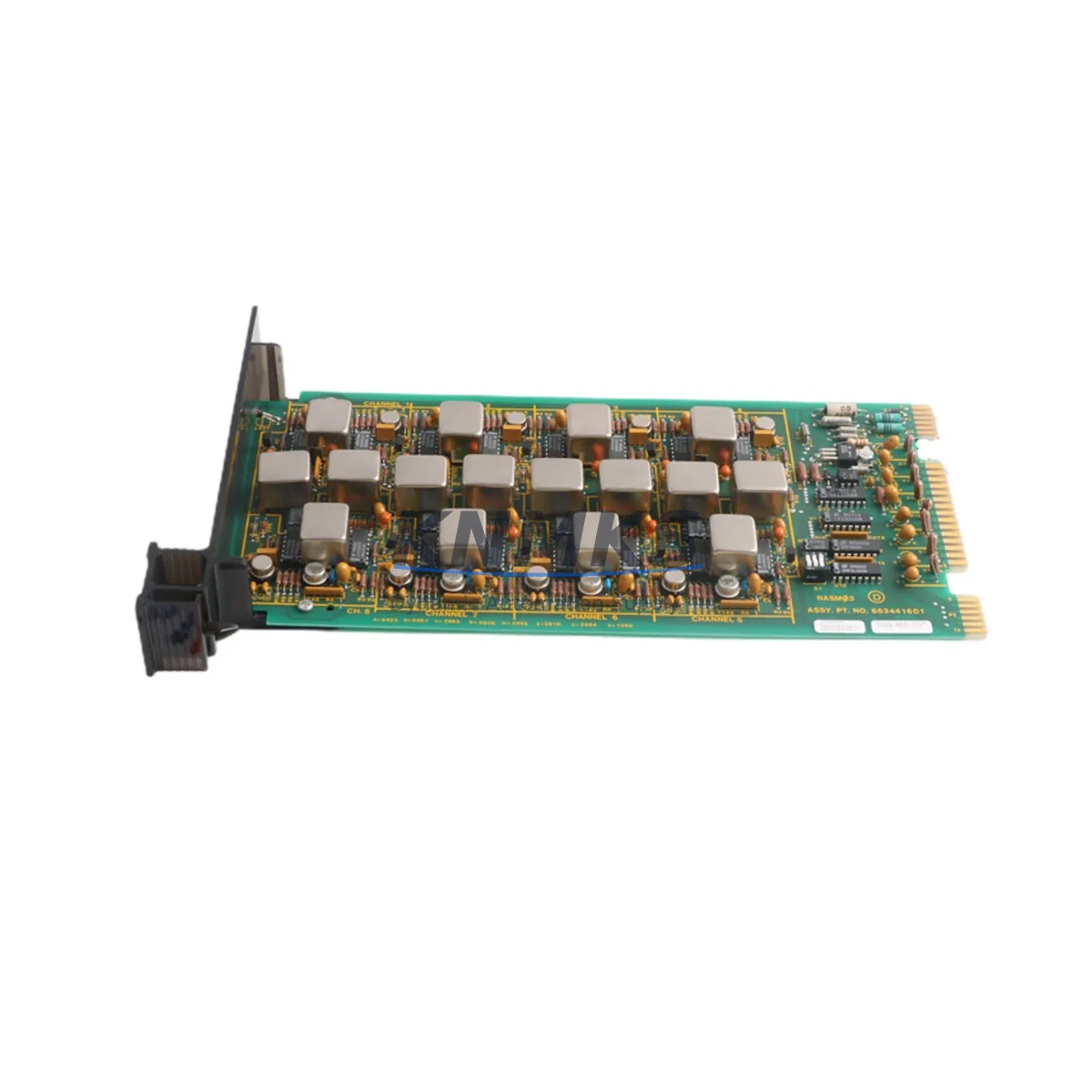

ABB NASM03 Fail-Safe Analog I/O for Industrial Control

Overview

ABB NASM03 Fail-Safe Analog I/O for Industrial Control Reliability

The ABB NASM03 is a high-performance analog slave I/O module engineered for the ABB AC500 programmable logic controller platform. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous manufacturing lines — the NASM03 delivers fail-safe analog signal acquisition and output with the precision and robustness that critical process control demands.

In continuous production environments where unplanned downtime carries severe operational and safety consequences, the NASM03’s architecture prioritizes signal integrity above all else. Its analog channels are individually isolated and protected against signal drift, ground loops, and common-mode interference — ensuring that process variables such as temperature, pressure, flow rate, and level are transmitted to the AC500 CPU with consistent accuracy. Whether integrated into a safety interlock loop, a heavy-duty motor control cabinet, or a distributed field I/O network, the NASM03 maintains measurement fidelity even under sustained electrical stress.

Industrial control cabinets are among the harshest electrical environments in any facility. High electromagnetic interference generated by variable frequency drives, contactors, and high-current switching equipment can corrupt analog signals and trigger nuisance trips or, worse, masked faults. The NASM03 is built with robust EMI shielding and surge suppression circuitry that guards against transient overvoltages and conducted interference — the same threats that can compromise less robust modules and lead to costly control interruptions. When paired with ABB’s CM592-ETH Ethernet communication module and the TB521-ETH terminal base, the NASM03 forms a tightly integrated I/O subsystem that maintains communication stability even in electrically noisy environments.

Thermal management is a critical consideration in enclosed control cabinets operating in high-ambient-temperature locations such as steel mills, cement plants, and offshore platforms. The NASM03 is rated for wide operating temperature ranges and is designed to dissipate heat efficiently without requiring active cooling within the module itself. This characteristic reduces the thermal load on the cabinet and extends the service life of adjacent components, including power supply units such as the ABB CP604 24VDC power supply, which provides the stable, regulated voltage that the NASM03 and its companion modules require for consistent operation.

In safety-critical applications — such as emergency shutdown systems, burner management, and high-integrity pressure protection — analog I/O modules must not only perform accurately but must also fail predictably. The NASM03 supports diagnostic functions that allow the AC500 CPU to detect open-circuit, short-circuit, and out-of-range conditions on individual channels, enabling the control system to respond with a defined safe state rather than an undefined failure mode. This capability is essential when the NASM03 is deployed alongside safety-rated components such as the ABB SM560-S safety CPU module in SIL-rated control architectures.

Dust ingress, condensation, and mechanical vibration are persistent threats in mining, port, and heavy manufacturing environments. The NASM03’s conformal-coated PCB and robust terminal connections are designed to resist these environmental stressors, maintaining reliable contact resistance and insulation integrity over extended service intervals. When installed in a properly configured AC500 rack alongside the ABB DC532 digital I/O module for discrete signal handling and the ABB AX522 analog I/O module for expanded channel capacity, the NASM03 contributes to a cohesive, fault-tolerant I/O architecture that minimizes single points of failure in the control system.

Every NASM03 unit supplied by KNMKS undergoes pre-shipment functional verification, including channel accuracy checks, isolation resistance testing, and communication handshake validation with the AC500 platform. This outgoing quality inspection ensures that replacement modules arrive on-site ready for immediate installation, reducing the mean time to repair during unplanned maintenance events. KNMKS maintains standing inventory of the NASM03 and its associated AC500 accessories to support both planned spare parts programs and emergency procurement requirements.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable analog I/O subsystem does not operate in isolation — it depends on the integrity of every component sharing the control cabinet. When deploying the NASM03 in a critical control cabinet, KNMKS recommends a layered protection strategy that addresses power quality, communication stability, discrete I/O integrity, and thermal management simultaneously.

At the power layer, the ABB CP604 24VDC regulated power supply provides the clean, stable DC bus that the NASM03 and its companion modules require. Power supply ripple and voltage sag — common in cabinets with heavy inductive loads — can introduce measurement errors in analog channels; a high-quality regulated supply eliminates this risk at the source. For applications requiring redundant power, a secondary CP604 unit with automatic changeover provides continuous supply availability without manual intervention.

At the communication layer, the ABB CM592-ETH Ethernet communication module connects the AC500 CPU to the plant SCADA or DCS network, transmitting the analog process values acquired by the NASM03 with deterministic timing. In high-EMI environments, shielded Ethernet cabling and proper cabinet grounding are essential complements to the CM592-ETH’s built-in communication diagnostics. For PROFIBUS-based architectures, the ABB CM572-DP PROFIBUS DP communication module provides an equivalent function with the fieldbus protocol widely used in legacy process control installations.

At the discrete I/O layer, the ABB DC532 digital I/O module handles the binary signals — limit switches, solenoid valve commands, motor run/stop feedback — that accompany the analog process variables managed by the NASM03. Coordinating analog and discrete I/O within a single AC500 rack simplifies cabinet wiring, reduces connector count, and eliminates the inter-module communication latency that can affect time-critical interlock logic.

For safety interlock applications requiring SIL certification, the ABB SM560-S safety CPU module provides the redundant processing and self-diagnostic capabilities mandated by IEC 61508 and IEC 62061. The NASM03, when integrated into a safety-rated AC500 configuration under the SM560-S, contributes analog measurement data to safety functions such as high-pressure shutdown, over-temperature trip, and flow loss detection — functions where measurement accuracy and fail-safe behavior are non-negotiable.

Critical Industrial Safety Applications

The ABB NASM03 is deployed across a broad spectrum of safety-critical and process-critical industrial applications where analog signal reliability directly affects operational safety and production continuity.

In petrochemical and refinery environments, the NASM03 acquires pressure transmitter and thermocouple signals feeding into emergency shutdown and high-integrity pressure protection systems. Its channel diagnostics allow the safety PLC to distinguish between a genuine process exceedance and a failed transmitter — a distinction that prevents both unnecessary shutdowns and masked hazardous conditions.

In power generation facilities — including thermal, hydroelectric, and wind farms — the NASM03 monitors generator excitation levels, cooling water temperatures, and turbine vibration signals. The module’s wide operating temperature range and vibration resistance make it suitable for installation in generator control panels located in mechanically demanding environments.

In mining and mineral processing operations, where dust, humidity, and mechanical shock are constant threats, the NASM03’s conformal-coated PCB and robust terminal design maintain reliable analog acquisition from conveyor load cells, crusher motor current sensors, and flotation cell level transmitters — all critical inputs to process optimization and equipment protection logic.

In water and wastewater treatment plants, the NASM03 interfaces with pH sensors, dissolved oxygen probes, and flow meters in dosing control and effluent monitoring loops. Its 4–20 mA input compatibility and high-resolution conversion ensure that chemical dosing quantities are calculated accurately, protecting both process quality and regulatory compliance.

In metallurgical and steel plants, where furnace temperature control and rolling mill tension regulation demand sub-millisecond analog update rates and zero tolerance for signal dropout, the NASM03’s fast scan cycle and deterministic I/O response support the tight control loops that protect both product quality and equipment integrity.

In port and maritime applications — including crane control systems and ship engine management panels — the NASM03 operates reliably in the salt-air, high-vibration environments characteristic of coastal and offshore installations, providing the analog I/O backbone for load monitoring, hydraulic pressure control, and propulsion management systems.

Safety and Quality FAQ

Q1: What support terms coverage does the NASM03 carry?
Every NASM03 supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. KNMKS provides direct technical support and replacement coordination throughout the confirmed support period, without requiring the customer to engage ABB’s service network independently.

Q2: What pre-shipment testing is performed on each NASM03 unit?
Each unit undergoes a full functional verification prior to dispatch, including analog channel accuracy measurement across the full input/output range, channel isolation resistance testing, and communication handshake validation with an AC500 CPU. Units that do not meet specification are quarantined and not shipped. A test record is available upon request for quality-critical procurement programs.

Q3: Is the NASM03 compatible with all AC500 CPU generations and terminal bases?
The NASM03 is designed for the ABB AC500 platform and is compatible with AC500 V2 and V3 CPU modules when used with the appropriate terminal base. KNMKS technical staff can confirm compatibility with your specific CPU model, firmware version, and terminal base configuration before order confirmation, ensuring that the replacement module integrates without hardware or software modification.

Q4: Can KNMKS support long-term and emergency spare parts requirements for the NASM03?
Yes. KNMKS maintains standing inventory of the NASM03 and key AC500 accessories to support both planned annual spare parts programs and unplanned emergency procurement. For critical facilities with zero-tolerance downtime requirements, KNMKS can arrange priority dispatch with same-day or next-day shipping for in-stock items. Long-term supply agreements are available for customers requiring guaranteed stock reservation over multi-year maintenance cycles.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

NASM03
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB NASM03
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
