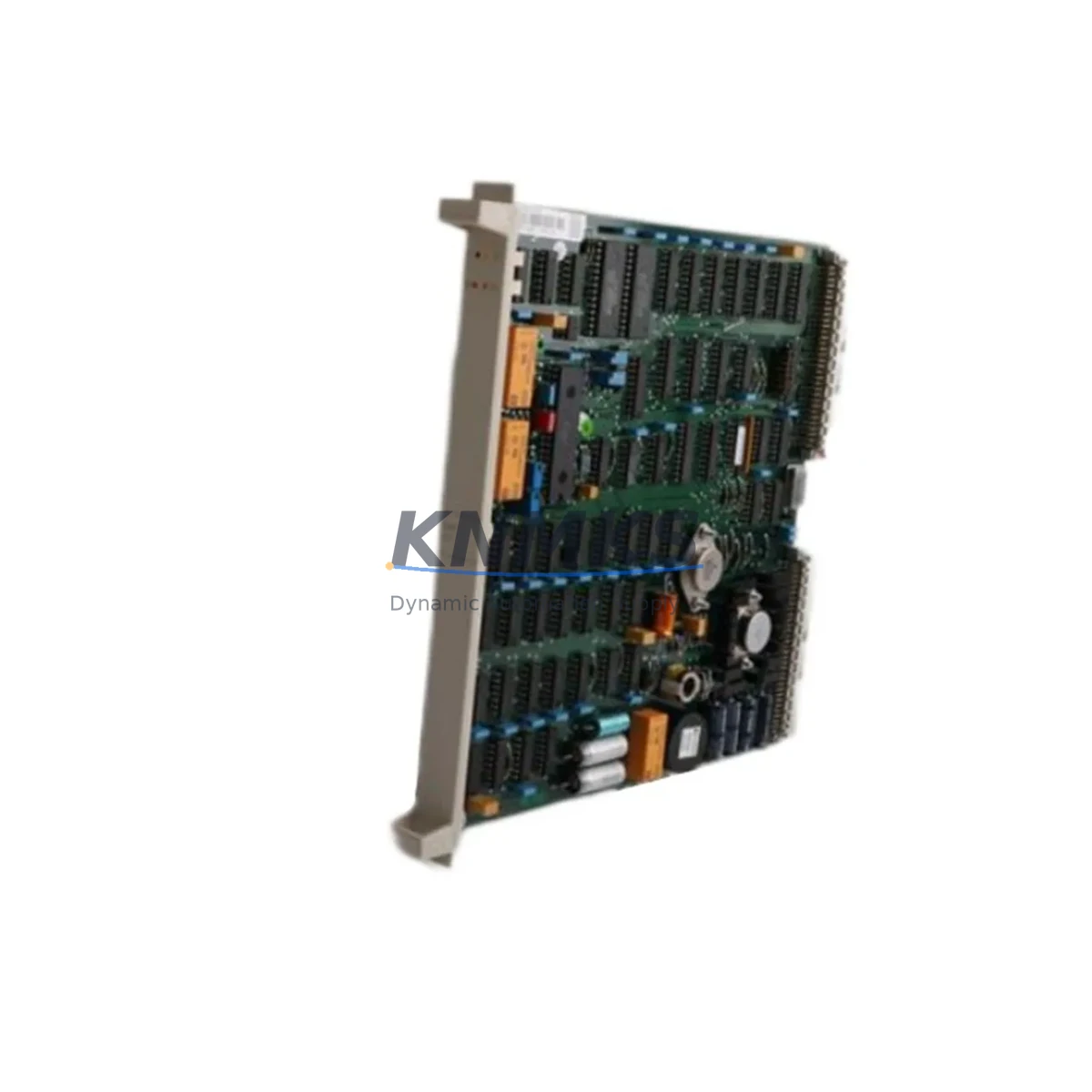

ABB LL02 Retrofit-Ready Logic Link for Contronic Systems

Overview

ABB LL02 Retrofit-Ready Logic Link for Contronic Systems: Legacy DCS Migration & Compatible Upgrade

The ABB LL02 Logic Link Module is a migration-ready replacement designed for engineers and maintenance teams managing the lifecycle of legacy Hartmann & Braun (H&B) Contronic DCS installations. As the original Contronic platform reaches end-of-life and spare parts become increasingly scarce, the LL02 provides a verified drop-in solution that preserves existing control logic, minimizes rewiring effort, and extends the operational life of your automation infrastructure without requiring a full system overhaul.

Whether you are replacing a failed unit in a running plant, building a retrofit inventory ahead of a scheduled shutdown, or planning a phased migration from the Contronic platform to a modern ABB System 800xA or AC500 architecture, the LL02 is a critical link in maintaining control continuity. Its backplane interface, terminal assignment, and communication protocol behavior are aligned with the original Contronic rack architecture, allowing direct substitution in most configurations without reprogramming the host controller or modifying HMI display pages.

Before installation, engineers should verify the following parameters against the existing system documentation: rack slot addressing and module base address settings, 24 VDC or 48 VDC power rail capacity within the control cabinet, terminal block wiring layout and signal type (analog, digital, or pulse), backplane bus connector condition and pin integrity, firmware revision compatibility with the Contronic OS version in use, and available physical clearance within the control cabinet for module seating and cable routing. These checks are standard practice for any logic link substitution and are especially important when the original installation records are incomplete or the system has been modified over time.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB LL02 into a legacy Contronic system requires a structured retrofit plan that accounts for the interdependencies between modules sharing the same rack and communication bus. In a typical Contronic control cabinet, the LL02 operates alongside power supply modules that feed the backplane — these must be assessed for remaining capacity before adding or replacing logic link modules, particularly in cabinets where additional I/O expansion has been performed over the years.

The Contronic rack itself is a central consideration. Rack condition, backplane connector wear, and slot availability directly affect whether a module swap can be completed without additional hardware changes. In systems where the original Contronic I/O modules — including analog input, analog output, and digital I/O cards — remain in service, the LL02 replacement must not disrupt the existing module address map. Address conflicts are a common source of commissioning delays and should be resolved in the planning phase, not during the maintenance window.

Communication continuity is another critical factor. In plants where the Contronic system interfaces with a supervisory SCADA layer or a modern DCS gateway, the logic link module acts as the bridge between field-level I/O and the higher-level control network. Replacing the LL02 without verifying the communication link status — including baud rate settings, node addressing, and cable integrity on the Contronic bus segment — can result in loss of supervisory visibility during and after the swap. Signal isolators installed between the Contronic bus and external systems should also be checked for compatibility with the replacement module’s output characteristics.

For plants planning a longer-term migration from the Contronic platform to a modern architecture, the LL02 replacement can serve as a bridge strategy: maintaining the existing control system in reliable operation while the migration project is scoped, budgeted, and scheduled. In this context, having verified spare LL02 units availability confirmed by RFQ — alongside compatible Contronic power supply modules and communication interface cards — provides the operational buffer needed to avoid unplanned shutdowns during the transition period.

Downtime Control During System Migration

Minimizing downtime during a logic link module replacement requires preparation that begins well before the maintenance window opens. The most effective approach is to pre-configure the replacement LL02 off-line: set the module address, verify firmware revision, and perform a bench-level function check before the unit enters the plant. This eliminates the most common sources of delay during live system work.

Protecting the original control program is non-negotiable. Before any module is removed from the rack, a full backup of the Contronic controller program — including all function block configurations, loop parameters, and communication settings — should be saved to an offline storage medium. If the system uses a programming cable or dedicated engineering workstation for Contronic configuration, confirm that the connection is functional and that the backup is readable before proceeding.

During the swap itself, the sequence matters: power down the affected rack segment in the correct order, remove the failed module, seat the replacement, restore power, and verify communication link re-establishment before returning the loop to automatic control. In systems with redundant control paths, the switchover to the standby path should be confirmed before the primary path is taken offline. Field operators should be briefed on the expected duration of the maintenance window and the signals that will be affected, so that manual override procedures can be activated if required.

Post-installation verification should include a full I/O loop test on all signals associated with the replaced module, a communication link check between the LL02 and the host controller, and a review of any alarm or event logs generated during the swap. HMI displays should be checked to confirm that all associated tags are reading correctly and that no residual fault indications remain active. Only after this verification is complete should the system be returned to normal automatic operation.

Retrofit Support FAQ

Q: Is the ABB LL02 a direct replacement for the original H&B Contronic Logic Link Module?
A: Yes. The LL02 is designed as a compatible replacement for the original Contronic logic link module. Terminal pinout, backplane interface, and communication behavior are aligned with the original specification. Engineers should verify module address settings and firmware revision compatibility before installation, as individual system configurations may vary.

Q: What commissioning steps are required after installing the LL02?
A: After seating the module and restoring rack power, confirm that the module address is correctly set, verify communication link establishment with the host controller, perform a full I/O loop test on all associated signals, and check HMI tag mapping. If the system has been modified from its original configuration, a review of the function block program may also be required.

Q: How should terminal wiring be handled during the replacement?
A: The LL02 terminal assignment matches the original module pinout. Before disconnecting any wiring, photograph or document the existing terminal connections. Reconnect in the same order after the module is seated. Verify signal types (analog, digital, or pulse) against the original I/O list before restoring power to avoid signal errors or equipment damage.

Q: What does the support terms confirmed by quotation cover, and what is the typical lead time?
A: All LL02 units ship with a support terms confirmed by quotation covering manufacturing defects from the date of shipment. Units are pre-tested before dispatch. Stock availability is maintained for fast shipment; contact our sales team for current lead time and inventory status. For urgent requirements, expedited shipping options are available.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

LL02
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB LL02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
