ABB LDSTA-01 63940143B Migration-Ready Drive Control

Overview

ABB LDSTA-01 63940143B Migration-Ready Drive Control for Legacy Control Systems

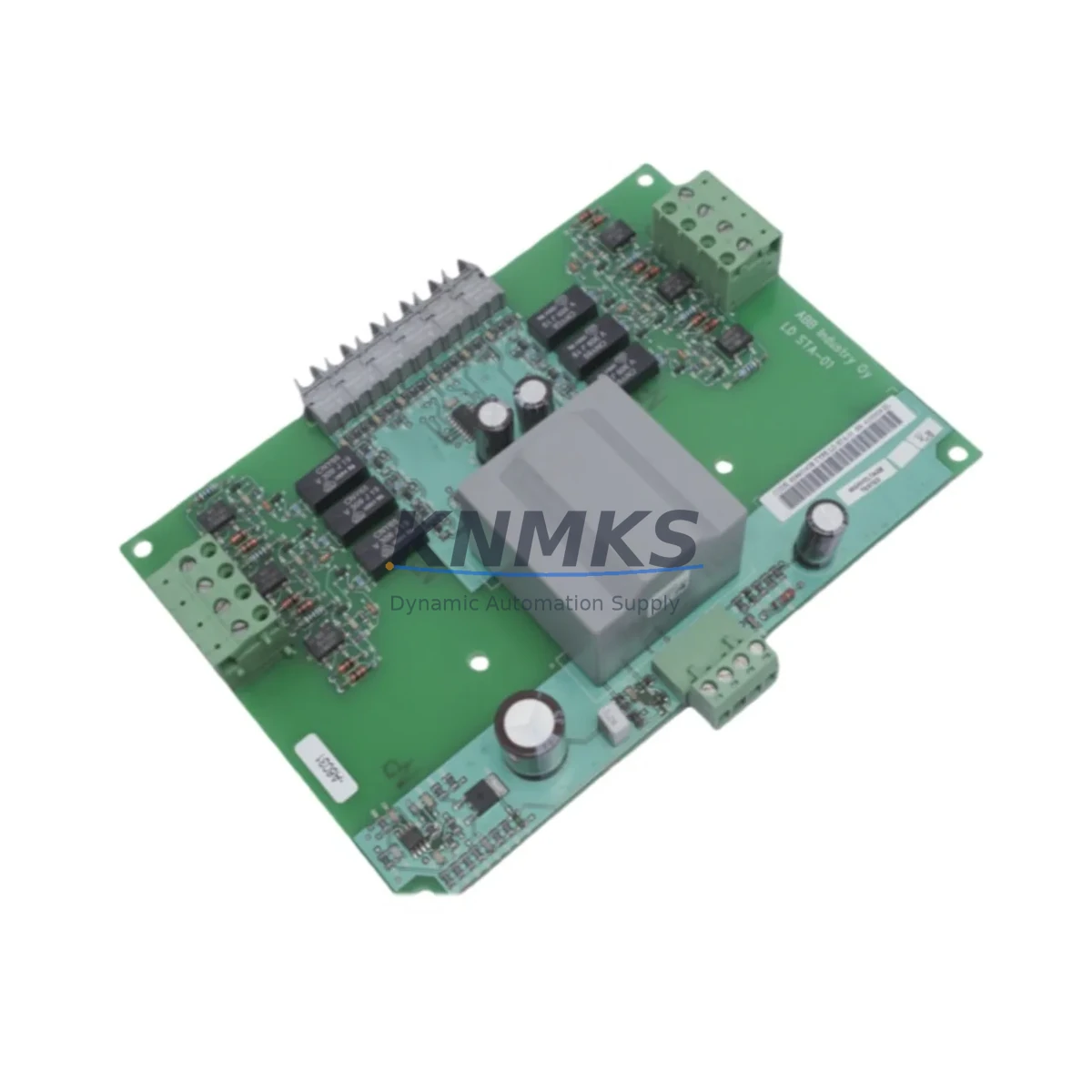

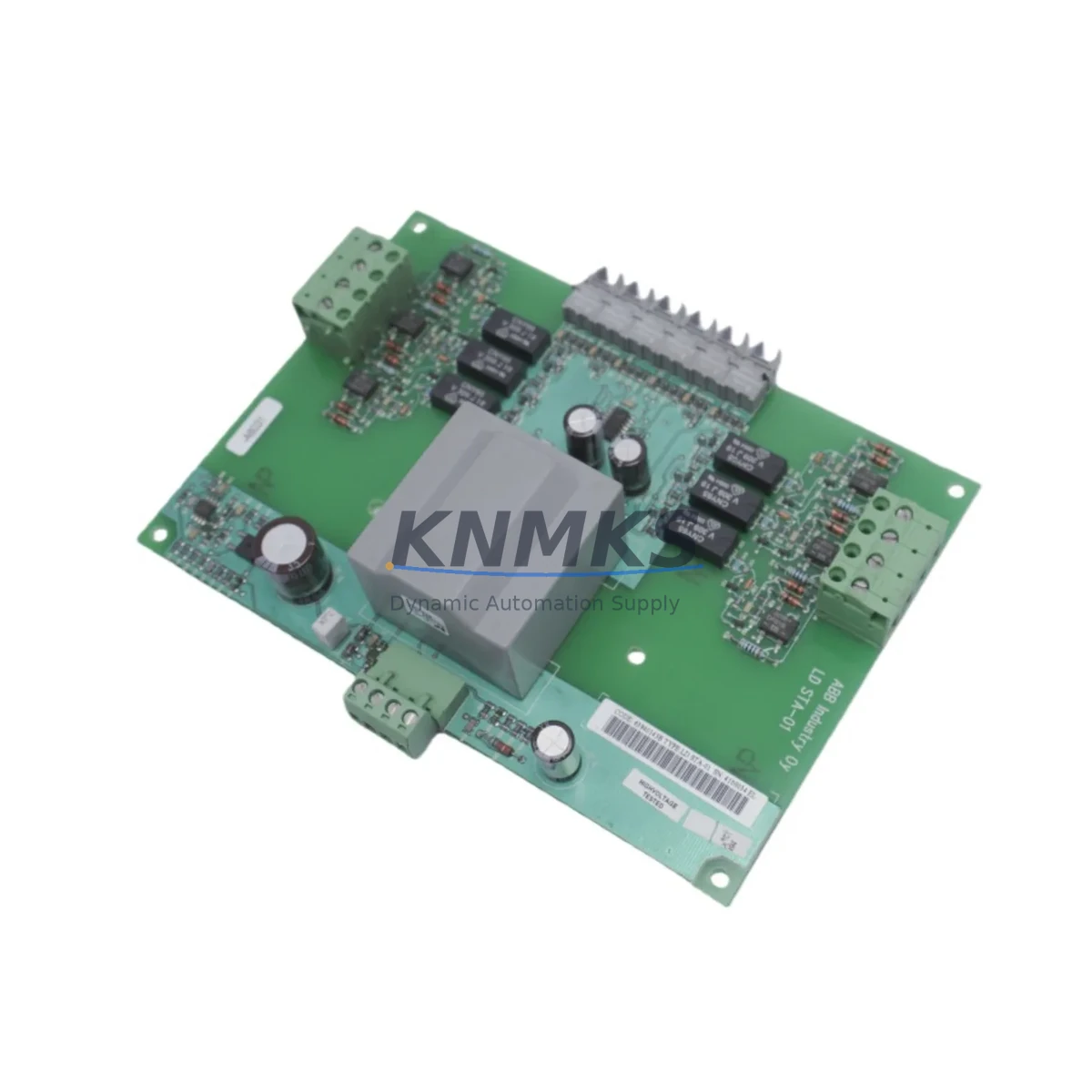

The ABB LDSTA-01 63940143B is a migration-ready drive control module engineered to serve as a direct replacement for discontinued and end-of-life drive control boards within the ABB ACS series platform. As industrial facilities face increasing pressure to modernize aging automation infrastructure, the LDSTA-01 63940143B provides a reliable, compatibility-verified upgrade path that minimizes engineering risk and reduces total downtime during system changeover. Whether you are replacing a failed unit in an emergency or executing a planned retrofit of an existing control cabinet, this module is designed to integrate seamlessly into your existing hardware architecture without requiring extensive rewiring or software reconfiguration.

The LDSTA-01 63940143B is commonly deployed in legacy ACS 600, ACS 800, and related ACS-platform drive systems where the original control board has reached end-of-life or is no longer available through standard distribution channels. Its backplane interface and terminal block layout are compatible with the original mounting positions, allowing technicians to complete a swap-out without modifying the existing cabinet structure or DIN rail arrangement. Before installation, engineers should verify the available power supply capacity within the control cabinet, confirm that the 24 VDC auxiliary supply rail can support the module’s current draw, and check that the backplane connector pinout matches the target drive chassis.

During the retrofit planning phase, it is essential to document the existing terminal wiring assignments, particularly for analog reference inputs, digital I/O signals, and fault relay outputs. The LDSTA-01 63940143B retains the standard ABB drive control terminal layout, but technicians should cross-reference the original wiring diagram against the replacement module’s terminal map to confirm signal polarity and shielding requirements. In systems where the drive communicates over PROFIBUS-DP or Modbus RTU, the fieldbus adapter — such as the RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter — must be re-seated and its node address and baud rate settings verified after the control board replacement. Communication link continuity should be confirmed from the PLC or DCS before returning the drive to automatic mode.

For facilities running ABB DriveWindow or DriveStudio software, the parameter set from the original drive should be backed up prior to removal and restored to the replacement LDSTA-01 63940143B after installation. Firmware version compatibility between the control board and the installed fieldbus adapter or I/O extension modules — such as the RDIO-01 digital I/O extension or RAIO-01 analog I/O extension — must be confirmed to prevent initialization faults. If the existing HMI panel, such as an ABB CDP312R or ACS-CP-C control panel, is retained, verify that the panel firmware is compatible with the replacement board’s communication protocol version to ensure that all drive status screens, fault history displays, and parameter navigation functions operate correctly.

Installation space within the control cabinet should be measured before ordering, as some legacy ACS-series cabinets have limited clearance around the drive chassis. The LDSTA-01 63940143B occupies the same physical footprint as the original control board, but technicians should confirm that adjacent components — including the AINT-02 or AINT-14 inverter control interface boards — do not obstruct the replacement module’s cooling vents or connector access points. After physical installation, a full functional test should be performed, including a no-load motor run, fault injection test, and communication loop-back check, before the system is returned to production.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the LDSTA-01 63940143B into an existing automation system requires a structured pre-installation assessment. Begin by auditing the control cabinet to identify all modules that interface with the drive control board. In a typical ACS 800 installation, this includes the AINT-02 inverter control interface, the RDIO-01 digital I/O extension module, and the RAIO-01 analog I/O extension module. Each of these components communicates with the control board through the drive’s internal fiber optic link or direct backplane connection, and their firmware versions must be compatible with the replacement LDSTA-01 63940143B to prevent module recognition errors during startup.

If the existing system uses a PROFIBUS-DP network, the RPBA-01 fieldbus adapter must be removed from the old control board and re-installed on the replacement module. The PROFIBUS node address, baud rate, and GSD file configuration in the upstream PLC — whether a Siemens S7-300, S7-400, or equivalent — must be verified to ensure that the drive appears correctly on the network after the swap. For Modbus RTU installations, the RMBA-01 adapter’s station address and communication parameters should be documented before removal and re-applied after the new board is installed.

In systems where the drive is integrated with an ABB AC500 PLC or a third-party DCS, the I/O mapping and function block assignments in the control program should be reviewed to confirm that no address changes are required after the hardware replacement. If the original drive was configured with a specific motor control macro — such as the ABB Standard Macro or the Scalar Control Macro — this configuration must be restored from the parameter backup to maintain the original speed reference, torque limit, and protection relay settings. The RDIO-01 digital I/O extension and RAIO-01 analog I/O extension should be re-initialized after the control board swap to confirm that all field signals are correctly mapped and that no I/O channel faults are present before the system is returned to automatic operation.

Downtime Control During System Migration

Minimizing production downtime during a drive control board replacement requires careful pre-planning and a disciplined changeover procedure. Before scheduling the maintenance window, use ABB DriveWindow or DriveStudio to create a complete parameter backup of the existing drive configuration. This backup should include all motor data, speed reference settings, PID controller parameters, fault relay assignments, and fieldbus communication settings. Store the backup file on a laptop or USB drive that will be available on-site during the replacement.

During the changeover, follow a structured sequence: isolate the drive from the power supply and confirm zero-energy state using a lockout/tagout procedure; photograph the existing terminal wiring before disconnecting any cables; remove the original LDSTA-01 control board; install the replacement LDSTA-01 63940143B; re-connect all terminal wiring according to the original wiring diagram; re-seat the fieldbus adapter and I/O extension modules; restore the parameter backup via DriveWindow; and perform a no-load functional test before reconnecting the motor load. This sequence protects the original program logic, preserves the HMI screen configurations, and ensures that the fieldbus communication link is restored without requiring changes to the upstream PLC program.

For critical production lines where even brief interruptions are costly, consider pre-configuring the replacement LDSTA-01 63940143B with the parameter backup before the maintenance window begins. This approach reduces the on-site commissioning time to a physical swap and communication verification, typically achievable within a two-hour maintenance window. Having a spare RPBA-01 or RMBA-01 fieldbus adapter on hand further reduces risk in the event that the original adapter is damaged during removal.

Retrofit Support FAQ

Q: Is the LDSTA-01 63940143B a direct drop-in replacement for the original LDSTA-01 in ACS 800 drives?
A: Yes. The LDSTA-01 63940143B uses the same backplane connector, terminal block layout, and physical mounting as the original LDSTA-01 control board. A parameter backup and restore via DriveWindow is recommended to ensure all drive settings are preserved after the swap.

Q: Do I need to reconfigure the PROFIBUS or Modbus fieldbus adapter after replacing the control board?
A: The RPBA-01 (PROFIBUS-DP) or RMBA-01 (Modbus RTU) adapter must be re-seated on the new control board. Node address and baud rate settings are stored in the adapter itself, but communication link continuity should be verified from the PLC or DCS after installation to confirm that the drive is recognized correctly on the network.

Q: How do I confirm firmware compatibility between the LDSTA-01 63940143B and my existing I/O extension modules?
A: Check the firmware version of the replacement control board against the compatibility matrix for the RDIO-01 digital I/O extension and RAIO-01 analog I/O extension modules. ABB DriveStudio displays the firmware versions of all connected modules during the initialization sequence. If a version mismatch is detected, update the module firmware before returning the drive to service.

Q: What support terms and pre-shipment testing does KNMKS provide for the LDSTA-01 63940143B?
A: Every LDSTA-01 63940143B unit shipped by KNMKS undergoes functional testing prior to dispatch. The module is covered by a support terms confirmed by quotation against manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate shipment to minimize your system downtime. Contact admin@knmks.com or +86 18359268345 for availability and lead time confirmation.
