ABB JINT-C1C Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB JINT-C1C Maintenance-Proven Spare Part for Factory Uptime

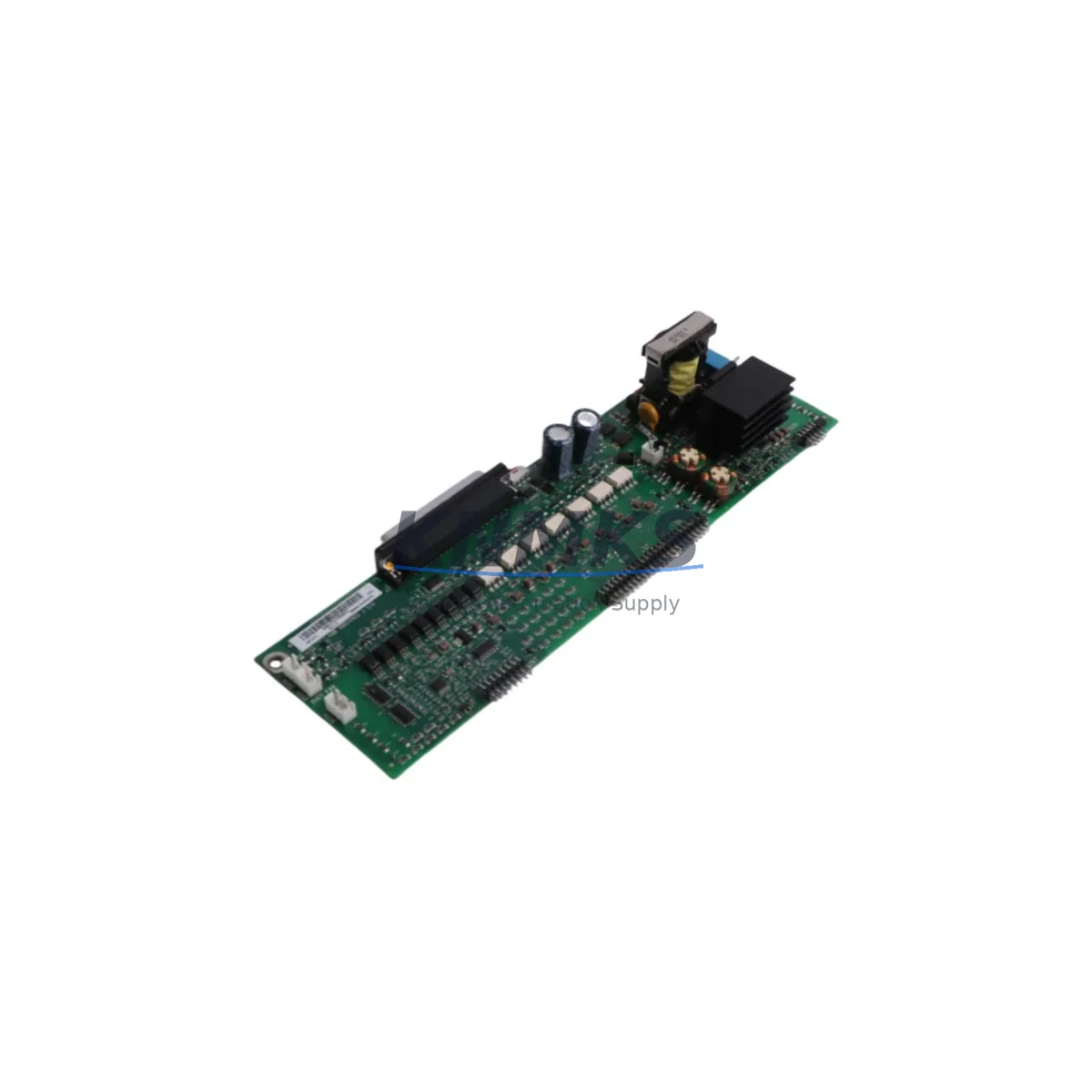

The ABB JINT-C1C is an original gate drive power card engineered for ACS800 series variable frequency drives. In industrial automation environments where unplanned downtime translates directly into production loss, having a verified, pre-tested JINT-C1C on the shelf is one of the most cost-effective decisions a maintenance or procurement engineer can make. This card governs the gate firing signals to the IGBT power modules within the ACS800 inverter section — a function so critical that a single failed gate pulse can trigger an immediate drive fault, halt a conveyor, pump, compressor, or extruder line, and cascade into hours of unplanned downtime.

Whether you are executing a scheduled annual overhaul, responding to an emergency fault code, or building a forward stock buffer for a multi-drive installation, the JINT-C1C is a high-priority spare. Its role in the ACS800 power stage makes it a first-line replacement candidate whenever diagnostics point to gate drive faults, IGBT overcurrent trips, or erratic switching behavior that cannot be resolved by parameter reset or firmware reload.

Every JINT-C1C unit dispatched from our warehouse undergoes pre-shipment functional verification. Backed by a support terms confirmed by quotation and supported by rapid global dispatch, this spare is sourced to meet the lead-time and quality expectations of maintenance teams operating in automotive, chemical, water treatment, pulp and paper, and heavy manufacturing sectors.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a gate drive fault on an ACS800 drive, the JINT-C1C is rarely the only component that warrants attention. A thorough fault isolation and preventive replacement workflow should extend to the surrounding electrical circuit and control architecture.

The AINT-02C or AINT-14C auxiliary power interface boards, which supply regulated DC voltages to the gate drive card, should be inspected for capacitor bulge, voltage ripple, and connector integrity. A degraded auxiliary power supply is a common root cause of intermittent gate drive faults that appear to originate from the JINT-C1C itself. Similarly, the APBU-44C or APBU-12C pulse encoder and branching units, which distribute gate pulses across parallel IGBT stacks in multi-drive configurations, should be checked for signal integrity and connector seating.

At the I/O and control layer, the RDIO-01C digital I/O extension module and RAIO-01C analog I/O module should be verified for correct signal levels, especially if the drive fault was accompanied by erratic speed reference or feedback anomalies. The RMIO-02C main control board, which coordinates all drive logic and communicates with the gate drive section, is a natural companion spare for any ACS800 cabinet where the JINT-C1C is being replaced — particularly in aging installations where the control board firmware version may be mismatched after a card swap.

For drives integrated into fieldbus-controlled production lines, the RDNA-01C DeviceNet adapter or RPBA-01C PROFIBUS adapter should be inspected to confirm that communication loss alarms were not masking an upstream control fault. Terminal blocks, 24 VDC control power fuses, and cabinet cooling fan units should also be checked as part of any gate drive replacement workflow — thermal stress from inadequate cooling accelerates gate drive card degradation and can cause repeat failures if not addressed.

Procurement engineers building a spare parts inventory for ACS800 installations should consider stocking the JINT-C1C alongside the AINT auxiliary power board and at least one RMIO main control board per drive family. This three-component buffer covers the majority of ACS800 field failure scenarios and significantly reduces mean time to repair (MTTR) for critical drive assets.

Site Replacement Workflow

Before removing the JINT-C1C from a faulted ACS800 drive, isolate the drive from mains power and allow the DC bus capacitors to fully discharge — a minimum of five minutes after power-off, confirmed by DC bus voltage measurement below 50 VDC. Document the existing card position, connector orientation, and any visible damage to adjacent components.

Remove the faulty gate drive card by releasing the board retaining clips and disconnecting the ribbon and power connectors. Inspect the IGBT module gate terminals for carbon tracking, discoloration, or mechanical damage before installing the replacement JINT-C1C. If IGBT damage is present, the power module must be replaced before the new gate drive card is energized — installing a new JINT-C1C into a drive with a shorted IGBT will destroy the replacement card immediately.

After installing the JINT-C1C, restore control power only (not mains) and verify that the drive control panel displays no gate drive fault codes. Confirm auxiliary power supply voltages are within specification before applying mains power. Run the drive at no-load for a minimum of five minutes, monitoring for fault recurrence, abnormal current draw, or thermal anomalies. This workflow is applicable to both direct JINT-C1C replacements and upgrades from earlier gate drive card revisions used in legacy ACS800 installations.

For sites transitioning from older ACS800 hardware to current production equivalents, the JINT-C1C provides a direct form-fit-function replacement that eliminates the need for drive parameter re-entry or control wiring modification, preserving system compatibility and minimizing the engineering time required to return the drive to service.

Spare Parts Support FAQ

Q1: What is the support terms coverage for the JINT-C1C?
Every JINT-C1C supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Each unit is functionally tested before dispatch to ensure it meets gate drive performance specifications.

Q2: How do I confirm JINT-C1C compatibility with my specific ACS800 drive?
Compatibility is confirmed by cross-referencing the ACS800 drive type code (found on the drive nameplate) with the IGBT module type installed in the power stage. Contact our technical team with your drive type code and we will verify compatibility before shipment. Do not install the JINT-C1C without confirming the IGBT module type — mismatched gate drive cards can cause immediate IGBT failure.

Q3: Can KNMKS support long-term or repeat supply of the JINT-C1C for multi-site installations?
Yes. KNMKS maintains multi-region stock of the JINT-C1C and can support blanket purchase orders, scheduled releases, and consignment stock arrangements for customers with large ACS800 fleets. Contact our procurement team to discuss long-term supply agreements and volume pricing.

Q4: What inspection should be performed before installing a replacement JINT-C1C?
Before installation, inspect the IGBT module gate terminals for damage, verify auxiliary power supply voltages are within specification, and confirm the DC bus is fully discharged. Check the AINT auxiliary power board for capacitor degradation. If the original fault was caused by an IGBT failure rather than a gate drive card failure, the IGBT module must be replaced first. Installing a new JINT-C1C into a drive with a damaged IGBT will result in immediate card failure.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

JINT-C1C
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB JINT-C1C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
