ABB JINT-C1C 68614902H Spare Part for Factory Uptime

Overview

ABB JINT-C1C 68614902H Spare Part for Factory Uptime

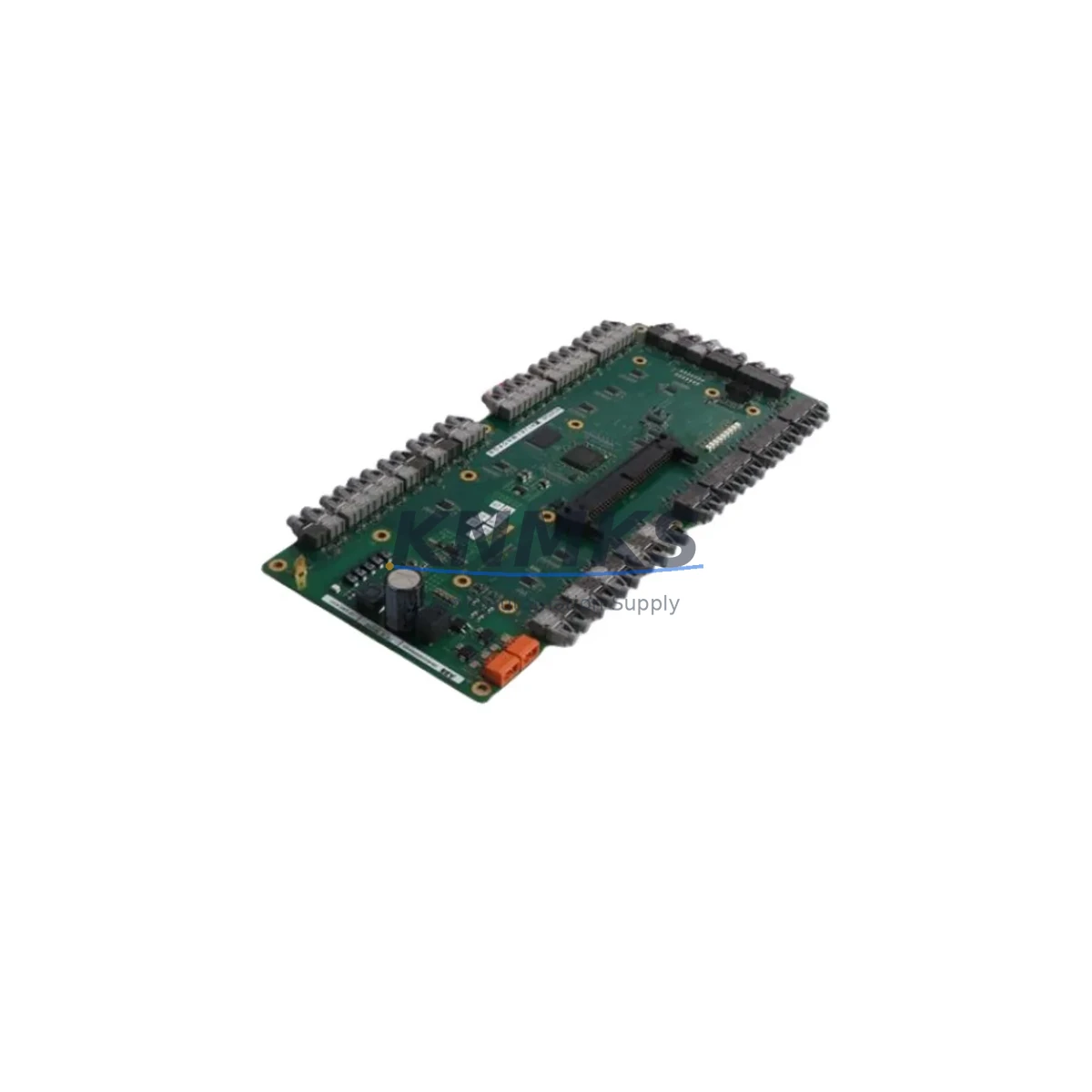

The ABB JINT-C1C (68614902H) is a factory-original DCS power supply board engineered for the ABB AC800M controller platform — one of the most widely deployed distributed control systems in process automation, power generation, and heavy manufacturing. When this board fails or degrades, the entire AC800M controller node is at risk of unplanned shutdown. Sourcing a verified, pre-tested replacement is the fastest path to restoring production continuity.

At KNMKS, every JINT-C1C 68614902H unit is individually inspected and function-tested prior to shipment. We supply original ABB spare parts with a support terms confirmed by quotation, supporting maintenance engineers and procurement teams who cannot afford counterfeit or untested components in safety-critical control loops.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A power supply board failure in the AC800M platform rarely occurs in isolation. When the JINT-C1C 68614902H shows signs of degradation — unstable 5 V or 24 V rail output, intermittent controller resets, or thermal shutdown events — maintenance engineers should treat it as a trigger for a broader cabinet inspection. The AC800M backplane (TB807 or TB840) distributes power to all installed I/O modules; a failing supply board can cause cascading faults across the entire node.

During a planned replacement of the JINT-C1C, it is best practice to simultaneously inspect the following components in the same control cabinet:

• AC800M CPU module (PM856 / PM860 / PM864) — verify firmware version and check for corrosion on the module connector pins after power restoration.
• S800 I/O modules (AI810, AO810, DI810, DO810) — confirm channel integrity and signal accuracy after the power supply is replaced, as voltage transients during failure can affect analog calibration.
• TB807 / TB840 backplane — inspect for burn marks, loose module latches, or damaged bus connectors that may have been stressed by the supply fault.
• CI854 / CI857 communication interface modules — PROFIBUS and FOUNDATION Fieldbus interfaces should be re-initialized and loop-tested after any power interruption to confirm device address integrity.
• 24 VDC panel power supply (e.g., ABB CP-E 24/5.0 or equivalent) — measure output voltage under load; a degraded external supply can accelerate wear on the JINT-C1C board itself.
• Cabinet fuse blocks and miniature circuit breakers — replace any fuses that show signs of thermal stress; verify MCB trip ratings match the current draw of the restored controller node.

For sites running multiple AC800M nodes, we recommend maintaining at least one JINT-C1C 68614902H as a cold-standby spare per control room. Procurement teams managing multi-site operations can contact KNMKS for 12–36 month blanket supply agreements with guaranteed stock reservation.

Site Replacement Workflow

Replacing the JINT-C1C 68614902H on a live AC800M system requires a structured approach to minimize downtime and avoid configuration loss:

1. Pre-replacement backup — Use ABB Control Builder M to export the full controller configuration, including application programs, hardware configuration, and communication settings. Store the backup on an isolated engineering workstation.
2. Controlled shutdown — Place the AC800M node in manual mode at the DCS operator station. Notify process operators and confirm all critical loops are in safe state before de-energizing the cabinet.
3. Board extraction — De-energize the cabinet, wait 60 seconds for capacitor discharge, then remove the JINT-C1C board from the backplane. Document the slot position and any jumper or DIP switch settings before removal.
4. Replacement installation — Insert the new JINT-C1C 68614902H, confirm firm seating on the backplane connector, and re-energize. Verify all power rail LEDs illuminate correctly before re-inserting CPU and I/O modules.
5. Configuration restore and loop test — Download the backed-up configuration to the controller. Perform a full I/O loop test on all connected field instruments before returning the node to automatic control.
6. Documentation update — Record the replacement in the site maintenance log with the new unit’s serial number and the support terms confirmed by quotation start date.

This workflow is compatible with both hot-standby redundant AC800M configurations and single-controller installations. For redundant systems, the replacement can be performed on the standby controller without process interruption, followed by a controlled switchover.

Spare Parts Support FAQ

Q1: Is the JINT-C1C 68614902H compatible with all AC800M controller variants?
The JINT-C1C power supply board is designed for the AC800M platform and is compatible with PM851, PM856, PM860, PM861, PM864, and PM866 CPU modules. Always verify the backplane revision (TB807 vs. TB840) before ordering, as connector pinouts may differ between early and late production revisions. KNMKS technical support can assist with compatibility confirmation based on your controller serial number.

Q2: What is included in the support terms confirmed by quotation and what does pre-shipment testing cover?
Every JINT-C1C 68614902H shipped by KNMKS undergoes function testing under load conditions, including output voltage stability verification on all rails, thermal cycling, and visual inspection for component defects. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical impact. Support requests are processed with a replacement-first policy to minimize your downtime.

Q3: Can KNMKS support long-term or multi-site spare parts inventory programs for the AC800M platform?
Yes. KNMKS offers 12–36 month blanket order agreements for the JINT-C1C and other AC800M spare parts, including CPU modules, I/O modules, communication interfaces, and backplanes. Stock reservation is confirmed at order placement, with scheduled release dates aligned to your planned maintenance windows. This is particularly valuable for sites with multiple AC800M nodes or for engineering firms managing spare parts across several client facilities.

Q4: How do I verify that a replacement JINT-C1C board is genuine ABB and not a counterfeit?
Genuine ABB JINT-C1C boards carry ABB part markings, a traceable production date code, and the reference code 68614902H on the PCB silkscreen. KNMKS sources exclusively from authorized distribution channels and decommissioned OEM equipment with verified provenance. Each unit ships with a test report and, where available, original ABB packaging. If you require additional traceability documentation for your quality management system, contact [email protected] before placing your order.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

JINT-C1C?68614902H
AC800M Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation
