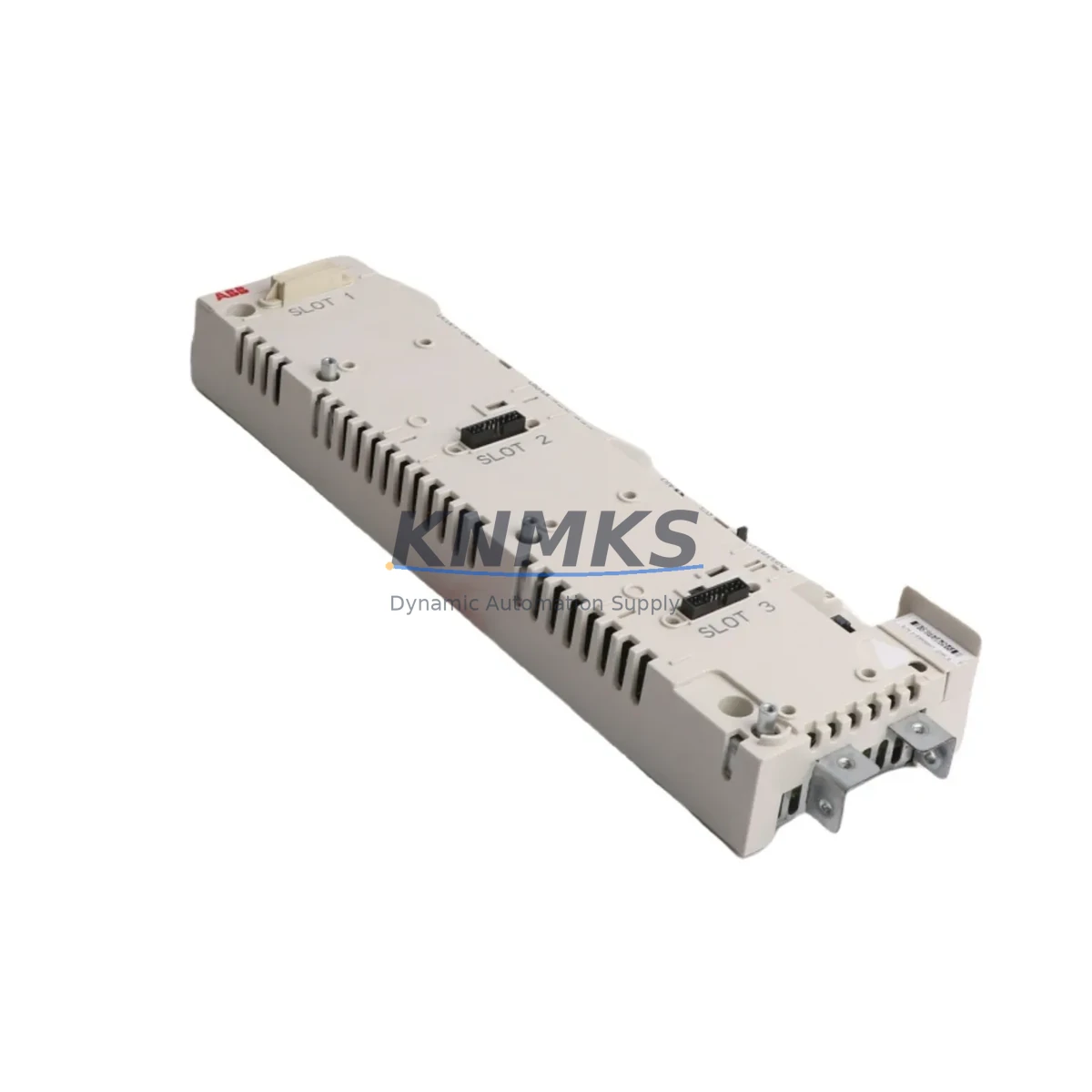

ABB JCU-01 68592917N Fail-Safe Drive Control Unit ACS800

Overview

ABB JCU-01 68592917N Fail-Safe Drive Control Unit ACS800: Fault Protection and Critical Industrial Field Reliability

The ABB JCU-01 68592917N is the dedicated control unit for the ABB ACS800 series industrial drives, engineered to deliver fail-safe operation across the most demanding continuous production environments. As the central intelligence of the ACS800 drive platform, the JCU-01 manages motor control algorithms, safety interlock logic, fieldbus communication, and real-time fault diagnostics — all within a single, ruggedized module designed to withstand the electrical and mechanical stresses of heavy industrial service.

In petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port terminals, and continuous manufacturing lines, unplanned drive downtime is never acceptable. The JCU-01 68592917N addresses this reality by providing deterministic control response, robust EMI immunity, and hardware-level fault isolation that prevents a single component failure from cascading into a full process shutdown. Its onboard diagnostics continuously monitor drive status, enabling predictive maintenance strategies that reduce mean time to repair and extend overall system availability.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable ACS800 drive cabinet is never built around a single component. The JCU-01 68592917N operates as the command center of a layered protection architecture. In high-load or high-interference environments, it works in concert with the ABB SDCS-CON-4 control board, which manages the DC current regulation and gate firing sequences for the drive’s power bridge. Upstream, the ABB AINT-02C or AINT-14C inverter control interface boards handle the IGBT gate driver signals, ensuring that any fault detected by the JCU-01 results in an immediate, controlled shutdown of the power stage rather than a destructive overcurrent event.

For cabinets operating in environments with significant voltage transients — common in steel mills, mining substations, and port crane systems — the JCU-01 is typically paired with ABB NPBU-12C or NPBU-42C branching units that distribute fieldbus communication across multiple drive modules without signal degradation. This architecture ensures that a communication fault on one drive node does not interrupt the control loop of adjacent drives in the same production line.

Power quality is equally critical. The JCU-01’s internal logic supply is conditioned through the ACS800’s APBU-44C power supply board, which provides regulated 24 VDC to the control electronics and isolates the JCU-01 from mains-side surge events. In dusty, humid, or thermally stressed enclosures, supplementing the drive cabinet with an ABB ACS800 door-mounted cooling fan unit or an external heat exchanger maintains the JCU-01 within its rated thermal envelope, preventing the thermal derating that leads to nuisance trips and accelerated component aging.

For safety-critical interlock circuits — such as emergency stop chains in chemical reactors or conveyor systems — the JCU-01’s STO (Safe Torque Off) input is wired in series with the plant’s safety relay, typically an ABB JOKAB PLUTO or equivalent IEC 62061-compliant safety controller. This configuration ensures that a safety demand results in a certified, monitored removal of drive torque without relying on software-only shutdown paths.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments where pump and compressor drives must never trip unexpectedly, the JCU-01 68592917N provides the deterministic fault response and STO interlock capability required by IEC 61511 functional safety standards. Its ability to log fault codes with millisecond-level timestamps supports post-incident root cause analysis without requiring drive disassembly.

Power Generation and Substation Auxiliaries: Boiler feed pump drives, induced draft fan drives, and cooling water pump drives in thermal power plants demand control units that maintain stable operation through grid disturbances, voltage sags, and high-frequency switching noise. The JCU-01’s EMC-hardened design and robust fieldbus isolation make it a proven choice for these applications.

Mining and Mineral Processing: Conveyor drives, crusher drives, and slurry pump drives in underground and open-pit mining operations are subject to extreme vibration, dust ingress, and wide ambient temperature swings. The JCU-01’s compliance with IEC 60068-2-6 vibration standards and its sealed connector interfaces support reliable long-term operation in these conditions.

Water and Wastewater Treatment: Variable-speed pump drives in water treatment facilities require precise flow control and reliable fault isolation to prevent both process upsets and motor damage. The JCU-01 supports the PID control and fieldbus integration needed for SCADA-supervised pump station automation.

Metallurgical and Steel Mill Applications: Rolling mill main drives and auxiliary drives in steel production operate under extreme cyclic loading and high electromagnetic interference from arc furnaces and induction heaters. The JCU-01’s hardware fault isolation and real-time diagnostics are essential for maintaining drive availability in these environments.

Port and Marine Applications: Crane hoist drives, gantry travel drives, and ship propulsion auxiliary drives require control units that can handle regenerative braking loads, rapid acceleration/deceleration cycles, and the corrosive marine atmosphere. The JCU-01’s robust construction and support terms confirmed by quotation provide the confidence needed for these mission-critical deployments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the JCU-01 68592917N?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the unit fails to perform its specified control and communication functions within the confirmed support period, we provide replacement or repair at no additional cost. The confirmed support period begins from the date of shipment.

Q2: What pre-shipment testing is performed on each JCU-01 unit?
Every JCU-01 68592917N undergoes a full functional verification before dispatch, including power-on self-test, communication port integrity check, and I/O signal verification. Units that do not pass all test criteria are quarantined and not shipped. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is the JCU-01 68592917N compatible with all ACS800 drive variants?
The JCU-01 68592917N is the standard control unit for the ABB ACS800 single-drive and multidrive platforms. Compatibility should be verified against the specific ACS800 hardware revision and firmware version in your installation. Our technical team can assist with compatibility confirmation based on your drive nameplate data and existing firmware version prior to order placement.

Q4: Can long-term supply and replacement support be guaranteed for this part?
Yes. We maintain regional warehouse stock of the JCU-01 68592917N to support both emergency replacement and planned maintenance programs. For customers with multiple ACS800 drives in service, we offer blanket stock arrangements that reserve dedicated inventory against your site’s maintenance schedule, reducing lead-time risk for critical spare parts.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

JCU-01 68592917N
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB JCU-01 68592917N
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
