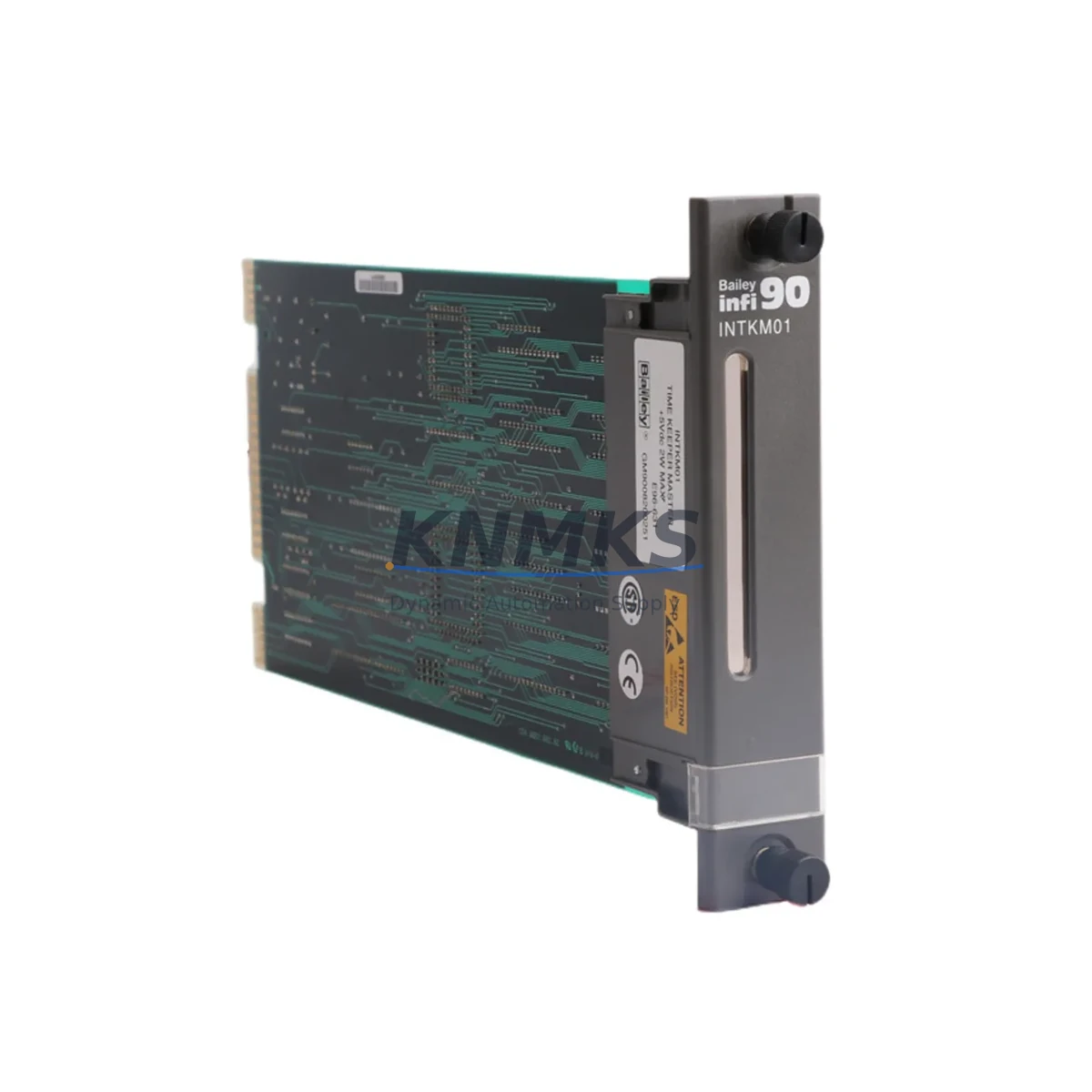

ABB INTKM01 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB INTKM01 Maintenance-Proven Spare Part for Factory Uptime

The ABB INTKM01 is the Time Keeper Master Module designed for the ABB AC500 PLC platform — one of the most widely deployed programmable logic controller families in industrial automation, process control, and critical infrastructure applications. As a dedicated timekeeping and synchronization component, the INTKM01 ensures that the AC500 CPU maintains accurate real-time clock (RTC) data across power cycles, enabling time-stamped event logging, scheduled task execution, and coordinated multi-node control sequences. For maintenance engineers managing aging AC500 installations, having a verified original INTKM01 spare on the shelf is a fundamental element of any uptime-first maintenance strategy.

KNMKS supplies the ABB INTKM01 as a tested, original spare part with a support terms confirmed by quotation, pre-shipment functional verification, and documentation support. Each unit is inspected prior to dispatch to confirm module integrity, connector condition, and firmware compatibility with the AC500 family. Whether you are responding to an unplanned failure, executing a scheduled annual overhaul, or building out a strategic spare parts inventory for a multi-line facility, the INTKM01 is available for immediate quotation and fast international shipment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The INTKM01 operates as an integral component within the broader AC500 control architecture. When a timekeeping failure or RTC drift is detected during routine diagnostics or a control cabinet inspection, the root cause is rarely isolated to the INTKM01 alone. Experienced maintenance engineers know that a thorough site assessment should accompany any module replacement.

Begin by verifying the AC500 CPU module itself — typically a PM554, PM564, or PM583 variant — to confirm that the CPU is operating within normal parameters and that the INTKM01 slot interface is undamaged. Inspect the 24 VDC power supply module feeding the AC500 rack, as voltage instability or ripple can cause intermittent RTC errors that mimic a faulty INTKM01. Check the TB521 or TB541 terminal base for secure seating and corrosion-free contacts, since poor backplane connectivity is a common but overlooked contributor to module communication faults.

If the AC500 system includes communication modules such as the CM572-DP PROFIBUS master or CM589-PNIO PROFINET interface, verify that network time synchronization settings are correctly configured after the INTKM01 is replaced — particularly in installations where the PLC timestamp is used for SCADA event correlation or historian logging. For systems with SD card or CF card data logging enabled on the CPU, confirm that the file system timestamps are re-synchronized post-replacement to avoid data integrity issues in maintenance records.

In control cabinets where the AC500 shares a DIN rail with 24 VDC fuse terminals, surge protection devices (SPDs), or signal isolators, inspect these components for signs of thermal stress or aging insulation. A proactive replacement of worn miniature circuit breakers (MCBs) or fuse holders during the same maintenance window reduces the risk of a secondary failure shortly after the INTKM01 is restored to service. Document all findings in the cabinet maintenance log to support future predictive maintenance scheduling.

Site Replacement Workflow

Replacing the ABB INTKM01 on-site is a straightforward procedure when the correct spare is available and the replacement sequence is followed systematically. Begin by placing the AC500 CPU in STOP mode via the programming tool (ABB Automation Builder or PS501 Control Builder Plus) and confirming that all controlled outputs are in a safe state. Power down the CPU rack before removing the existing INTKM01 to prevent ESD damage to the module interface.

Insert the replacement INTKM01 into the designated slot on the AC500 CPU module, ensuring the connector is fully seated. Restore power and allow the CPU to complete its self-test sequence. Use the programming tool to verify that the RTC is now reading correctly and set the current date and time if required. For systems running firmware versions that support automatic NTP synchronization, confirm that the time source is active and the INTKM01 is receiving valid time data.

This replacement procedure is compatible across the AC500 CPU range without requiring hardware configuration changes, making the INTKM01 a drop-in replacement for failed or degraded units in existing installations. The ability to restore timekeeping function without a full CPU swap significantly reduces mean time to repair (MTTR) and minimizes production downtime — a critical advantage in continuous-process and just-in-time manufacturing environments. KNMKS recommends maintaining at least one INTKM01 spare per AC500-equipped facility to support emergency replacement within the same shift.

Spare Parts Support FAQ

Q1: Is the INTKM01 compatible with all AC500 CPU variants?
The INTKM01 is designed for the ABB AC500 PLC platform and is compatible with the PM5xx CPU series. Compatibility should be verified against your specific CPU hardware revision and firmware version. KNMKS can assist with compatibility confirmation based on your existing system documentation or nameplate data.

Q2: What testing is performed before shipment?
Every INTKM01 unit supplied by KNMKS undergoes pre-shipment functional verification to confirm module integrity and connector condition. Units are inspected for physical damage, contact corrosion, and basic operational readiness before dispatch. A support terms confirmed by quotation is provided from the date of shipment.

Q3: Can KNMKS support long-term or blanket orders for the INTKM01?
Yes. KNMKS offers long-term supply agreements and blanket purchase order arrangements for customers managing multi-site AC500 installations or annual maintenance budgets. Contact our sales team to discuss volume pricing, scheduled delivery, and inventory reservation options.

Q4: What should I do if the replacement INTKM01 does not resolve the RTC fault?
If the RTC fault persists after replacing the INTKM01, the issue may originate from the AC500 CPU module itself, the power supply, or a firmware configuration error. KNMKS recommends checking the CPU diagnostic buffer via the programming tool and verifying power supply output voltage stability. Our technical support team can assist with fault isolation guidance based on your system configuration.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

INTKM01
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB INTKM01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
