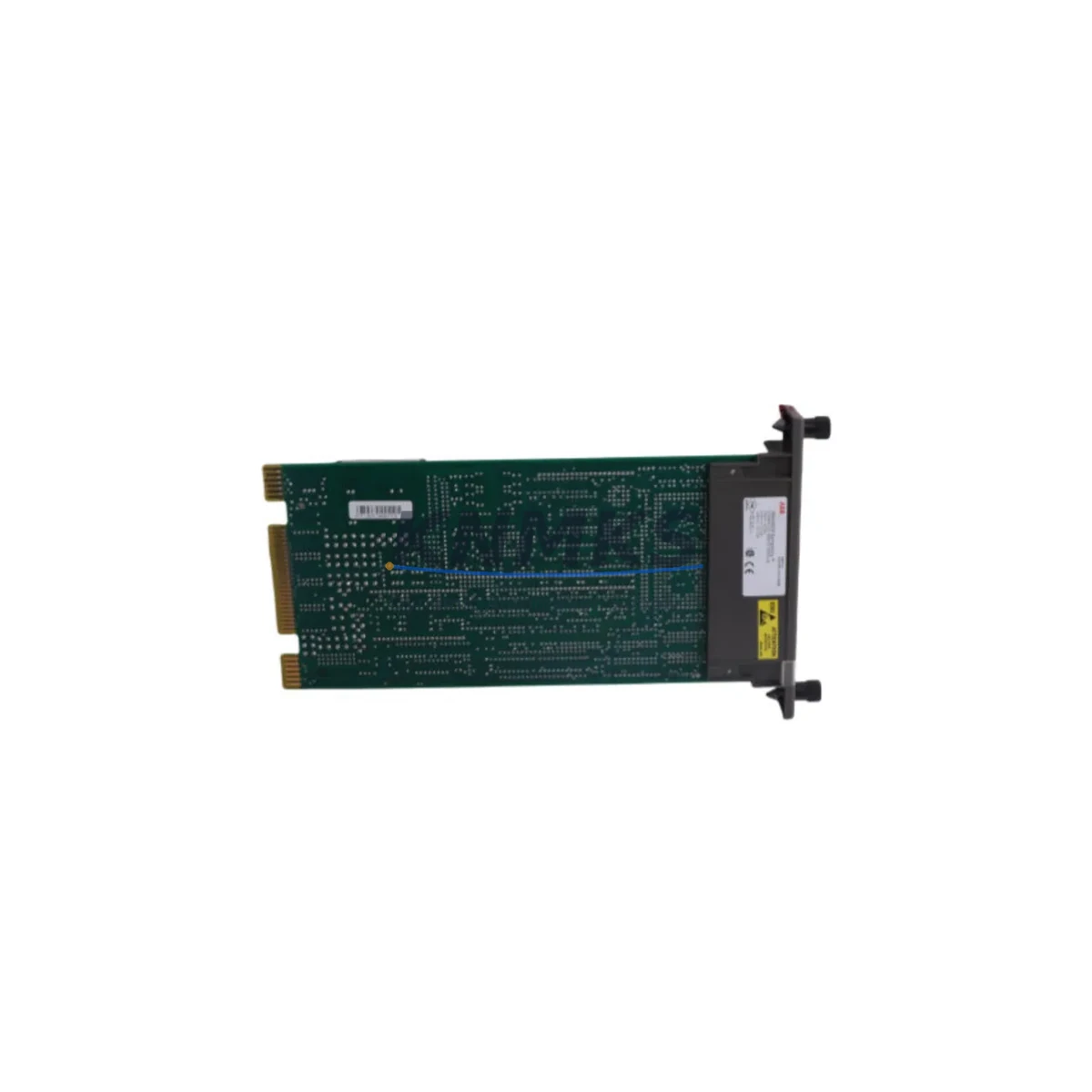

ABB IMHSS03 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB IMHSS03 Maintenance-Proven Spare Part for Factory Uptime

The ABB IMHSS03 is a servo interface module engineered for the ABB AC500 programmable logic controller platform — one of the most widely deployed modular PLC architectures in process automation, machine control, and industrial drive coordination. Designed to bridge the AC500 CPU with servo drive systems, the IMHSS03 handles high-speed position feedback, encoder signal routing, and real-time motion coordination across demanding production environments. When this module fails or degrades, servo axes lose synchronization, production lines halt, and recovery time escalates rapidly without a verified replacement on hand.

For maintenance engineers managing aging AC500 control cabinets, the IMHSS03 represents a critical single point of failure. Its role in servo loop closure — receiving encoder feedback, transmitting position commands, and maintaining drive-to-controller timing — means that any signal degradation, connector wear, or firmware incompatibility can cascade into full axis faults. Sourcing a maintenance-proven, original-specification IMHSS03 with documented pre-shipment testing is the most reliable path to restoring uptime without introducing new variables into a calibrated motion system.

This listing supplies the ABB IMHSS03 as an original spare part, dispatched from verified multi-region stock with a support terms confirmed by quotation and full pre-shipment functional testing. Each unit is inspected against ABB AC500 servo interface specifications before release, ensuring that the replacement module performs identically to the factory-installed original — critical for applications where servo tuning parameters, encoder resolution settings, and axis homing sequences are already optimized in the CPU program.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the IMHSS03 in an AC500 control cabinet, a disciplined maintenance engineer will not stop at the module itself. The servo interface sits at the intersection of power distribution, signal integrity, and motion control — meaning adjacent components must be inspected simultaneously to prevent repeat faults and ensure the restored axis performs reliably through the next maintenance cycle.

Begin with the AC500 CPU module (PM5xx series) — verify firmware version compatibility with the IMHSS03 hardware revision, and confirm that the servo axis configuration parameters stored in the CPU program match the replacement module’s encoder input settings. A firmware mismatch between CPU and interface module is a common source of post-replacement axis faults that are difficult to diagnose without version documentation.

Inspect the AC500 terminal base (TB5xx series) on which the IMHSS03 is mounted. Terminal base connector pins are subject to fretting corrosion in high-vibration environments, and a degraded base will cause intermittent communication errors even with a new interface module installed. If the terminal base shows pin discoloration or mechanical wear, replace it as part of the same maintenance event.

Check the 24VDC power supply module (PS5xx series) feeding the AC500 backplane. Servo interface modules are sensitive to supply voltage ripple and transient spikes generated by drive switching. A power supply operating near end-of-life with elevated output ripple can cause IMHSS03 communication timeouts and spurious encoder errors. Measure output voltage under load and compare against ABB specifications before closing the cabinet.

Examine all encoder signal cables connecting the servo drive to the IMHSS03 input terminals. Shielded encoder cables are vulnerable to insulation damage, connector pin corrosion, and shield continuity breaks — particularly in cable chains and flexible conduit runs. Use a cable tester to verify signal continuity and shield grounding before commissioning the replacement module. Also inspect the servo drive (ACS355 or ACS580 series) encoder output terminals for pin wear or contamination.

Review the I/O expansion modules (DC5xx series) in the same AC500 rack for any fault indicators that may have been masked by the IMHSS03 failure. A servo axis fault can suppress downstream I/O diagnostics in the CPU program, leaving secondary faults undetected until the primary module is restored. Clear all fault logs and perform a full rack diagnostic after the IMHSS03 replacement is complete.

Finally, verify the backplane communication bus integrity across all modules in the AC500 rack. Loose module seating, damaged backplane connectors, or excessive rack vibration can cause intermittent bus errors that are misdiagnosed as module failures. Re-seat all modules, torque terminal base screws to specification, and confirm bus communication status in the AC500 diagnostic interface before returning the system to production.

Site Replacement Workflow

Replacing the IMHSS03 on-site requires a structured approach to minimize downtime and avoid introducing configuration errors into a running servo system. Follow this workflow to ensure a clean, verified replacement:

Step 1 — Pre-Replacement Documentation: Before powering down, export the current AC500 CPU program and axis configuration parameters using ABB Automation Builder or PS501 Control Builder. Record the IMHSS03 hardware revision, firmware version, and all encoder configuration settings. This documentation is essential if the replacement module requires parameter re-entry or firmware alignment.

Step 2 — Controlled Shutdown: Command all servo axes to a safe home position before initiating a controlled CPU stop. Avoid hard power cuts during active motion — abrupt shutdowns can corrupt position data in the CPU and require full axis re-homing after restart. Isolate the AC500 rack power supply and discharge any residual bus voltage before opening the cabinet.

Step 3 — Module Extraction and Inspection: Remove the IMHSS03 from its terminal base by releasing the module latch and lifting vertically. Inspect the terminal base connector for pin damage or contamination. If the terminal base shows wear, replace it before installing the new module — a damaged base will degrade the replacement module’s performance and void the support terms claim on the new part.

Step 4 — Replacement Module Installation: Seat the new IMHSS03 firmly onto the terminal base until the latch engages. Verify that the module is fully seated and that no connector pins are bent or misaligned. Restore power to the AC500 rack and allow the CPU to complete its startup diagnostic sequence before enabling servo axes.

Step 5 — Configuration Verification and Commissioning: Load the exported axis configuration parameters and verify that the CPU recognizes the replacement IMHSS03 without hardware fault codes. Perform a slow-speed axis jog to confirm encoder feedback is being received correctly, then execute the standard axis homing sequence. Compare actual position feedback against expected values before returning the axis to automatic mode.

Step 6 — Post-Replacement Documentation: Record the replacement date, new module serial number, and commissioning test results in the site maintenance log. Update the spare parts inventory to reflect the consumed IMHSS03 and initiate a reorder to maintain minimum stock levels for this critical module.

Spare Parts Support FAQ

Q1: Is this IMHSS03 an original ABB part, and how is it tested before shipment?
Yes. Each IMHSS03 supplied through this listing is an original ABB spare part sourced from verified industrial supply channels. Prior to dispatch, every unit undergoes functional pre-shipment testing against ABB AC500 servo interface specifications, including encoder signal routing verification and backplane communication checks. A support terms confirmed by quotation is provided from the shipment date, covering manufacturing defects and functional failures under normal operating conditions.

Q2: Will this IMHSS03 be compatible with my existing AC500 CPU and servo drive configuration?
The IMHSS03 is designed for the ABB AC500 PLC platform and is compatible with PM5xx and PM5xx-ETH CPU modules. Compatibility with your specific servo drive and encoder type depends on the axis configuration programmed in the AC500 CPU. We recommend verifying the hardware revision of your installed module against the replacement unit and confirming firmware version alignment using ABB Automation Builder before installation. Our technical team can assist with compatibility verification prior to order confirmation.

Q3: What is your lead time, and do you maintain long-term stock for the IMHSS03?
The IMHSS03 is maintained in multi-region stock to support rapid dispatch for emergency replacement and planned maintenance orders. Standard lead time is 1–3 business days for in-stock units, with express dispatch available for critical downtime situations. Long-term supply continuity is a core commitment — we maintain rolling stock of high-demand AC500 spare parts to support customers through extended production runs and legacy system life extension programs beyond the standard ABB product lifecycle.

Q4: Can I return the IMHSS03 if it does not resolve my fault condition after installation?
If the IMHSS03 is installed correctly and the fault condition persists, our technical support team will assist with root cause analysis to determine whether the issue lies with the module, the terminal base, the encoder cable, or the CPU configuration. Units that are confirmed defective on arrival or fail within the support terms confirmed by quotation period are eligible for replacement or credit. We recommend completing the full site replacement workflow — including terminal base inspection and encoder cable verification — before concluding that the module is the fault source, as adjacent component failures are a common cause of persistent servo faults after module replacement.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IMHSS03
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB IMHSS03
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
