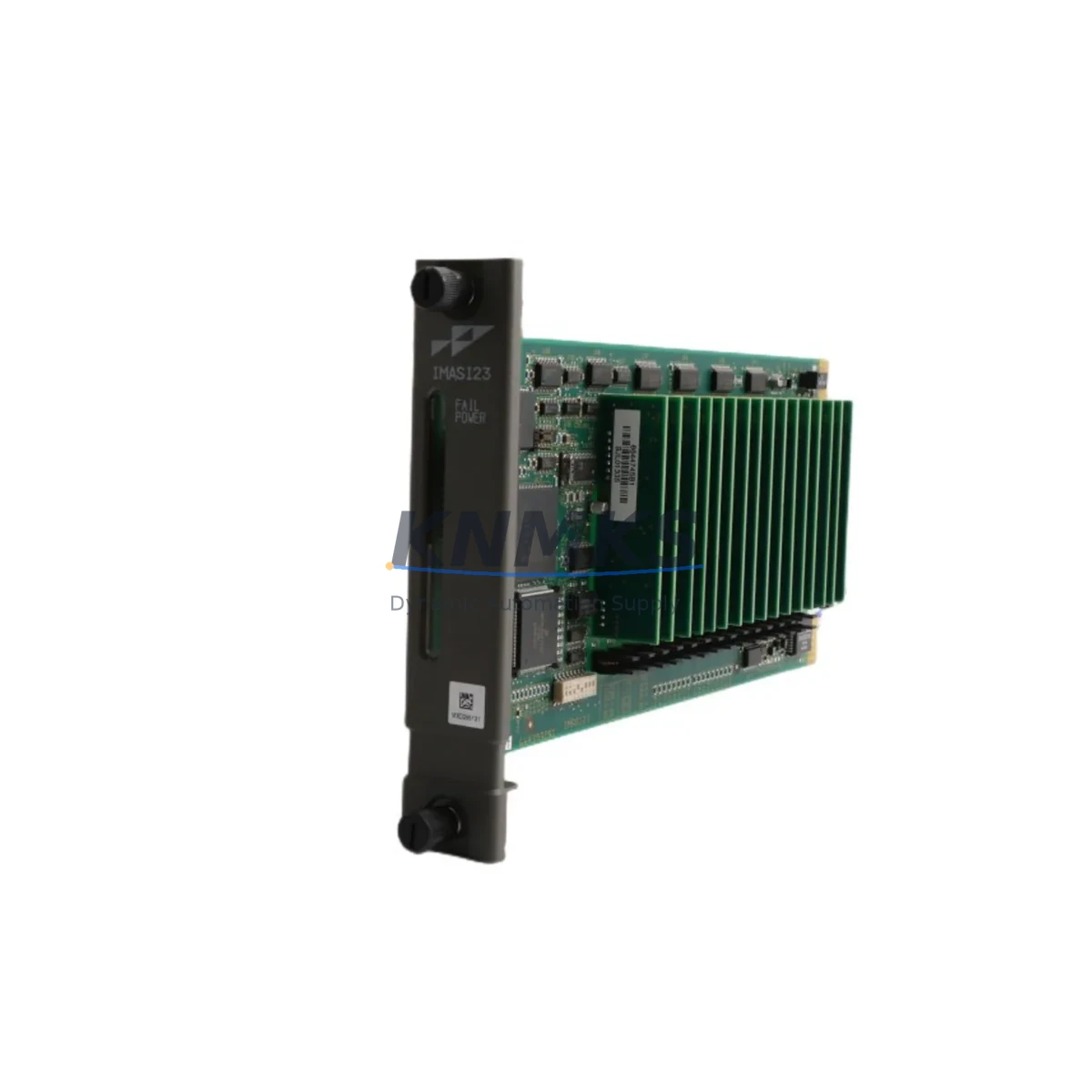

ABB IMASI23 Fail-Safe Analog Input for Industrial Control Reliability

Overview

ABB IMASI23 Fail-Safe Analog Input for Industrial Control Reliability

The ABB IMASI23 is an 8-channel safety-rated analog input module engineered for the ABB AC500 Safety PLC platform. Designed to operate in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, and continuous process manufacturing — the IMASI23 delivers fail-safe signal acquisition with the robustness required for critical safety instrumented systems (SIS) and emergency shutdown (ESD) loops.

In high-stakes control architectures where signal integrity directly determines process safety, the IMASI23 provides deterministic analog input processing with built-in diagnostics, channel-level fault detection, and SIL 2/3-capable signal paths. Whether deployed in a redundant safety loop alongside the ABB PM5650-2ETH CPU or integrated into a distributed I/O rack with the ABB TU515 terminal unit, this module maintains reliable data acquisition even under severe electromagnetic interference, voltage transients, and thermal stress.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered safety control cabinet, the IMASI23 does not operate in isolation. Its fail-safe performance depends on — and contributes to — a layered protection architecture that spans power supply integrity, communication reliability, and physical environmental hardening.

On the power side, pairing the IMASI23 with a high-quality ABB CP-E 24/5.0 or equivalent DIN-rail power supply ensures stable 24 VDC bus voltage even during grid fluctuations or inrush events. Voltage sags and surges are among the leading causes of analog signal drift and spurious fault trips in safety I/O modules; a regulated, surge-protected supply directly reduces this risk. For cabinets in substations or near heavy motor drives, additional transient voltage suppression at the cabinet entry point is strongly recommended.

On the communication and CPU side, the IMASI23 integrates with the ABB AC500-S Safety CPU (such as the PM5650-2ETH) via the internal AC500 backplane bus, ensuring deterministic, low-latency data transfer without reliance on external fieldbus cabling that could introduce noise or latency. In redundant architectures, a secondary CPU module and mirrored I/O configuration can be implemented to achieve hot-standby operation — critical for continuous process industries where any control interruption carries safety and financial consequences.

For field wiring termination, the ABB TU515 or TU516 terminal units provide screw-clamp or spring-clamp connections that maintain contact integrity under vibration — a common failure mode in mining, marine, and heavy manufacturing environments. Proper shielded cable routing, combined with the IMASI23’s built-in EMI rejection, significantly reduces signal noise from variable frequency drives (VFDs), welding equipment, and high-current bus bars sharing the same cable tray.

Cabinet thermal management is equally critical. The IMASI23 is rated for operation up to 60°C ambient, but sustained high temperatures accelerate component aging. Integrating cabinet cooling units or thermostat-controlled fans — and ensuring adequate spacing between modules — preserves the long-term reliability of the entire safety I/O rack, including the IMASI23 and adjacent ABB IMADO11 digital output modules that may control final control elements such as solenoid valves and motor contactors.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing, the IMASI23 is deployed in safety instrumented systems monitoring pressure transmitters, temperature sensors, and flow meters on critical process lines. Its SIL 2/3 capability makes it suitable for emergency shutdown (ESD) and fire-and-gas (F&G) detection loops where a missed or false signal can trigger catastrophic consequences. The module’s high diagnostic coverage ensures that any internal fault is detected and reported before it can compromise the safety function.

Power Generation and Substation Control: In thermal, hydro, and wind power facilities, analog input accuracy and noise immunity are paramount. The IMASI23 handles 4–20 mA signals from turbine speed sensors, generator temperature monitors, and transformer oil level transmitters with consistent precision, even in environments saturated with electromagnetic interference from high-voltage switching equipment.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme dust, humidity, and vibration. The IMASI23’s robust construction and wide operating temperature range allow it to function reliably in conveyor control systems, crusher automation, and ventilation safety interlocks — environments where unplanned downtime directly impacts production output and worker safety.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous analog monitoring of pH, dissolved oxygen, turbidity, and flow. The IMASI23 provides the signal integrity needed for regulatory compliance and process optimization, with fault diagnostics that alert operators to sensor degradation before it affects treatment quality.

Metallurgy and Steel Manufacturing: In electric arc furnaces, rolling mills, and continuous casting lines, the IMASI23 withstands the intense electromagnetic environment generated by high-current equipment. Its channel isolation and EMI hardening prevent cross-channel interference and signal corruption that could lead to incorrect control actions in temperature regulation or tension control loops.

Port Logistics and Marine Applications: Ship-to-shore cranes, automated stacking cranes, and vessel control systems demand analog I/O modules that tolerate salt-laden air, wide temperature swings, and constant mechanical vibration. The IMASI23’s compliance with marine-grade environmental standards makes it a dependable choice for these high-cycle, safety-critical applications.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB IMASI23?
The support terms confirmed by quotation cover all manufacturing defects and functional failures arising under normal operating conditions from the date of shipment. If the module fails to perform its specified analog input functions due to a verified defect, KNMKS will arrange replacement or repair at no additional cost. The support terms does not cover damage resulting from incorrect installation, overvoltage beyond rated limits, or unauthorized modification.

Q2: What pre-shipment testing is performed on the IMASI23?
Every IMASI23 unit dispatched by KNMKS undergoes functional verification testing prior to shipment. This includes power-on self-test confirmation, channel continuity checks, and communication handshake validation with the AC500 backplane interface. Units that do not pass functional testing are quarantined and not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the IMASI23 compatible with existing ABB AC500 non-safety PLC racks?
The IMASI23 is specifically designed for the ABB AC500 Safety platform and requires a Safety CPU (such as the PM5650-2ETH) and compatible safety terminal units (TU515/TU516) to operate in its full SIL-rated mode. While physical form factor compatibility with standard AC500 racks may exist, the safety functions of the IMASI23 are only activated and certified when used within a validated AC500-S safety configuration. Always verify your system architecture with ABB documentation or contact KNMKS for application-specific guidance.

Q4: Can KNMKS guarantee long-term supply and replacement support for the IMASI23?
Yes. KNMKS maintains dedicated inventory of ABB AC500 Safety series modules, including the IMASI23, to support both new project deployments and ongoing maintenance requirements. For facilities operating long lifecycle control systems — common in power, petrochemical, and water treatment industries — we offer scheduled procurement agreements to ensure spare parts availability without reliance on spot market sourcing. Contact our technical sales team to discuss your long-term supply requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IMASI23
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB IMASI23
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
