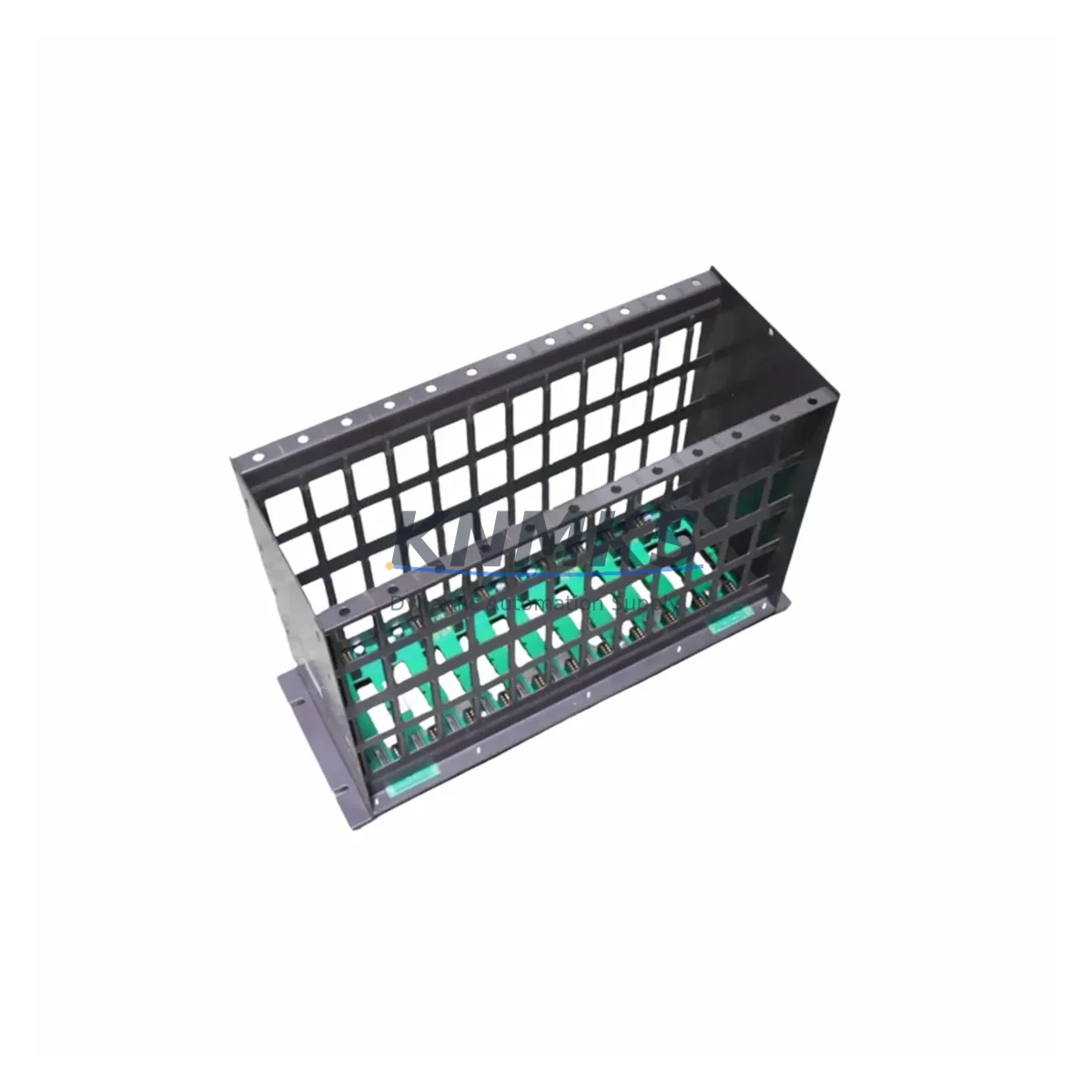

ABB IEMMU21 Fail-Safe Module Mounting Unit AC500

Overview

ABB IEMMU21 Fail-Safe Module Mounting Unit AC500: Fault Protection and Critical Industrial Field Reliability

The ABB IEMMU21 is a precision-engineered module mounting unit designed for the AC500 programmable logic controller platform — one of ABB’s most widely deployed control architectures across continuous process industries. In critical control environments where unplanned downtime carries severe operational and safety consequences, the IEMMU21 provides the structural and electrical foundation that keeps I/O modules, communication cards, and safety relay assemblies firmly seated, correctly grounded, and continuously operational under demanding field conditions.

Engineered to IEC 61131-2 mechanical and environmental standards, the IEMMU21 supports stable rack-level integration within control cabinets exposed to high electromagnetic interference, vibration, thermal cycling, and humidity ingress. Its robust backplane contact system ensures low-resistance signal paths between the CPU module and field I/O cards, directly reducing the risk of signal drift, intermittent communication faults, and nuisance trips that can cascade into process shutdowns. In high-EMI environments — such as those found near variable frequency drives, large motor starters, or arc furnace control panels — the IEMMU21’s shielded mounting architecture provides a measurable layer of protection against induced noise on analog and digital I/O channels.

For control cabinets operating in petrochemical plants, power generation facilities, and mineral processing sites, the IEMMU21 is routinely paired with the ABB AC500 PM573 or PM583 CPU modules, which handle the primary PLC logic execution. The mounting unit’s slot configuration accommodates a full complement of ABB TB521 and TB541 terminal base units, allowing engineers to build dense, organized I/O assemblies without compromising airflow or maintenance access. When combined with the ABB SD802F safety digital output module or the AI523 analog input module, the IEMMU21 forms a complete, pre-validated control node that can be bench-tested, documented, and shipped as a ready-to-install assembly — significantly reducing commissioning time during planned outages or emergency replacements.

Power supply stability is a critical dependency for any rack-mounted PLC system. The IEMMU21 is designed to operate reliably alongside ABB CP604 or CP605 power supply modules, which provide regulated 24 VDC to the backplane bus. In facilities where mains power quality is variable — including sites with diesel generator backup, weak grid connections, or frequent switching transients — the combination of a stable power supply module and the IEMMU21’s low-impedance backplane bus minimizes the risk of brownout-induced CPU resets or I/O module dropouts. For installations requiring additional surge protection at the cabinet entry point, the IEMMU21 is compatible with DIN-rail-mounted surge protective devices that clamp transient overvoltages before they reach the backplane.

In safety-instrumented system (SIS) architectures, the IEMMU21 supports the physical segregation of safety-rated I/O from standard process control I/O — a requirement under IEC 61511 for SIL-rated loops. By providing dedicated mounting positions for ABB’s safety-certified modules, the IEMMU21 enables engineers to maintain clear physical and electrical boundaries between safety and non-safety circuits within the same control cabinet, simplifying functional safety audits and reducing the risk of common-cause failures.

Every IEMMU21 unit supplied by KNMKS undergoes pre-shipment functional verification, including backplane continuity testing, slot contact resistance measurement, and visual inspection against ABB factory acceptance criteria. Units are dispatched from multi-region stock with a support terms confirmed by quotation covering manufacturing defects and premature failure under normal operating conditions. Same-day dispatch is available for in-stock units, supporting emergency replacement scenarios where control system downtime must be minimized.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable AC500 control cabinet is built around the coordinated selection of components that protect against the full spectrum of electrical and environmental threats. The IEMMU21 serves as the structural backbone, but its protective value is multiplied when integrated with complementary ABB components. The ABB CP605 power supply module provides clean, regulated 24 VDC to the backplane, with built-in overload and short-circuit protection that prevents a downstream fault from collapsing the entire control bus. For CPU-level redundancy in high-availability applications, the ABB PM591 or PM592 CPU modules support hot-standby configurations that allow the control system to continue executing safety-critical logic even during a primary CPU fault.

Communication integrity is maintained through the ABB CI590-CS31-HA communication interface module, which provides a hardened CS31 fieldbus connection between the AC500 rack and remote I/O stations — a common architecture in large petrochemical or power plant control rooms where field devices are distributed across significant distances. For analog signal conditioning, the ABB AI523 analog input module provides 16-channel, 4–20 mA input capability with hardware filtering that suppresses high-frequency noise before it reaches the CPU scan cycle. In safety interlock circuits, the ABB SD802F safety digital output module provides SIL 2-rated output switching with internal diagnostics that detect output short circuits and open-load conditions before they cause undetected failures in the safety function. Together with the IEMMU21, these components form a complete, field-proven control node capable of sustaining reliable operation in the most demanding industrial environments.

Critical Industrial Safety Applications

The ABB IEMMU21 is deployed across a broad range of critical industrial sectors where control system reliability directly impacts personnel safety, environmental compliance, and production continuity.

In petrochemical and refinery facilities, the IEMMU21 supports AC500-based emergency shutdown (ESD) and process control systems that manage high-pressure reactor interlocks, flare system controls, and compressor protection logic. The module mounting unit’s ability to maintain stable I/O connectivity under high-vibration and high-temperature cabinet conditions is essential in these environments, where a single control interruption can trigger a full plant shutdown or safety system activation.

In power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — the IEMMU21 is used in turbine control panels, excitation system cabinets, and auxiliary protection relay assemblies. Its compatibility with ABB’s safety-rated I/O modules allows plant engineers to implement SIL 2-rated protection functions within the same physical rack as standard process control I/O, reducing cabinet footprint without compromising functional safety integrity.

In mining and mineral processing operations, where control cabinets are exposed to heavy dust loading, mechanical vibration from crushing and conveying equipment, and frequent power quality disturbances from large motor starts, the IEMMU21’s robust DIN-rail mounting and sealed backplane contacts provide a level of mechanical reliability that generic mounting solutions cannot match. The unit is routinely used in conveyor interlock systems, crusher protection panels, and slurry pump control cabinets.

In water and wastewater treatment facilities, the IEMMU21 supports AC500-based SCADA-connected control panels managing pump station interlocks, chemical dosing systems, and UV disinfection controls. Its wide operating temperature range and humidity tolerance make it suitable for both indoor pump station environments and outdoor weatherproof enclosures in tropical or coastal climates.

In port and maritime applications, including ship-to-shore crane control systems and vessel automation panels, the IEMMU21 provides the mechanical stability and corrosion-resistant construction required for marine-grade control cabinet installations subject to salt air, condensation, and continuous vibration from vessel motion or crane operation.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover for the IEMMU21?
The support terms confirmed by quotation cover manufacturing defects, premature backplane contact failure, and any functional fault that occurs under normal operating conditions as defined by ABB’s AC500 installation guidelines. Support requests are supported by KNMKS’s technical team, with replacement units dispatched from in-stock inventory to minimize downtime. The confirmed support period begins from the confirmed dispatch date.

Q: What pre-shipment testing is performed on each IEMMU21 unit?
Every IEMMU21 unit undergoes a structured pre-shipment inspection that includes backplane bus continuity testing across all slot positions, slot contact resistance measurement to verify low-impedance connections, and a full visual inspection against ABB factory acceptance criteria. Units that do not meet specification are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.

Q: Is the IEMMU21 compatible with all ABB AC500 CPU and I/O modules?
The IEMMU21 is designed for the ABB AC500 platform and is compatible with the PM5xx CPU family (including PM571, PM573, PM581, PM583, PM591, PM592) and the full range of AC500 I/O modules mounted on TB521 and TB541 terminal bases. Compatibility with specific firmware versions or safety-rated module combinations should be verified against ABB’s AC500 system configuration guide for the target application.

Q: Can KNMKS support long-term supply agreements for the IEMMU21 in ongoing maintenance programs?
Yes. KNMKS maintains multi-region stock of the IEMMU21 and can support scheduled maintenance programs, annual spare parts agreements, and emergency replacement contracts. For facilities operating multiple AC500 control systems, consolidated supply agreements covering the IEMMU21 alongside compatible CPU modules, power supply modules, and I/O cards are available. Contact [email protected] or +86 18359268345 to discuss supply terms.
