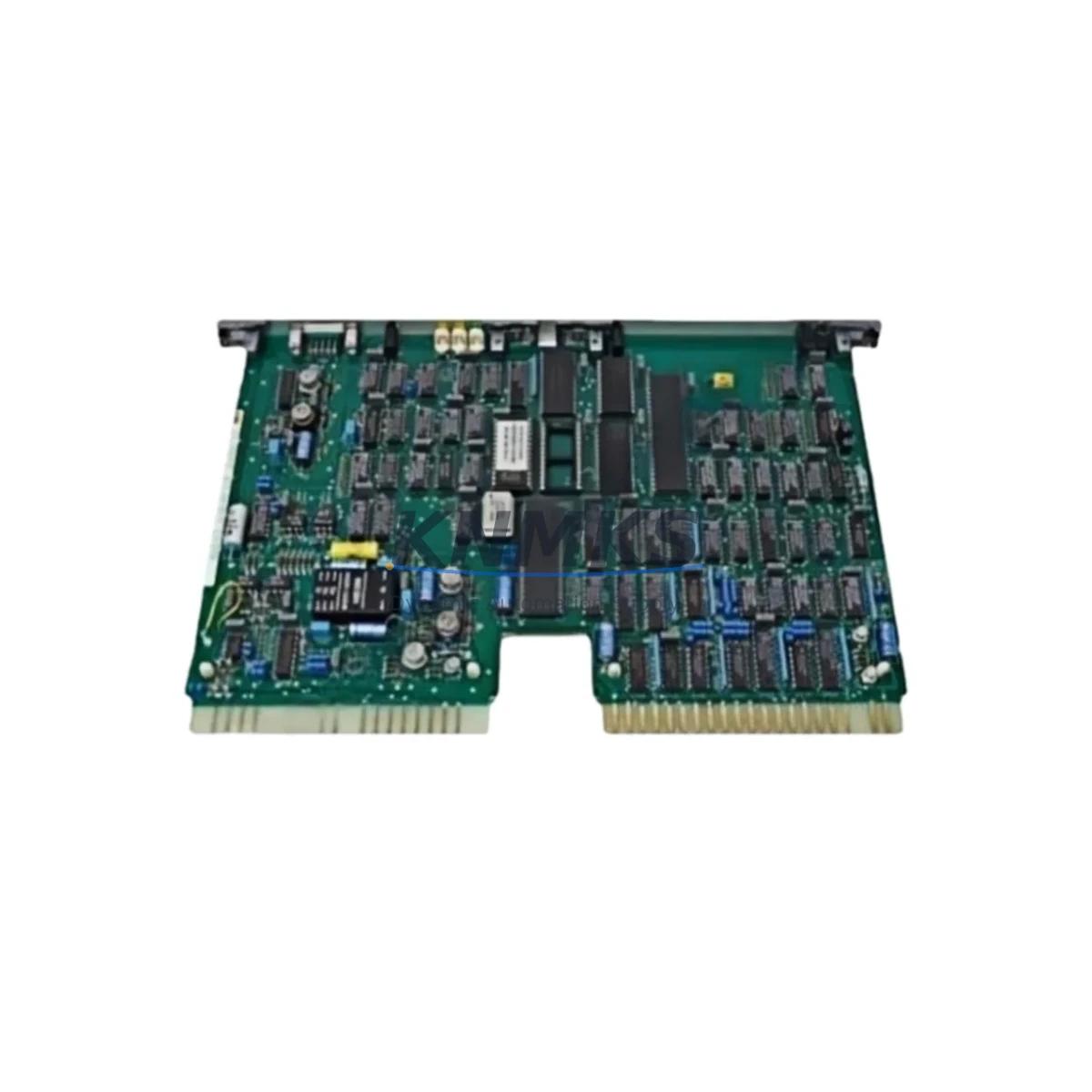

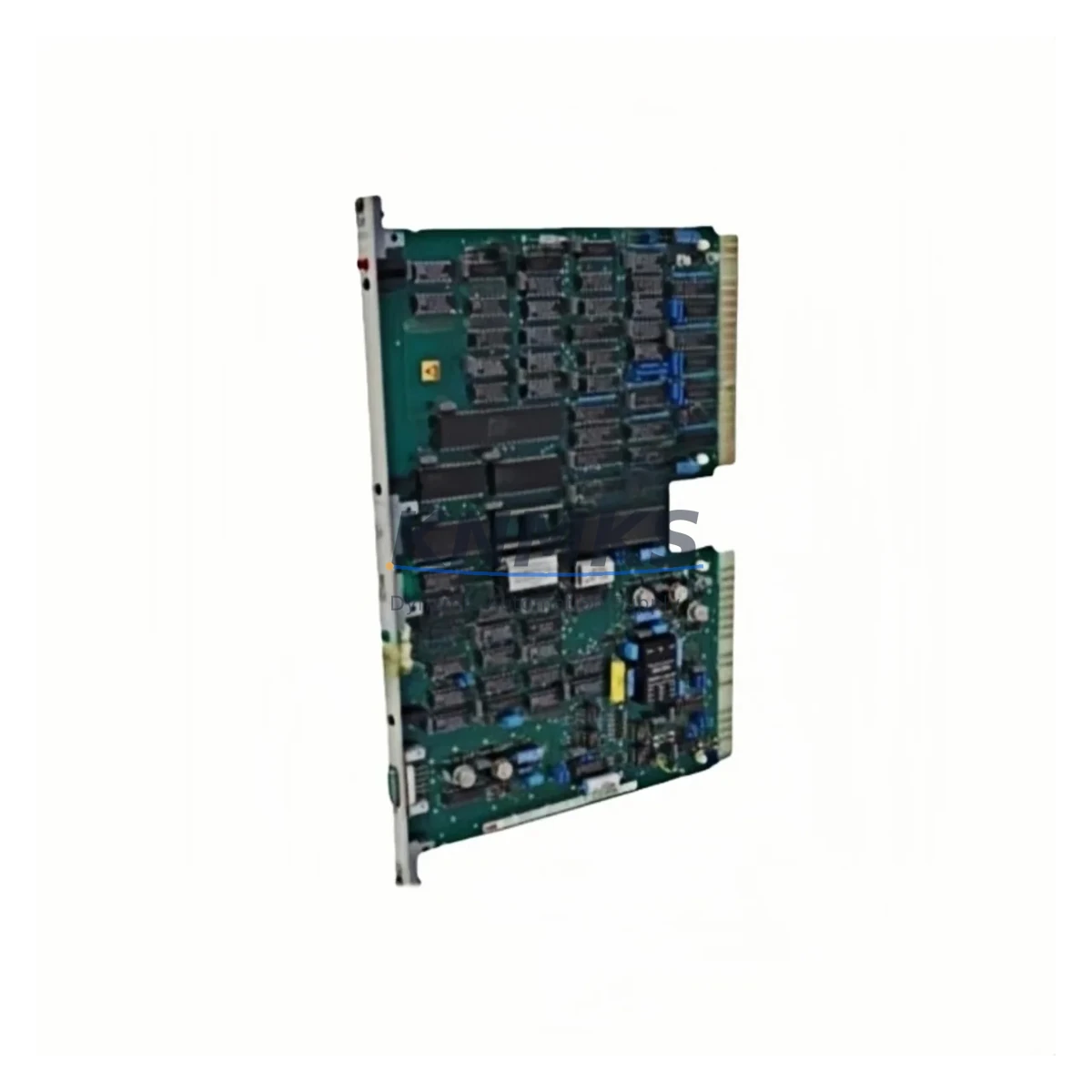

ABB HTDC606701R001-XB8344A Migration-Ready DC Drive Panel

Overview

ABB HTDC606701R001-XB8344A Migration-Ready DC Drive Panel: Legacy System Retrofit and Compatibility Upgrade

The ABB HTDC606701R001-XB8344A is a migration-ready DC drive control panel engineered to serve as a verified drop-in replacement for legacy ABB DCS and DCV series DC drive systems. As industrial facilities face increasing pressure to modernize aging control infrastructure — particularly systems built around discontinued ABB drive platforms — this panel provides a structured, low-risk upgrade path that preserves existing wiring topology, minimizes engineering rework, and reduces unplanned downtime during the transition period.

This unit is sourced directly from authorized supply channels, undergoes pre-shipment functional testing, and is backed by a support terms confirmed by quotation covering both hardware integrity and operational performance under rated load conditions. Stock is maintained to support urgent replacement scenarios, including emergency shutdowns, planned turnarounds, and phased modernization programs across energy, petrochemical, manufacturing, and infrastructure sectors.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the HTDC606701R001-XB8344A into a legacy control environment requires systematic pre-installation planning. Engineers should begin by auditing the existing control cabinet layout to confirm available installation space, backplate clearance, and ventilation requirements. The panel’s power supply input must be matched against the site’s available AC supply voltage and phase configuration — mismatches here are a common source of commissioning delays.

Terminal block wiring should be mapped against the original ABB drive wiring diagram before any disconnection occurs. Armature circuit connections, field supply terminals, and analog speed reference inputs must be individually verified. Where the original system used an ABB ACS800 or ACS600 series AC drive in a mixed-drive cabinet, the DC bus isolation and grounding scheme must be reviewed to prevent cross-interference.

For facilities running ABB Freelance or ABB 800xA distributed control systems, the HTDC606701R001-XB8344A communicates via PROFIBUS-DP or Modbus RTU depending on the installed communication adapter module. Engineers should confirm the existing DP address assignment and ensure the replacement panel is configured to the same node address before reconnecting the fieldbus segment. Where the control system uses an ABB CI854 PROFIBUS interface module or equivalent, the GSD file version should be verified against the new panel’s firmware.

I/O expansion requirements should also be assessed at this stage. If the legacy system relied on discrete I/O modules mounted in an adjacent ABB S800 I/O cluster or similar remote I/O rack, the new panel’s I/O mapping must be validated against the existing PLC program logic to avoid address conflicts. Signal isolators may be required where analog feedback signals from tachogenerators or encoders are routed through the control panel before reaching the PLC input card.

HMI screen configurations referencing the legacy drive’s parameter addresses will require updating. Operators using ABB CP600 or CP400 series HMI panels should work with the system integrator to remap drive status tags, fault codes, and speed reference displays to the new panel’s register map before go-live.

Downtime Control During System Migration

Minimizing production interruption during a DC drive panel replacement requires a structured changeover sequence. The recommended approach is to complete all pre-wiring, parameter documentation, and HMI tag remapping during a scheduled maintenance window before the physical swap occurs. This allows the actual panel exchange to be completed within a single shift, with the control system returning to automatic mode as soon as commissioning checks are passed.

Before powering down the existing panel, engineers should export or manually record all drive parameters — including speed reference scaling, current limits, acceleration/deceleration ramps, and fault response settings. These values must be re-entered into the HTDC606701R001-XB8344A during commissioning, as factory defaults will not match the tuned values of the legacy installation.

The original PLC program logic should be preserved without modification during the panel swap. Any changes to I/O addressing or communication node configuration should be made in a staging environment and validated offline before being downloaded to the live controller. This protects the integrity of the existing control sequence and reduces the risk of introducing logic errors during the migration.

Where continuous process control is required, a temporary bypass or manual control arrangement should be established before the panel is removed. This allows the process to continue operating at reduced capacity while the replacement is completed, avoiding a full production shutdown. Once the new panel is installed and commissioned, the bypass is removed and the system is returned to automatic control under supervision.

Retrofit Support FAQ

Q: Is the HTDC606701R001-XB8344A a direct replacement for my existing ABB DC drive panel?
A: This panel is designed as a migration-ready replacement for legacy ABB DCS and DCV series DC drive control panels. Direct compatibility depends on your specific installation’s wiring configuration, communication protocol, and firmware version. We recommend providing your existing panel’s nameplate data and wiring diagram for pre-sale verification before ordering.

Q: What commissioning steps are required after installation?
A: After physical installation and wiring verification, the panel requires parameter re-entry (speed reference, current limits, ramp times), communication node address configuration, encoder or tachogenerator feedback calibration, and a no-load test run before returning to full production load. A commissioning checklist is available upon request.

Q: Does the panel ship with pre-shipment testing documentation?
A: Yes. Each unit undergoes functional testing prior to shipment. Test records confirming rated output performance are included with the delivery. The support terms confirmed by quotation cover hardware defects and operational performance under rated conditions from the date of shipment.

Q: What is the typical lead time and stock availability?
A: Stock is maintained for immediate dispatch to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days depending on destination. For large-quantity orders or long-term supply commitments, contact our sales team to discuss inventory reservation arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HTDC606701R001-XB8344A

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB HTDC606701R001-XB8344A
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
