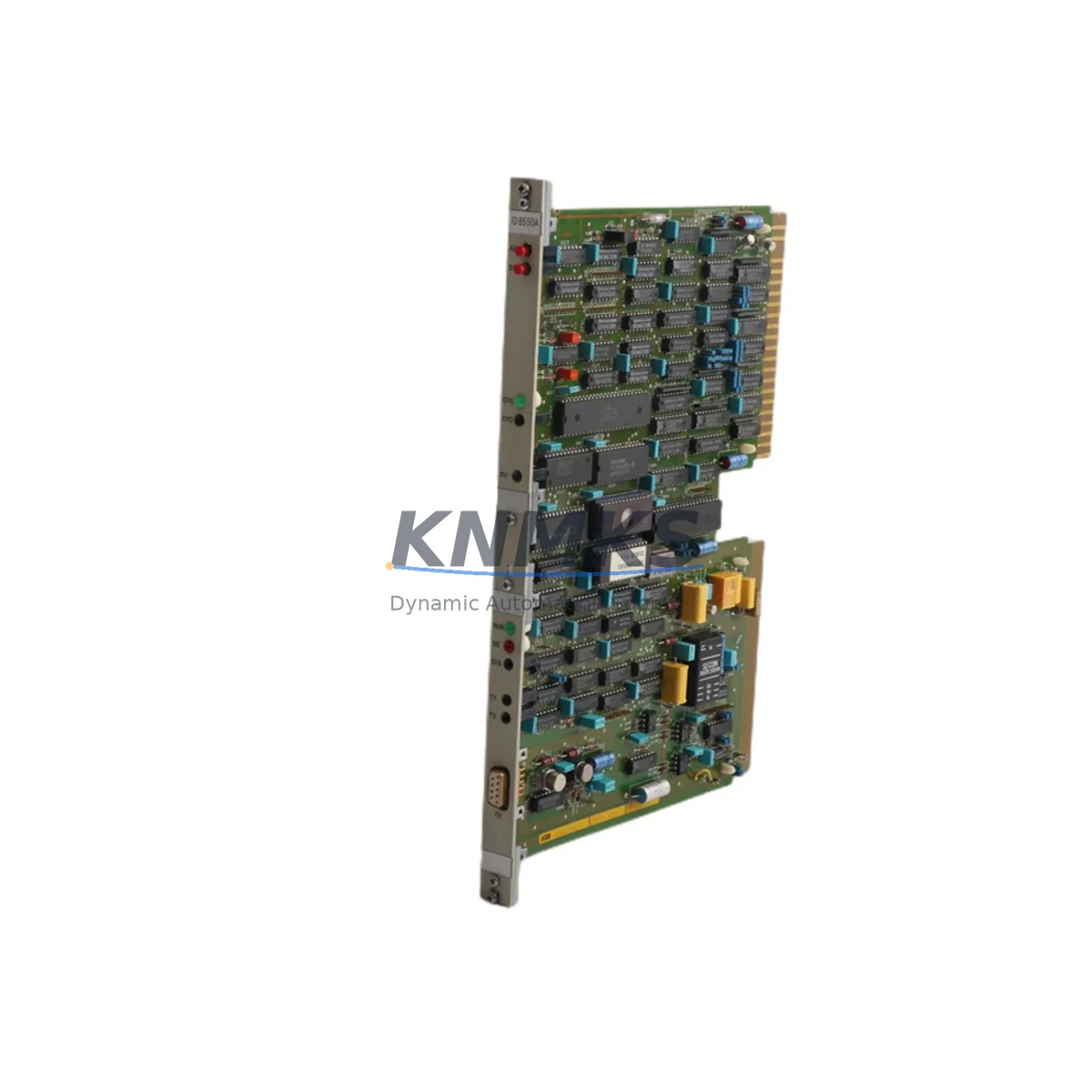

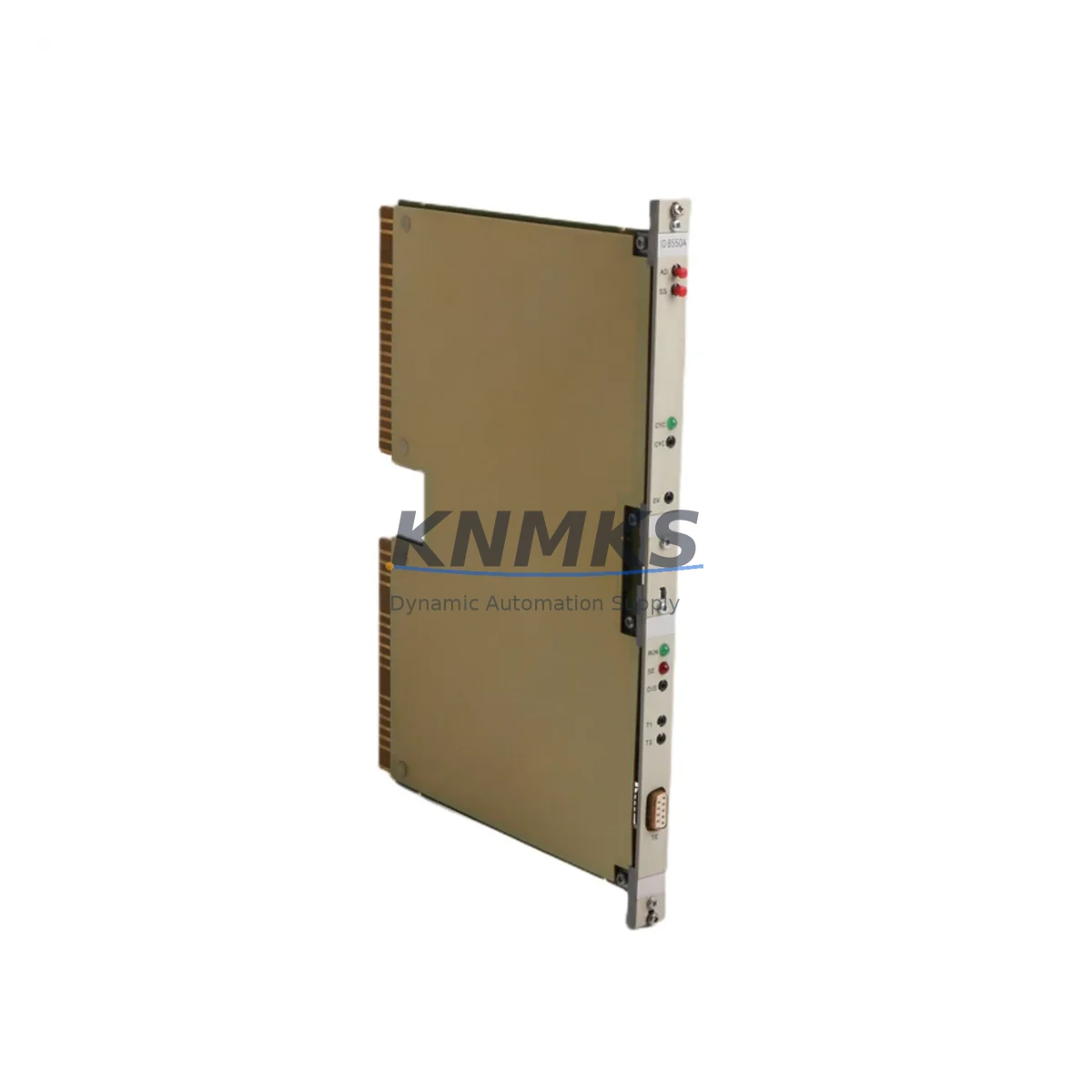

ABB HITE303018R1 IDB550A Migration-Ready PROFIBUS Module

Overview

ABB HITE303018R1 IDB550A Migration-Ready PROFIBUS Module for Legacy Control Systems

The ABB HITE303018R1 IDB550A is a PROFIBUS DP interface module engineered for the ABB DP800 drive and control platform. As legacy automation infrastructure reaches end-of-life, this module serves as a verified drop-in replacement for discontinued PROFIBUS communication cards in existing control cabinets, enabling engineers to extend system service life, restore communication links, and defer full platform migration without rewriting core PLC logic or redesigning cabinet layouts.

For facilities operating ABB DP800 series drives integrated into PROFIBUS DP networks, sourcing a compatible IDB550A interface module is often the most cost-effective path to restoring full fieldbus communication after a hardware failure. The HITE303018R1 variant is factory-configured for direct installation into the DP800 option slot, eliminating the need for custom wiring adapters or firmware patching in most standard retrofit scenarios.

Before installation, engineers should confirm the existing PROFIBUS master — typically a Siemens S7-300/400 CPU or an ABB AC500 controller — is configured with the correct GSD file for the IDB550A. Node address assignment must be verified against the existing network topology to avoid address conflicts with other field devices such as remote I/O stations, variable frequency drives, or distributed HMI panels already on the same DP segment. Baud rate compatibility between the master and the IDB550A should be confirmed, as legacy networks sometimes operate at non-standard rates below 1.5 Mbit/s.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the ABB HITE303018R1 IDB550A begins well before the module arrives on site. Engineers should audit the full control cabinet to document every component that communicates with or depends on the DP800 drive: the upstream PLC or DCS controller, any ABB NPBA-12 PROFIBUS adapter modules used elsewhere in the same cabinet, and the ABB ACS800 or ACS550 drives that may share the same PROFIBUS segment. Understanding the full network map prevents address conflicts and ensures the replacement module integrates without disrupting adjacent devices.

Power supply capacity is a critical pre-installation check. The DP800 option slot draws auxiliary power from the drive’s internal supply rail. If the drive is already loaded with multiple option cards — such as an ABB RDCO-03 DDCS fiber communication module for DriveLink connectivity or an encoder feedback card — the total option card power budget must be verified against the drive’s specification. Exceeding the option slot power limit can cause intermittent communication faults that are difficult to diagnose in the field.

For sites where the DP800 drive interfaces with an ABB Panel Builder 800 HMI or a third-party SCADA system via PROFIBUS, the HMI tag database and SCADA I/O mapping should be exported and backed up before the swap. Although the IDB550A is a drop-in replacement, any change in the module’s parameter dataset (PPO type selection) will alter the process data word layout, requiring corresponding updates to the HMI screen data blocks and PLC receive buffers. Confirming the PPO type setting matches the original configuration is one of the most commonly overlooked steps in a PROFIBUS module replacement.

Where the retrofit involves upgrading from an older PROFIBUS DP-V0 only card to the IDB550A’s DP-V1 capability, engineers should evaluate whether the master controller supports DP-V1 acyclic services. If the master is a legacy S7-300 CPU with an older CP 342-5 communications processor, the acyclic channel may not be available without a firmware update to the CP module itself. In such cases, operating the IDB550A in DP-V0 compatibility mode is the recommended approach to maintain network stability.

Signal isolation between the PROFIBUS cable shield and the cabinet earth ground should be verified during installation. In older facilities, improper shield grounding is a frequent source of communication errors after a module replacement, particularly in environments with significant electrical noise from variable frequency drives, contactors, or welding equipment sharing the same power distribution panel.

Downtime Control During System Migration

Minimizing production downtime during a PROFIBUS module replacement requires a structured pre-commissioning approach. Before taking the DP800 drive offline, the existing PROFIBUS configuration should be exported from the master PLC project — including the hardware configuration, GSD-based device parameters, and any cyclic I/O data mapping. This export serves as the baseline for post-swap verification and allows engineers to restore the original configuration rapidly if the replacement module requires parameter adjustment.

The physical swap of the IDB550A is typically completed in under 30 minutes for a trained technician familiar with the DP800 option slot mechanism. The critical time investment lies in post-installation commissioning: verifying the node address, confirming the PPO type, cycling power to the drive, and observing the PROFIBUS diagnostic LEDs to confirm the module has achieved data exchange state with the master. A portable PROFIBUS diagnostic tool — such as a Softing PB-T3 or ProfiTrace — significantly reduces troubleshooting time if the module does not immediately enter data exchange after power-up.

For facilities that cannot tolerate extended downtime, a parallel commissioning approach is recommended: configure and test the replacement IDB550A in a bench environment using a spare DP800 drive or a PROFIBUS simulator before the scheduled maintenance window. This allows the engineering team to confirm GSD file compatibility, PPO type selection, and parameter dataset integrity before the production drive is taken offline, compressing the actual on-site swap and verification to the minimum possible duration.

Once the module is confirmed in data exchange, the PLC program logic should be verified against the original I/O mapping to ensure all process variables — speed reference, torque limit, status word, and fault codes — are being received and transmitted correctly. HMI screens displaying drive status should be checked for correct value scaling and alarm response. Only after full functional verification should the drive be returned to automatic control mode and the maintenance window closed.

Retrofit Support FAQ

Q: Is the ABB HITE303018R1 IDB550A a direct replacement for earlier IDB550 revisions?
A: Yes. The HITE303018R1 is the current hardware revision of the IDB550A option card and is designed as a drop-in replacement for earlier IDB550 revisions used in DP800 series drives. The mechanical form factor, option slot connector, and core PROFIBUS DP functionality are identical. Customers should verify the drive firmware version supports the IDB550A and confirm the PPO type setting matches the original configuration before returning the drive to service.

Q: What wiring changes are required when installing the IDB550A?
A: In most standard retrofit scenarios, no wiring changes are required. The IDB550A uses a standard 9-pin D-sub PROFIBUS connector. The existing PROFIBUS cable can be reconnected directly to the replacement module. Engineers should inspect the cable termination and verify that termination resistors are correctly enabled only at the physical ends of the PROFIBUS segment. If the DP800 drive is at a segment endpoint, the IDB550A’s onboard termination switch should be set to the active position.

Q: How is the unit tested before shipment?
A: Every ABB HITE303018R1 IDB550A unit is powered-on and functionally tested prior to shipment. Testing confirms the module initializes correctly, PROFIBUS communication LEDs respond as expected, and the hardware shows no fault conditions. Units are shipped with protective packaging to prevent ESD damage and physical shock during transit. A support terms confirmed by quotation is included with every unit, covering hardware defects and communication failures under normal operating conditions.

Q: What is the typical lead time and stock availability?
A: KNMKS maintains inventory of the ABB HITE303018R1 IDB550A to support urgent replacement requirements. In-stock units are typically dispatched within 1–2 business days. For large quantity orders or projects requiring multiple units, contact our sales team at admin@knmks.com or +86 18359268345 to confirm availability and arrange priority shipment scheduling.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HITE303018R1 IDB550A

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB HITE303018R1 IDB550A
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
