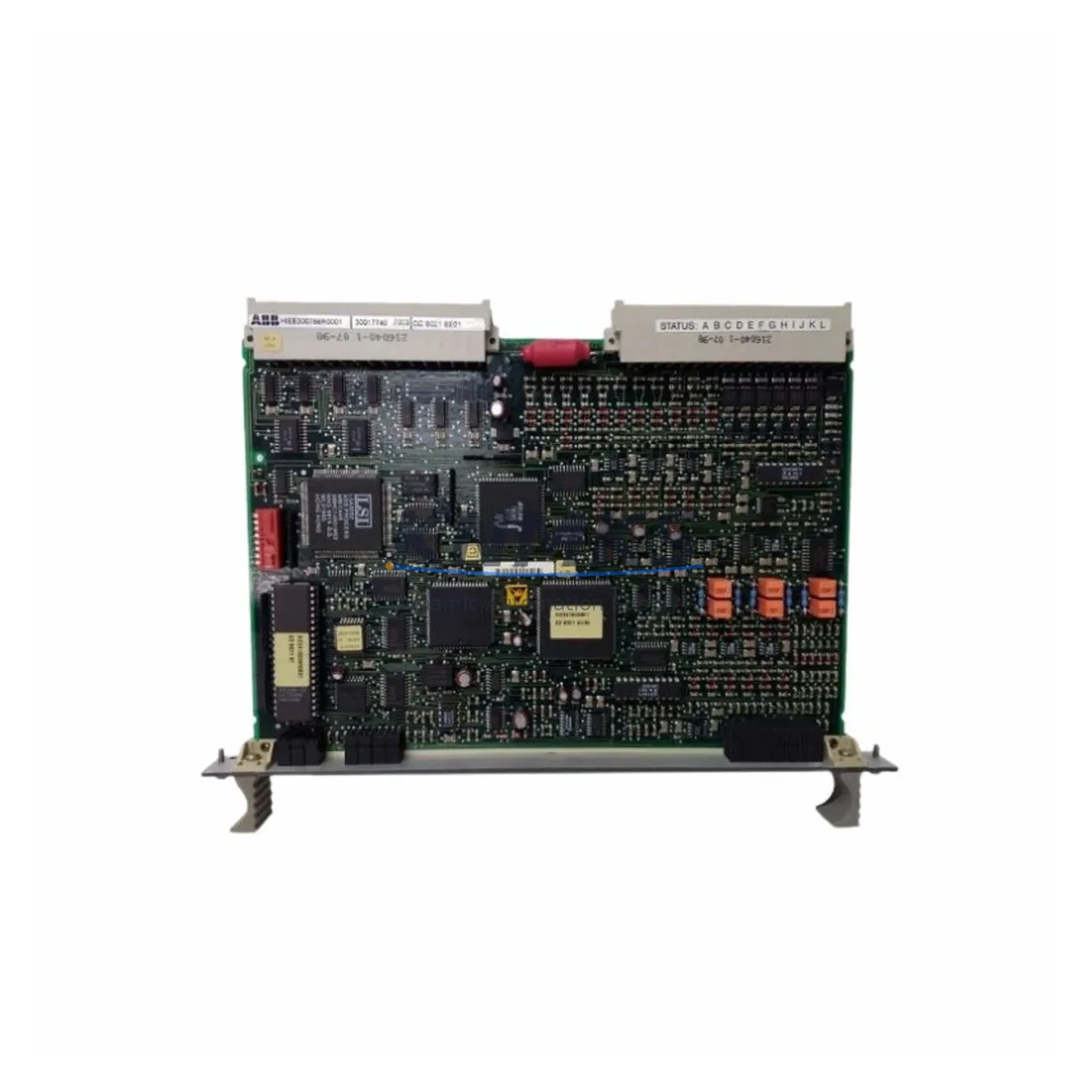

ABB HIEE300766R0001 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB HIEE300766R0001 Maintenance-Proven Spare Part for Factory Uptime

The ABB HIEE300766R0001 is an original IGBT gate driver module engineered for sustained performance in ABB ACS800 and DCS800 series variable speed drives. As a critical interface between the drive control board and the IGBT power stack, this module governs switching signals, overcurrent protection, and fault feedback — making it one of the highest-priority spare parts in any drive maintenance program. Sourced from verified supply channels, each unit is inspected and tested prior to shipment, backed by a support terms confirmed by quotation, and supported by long-term stock availability for facilities running legacy ABB drive systems.

For maintenance engineers managing continuous production lines, motor control centers, or process automation systems, the HIEE300766R0001 represents a direct, drop-in replacement that eliminates the need for drive-level redesign. Its compatibility with the ACS800 and DCS800 platforms — including multi-drive cabinet configurations — ensures that field replacement can be completed within a standard maintenance window, restoring full drive functionality without firmware reconfiguration or hardware adaptation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the HIEE300766R0001 in an ACS800 or DCS800 drive, a disciplined maintenance engineer will treat the gate driver swap as a trigger for a broader cabinet inspection. The IGBT gate driver operates in close electrical proximity to several interdependent components, and a failure in this module is frequently symptomatic of stress across the entire power conversion chain.

Begin by inspecting the DC bus capacitor bank and the IGBT power module itself — gate driver failures are often preceded by capacitor degradation or IGBT junction stress. Verify the integrity of the drive’s power supply board (such as the SDCS-POW series in DCS800 configurations), which provides the isolated gate drive voltages; a marginal power supply can cause repeated gate driver failures even after replacement. Check all fiber optic communication links between the control board and the gate driver — ABB ACS800 drives use fiber optic signal isolation, and contaminated or damaged fiber connectors are a common source of spurious fault codes that mimic gate driver failure.

On the I/O side, inspect the RDIO or RAIO I/O extension modules for any signs of ground loop interference or signal noise that may have contributed to abnormal switching behavior. Review the RMIO main control board for active fault logs and parameter integrity before commissioning the replacement module. In multi-drive or common DC bus configurations, also verify the condition of the charging contactor, pre-charge resistor, and any associated fuse protection — these components absorb transient stress during drive startup and are frequently overlooked during single-module replacements.

For facilities maintaining a structured spare parts inventory, the HIEE300766R0001 should be stocked alongside the SDCS-CON control board, SDCS-PIN interface board, and relevant IGBT stack assemblies to ensure complete drive restoration capability without waiting on procurement lead times. Annual cabinet inspections should include thermal imaging of the gate driver mounting area, torque verification of bus bar connections, and cleaning of cooling airflow paths to extend the service life of the replacement module.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the drive, apply LOTO, and allow the DC bus to fully discharge (verify with a calibrated meter — minimum 5 minutes after power-off for ACS800 frames R5 and above).

Step 2 — Fault Log Review: Before removing the failed module, record all active and historical fault codes from the RMIO control panel or DriveWindow. This data informs root cause analysis and prevents repeat failure after replacement.

Step 3 — Module Removal: Disconnect fiber optic cables and gate signal connectors from the HIEE300766R0001. Note connector orientation and cable routing for reinstallation. Remove mounting fasteners and extract the module from the drive stack.

Step 4 — Visual Inspection: Inspect the IGBT power module contact surfaces, bus bar connections, and adjacent PCB areas for signs of arcing, carbonization, or thermal damage. Address any secondary damage before installing the replacement.

Step 5 — Installation: Install the HIEE300766R0001 replacement, reconnect all fiber optic and signal connectors, and verify torque on all bus bar fasteners per ABB drive documentation.

Step 6 — Commissioning: Re-energize the drive in local control mode. Verify gate driver status via the control panel. Run a no-load test before returning the drive to full production load. Clear fault logs and document the replacement in the maintenance record.

This workflow applies equally to scheduled overhaul replacements and emergency breakdown recovery, and is compatible with both standalone ACS800 drives and multi-drive cabinet configurations using a common DC bus architecture.

Spare Parts Support FAQ

Q1: Is the HIEE300766R0001 compatible with all ACS800 frame sizes?
The HIEE300766R0001 is designed for use within the ACS800 and DCS800 drive families. Compatibility with specific frame sizes (R2–R8 and above) should be confirmed against the drive’s hardware manual or the module’s position in the drive stack. Contact our technical team with your drive nameplate data for confirmation before ordering.

Q2: How is each unit tested before shipment?
Every HIEE300766R0001 unit undergoes functional verification and insulation testing prior to dispatch. Units are packaged in anti-static, shock-protected materials to preserve integrity during international shipping. A test report is available upon request.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the module’s rated parameters. Support requests are processed with full technical support from our team.

Q4: Can you support long-term or repeat procurement for this part?
Yes. We maintain stocked inventory of the HIEE300766R0001 and related ABB ACS800/DCS800 spare parts to support facilities with ongoing maintenance programs, annual overhaul schedules, or multi-site procurement requirements. Volume pricing and scheduled delivery agreements are available on request.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HIEE300766R0001
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB HIEE300766R0001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
