ABB HIEE300698R0001 KUC321AE01 Fail-Safe DCS Power Supply

Overview

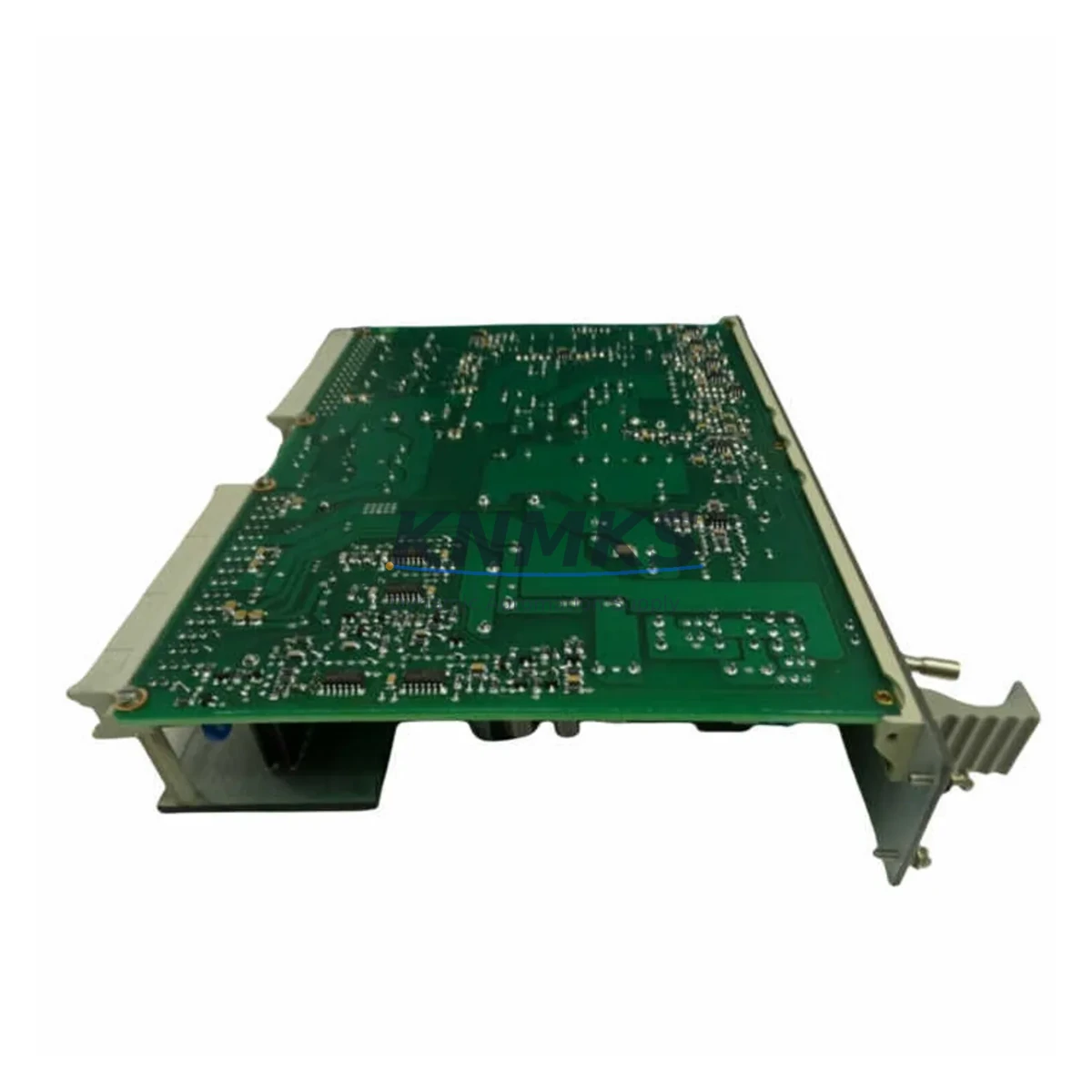

ABB HIEE300698R0001 KUC321AE01 Fail-Safe DCS Power Supply for Industrial Control Reliability

The ABB HIEE300698R0001 KUC321AE01 is a safety-rated DCS power supply module engineered for continuous, uninterrupted operation in mission-critical industrial automation environments. Designed for the ABB AC800M controller platform, this module delivers stable, regulated DC power to the controller backplane and connected I/O modules, ensuring that control loops remain active even under adverse grid conditions, high electromagnetic interference, or sudden load transients. In industries where an unplanned shutdown carries catastrophic consequences — from process upsets in petrochemical plants to safety interlock failures in power generation — the HIEE300698R0001 KUC321AE01 provides the foundational power integrity that keeps every downstream control function reliable.

Built to IEC and ABB safety standards, this power supply module incorporates multi-stage surge suppression, EMI filtering, and over-voltage/over-current protection circuits that guard the AC800M system against both external grid disturbances and internally generated switching noise. In heavy industrial cabinets housing variable frequency drives such as the ABB ACS880 series, high-frequency switching transients are a persistent threat to sensitive controller logic. The HIEE300698R0001 KUC321AE01’s hardened input stage absorbs these transients before they can propagate to the processor or communication modules, preventing signal drift, spurious trips, and data corruption on PROFIBUS or FOUNDATION Fieldbus segments.

Thermal management is equally critical in densely populated control cabinets. The KUC321AE01 module is rated for extended ambient temperature ranges and maintains full output regulation without derating across the operating envelope typical of outdoor substations, smelter control rooms, and offshore platform enclosures. When paired with the ABB PM866 or PM891 processor modules and TB840 communication interfaces, the power supply ensures that the entire AC800M node operates within its specified voltage window, eliminating the subtle under-voltage conditions that cause intermittent processor resets or corrupted I/O scans — faults that are notoriously difficult to diagnose in live production environments.

For safety instrumented systems and critical interlock loops, power supply integrity is a fundamental layer of the protection architecture. The HIEE300698R0001 KUC321AE01 supports redundant power configurations, allowing engineers to deploy dual-supply arrangements where one module provides active power while a second stands by in hot-standby mode. This architecture is consistent with SIL-rated loop designs and satisfies the redundancy requirements of IEC 61511 process safety standards. In water treatment facilities, mining hoists, and LNG terminal control systems, this redundancy eliminates the power supply as a single point of failure in the safety chain.

Field replacement is straightforward. The module slots into the standard ABB S800 I/O or AC800M backplane without requiring system shutdown in redundant configurations, minimizing maintenance windows and reducing the risk of introducing errors during hot-swap procedures. Each unit shipped by KNMKS undergoes pre-shipment functional testing — verifying output voltage accuracy, ripple levels, protection circuit response, and thermal performance — before dispatch. This testing protocol ensures that replacement modules arrive site-ready, eliminating the commissioning delays that arise when untested spares are installed during emergency outages.

KNMKS maintains multi-region stock of the HIEE300698R0001 KUC321AE01 to support both emergency replacement scenarios and planned maintenance outages. Whether your facility is executing a scheduled turnaround, responding to an unexpected module failure, or building a strategic spare parts inventory ahead of a long-term service agreement, our logistics infrastructure supports fast global dispatch with full export documentation. All units are covered by a support terms confirmed by quotation from the date of shipment, backed by technical support for installation verification and compatibility confirmation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet protection strategy for ABB AC800M-based systems extends well beyond the power supply itself. The HIEE300698R0001 KUC321AE01 anchors the power layer, but reliable cabinet operation depends on a coordinated set of components working in concert. The ABB PM866 processor module relies on clean, stable power to execute control logic without watchdog resets or memory errors. Communication integrity is maintained by the TB840 PROFIBUS interface module, which is equally sensitive to power quality — voltage sags as small as 50 ms can cause bus timeouts and force a full communication restart, interrupting I/O updates across the entire network segment.

On the I/O side, ABB S800 I/O modules — including digital input modules such as the DI810 and analog output modules such as the AO820 — depend on the backplane power rail maintained by the KUC321AE01 to deliver accurate signal conditioning and galvanic isolation. Any instability in the power rail manifests as signal drift on 4–20 mA loops or false state transitions on digital channels, both of which can trigger nuisance alarms or, worse, suppress genuine process alerts. In safety interlock circuits, the ABB AI810 analog input module must receive clean power to accurately read transmitter signals from pressure, temperature, and flow devices that feed into the safety logic solver.

For cabinet-level surge protection, coordinating the HIEE300698R0001 KUC321AE01 with upstream surge protective devices on the AC feed bus and with shielded cable assemblies on field wiring creates a layered defense against lightning-induced transients and switching surges from large motor starters. This layered approach is particularly important in petrochemical and mining environments where long cable runs between the control room and field junction boxes act as antennas for induced voltages. Proper grounding of the cabinet backplane and module rails, combined with the KUC321AE01’s internal filtering, ensures that the AC800M system maintains deterministic scan cycle performance even during severe electrical disturbances.

Critical Industrial Safety Applications

The ABB HIEE300698R0001 KUC321AE01 is deployed across a wide range of critical industrial sectors where control system availability is directly linked to operational safety and regulatory compliance.

In petrochemical and refinery environments, the module powers AC800M controllers managing emergency shutdown (ESD) systems, high-integrity pressure protection systems (HIPPS), and burner management systems (BMS). These applications demand that the power supply maintain output continuity through grid disturbances caused by large compressor motor starts and capacitor bank switching. A power supply failure in this context does not merely cause a production interruption — it can trigger a full plant ESD sequence, requiring hours of controlled restart procedures and regulatory notification.

In electric power generation and transmission substations, the KUC321AE01 supports AC800M-based protection relay coordination and automatic voltage regulation systems. Substation environments are characterized by extremely high electromagnetic interference from high-voltage switching operations, making the module’s EMI hardening a critical selection criterion. Utilities operating under NERC CIP cybersecurity and reliability standards require that control system hardware meet stringent availability and fault-tolerance requirements, which the redundant power supply architecture directly supports.

In mining and mineral processing operations, the module powers controllers managing conveyor interlocks, crusher protection systems, and ventilation safety circuits in underground environments. Dust, humidity, and vibration are constant stressors on control hardware. The KUC321AE01’s robust construction and extended temperature rating ensure reliable operation in these demanding conditions, reducing the frequency of unplanned maintenance interventions that require personnel to enter hazardous areas.

In water and wastewater treatment facilities, continuous operation of pumping stations, chemical dosing systems, and filtration controls is essential for public health compliance. The module’s hot-standby redundancy capability allows operators to replace a degraded power supply during normal operation without interrupting the treatment process, maintaining regulatory compliance with environmental discharge permits.

In metallurgical and steel production plants, the KUC321AE01 supports AC800M systems controlling electric arc furnace (EAF) electrode regulation, rolling mill drive coordination, and fume extraction safety interlocks. The extreme electrical noise generated by EAF operations makes power supply EMI immunity a non-negotiable requirement for reliable controller operation.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the HIEE300698R0001 KUC321AE01?
The support terms confirmed by quotation cover manufacturing defects, component failures, and functional non-conformance identified under normal operating conditions consistent with ABB’s published specifications for the AC800M platform. Support requests are supported by KNMKS technical staff who can assist with failure diagnosis, return authorization, and expedited replacement dispatch to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every HIEE300698R0001 KUC321AE01 unit undergoes a full functional test prior to shipment, including output voltage accuracy verification, ripple and noise measurement, over-voltage and over-current protection circuit validation, and thermal performance assessment under load. Test records are available upon request for quality documentation purposes.

Q3: Is this module compatible with all AC800M controller configurations?
The KUC321AE01 is designed for the ABB AC800M platform and is compatible with standard AC800M backplane configurations. Compatibility with specific hardware revisions, firmware versions, and redundancy configurations should be confirmed against the ABB AC800M hardware documentation or by contacting KNMKS technical support with your system’s hardware revision details before ordering.

Q4: Can KNMKS support long-term supply agreements for this module?
Yes. KNMKS maintains multi-region inventory of the HIEE300698R0001 KUC321AE01 and can support scheduled spare parts programs, annual supply agreements, and emergency replacement contracts. Long-term supply arrangements can be structured to include priority allocation, reserved stock, and fixed pricing to protect against market availability fluctuations for this legacy ABB component.
