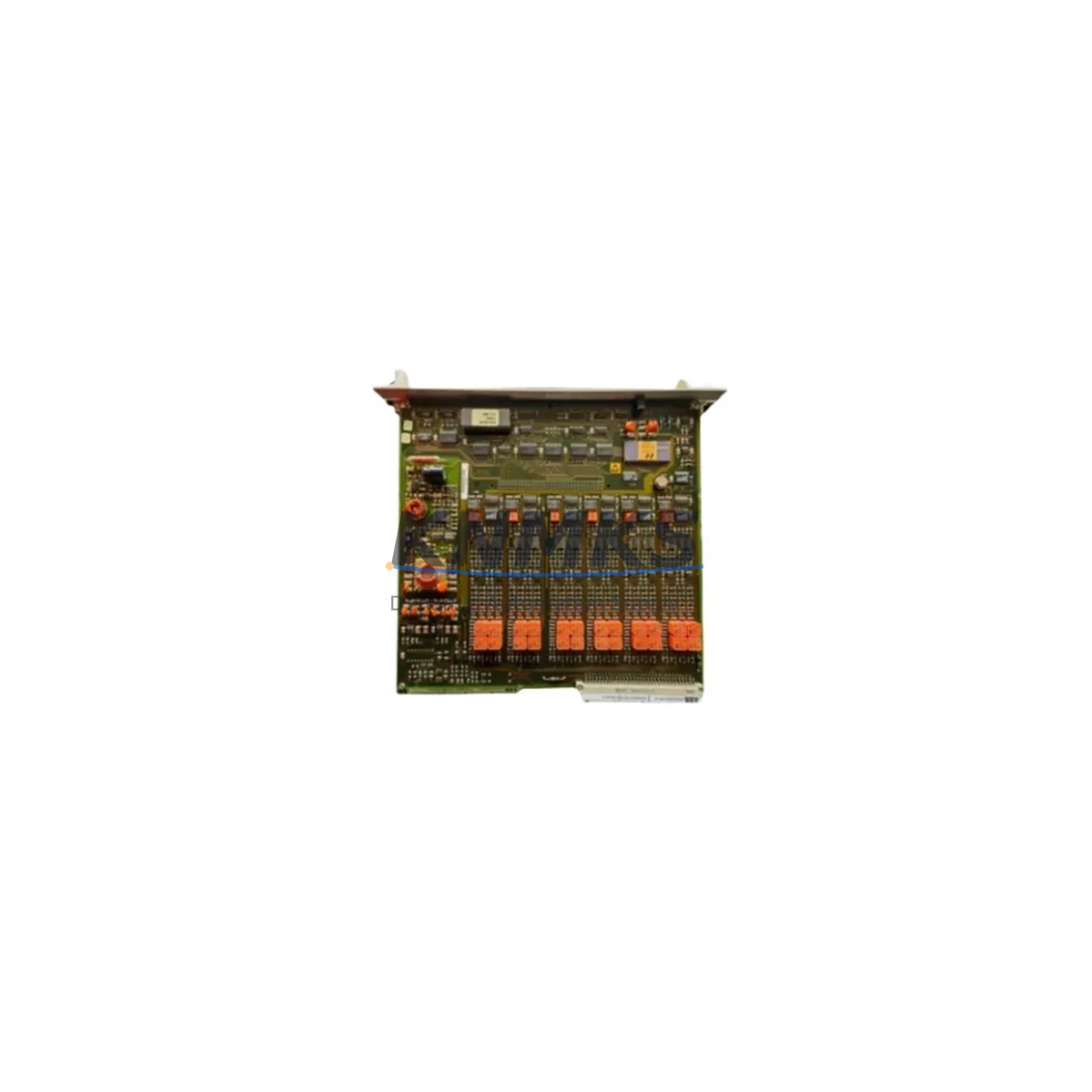

The ABB HESG448230R1/G (216EA61b) is an original DCS analogue input module engineered for continuous operation in process automation environments. Designed as part of ABB’s 216EA series — a platform widely deployed across petrochemical, power generation, pulp and paper, and heavy manufacturing facilities — this module provides reliable analogue signal acquisition for distributed control systems that must maintain uptime under demanding industrial conditions.

For maintenance engineers managing legacy ABB Bailey or Harmony DCS architectures, the HESG448230R1/G represents a critical spare. Analogue input modules are among the highest-turnover components in any DCS cabinet: they interface directly with field transmitters, thermocouples, RTDs, and 4–20 mA process signals, making them susceptible to signal drift, connector wear, and surge damage over extended service cycles. Keeping a verified, pre-tested unit on the shelf is the single most effective strategy for reducing mean time to repair (MTTR) when a channel failure or module fault is detected during routine inspection or live production.

Every HESG448230R1/G unit supplied by KNMKS is sourced from verified industrial channels, inspected against original ABB specifications, and subjected to functional testing prior to shipment. Each unit ships with a support terms confirmed by quotation, providing procurement engineers with the confidence needed to justify spare parts investment and long-term supply agreements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a HESG448230R1/G analogue input module is flagged for replacement — whether during a scheduled annual shutdown, a predictive maintenance inspection, or an unplanned fault event — the replacement workflow should extend beyond the module itself. A thorough site assessment significantly reduces the risk of repeat failures and ensures the restored control loop performs to specification.

Begin by verifying the integrity of the 216EA series backplane into which the module seats. Backplane connector pins and bus traces are subject to oxidation and mechanical wear, particularly in high-humidity or vibrating environments. A faulty backplane slot can cause a new module to report faults immediately after installation, leading to misdiagnosis and unnecessary additional replacements.

Next, inspect the field wiring terminal blocks and signal cables connected to the analogue input channels. Loose terminations, corroded conductors, or shielding failures on 4–20 mA signal cables are a leading cause of analogue input module degradation. If the module failure was preceded by intermittent signal readings or channel alarms, the wiring harness should be tested with a calibrated loop tester before the new module is commissioned.

The DCS rack power supply module — typically a dedicated 24 VDC or 5 VDC supply within the 216EA cabinet — should be checked for output voltage stability and ripple. An undersized or aging power supply can cause analogue input modules to exhibit erratic behavior or fail prematurely. If the power supply is approaching its rated service life, proactive replacement during the same maintenance window avoids a second unplanned outage.

For systems using signal isolators or signal conditioners between field transmitters and the DCS input channels, verify that the isolators are functioning within specification. A failed isolator can inject noise or offset into the analogue signal, causing the input module to report out-of-range values even when the module itself is healthy. Signal isolators are low-cost components that are frequently overlooked in spare parts inventories.

If the 216EA system communicates with an operator HMI or engineering workstation via a Bailey SCI or Modulebus network, confirm that the communication link is stable after module replacement. Some DCS platforms require a configuration download or module re-initialization before a newly installed analogue input module is recognized by the controller. Coordinate with the control system engineer to confirm the module address and I/O configuration match the original.

Finally, review the status of any fuses or circuit protection devices associated with the analogue input loop. A blown fuse on the field supply circuit is a common secondary fault that accompanies analogue input module failures caused by field-side wiring faults or transmitter short circuits. Replacing the module without restoring the fuse will result in immediate re-failure.

Site Replacement Workflow

Step 1 — Fault Confirmation: Confirm the module fault via DCS diagnostics. Record the fault code, affected channel numbers, and any associated process alarms. Do not assume the module is faulty based solely on a single channel alarm — verify across all channels and cross-check with field transmitter readings.

Step 2 — Safe Isolation: Follow site lock-out/tag-out (LOTO) procedures for the affected DCS rack section. Analogue input modules in live process environments may carry field loop power; confirm isolation before handling.

Step 3 — Module Extraction: Remove the HESG448230R1/G from its backplane slot using the module extraction handle. Inspect the ejected module’s connector pins and front-panel indicators for visible damage, burn marks, or corrosion.

Step 4 — Replacement Installation: Insert the new HESG448230R1/G into the same backplane slot. Confirm the module seats fully and the front-panel status LED sequence matches the expected initialization pattern for the 216EA series.

Step 5 — Configuration Verification: From the DCS engineering workstation, confirm the module is recognized, the I/O configuration is loaded, and all analogue input channels are reading within expected process ranges. Perform a loop check on critical channels before returning the system to automatic control.

Step 6 — Documentation: Record the replacement in the site maintenance log, including the old module serial number, new module serial number, date, technician, and post-replacement loop check results. This record supports support requests and future maintenance planning.

Spare Parts Support FAQ

Q: Is the HESG448230R1/G compatible with all 216EA series racks?
A: The HESG448230R1/G is designed for ABB 216EA series DCS racks operating within the Bailey Harmony and Infi 90 platform families. Compatibility depends on the specific rack configuration and firmware revision of the controller. We recommend confirming the module variant suffix (R1/G) against your existing installed base before ordering. Our technical team can assist with compatibility verification based on your system documentation.

Q: What testing is performed before shipment?
A: Every HESG448230R1/G unit undergoes functional testing prior to dispatch. Testing confirms module power-up, backplane communication, and channel integrity. A test report is available upon request. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q: Can KNMKS support long-term supply agreements for this module?
A: Yes. KNMKS supports 12–36 month supply agreements for the HESG448230R1/G and related 216EA series components. Long-term agreements provide price stability, guaranteed allocation, and priority dispatch — particularly valuable for facilities managing extended maintenance cycles or multi-site DCS standardization programs. Contact admin@knmks.com to discuss terms.

Q: What is the recommended spare parts holding strategy for the HESG448230R1/G?
A: For facilities with 10 or more 216EA analogue input modules installed, a minimum holding of 2 spare units is recommended. Sites with critical process loops — such as reactor temperature monitoring, pressure control, or flow measurement — should consider holding 3–5 units to cover simultaneous channel failures during peak production periods. Annual review of spare parts consumption data helps refine the holding quantity over time.
