ABB HESG447449R1/70LR01A-E Maintenance-Proven Spare Part

Overview

ABB HESG447449R1/70LR01A-E Maintenance-Proven Spare Part for Factory Uptime

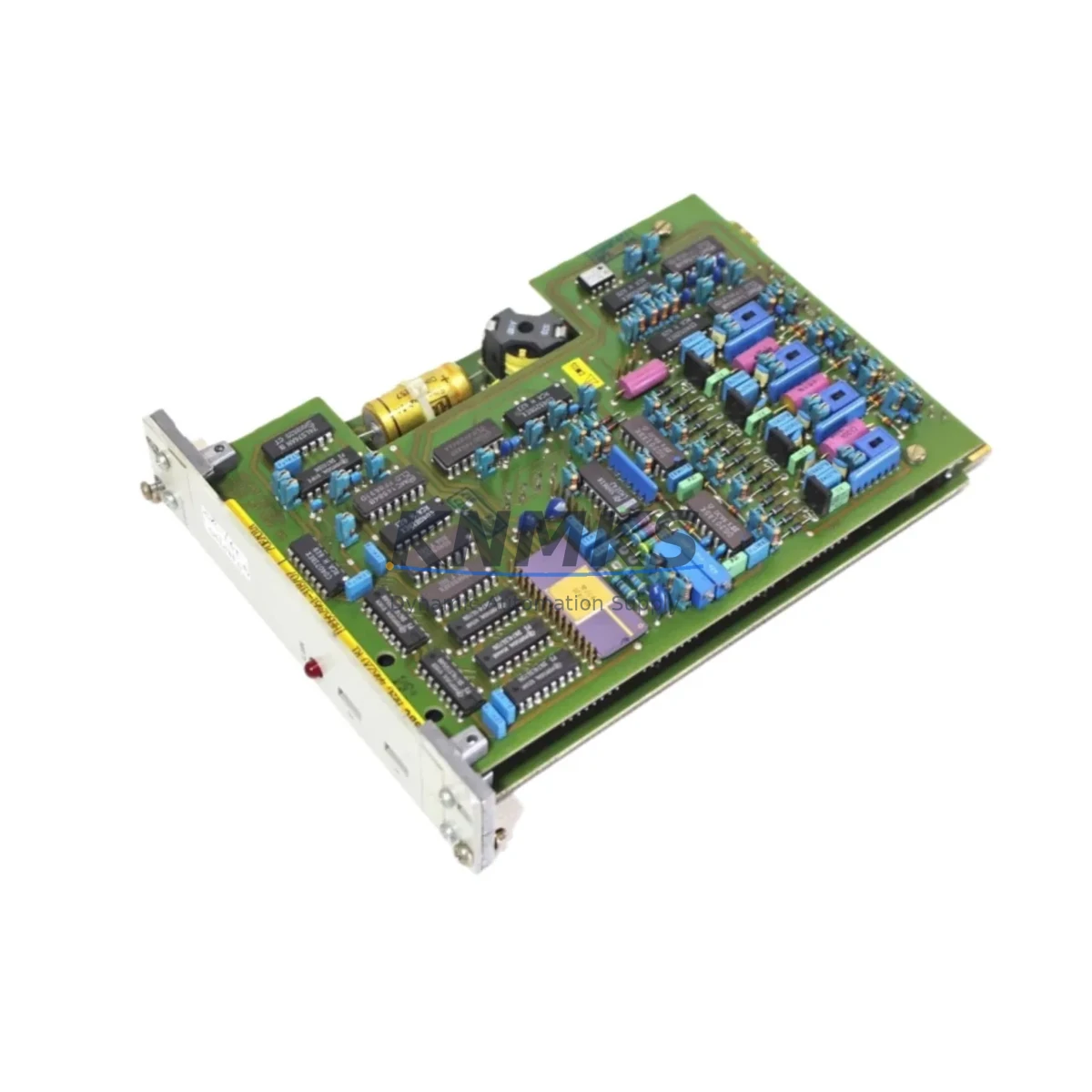

The ABB HESG447449R1/70LR01A-E is a relay output module designed for ABB’s HESG-series Distributed Control System (DCS) platforms, widely deployed in energy generation, petrochemical processing, pulp and paper, and heavy manufacturing environments. As a direct-replacement spare part, this module supports maintenance engineers in executing rapid fault isolation, scheduled overhauls, and emergency restores without compromising system architecture or I/O mapping integrity.

Sourced from verified supply channels and subjected to pre-shipment functional testing, each unit is dispatched with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial service conditions. KNMKS maintains long-term inventory commitments for HESG-series components, ensuring availability for both planned annual shutdowns and unplanned emergency callouts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the HESG447449R1/70LR01A-E in a live DCS cabinet, maintenance engineers should treat the intervention as a full relay output circuit audit. Begin by verifying the 24 VDC or 120/240 VAC field supply feeding the relay coil circuits — a degraded power supply module such as the ABB HESG447450R1 or equivalent HESG-series PSU card can cause intermittent relay chatter that mimics module failure. Confirm that terminal block wiring on the marshalling panel is torqued to specification and free of oxidation, particularly on high-cycle output channels driving solenoid valves or motor starters.

Inspect adjacent I/O modules in the same backplane slot group. HESG-series DCS racks use shared backplane communication buses; a failing digital input module or analog output card in the same rack segment can generate spurious diagnostics that mask the true fault source. Cross-reference the DCS fault log against the HESG447449R1 channel map before condemning the relay output module.

Signal isolation should also be reviewed: if field devices share common ground with the DCS I/O, consider installing DIN-rail signal isolators on high-noise circuits to protect relay contact integrity. Fuse protection on each relay output channel — typically 2A fast-blow per channel — must be inspected and replaced if any show signs of thermal stress. Communication modules such as the HESG448997R1 Fieldbus interface or PROFIBUS DP adapters in the same cabinet should be checked for firmware compatibility after any relay output module swap, as some DCS versions require a cold restart of the communication stack.

For sites running ABB Advant HMI operator stations, verify that the I/O database tag assignments for the replaced module channels are correctly mapped post-swap. An incorrect slot address entry in the HMI configuration can result in false alarm states even when the replacement module is functioning correctly. Maintain a spare HESG447449R1/70LR01A-E in your on-site critical spares kit alongside the associated backplane connector and module extraction tool to minimize mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Step 1 — Isolation: Place the affected DCS loop in manual mode at the operator station. Notify the control room and obtain a permit-to-work before opening the control cabinet.

Step 2 — Documentation: Photograph the existing module label, slot position, and wiring terminations. Record the channel fault log from the DCS engineering workstation.

Step 3 — Module Removal: Release the module locking lever and extract the HESG447449R1/70LR01A-E card from the backplane. Avoid touching the edge connector. Place the removed module in an ESD-safe bag for return or bench testing.

Step 4 — Replacement Installation: Insert the new HESG447449R1/70LR01A-E into the same slot. Confirm the backplane connector is fully seated and the locking lever is engaged. Verify the module status LED sequence matches the expected power-on diagnostic pattern per the ABB HESG series hardware manual.

Step 5 — System Verification: From the DCS engineering workstation, perform a channel-by-channel output force test to confirm relay contact operation. Return the loop to automatic control only after all channels pass verification. Update the maintenance log with the replacement date, new module serial number, and test results.

This workflow is compatible with hot-swap capable HESG rack configurations. For non-hot-swap installations, coordinate a controlled process hold with the operations team before proceeding.

Spare Parts Support FAQ

Q1: Is the HESG447449R1/70LR01A-E a direct drop-in replacement for older HESG relay output modules?
Yes. The HESG447449R1/70LR01A-E is designed as a form-fit-function replacement within the ABB HESG-series DCS platform. No firmware changes or I/O database modifications are required for same-slot substitution, provided the DCS software version is compatible with the HESG hardware revision. Confirm the hardware revision suffix (70LR01A-E) matches your system’s supported module list before installation.

Q2: What pre-shipment testing does KNMKS perform on this module?
Each HESG447449R1/70LR01A-E unit undergoes functional relay output verification prior to dispatch, including coil energization testing, contact continuity measurement, and visual inspection of the PCB and edge connector. Test records are available upon request. All units are shipped in ESD-protective packaging with a support terms confirmed by quotation from the date of invoice.

Q3: Can KNMKS support long-term supply agreements for HESG-series modules?
Yes. KNMKS maintains dedicated inventory reserves for ABB HESG-series components to support annual maintenance contracts, multi-year shutdown schedules, and emergency callout programs. Contact our sales team to discuss volume pricing, consignment stock arrangements, and guaranteed lead-time commitments tailored to your plant’s maintenance cycle.

Q4: What should I do if the replacement module shows a fault LED immediately after installation?
First, verify that the backplane slot address matches the DCS I/O configuration. Check that the 24 VDC backplane supply voltage is within tolerance (typically ±5%). Inspect the field wiring for short circuits on relay output channels. If the fault persists, connect the DCS engineering workstation and review the module diagnostic register for specific fault codes. Contact KNMKS technical support with the fault code and DCS software version — our team can assist with compatibility verification and, if required, arrange an advance replacement under the support terms confirmed by quotation.
