ABB HENF209568R1 P3LB Maintenance Spare for AC500 Uptime

Overview

ABB HENF209568R1 P3LB Maintenance Spare for AC500 Uptime

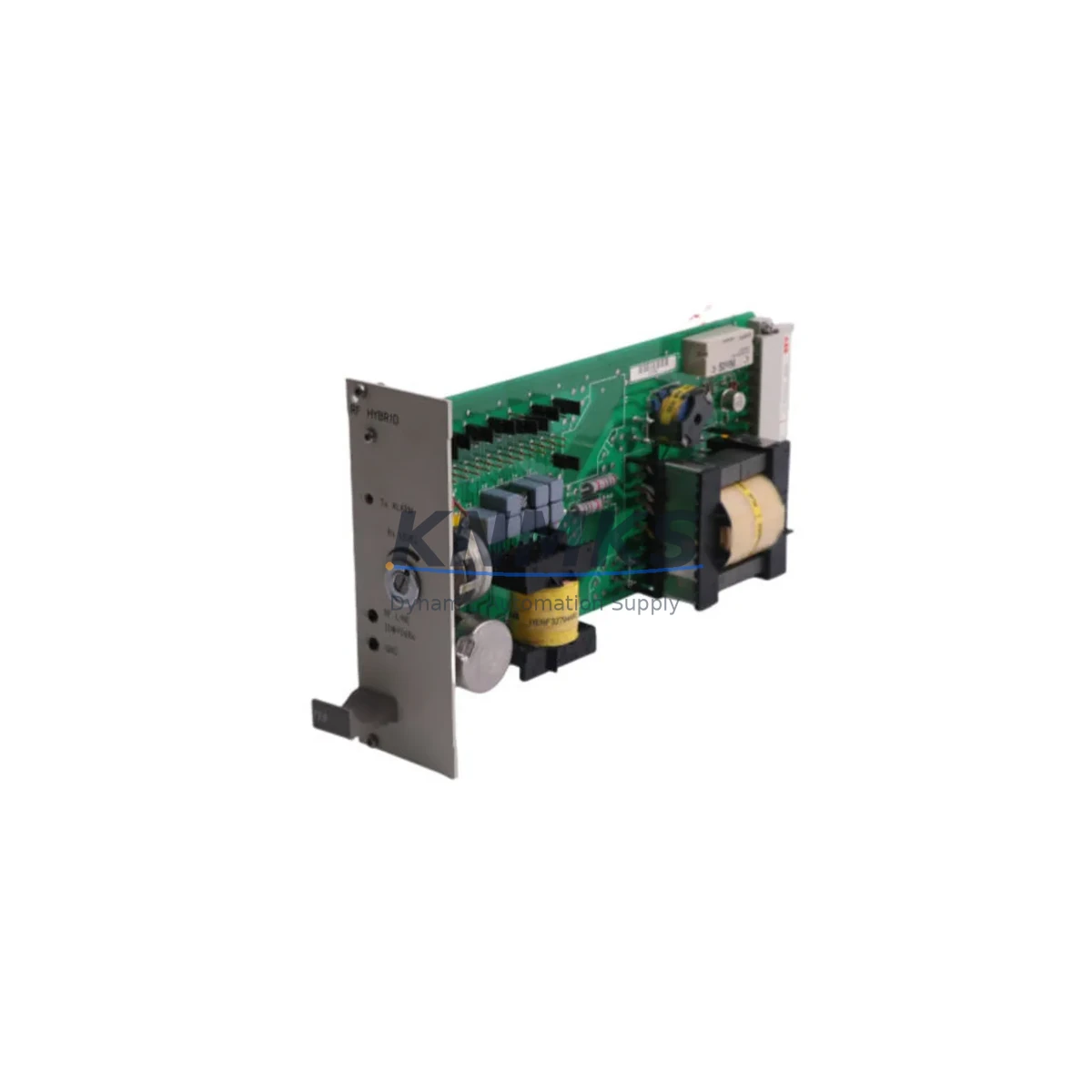

The ABB HENF209568R1 P3LB is an original circuit board module designed for the ABB AC500 PLC series — one of the most widely deployed programmable logic controller platforms in industrial automation, process control, and discrete manufacturing environments. When this board fails or degrades, the consequences are immediate: unplanned downtime, halted production lines, and costly emergency procurement under pressure. Stocking a verified replacement unit of the HENF209568R1 P3LB is a proven strategy for maintenance engineers who cannot afford extended outages in critical control cabinet infrastructure.

This spare is sourced as an original ABB component, manufactured in Germany, and subject to pre-shipment functional testing before dispatch. Each unit ships with a support terms confirmed by quotation, providing procurement engineers with the confidence needed for long-term spare parts planning. Whether you are managing a single AC500 cabinet or maintaining a multi-rack automation system across a plant floor, the HENF209568R1 P3LB represents a reliable, SKU-verified solution for rapid board-level replacement.

For maintenance teams operating under IEC 61511 or ISO 55001 asset management frameworks, having this module pre-positioned in your spare parts inventory eliminates the lead time risk associated with legacy board procurement. The AC500 platform has a long installed base, and ABB’s commitment to backward compatibility means this board integrates cleanly into existing rack configurations without firmware conflicts or I/O remapping in most standard deployments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the HENF209568R1 P3LB in an AC500 control cabinet is rarely an isolated task. Experienced maintenance engineers know that board-level failures are often symptomatic of broader electrical stress in the cabinet. Before or during replacement, a structured inspection of adjacent components is strongly recommended to prevent repeat failures and ensure full system restoration.

Begin with the AC500 power supply module (such as the ABB CP-E series or equivalent 24VDC rail-mount PSU feeding the PLC rack). Voltage ripple or transient spikes are a leading cause of premature board failure. Verify output voltage stability under load before reinstalling the replacement HENF209568R1 P3LB. Next, inspect the AC500 backplane and rack connectors — oxidized or mechanically stressed backplane contacts can cause intermittent communication faults that mimic board failure and will damage a new spare if left unaddressed.

Check all I/O modules connected to the same rack segment. A shorted or overloaded digital output module (e.g., ABB DC532 or similar) can propagate fault conditions to the CPU or communication board. Similarly, inspect signal isolation modules on analog input channels — degraded isolators introduce ground loops that stress board-level components over time. If the cabinet includes communication modules for PROFIBUS, Modbus, or Ethernet/IP (such as the ABB CI590-CS31-HA or CM589-PNIO), verify their firmware versions and connector integrity as part of the restoration workflow.

Terminal blocks and field wiring should be inspected for loose connections, especially on 24VDC common rails and analog signal wiring. Loose terminals cause micro-arcing that generates EMI, which is particularly damaging to sensitive PLC circuit boards. If the cabinet uses relay output modules, check coil suppression diodes — failed suppressors allow inductive kickback to reach the PLC backplane. Finally, confirm that cabinet fusing (blade fuses or miniature circuit breakers protecting individual I/O segments) is correctly rated and has not been bypassed during a previous emergency repair.

For plants running HMI panels connected to the AC500 CPU via serial or Ethernet, verify communication parameters after board replacement to ensure the HMI re-establishes its data link without manual intervention. Documenting this checklist as part of your site-specific maintenance procedure ensures that the next technician performing this replacement has a repeatable, auditable workflow.

Site Replacement Workflow

Step 1 — Isolate and document: Before removing the HENF209568R1 P3LB, capture the current PLC program version, I/O mapping, and communication configuration. Use the ABB Automation Builder or compatible engineering tool to export the project backup. Confirm the replacement board’s SKU and hardware revision match the installed unit.

Step 2 — Power down safely: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the AC500 rack via the main cabinet isolator. Allow capacitors to discharge (minimum 60 seconds) before handling the board.

Step 3 — Remove and inspect: Extract the faulty HENF209568R1 P3LB from its rack slot. Inspect the backplane connector for bent pins or carbon deposits. Clean with isopropyl alcohol if required before inserting the replacement.

Step 4 — Install and restore: Seat the replacement board firmly into the rack slot until the locking tabs engage. Restore power and observe the diagnostic LEDs for normal boot sequence. Reload the program backup if required and verify all I/O channels are responding correctly.

Step 5 — Validate and document: Run a full I/O scan and communication check. Confirm HMI data links are active. Record the replacement date, board serial number, and technician ID in your CMMS or maintenance log. Update your spare parts inventory to trigger reorder of a replacement unit.

This workflow minimizes mean time to repair (MTTR) and ensures the AC500 system is returned to full operational status with a documented audit trail — critical for ISO-certified facilities and regulated process industries.

Spare Parts Support FAQ

Q1: Is the HENF209568R1 P3LB compatible with all AC500 CPU variants?
The HENF209568R1 P3LB is designed for the ABB AC500 platform. Compatibility depends on the specific CPU generation and rack configuration in your installation. We recommend confirming the hardware revision of your installed unit against the replacement before dispatch. Our technical team can assist with compatibility verification based on your cabinet documentation or existing board markings.

Q2: What does pre-shipment testing cover for this board?
Each HENF209568R1 P3LB unit undergoes functional verification prior to dispatch, including power-on testing, communication interface checks, and visual inspection for component-level defects. This process ensures the board is operational before it reaches your site, reducing the risk of a failed replacement during a critical maintenance window.

Q3: How should I manage long-term supply risk for legacy AC500 spare boards?
For plants with multiple AC500 racks or aging installations, we recommend holding a minimum of one HENF209568R1 P3LB unit on-site as a hot spare, with a second unit on order or reserved through a long-term supply agreement. This two-tier strategy eliminates single-point procurement risk and ensures you can respond to simultaneous failures in multi-cabinet environments without extended lead times.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Support requests are processed with full technical support, and replacement units are dispatched with priority handling to minimize your downtime exposure.
