ABB HENF209568R0001 Migration-Ready VFD Board for Legacy ACS800

Overview

ABB HENF209568R0001 Migration-Ready VFD Board for Legacy ACS800: Retrofit and Compatibility Upgrade Guide

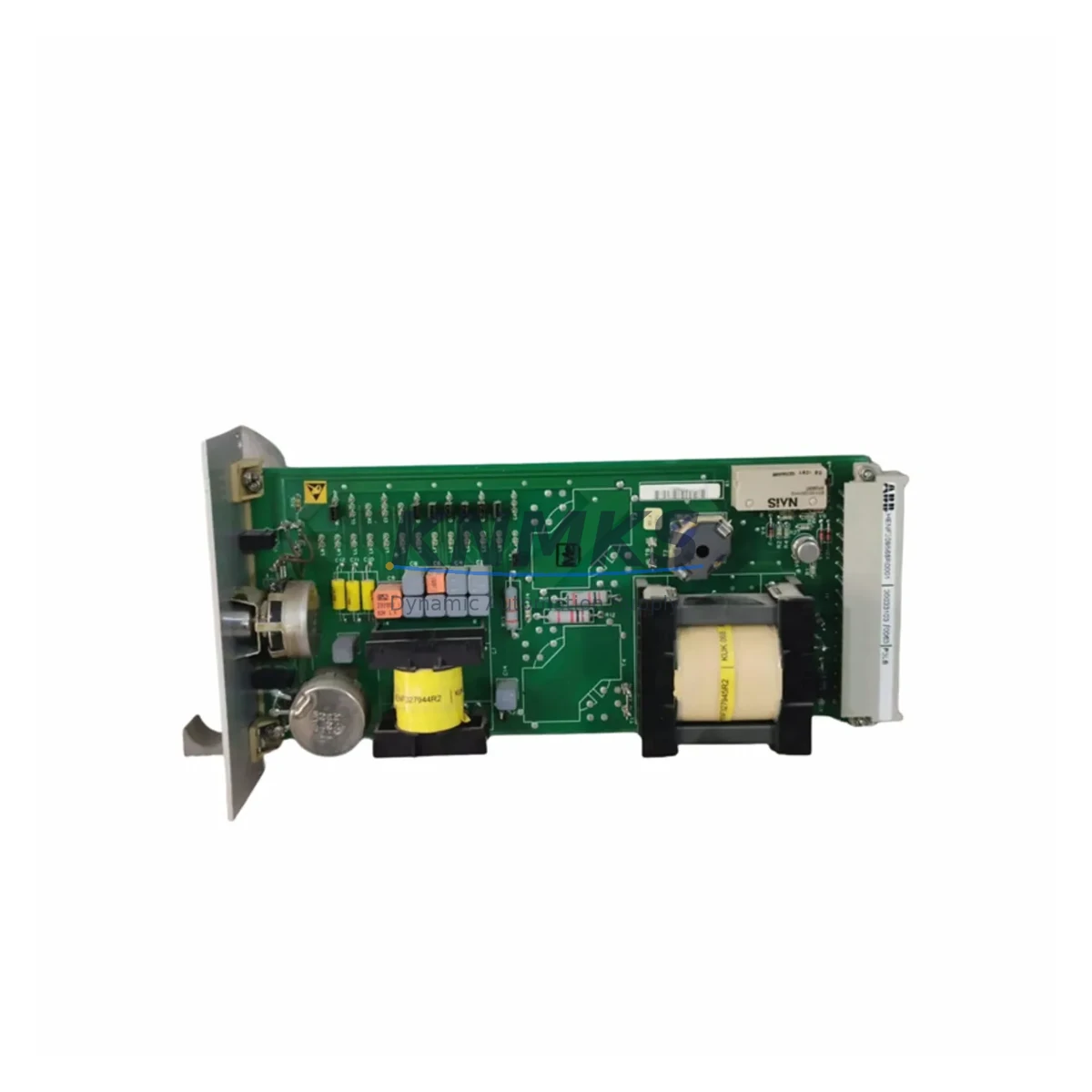

The ABB HENF209568R0001 is a migration-ready VFD control circuit board engineered as a direct replacement for legacy ACS800 series variable frequency drives. As industrial facilities face increasing pressure to modernize aging automation infrastructure, the HENF209568R0001 provides a reliable, pre-tested solution for engineers managing end-of-life drive replacements, control cabinet upgrades, and phased system modernization projects. Whether you are executing a scheduled outage retrofit or responding to an unplanned drive failure, this board is stocked for immediate global dispatch with a support terms confirmed by quotation and full pre-shipment functional verification.

The ACS800 platform has been widely deployed across pulp and paper, oil and gas, mining, water treatment, and heavy manufacturing sectors. As ABB transitions its drive portfolio toward the ACS880 and ACS580 generations, many facilities are left managing ACS800 units that are no longer supported under standard ABB service agreements. The HENF209568R0001 control board addresses this gap directly — providing a compatible, drop-in replacement that preserves existing drive hardware investment while restoring full operational capability without requiring a full drive cabinet replacement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful replacement of the HENF209568R0001 control board requires careful pre-work across several dimensions of the existing ACS800 installation. Before removing the legacy board, engineers should perform a complete parameter backup using ABB DriveWindow Light or DriveStudio software, capturing all application-specific settings including motor data, ramp times, PID configurations, and fieldbus node assignments. This backup is critical — without it, recommissioning after board replacement becomes a full parameter re-entry exercise that significantly extends downtime.

Power supply capacity within the control cabinet must be confirmed before proceeding. The ACS800 control section draws from the internal SMPS (switched-mode power supply) board, and any degradation in the existing APOW-01 or equivalent power supply module should be addressed concurrently with the control board replacement. Replacing the HENF209568R0001 into a cabinet with a marginal power supply risks premature failure of the new board and complicates fault diagnosis during commissioning.

Terminal wiring on the control board’s X1 and X2 connector blocks should be photographed and documented before disconnection. The ACS800 control terminal layout is standardized, but site-specific wiring for analog references, digital start/stop commands, fault relay outputs, and safe torque off (STO) circuits must be verified against the original drive wiring diagram. Any deviations from the standard ABB wiring template — common in older installations where local electricians made field modifications — must be identified and preserved during the board swap.

For drives integrated into DDCS (Drive-to-Drive Communication System) networks using RDCO-02 or RDCO-03 fiber optic communication adapters, the adapter module mounts directly onto the control board and must be carefully transferred to the replacement HENF209568R0001. The fiber optic cable routing and node address configuration in the DDCS ring must be verified post-installation to ensure master-follower drive coordination is restored correctly. Similarly, if the drive uses a fieldbus adapter such as the RPBA-01 for PROFIBUS-DP communication, the adapter’s slot position and node address settings must be confirmed and re-entered if the board replacement resets these parameters.

In multi-drive cabinet configurations, the ACS800 control board interfaces with the cabinet’s common DC bus and shared braking chopper circuits. Before isolating the drive for board replacement, confirm that the DC bus pre-charge sequence and the shared BCON-11 or BCON-12 brake control unit are not disrupted by the removal of one drive’s control board. Coordination with the facility’s electrical safety team is essential to ensure proper lockout/tagout (LOTO) procedures are followed for the entire cabinet section, not just the individual drive being serviced.

For installations where the ACS800 drive interfaces with an ABB AC500 PLC or a third-party SCADA system via Modbus RTU using the RMBA-01 adapter, the communication link must be re-established and verified after board replacement. This includes confirming the Modbus slave address, baud rate, and parity settings match the host controller’s configuration. HMI screens that display drive status, speed reference, and fault codes via the fieldbus link should be tested to confirm all data points are correctly mapped after the board swap.

Downtime Control During System Migration

Minimizing downtime during ACS800 control board replacement requires a structured approach that begins well before the maintenance window opens. The most effective strategy is to pre-stage the replacement HENF209568R0001 board on-site, with all associated tools, documentation, and spare components — including replacement terminal block connectors, fiber optic cleaning kits for DDCS connections, and a laptop loaded with DriveWindow or DriveStudio — ready before the drive is de-energized.

The drive parameter backup, performed during normal operation before the maintenance window, is the single most important step for protecting existing program logic. A complete parameter set export, saved to both a local laptop and a network backup location, ensures that even if the commissioning process encounters unexpected issues, the original drive configuration can be fully restored without relying on memory or incomplete documentation.

During the board replacement itself, the physical swap of the HENF209568R0001 is typically completed within 30 to 60 minutes by a qualified drive technician familiar with the ACS800 control section layout. The majority of commissioning time is consumed by parameter restoration, motor ID run execution, fieldbus communication verification, and functional testing of all I/O signals. Pre-planning these steps — including preparing a commissioning checklist that mirrors the original drive’s parameter set — can reduce total downtime from several hours to under two hours for a straightforward single-drive replacement.

For critical production lines where even a two-hour outage carries significant cost, consider maintaining a pre-configured spare HENF209568R0001 board with the drive’s parameter set pre-loaded. This hot-spare approach, while requiring an additional investment in a second board, reduces the active commissioning window to the physical swap and a brief I/O verification sequence, potentially cutting total downtime to under 45 minutes. Multi-region stock availability for the HENF209568R0001 supports this strategy by enabling rapid replenishment of the spare inventory after the primary replacement is completed.

Retrofit Support FAQ

Q: Is the HENF209568R0001 a direct drop-in replacement for the original ACS800 control board?
A: Yes. The HENF209568R0001 is designed as a like-for-like replacement for the original ACS800 control circuit board. The backplane connector, terminal block layout, and mounting points are compatible with the standard ACS800 control section. A full drive parameter backup and restore is required after installation to return the drive to its original operating configuration.

Q: What commissioning steps are required after installing the replacement board?
A: After physical installation, restore the drive parameter set using DriveWindow Light or DriveStudio. Verify the motor ID run has been completed (or re-run if motor data was not saved). Confirm fieldbus adapter node addresses and communication settings. Test all digital and analog I/O signals against the original wiring documentation. Verify DDCS fiber optic links if applicable. Perform a no-load test run before returning the drive to production.

Q: Has the HENF209568R0001 been tested before shipment?
A: Yes. All units undergo functional pre-shipment verification before dispatch. Each board is tested to confirm core control functions are operational. Units are shipped with protective packaging to prevent ESD damage and physical damage during transit. A support terms confirmed by quotation is included with every unit.

Q: What is the stock availability and lead time for the HENF209568R0001?
A: The HENF209568R0001 is maintained in multi-region stock to support both emergency replacements and scheduled maintenance outages. Standard dispatch is available for in-stock units. Contact our sales team at [email protected] or +86 18359268345 to confirm current stock levels and shipping options for your region.
