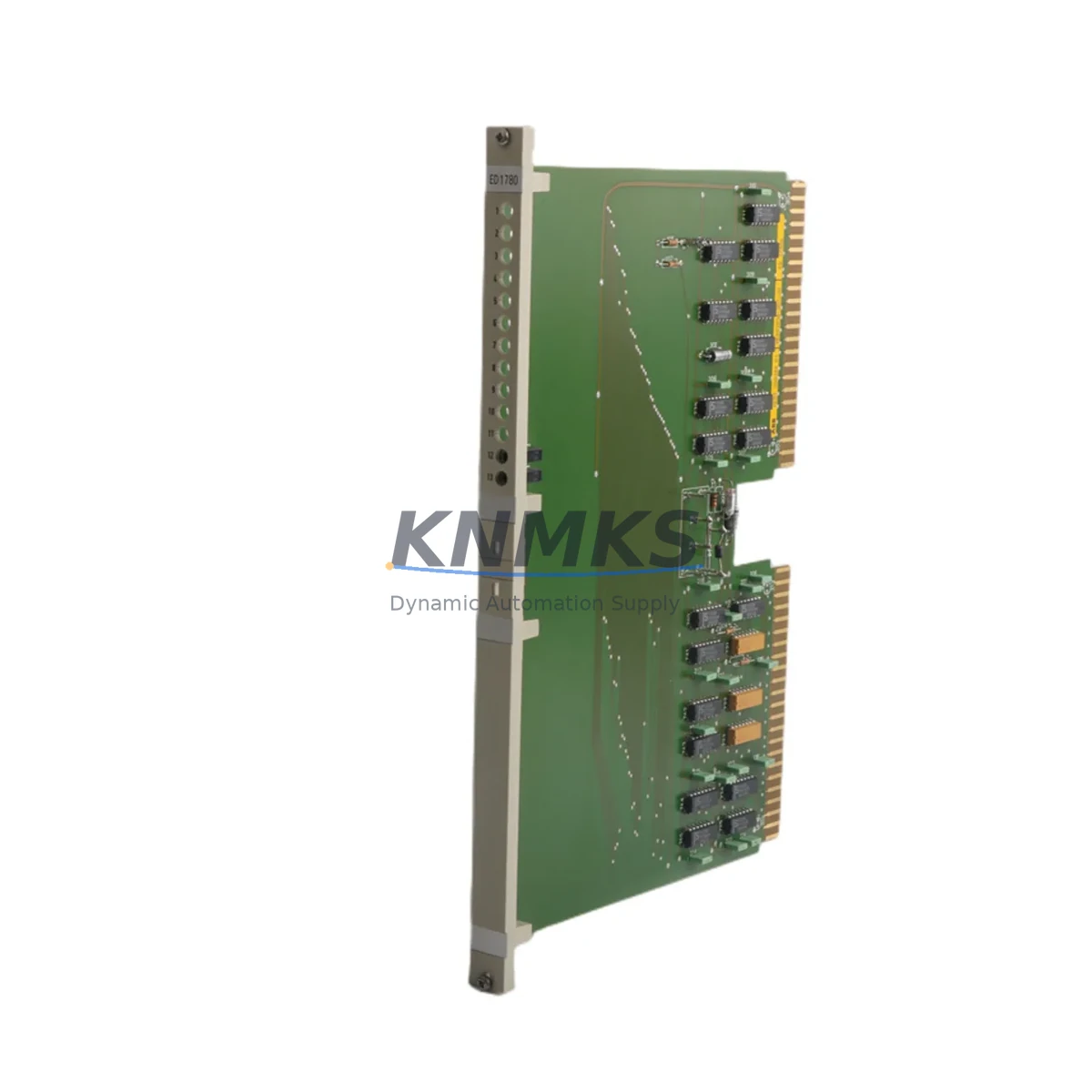

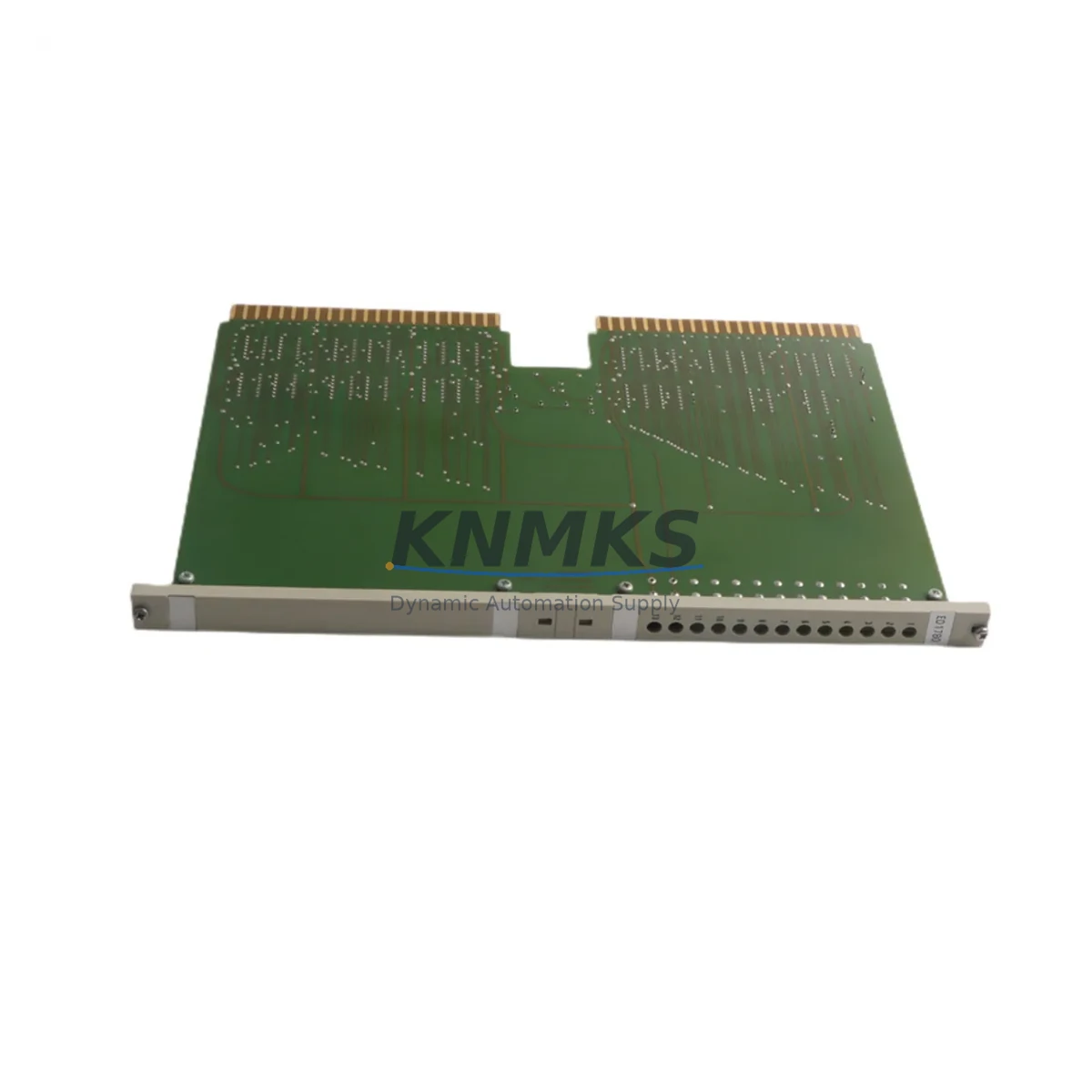

ABB HEDT300340R1 ED1780A Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB HEDT300340R1 ED1780A Maintenance-Proven Spare Part for Factory Uptime

The ABB HEDT300340R1 (ED1780A) is a Bus Amplifier Module designed for the ABB MOD 300 Distributed Control System — one of the most widely deployed DCS platforms in continuous process industries including oil & gas, petrochemical, pulp & paper, and power generation. As a critical signal and communication backbone component, the HEDT300340R1 amplifies and conditions bus signals across the MOD 300 control network, ensuring reliable data transmission between controllers, I/O modules, and operator stations.

At KNMKS, every HEDT300340R1 ED1780A unit is sourced as an original ABB spare, subjected to pre-shipment functional verification, and dispatched with a 12-month replacement support terms. Our inventory is maintained specifically to support emergency downtime recovery, planned annual shutdowns, and long-term spare parts programs for facilities still operating legacy MOD 300 infrastructure.

Whether you are a maintenance engineer responding to a bus communication fault or a procurement engineer building a strategic spare parts buffer, the HEDT300340R1 is a high-priority line item. ABB MOD 300 systems are no longer in active production, making reliable aftermarket sourcing essential for operational continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

In a MOD 300 control system, the bus amplifier module sits at the heart of inter-module communication. A degraded or failed HEDT300340R1 can manifest as intermittent I/O dropouts, controller-to-operator station communication errors, or complete loss of process visibility — all of which trigger unplanned shutdowns in high-availability environments.

When replacing the HEDT300340R1 ED1780A, a thorough maintenance engineer will not stop at the module itself. The following associated components should be inspected or replaced as part of the same maintenance window:

• MOD 300 Power Supply Module (e.g., NKTU01 or equivalent) — Verify DC rail voltages are within tolerance before re-seating the bus amplifier. A marginal power supply is a common root cause of premature bus module failure.
• MOD 300 Backplane / Rack Assembly — Inspect backplane connector pins for oxidation, mechanical damage, or intermittent contact. A faulty backplane will cause recurring failures even with a new HEDT300340R1 installed.
• Controller Module (e.g., IMMFP12, IMMFP02 series) — Confirm the primary controller is communicating correctly post-replacement. Bus amplifier faults are sometimes misdiagnosed as controller failures; validate both.
• I/O Modules on the affected bus segment — After restoring bus communication, perform a full I/O scan to confirm all field signals are reading correctly. Latent I/O module faults may surface once the bus is restored.
• Communication Interface Modules (e.g., INICT03A, INNIS21) — If the MOD 300 system interfaces with a SCADA, historian, or DCS gateway, verify that higher-level communication links re-establish cleanly after the bus amplifier replacement.
• Terminal Blocks and Field Wiring — Inspect associated terminal strips for loose connections, corrosion, or insulation degradation, particularly in high-vibration or high-humidity environments.

For facilities running extended maintenance intervals (12–24 months between planned shutdowns), maintaining at least one HEDT300340R1 as a cold standby spare is strongly recommended. Given the end-of-production status of the MOD 300 platform, sourcing windows can be unpredictable, and emergency procurement under downtime pressure significantly increases cost and lead time risk.

Site Replacement Workflow

Replacing the HEDT300340R1 ED1780A on a live MOD 300 system requires a structured approach to minimize process disruption and ensure a clean restoration:

1. Pre-replacement verification: Confirm the fault is isolated to the bus amplifier module using MOD 300 diagnostic tools or system alarm logs. Document the current system state, including active alarms and I/O status.
2. Safe isolation: Follow site-specific lockout/tagout (LOTO) procedures. Depending on system architecture, the affected bus segment may be isolated without full system shutdown — confirm with your MOD 300 system documentation.
3. Module extraction: Remove the faulty HEDT300340R1 from the backplane slot. Inspect the slot connector and surrounding modules for any signs of thermal damage or contamination.
4. New module installation: Insert the replacement HEDT300340R1 ED1780A firmly into the backplane slot. Ensure the module is fully seated and any retention hardware is secured.
5. System restoration and verification: Re-energize the bus segment and monitor system diagnostics for bus communication restoration. Confirm all downstream I/O modules and controller links are re-established. Perform a functional check of affected process loops before returning to automatic control.
6. Documentation: Record the replacement in the site maintenance log, including the new module serial number, date of installation, and post-replacement test results. Retain the failed module for failure analysis if required.

This workflow is applicable whether the HEDT300340R1 is being replaced as an emergency corrective action or as part of a scheduled preventive maintenance program. The same procedure applies when upgrading from an earlier revision to the ED1780A variant.

Spare Parts Support FAQ

Q1: Is the HEDT300340R1 ED1780A compatible with all MOD 300 rack configurations?
The HEDT300340R1 ED1780A is designed for the ABB MOD 300 DCS platform and is compatible with standard MOD 300 backplane assemblies. If your system uses a specific rack revision or a customized bus topology, please contact our technical team with your system configuration details before ordering. We can cross-reference against known compatibility data to confirm fit.

Q2: What testing is performed before shipment?
Each HEDT300340R1 unit undergoes pre-shipment functional verification at KNMKS prior to dispatch. This includes visual inspection, connector integrity check, and where test equipment permits, powered functional testing. All units are shipped with a support terms confirmed by quotation covering defects in materials and workmanship under normal operating conditions.

Q3: Can you support long-term supply agreements for MOD 300 spare parts?
Yes. KNMKS specializes in long-term spare parts support for legacy DCS and PLC platforms including ABB MOD 300. We can establish blanket purchase agreements, reserved inventory arrangements, and scheduled delivery programs to support your annual maintenance budget and shutdown planning cycles. Contact admin@knmks.com to discuss your requirements.

Q4: What is your lead time and what happens if the unit fails within the confirmed support period?
In-stock units typically ship within 2–5 business days. For support requests, KNMKS provides a direct replacement or documented resolution support within the support terms confirmed by quotation period, subject to inspection of the returned unit. We aim to dispatch support terms replacements within 5 business days of receiving the failed module to minimize your downtime exposure.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HEDT300340R1 ED1780A

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB HEDT300340R1 ED1780A
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
