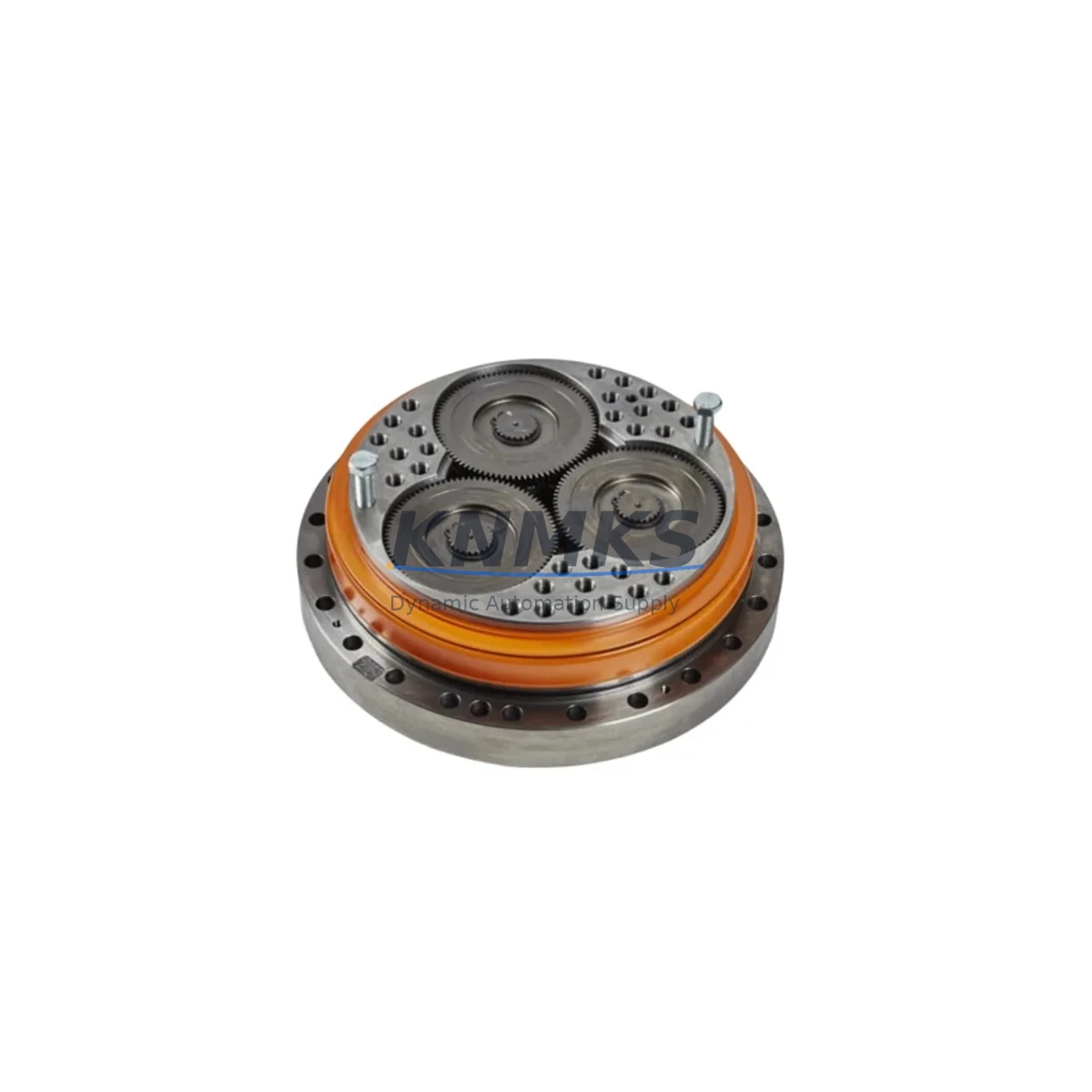

ABB HAC058778-001 Migration-Ready Axis Assembly for IRB 7600

Overview

ABB HAC058778-001 Migration-Ready Axis Assembly for IRB 7600 Legacy Control Systems

The ABB HAC058778-001 (also referenced as IRB76003-43, spare part cross-reference 3HAC054909-002) is a precision-engineered axis assembly designed for the ABB IRB 7600 series industrial robot platform. As automation facilities worldwide face the challenge of maintaining aging robot cells, this component serves as a direct migration-ready replacement for legacy axis assemblies that have reached end-of-life or are no longer available through standard OEM channels.

Whether you are managing a planned retrofit of an IRB 7600 robot line, responding to an unplanned axis failure, or executing a broader control system modernization project, the HAC058778-001 provides a verified drop-in solution that preserves your existing mechanical envelope, wiring harness routing, and robot program logic without requiring structural modifications to the robot base or upper arm structure.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the HAC058778-001 into an active production environment requires systematic pre-installation planning. Before scheduling downtime, maintenance engineers should verify the following critical parameters against the existing robot cell documentation:

Controller and Drive Compatibility: The IRB 7600 axis assembly is designed to operate within the ABB IRC5 controller ecosystem. If your facility is still running an older ABB S4C+ controller, a parallel axis computer board upgrade may be required to ensure full encoder signal compatibility. The IRC5 drive module for axis 3 — typically housed in the ABB DSQC 661 or DSQC 663 drive unit — should be inspected for wear and thermal damage before the new axis assembly is commissioned, as a degraded drive unit can mask axis performance issues post-replacement.

Power Supply Capacity: Confirm that the existing ABB DSQC 609 or equivalent IRC5 power supply unit provides adequate capacity for the axis motor load profile. In multi-robot cells or cells with additional servo-driven positioners, total drive bus load should be recalculated to prevent nuisance overcurrent trips during high-acceleration moves.

I/O and Signal Wiring: The axis 3 motor cable and resolver harness should be inspected for insulation degradation, connector pin corrosion, and cable tray abrasion before reuse with the new assembly. If the existing harness shows signs of wear, replacement with an OEM-specification cable set is recommended to avoid intermittent encoder faults after commissioning. The ABB 3HAC031683-001 motor cable assembly is a commonly referenced harness for this axis position.

Mechanical Backlash and Gearbox Condition: Before attributing axis performance degradation solely to the axis assembly, verify gearbox backlash on adjacent axes. In IRB 7600 platforms, axis 2 and axis 3 gearboxes share mechanical load during heavy payload cycles. If the ABB 3HAC028844-001 axis 2 gearbox shows elevated backlash, replacing the axis 3 assembly alone may not fully restore path accuracy.

HMI and Program Logic Preservation: Robot programs stored on the IRC5 controller’s DSQC 1000 main computer or backed up to a USB/network share should be verified for completeness before any mechanical work begins. Post-installation, a fine calibration routine using the ABB CalPendulum tool or the integrated LoadID function in RobotWare is required to restore TCP accuracy. No program logic modification is required for a like-for-like axis assembly replacement.

Communication Link Integrity: In cells where the IRB 7600 communicates with a PLC or SCADA system via PROFINET, DeviceNet, or EtherNet/IP through an ABB fieldbus adapter module, the communication link should be verified as stable before and after the mechanical replacement. A brief I/O handshake test between the robot controller and the upstream PLC — using the existing robot program’s I/O diagnostic routines — confirms that no address mapping has been disrupted during the maintenance window.

Downtime Control During System Migration

Unplanned axis assembly failures in IRB 7600 robot cells can result in extended production stoppages if replacement parts are not pre-positioned. The HAC058778-001 is maintained in available stock to support rapid dispatch for both planned maintenance windows and emergency breakdown scenarios.

Pre-Positioning Strategy: For facilities operating multiple IRB 7600 units, maintaining one HAC058778-001 as a critical spare within the plant reduces mean time to repair (MTTR) from days to hours. This is particularly relevant for automotive body shop, foundry, and heavy material handling applications where the IRB 7600’s 150–500 kg payload capacity makes it a bottleneck asset in the production flow.

Parallel Preparation: To minimize robot downtime, the replacement axis assembly should be unpacked, visually inspected, and staged adjacent to the robot cell before the maintenance window opens. All required tooling — torque wrenches, calibration pendulum, and laptop with RobotStudio or the IRC5 FlexPendant — should be prepared in advance. The robot program backup should be confirmed on an external storage device before any mechanical disassembly begins.

Calibration and Recommissioning: Post-installation calibration is the most time-sensitive step in the replacement process. Using the IRC5 FlexPendant’s built-in calibration menu, axis 3 calibration marks should be aligned and the fine calibration routine executed before any automatic program execution is attempted. A manual jog verification across the full axis 3 range of motion confirms mechanical freedom and correct resolver signal polarity before returning the robot to automatic mode.

Program Logic Continuity: Because the HAC058778-001 is a direct mechanical replacement with identical encoder interface, no modification to the existing RAPID program, work object definitions, or tool data is required. This preserves the original path accuracy and cycle time without re-teaching, significantly reducing the total commissioning time compared to a controller platform migration.

Retrofit Support FAQ

Q1: Is the HAC058778-001 a direct replacement for the original ABB IRB 7600 axis 3 assembly?
Yes. The HAC058778-001 is an OEM-specification axis assembly for the ABB IRB 7600 series. It is a direct mechanical and electrical replacement for the original factory-installed axis 3 assembly. No adapter plates, wiring modifications, or program changes are required for a standard like-for-like replacement on IRC5-controlled IRB 7600 robots.

Q2: What calibration steps are required after installation?
After mechanical installation and torque verification, axis 3 must be calibrated using the ABB IRC5 FlexPendant calibration routine. Align the axis 3 calibration mark, execute the fine calibration procedure, and verify TCP accuracy using the robot’s built-in 4-point or 5-point TCP calibration method. For high-precision applications, an external calibration tool such as the ABB CalPendulum is recommended.

Q3: Has this unit been tested before shipment?
Yes. All HAC058778-001 units dispatched from our inventory undergo a pre-shipment mechanical and dimensional inspection to verify structural integrity, connector condition, and freedom of movement. Units are packaged in protective foam-lined cases to prevent transit damage. A support terms confirmed by quotation is provided from the date of shipment.

Q4: What is the stock availability and lead time?
The HAC058778-001 is maintained in available stock for immediate dispatch. Standard international shipping lead times apply depending on destination. For urgent breakdown requirements, expedited freight options are available. Contact our team at [email protected] or +86 18359268345 to confirm current stock status and shipping schedule before placing your order.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IRB76003-43HAC058778-001 3HAC054909-002
IRC5 Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB IRB76003-43HAC058778-001 3HAC054909-002
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
