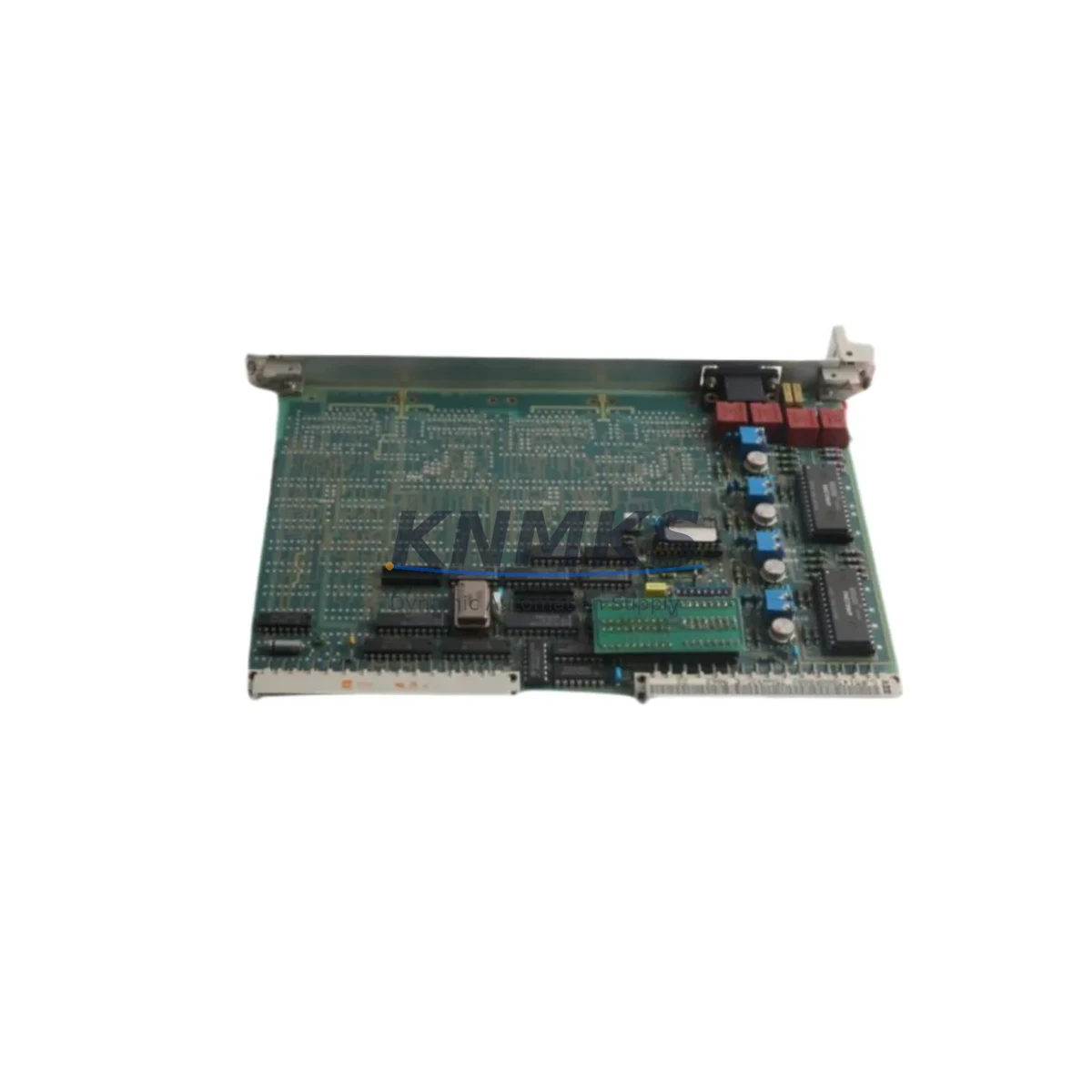

ABB GJR5143000R0002 Migration-Ready Analog Output Module

Overview

ABB GJR5143000R0002 Migration-Ready Analog Output Module: Legacy System Migration and Compatible Upgrade

The ABB GJR5143000R0002 (also identified as 35AA92C-E) is a migration-ready analog output module engineered for the AC500 and S500 control platforms. Designed to serve as a direct replacement for discontinued or end-of-life analog output components in legacy automation environments, this module enables engineers and maintenance teams to extend the operational life of existing control cabinets without requiring a full system overhaul. Whether you are managing a planned retrofit, responding to an unplanned failure, or executing a phased modernization of an aging production line, the GJR5143000R0002 provides a reliable, field-proven solution backed by a support terms confirmed by quotation and pre-shipment functional testing.

In industrial environments where legacy ABB AC500 or S500 PLCs remain in active service, sourcing compatible analog output modules is a critical challenge. The GJR5143000R0002 addresses this directly by maintaining full compatibility with the S500 I/O backplane architecture, preserving existing terminal wiring layouts and module addressing schemes. This means that during a replacement operation, field engineers can swap the module without modifying the control program, reconfiguring the HMI screens, or rewiring the terminal blocks — significantly reducing planned downtime and eliminating the risk of introducing new faults during the changeover process.

Before initiating a replacement, it is essential to verify several key parameters. First, confirm the power supply capacity of the existing rack or backplane — the GJR5143000R0002 draws from the S500 bus and must be within the total current budget of the installed PM5xx or PM5xx-ETH CPU module. Second, review the terminal wiring diagram against the original module’s channel configuration to ensure signal polarity, loop power sourcing, and shielding connections are preserved. Third, confirm the module address assignment within the I/O configuration in your Automation Builder or PS501 programming environment, as address conflicts can cause silent output errors that are difficult to diagnose under live conditions.

For sites running Profibus DP or Modbus RTU communication backbones, the GJR5143000R0002 integrates seamlessly with existing network topologies. No changes to the GSD file or Modbus register map are required when replacing a like-for-like module. However, if the replacement is part of a broader migration from an older S400 or S200 platform to the AC500 architecture, engineers should audit the communication module stack — including CI590-CS31-HA or CI501-PNIO adapters — to confirm protocol compatibility before commissioning.

Installation space is another practical consideration. The GJR5143000R0002 occupies a standard S500 module slot and is compatible with TB511, TB521, and TB541 terminal base units. If the existing cabinet layout uses a mixed rack with both digital and analog I/O modules, verify that the slot assignment does not conflict with any reserved positions for the CPU or power supply modules. In retrofit scenarios involving older TA521 or TA526 terminal adapters, physical fitment should be confirmed prior to ordering to avoid installation delays.

Firmware compatibility is a frequently overlooked aspect of analog module replacement. Ensure that the AC500 CPU firmware version supports the GJR5143000R0002 module type. For systems running firmware versions below V2.4.x, a firmware update may be required before the module is recognized correctly during the hardware configuration scan. This update should be planned as part of the pre-maintenance window and tested in a non-production environment where possible.

Field commissioning of the GJR5143000R0002 follows standard AC500 analog output procedures. After physical installation and program download, verify each channel’s output signal at the field device — typically a control valve positioner, variable frequency drive reference input, or process transmitter — using a calibrated loop tester or multimeter. Document the as-found and as-left readings for each channel as part of the maintenance record. This step is especially important in regulated industries such as water treatment, chemical processing, and power generation, where output accuracy must be verified against process safety requirements.

All units supplied by KNMKS are subject to pre-shipment functional testing, confirming output linearity, channel isolation, and communication handshake with a reference AC500 CPU. Each module ships with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Inventory is maintained to support both single-unit emergency replacements and bulk procurement for multi-site maintenance programs covering 12 to 36 months of planned consumption.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the GJR5143000R0002 typically occurs within a broader system modernization effort. In many facilities, the analog output module is one of several components being refreshed simultaneously. Engineers commonly pair this module replacement with an upgrade of the AC500 CPU — for example, migrating from a PM554-T to a PM564-T or PM591-ETH — to gain access to expanded memory, faster scan times, and integrated Ethernet connectivity. In these cases, the I/O configuration must be re-imported into the new CPU project file, and all analog channel scaling parameters should be verified against the original engineering documentation.

Power supply modules such as the CP405 or CP406 are frequently reviewed during the same maintenance window, particularly in cabinets where the existing 24VDC rail is shared across multiple I/O racks. Adding a new analog output module to an already loaded power budget can trigger nuisance trips or cause intermittent output errors if the supply headroom is insufficient. A load calculation should be completed before finalizing the module count for any retrofit project.

Communication infrastructure is another area of focus. Sites migrating from legacy CS31 fieldbus to Profibus DP or Profinet IO will need to install the appropriate communication interface module — such as the CI590-CS31-HA for CS31 continuity or the CI501-PNIO for Profinet integration — alongside the analog output module replacement. This ensures that the new module is visible to the SCADA or DCS layer without requiring changes to the upper-level control logic.

In control cabinets where space is constrained, the compact form factor of the S500 series allows engineers to maintain the existing rack layout while upgrading individual modules. If the retrofit also involves adding new I/O points — for example, expanding from 4 to 8 analog output channels — a second GJR5143000R0002 or a higher-density variant can be added to an adjacent slot without modifying the cabinet enclosure. Signal isolators or loop-powered barriers may be required at the field terminal strip if the new channels interface with intrinsically safe field devices.

For sites that also operate ABB Panel Builder or CP600 HMI terminals, the analog output channel tags should be verified in the HMI project database after the module replacement. While a like-for-like swap does not change the tag addresses, a cross-series migration may shift the I/O base address, requiring a global tag search and replace in the HMI configuration tool before the system is returned to service.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern during any analog output module replacement. The GJR5143000R0002 supports hot-swap capability within the AC500 architecture when the system is configured for redundant or non-critical output channels, allowing the module to be replaced without a full CPU restart in some configurations. However, for safety-critical analog outputs — such as those driving control valves in pressure or flow control loops — a controlled shutdown sequence should always be followed to prevent process upsets.

Before removing the existing module, capture a full backup of the AC500 CPU program using Automation Builder’s online backup function. This preserves the current program logic, I/O configuration, and retain data values, providing a recovery point if the replacement module requires a fresh hardware configuration scan. Store the backup on a local engineering laptop and a network share simultaneously to guard against single-point data loss.

During the physical swap, label all field wiring at the terminal base before disconnection. Even in a like-for-like replacement where rewiring is not required, labeling provides a verification reference during the post-installation check. After installing the GJR5143000R0002, perform a hardware configuration scan in Automation Builder to confirm the module is recognized at the correct rack and slot address. Download the configuration to the CPU and verify that all analog output channels are active and within the expected engineering unit range before returning the system to automatic control.

For multi-site operations managing a fleet of AC500-based control systems, maintaining a buffer stock of GJR5143000R0002 modules at a central warehouse or regional depot significantly reduces mean time to repair (MTTR). KNMKS supports bulk procurement with staggered delivery schedules aligned to planned maintenance windows, ensuring that spare parts are available when needed without excessive on-site inventory carrying costs.

Retrofit Support FAQ

Q1: Is the GJR5143000R0002 a direct replacement for all 35AA92C-E variants?
A: Yes. The GJR5143000R0002 and 35AA92C-E are the same module identified by different ABB catalog reference formats. Both designations refer to the same hardware revision and are interchangeable in AC500 and S500 I/O applications. Always confirm the terminal base type (TB511, TB521, or TB541) matches your existing installation before ordering.

Q2: Will I need to modify my control program after replacing this module?
A: For a direct like-for-like replacement within the same AC500 rack and slot position, no program modification is required. The module address, channel scaling, and output range parameters are preserved. If the replacement is part of a cross-series migration — for example, from an S400 to an AC500 platform — the I/O configuration must be remapped in Automation Builder and all analog output tags verified before commissioning.

Q3: What pre-shipment testing is performed on each unit?
A: Every GJR5143000R0002 supplied by KNMKS undergoes functional testing prior to shipment, including output linearity verification across all channels, channel-to-channel isolation testing, and communication handshake confirmation with a reference AC500 CPU. Test records are available upon request for quality assurance documentation purposes.

Q4: What support terms and supply terms apply?
A: All units carry a support terms confirmed by quotation from the shipment date, covering manufacturing defects and functional failures under normal operating conditions. KNMKS maintains in-stock inventory to support both emergency single-unit orders and long-term supply agreements covering 12 to 36 months of planned consumption. Contact [email protected] or +86 18359268345 for bulk pricing and delivery scheduling.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

GJR5143000R0002 35AA92C-E
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB GJR5143000R0002 35AA92C-E
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
