ABB GJR2388300R1010 Migration-Ready PLC Module for AC500

Overview

ABB GJR2388300R1010 Migration-Ready PLC Module for AC500: Legacy System Retrofit & Compatibility Upgrade

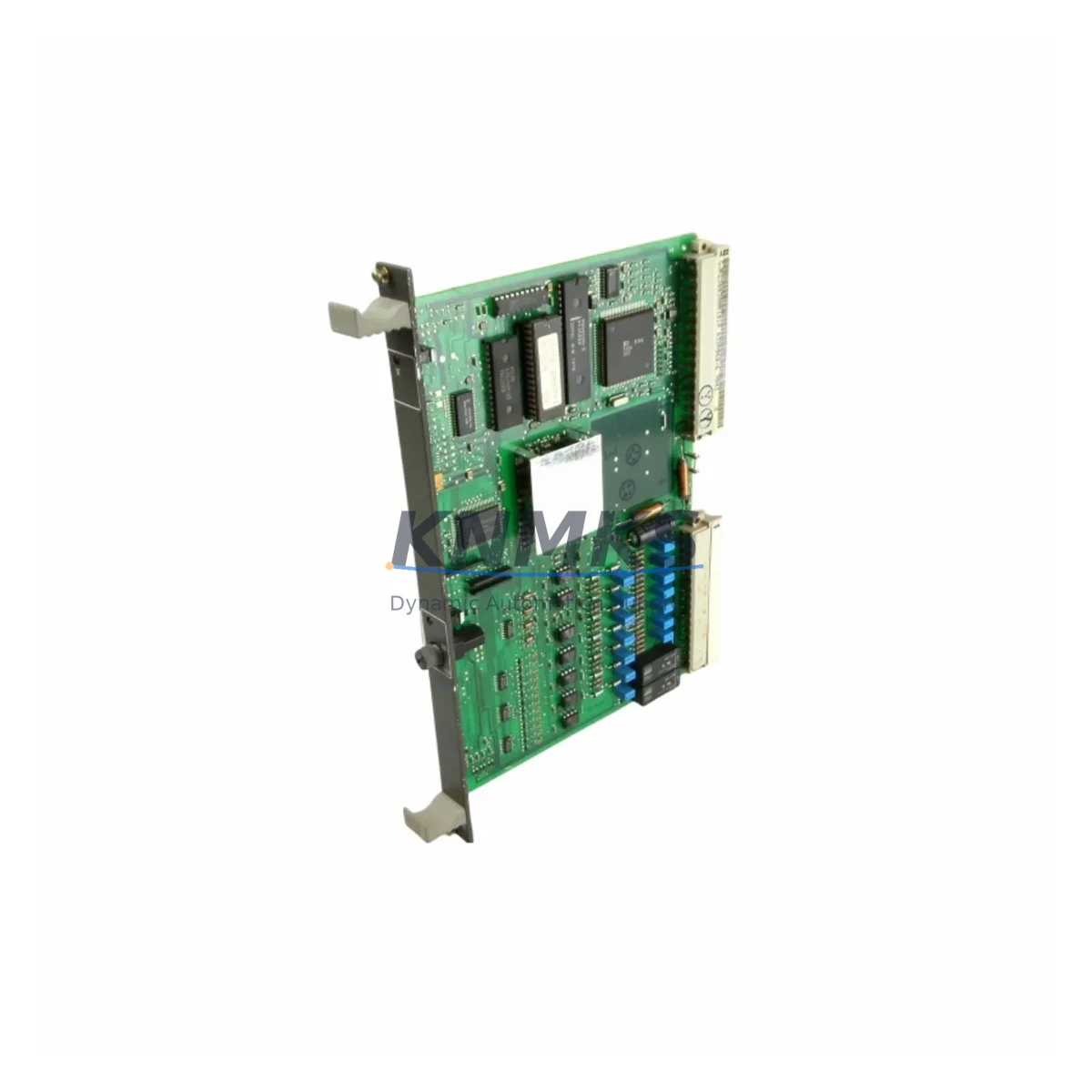

The ABB GJR2388300R1010 (also referenced as 83SR06B-E) is a migration-ready PLC module designed for the ABB AC500 control platform. As legacy automation systems reach end-of-life and original spare parts become increasingly difficult to source, this module provides a verified drop-in replacement path for maintenance engineers and system integrators managing aging control cabinets. Whether you are replacing a failed unit on a running production line or executing a planned retrofit of an obsolete control architecture, the GJR2388300R1010 delivers the electrical compatibility, backplane interface alignment, and firmware baseline required to restore system continuity with minimal disruption.

The AC500 series from ABB has been widely deployed across process automation, machine control, and infrastructure applications globally. Over time, many installations running earlier AC500 generations — including systems built around the PM571, PM581, or PM591 CPUs — require module-level replacements due to component aging, environmental stress, or discontinued production runs. The GJR2388300R1010 addresses this need directly, offering a stocked, pre-tested alternative that supports the original rack and backplane architecture without requiring hardware redesign or panel modification.

Before installing this module into an existing AC500 rack, engineers should verify several critical parameters. Power supply capacity within the control cabinet must be confirmed against the module’s rated consumption to avoid overloading the existing PS501 or PS502 power supply units. Terminal wiring assignments should be cross-referenced against the original I/O configuration to ensure signal continuity, particularly for analog input channels where mA or voltage range settings may differ between module revisions. Backplane slot addressing must be validated in the PLC program — if the module occupies a different physical slot than its predecessor, the I/O mapping in the Automation Builder project file will require adjustment before the program can be reloaded without fault.

Communication link integrity is another key checkpoint during migration. AC500 systems frequently use PROFIBUS DP, Modbus RTU, or CANopen for field device communication, and any change in module addressing or firmware version can affect the master-slave handshake sequence. HMI screens linked to specific data tags should be reviewed to confirm that variable addresses remain valid after the module swap. Where the system uses a CP600 or CP620 operator panel, tag binding should be re-verified in the Panel Builder project before commissioning the replacement module.

Physical installation space should also be confirmed. The GJR2388300R1010 follows the standard AC500 module form factor, but rack density and adjacent module clearance should be checked, especially in retrofitted cabinets where non-standard mounting arrangements may have been introduced over the system’s operational life. Firmware version compatibility between the replacement module and the existing CPU should be confirmed using ABB’s Automation Builder version matrix to avoid runtime errors caused by mismatched library versions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the GJR2388300R1010 into an existing AC500 installation typically involves coordinating several interdependent components. The AC500 rack itself — whether a TB521 or TB541 expansion backplane — must have an available slot with correct bus segment assignment. If the original module was part of a multi-rack configuration connected via an expansion cable, the new module must be assigned the same rack and slot index as the failed unit to avoid I/O address conflicts in the PLC program.

Power distribution within the cabinet should be reviewed before installation. The PS501-PROG or PS502 power supply modules feeding the rack must have sufficient headroom to support the replacement module’s inrush and steady-state current draw. In cabinets where multiple I/O expansion modules — such as DC532 digital input modules or AX522 analog I/O modules — are already installed, total rack power consumption should be recalculated to confirm no derating is required.

For systems using PROFIBUS DP field networks, the GSD file associated with the replacement module should be verified against the PROFIBUS master configuration. If the module revision differs from the original, the GSD file may need to be updated in the master configuration tool before the network can re-establish communication. Similarly, for CANopen-based systems, the node ID and baud rate settings stored in the module’s non-volatile memory should be confirmed against the network topology diagram.

Where the existing system includes a CI590-CS31-HA communication interface module or a CI501-PNIO PROFINET adapter, the replacement module’s slot position must be reflected in the network configuration to maintain correct device addressing. Signal isolators installed between field devices and the module’s input terminals should also be checked for range compatibility, particularly if the original module used a different input impedance specification.

Programming cable access — typically via a USB or RS-232 programming port on the CPU — should be confirmed available during commissioning. The Automation Builder project should be backed up before any firmware download or program modification is attempted on the live system.

Downtime Control During System Migration

Minimizing unplanned downtime during a module replacement on a live AC500 system requires a structured approach. Before removing the failed module, the current PLC program should be uploaded from the CPU and saved as a reference backup. This ensures that if the replacement module triggers any unexpected fault conditions, the original program logic can be restored without relying on an archived version that may not reflect recent field modifications.

Where the process allows, the replacement should be performed during a scheduled maintenance window. If the system supports hot-swap or partial rack isolation — available on certain AC500 configurations with redundant power feeds — the module can be exchanged without a full system shutdown. In cases where a complete power-down is required, the sequence of de-energizing field devices before removing the module should be followed to protect both the module and connected instrumentation.

After physical installation, the module should be powered up with the CPU in STOP mode before the program is downloaded. This allows the I/O configuration to be verified against the hardware without activating field outputs. Once the I/O map is confirmed correct, the CPU can be switched to RUN mode and field device responses monitored for the first operational cycle. HMI alarm screens should be reviewed for any residual fault messages that may indicate address mismatches or communication timeouts requiring further adjustment.

All GJR2388300R1010 units supplied by KNMKS are subject to pre-shipment functional testing to confirm electrical integrity before dispatch. This reduces the risk of receiving a non-functional unit and supports faster on-site commissioning. The included support terms confirmed by quotation cover manufacturing defects and provides a documented support baseline for maintenance records.

Retrofit Support FAQ

Q: Is the GJR2388300R1010 a direct replacement for the original ABB AC500 module of the same part number?
A: Yes. The GJR2388300R1010 is supplied as a direct replacement for the original ABB part. It uses the same backplane connector, terminal block layout, and module form factor as the original AC500 design. Slot addressing and I/O mapping in the Automation Builder project should be verified before going live, as program-level configuration is not stored in the module itself.

Q: What pre-shipment testing is performed on this module?
A: Each unit undergoes functional testing prior to dispatch to verify power-up behavior, backplane communication, and I/O channel integrity. A support terms confirmed by quotation is included with every unit, covering manufacturing defects from the date of shipment.

Q: How do I confirm wiring compatibility with my existing AC500 installation?
A: The GJR2388300R1010 uses the standard AC500 terminal block interface. Cross-reference the original wiring diagram against the module’s I/O channel specification sheet. Pay particular attention to analog channel signal ranges (0–10V, 4–20mA) and digital input voltage levels to confirm compatibility with your existing field wiring before energizing the module.

Q: Is stock available for immediate shipment?
A: KNMKS maintains multi-region inventory for the GJR2388300R1010 to support urgent replacement requirements. Contact our team to confirm current stock availability and lead time for your region. global delivery details confirmed by RFQ is available with tracking provided upon dispatch.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

GJR2388300R1010-83SR06B-E
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB GJR2388300R1010-83SR06B-E
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
