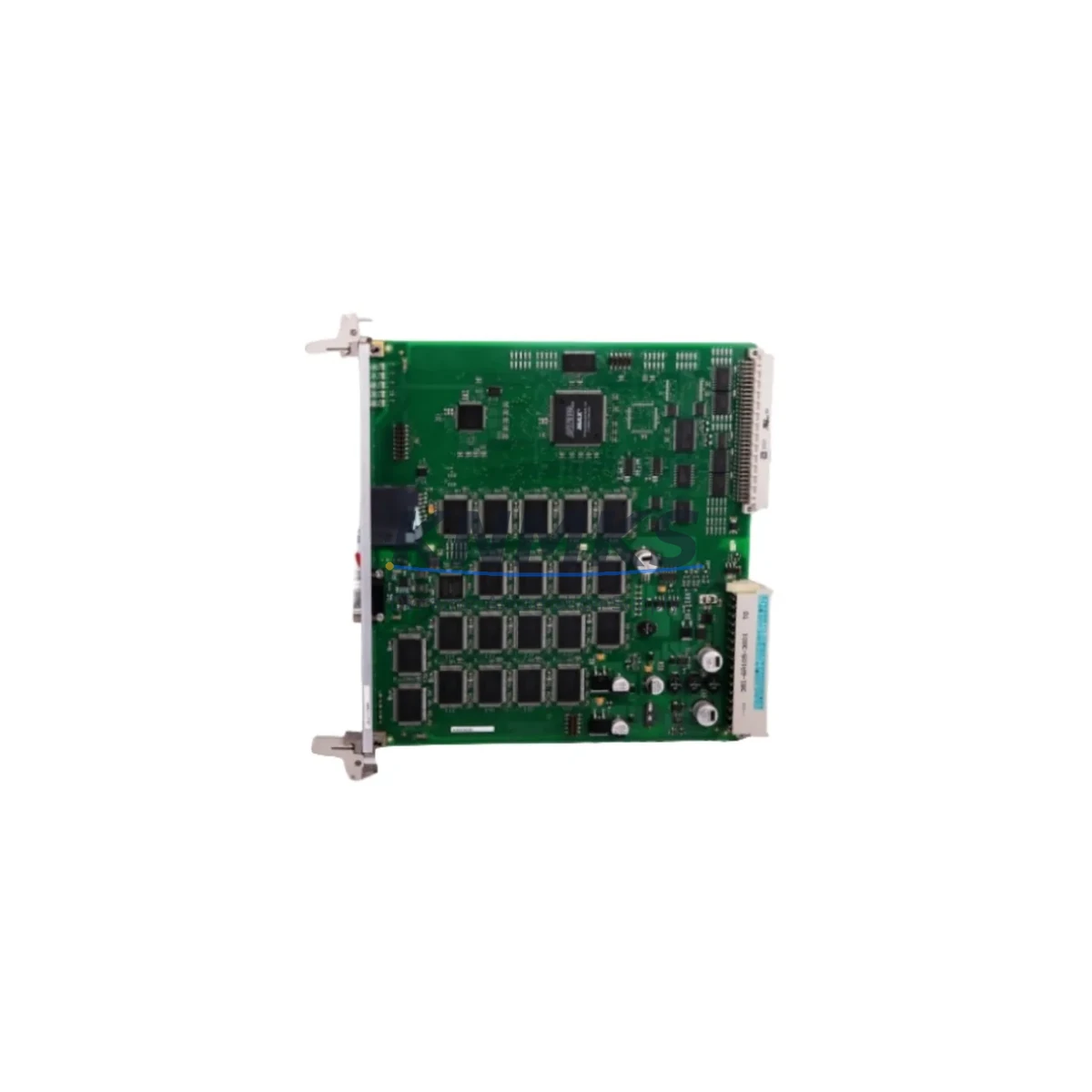

ABB GJR2374800R0210 81EA11D-E Maintenance-Proven Spare Part

Overview

ABB GJR2374800R0210 81EA11D-E Maintenance-Proven Spare Part for Factory Uptime

The ABB GJR2374800R0210 81EA11D-E is an original analog input module engineered for the ABB AC500 PLC platform — one of the most widely deployed programmable logic controller families in process automation, discrete manufacturing, and utility infrastructure. For maintenance engineers managing aging control systems, this module represents a critical spare: it handles real-world analog signal acquisition from field instruments including pressure transmitters, temperature sensors, and flow meters, feeding accurate process data into the AC500 CPU for closed-loop control decisions.

When this module fails or degrades, the consequences extend beyond a single I/O channel. Entire control loops can go blind, triggering safety shutdowns, production halts, or uncontrolled process deviations. Stocking the GJR2374800R0210 81EA11D-E as a verified spare eliminates the most dangerous variable in unplanned downtime: lead time. With a pre-tested, shelf-ready unit available on-site or through a trusted distributor like KNMKS, your maintenance team can execute a swap within a single shift window rather than waiting days or weeks for procurement.

This module is sourced as an original ABB component, not a third-party substitute. Each unit shipped by KNMKS undergoes pre-shipment functional verification and is backed by a support terms confirmed by quotation, giving procurement engineers the confidence to approve the purchase and maintenance engineers the assurance to install without re-validation risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the GJR2374800R0210 81EA11D-E in the field is rarely an isolated task. A disciplined maintenance engineer uses the module swap as an opportunity to audit the surrounding electrical environment and prevent secondary failures. During the replacement window, inspect the AC500 terminal base (TB5xx series) that the module seats into — worn or corroded terminal contacts are a common source of intermittent signal errors that are misdiagnosed as module faults. Verify the 24 VDC supply rail feeding the I/O bus; an unstable power module such as the ABB CP-E 24/5.0 or equivalent AC500 power supply unit can cause analog modules to report erratic readings or fail to initialize after a cold restart.

Check the field wiring at the terminal base: shielded twisted-pair cables should be properly grounded at a single point to prevent common-mode noise from corrupting low-level analog signals. If the process involves 4–20 mA transmitters, confirm loop power integrity and inspect any inline signal isolators or barriers — particularly in hazardous area installations where galvanic isolation modules protect both the field instrument and the PLC I/O from ground loops and transient surges.

While the control cabinet is open, review the status of adjacent modules in the same AC500 rack. Digital output modules such as the ABB DA501 or DO501 series, communication modules like the CM572-DP PROFIBUS interface, and the CPU module itself (e.g., PM564-T or PM583-ETH) should all be visually inspected for signs of overheating, capacitor bulge, or connector wear. Fuse holders and miniature circuit breakers protecting individual I/O circuits should be tested for continuity. If the system includes an HMI panel — such as an ABB CP600 series operator panel — verify that the communication link to the CPU remains stable after the module replacement, as a rack reconfiguration can occasionally trigger a communication timeout that requires a panel restart.

For sites running long-term AC500 installations, consider maintaining a minimum spare parts kit that includes at least one analog input module (GJR2374800R0210 81EA11D-E), one digital I/O module, one terminal base, and a spare CPU battery. This kit approach, combined with annual cabinet inspections, is the most cost-effective strategy for extending system life beyond the OEM’s published support horizon.

Site Replacement Workflow

The GJR2374800R0210 81EA11D-E is a direct replacement for the same SKU in any AC500 installation. No firmware re-flashing or hardware reconfiguration is required when replacing a like-for-like module — the AC500 CPU automatically recognizes the module type via the S500 I/O bus during startup. This plug-and-play compatibility is a key advantage for emergency replacements where minimizing mean time to repair (MTTR) is the priority.

Recommended replacement procedure: (1) Place the CPU in STOP mode and isolate the 24 VDC supply to the affected I/O rack. (2) Disconnect field wiring at the terminal base — label each wire before removal. (3) Release the module locking tab and slide the faulty GJR2374800R0210 81EA11D-E out of the terminal base. (4) Insert the replacement module and confirm the locking tab engages. (5) Reconnect field wiring per the original wiring diagram. (6) Restore power and switch the CPU to RUN mode. (7) Monitor analog input values in the SCADA or HMI for 15–30 minutes to confirm signal stability before returning the process to automatic control.

For sites migrating from older ABB Advant or MOD300 legacy systems to AC500, the GJR2374800R0210 81EA11D-E can serve as part of a phased I/O migration strategy — replacing legacy analog input cards one rack at a time while retaining the existing field wiring infrastructure, significantly reducing migration cost and risk.

Spare Parts Support FAQ

Q1: Is the GJR2374800R0210 81EA11D-E still available as a new original part?
A: Yes. KNMKS maintains stock of original ABB AC500 analog input modules including the GJR2374800R0210 81EA11D-E. Each unit is sourced through verified supply channels and undergoes pre-shipment functional testing. Contact [email protected] to confirm current stock availability and lead time.

Q2: What is the support terms coverage and what does it include?
A: All modules shipped by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. The confirmed support period begins from the date of shipment. DOA (dead on arrival) units are replaced at no charge with priority dispatch.

Q3: How do I verify compatibility before ordering?
A: The GJR2374800R0210 81EA11D-E is compatible with the ABB AC500 S500 I/O system and is designed to seat into TB5xx terminal bases. Confirm your existing terminal base model and CPU series (PM5xx) before ordering. If you are unsure, share your existing module label or cabinet layout with our technical team at [email protected] for compatibility confirmation prior to purchase.

Q4: Can KNMKS support long-term or recurring supply for this module?
A: Yes. KNMKS offers long-term supply agreements for critical spare parts including the GJR2374800R0210 81EA11D-E. For sites with multiple AC500 installations or annual maintenance budgets, we recommend establishing a blanket order or consignment stock arrangement to ensure availability without repeated procurement cycles. Contact +86 18359268345 to discuss volume pricing and supply continuity options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

GJR2374800R0210 81EA11D-E
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB GJR2374800R0210 81EA11D-E
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
