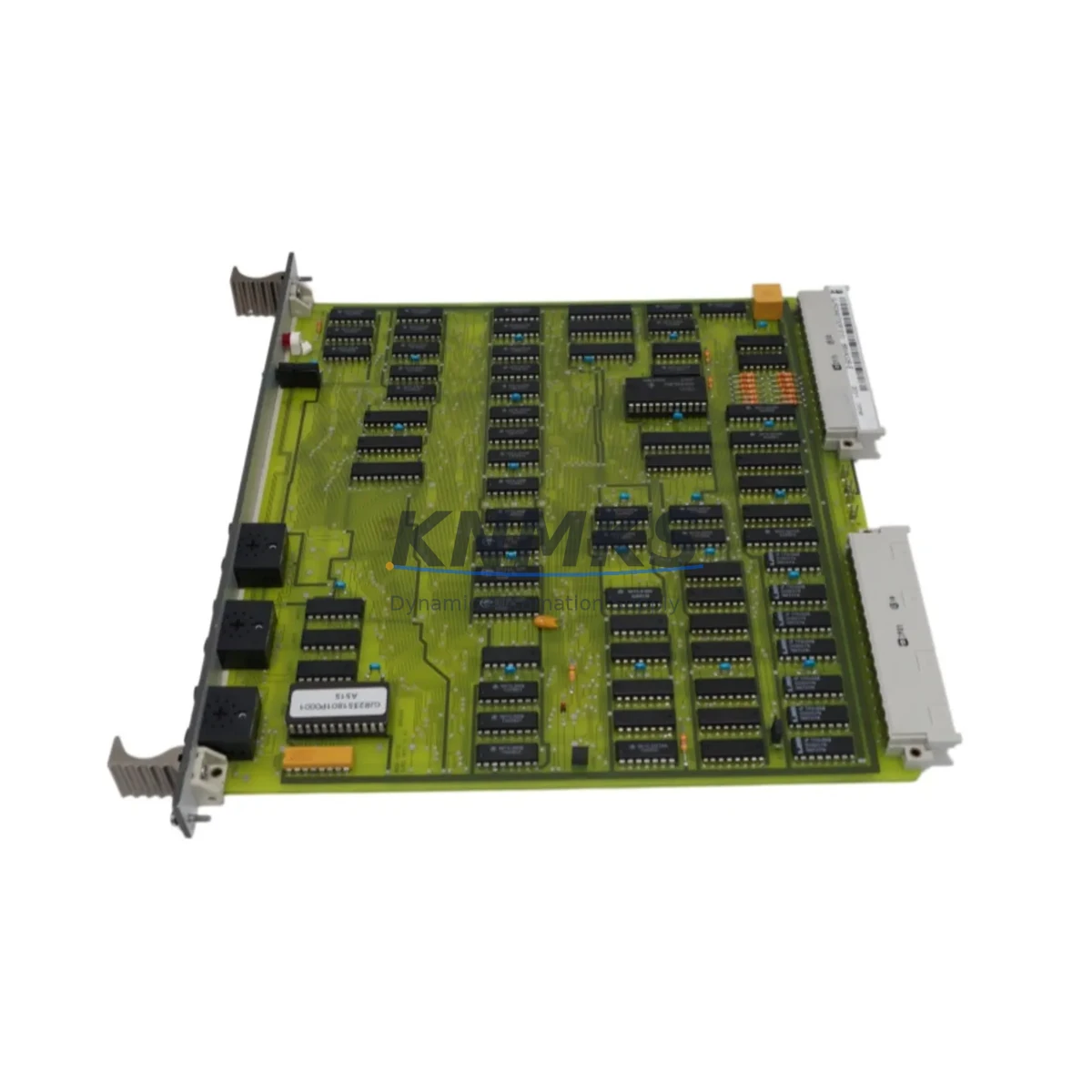

ABB GJR2365700R1010 88VA02A-E Migration-Ready CPU

Overview

ABB GJR2365700R1010 88VA02A-E Migration-Ready CPU for Legacy Control Systems

The ABB GJR2365700R1010 (88VA02A-E) is a migration-ready central processing unit engineered for engineers and maintenance teams managing the transition from end-of-life AC500 control architectures to modern, supportable automation platforms. As ABB progressively phases out legacy AC500 V1 hardware, facilities running original PM554, PM564, or PM581 processors face increasing pressure to source verified replacement modules that maintain program logic integrity, preserve existing I/O wiring, and avoid costly line shutdowns. The GJR2365700R1010 addresses all three concerns directly.

This CPU module is fully compatible with the AC500 backplane and rack system, accepting standard TB521 and TB541 terminal base configurations without modification. Engineers replacing a failed or obsolete processor can install the GJR2365700R1010 into the existing rack, restore the application program via SD card or PS501 Control Builder Plus, and resume operations with minimal downtime. The module supports PROFIBUS DP, Modbus RTU, and Modbus TCP communication protocols natively, ensuring that existing field device networks — including remote I/O stations, variable frequency drives, and third-party sensors — remain fully operational after the swap.

Before beginning the replacement procedure, technicians should verify several critical parameters. Power supply capacity at the rack level must be confirmed: the GJR2365700R1010 draws within the standard AC500 CPU power budget, but aging power supply modules such as the CP502 or CP504 should be load-tested to ensure they can sustain the full rack under the new CPU’s initialization cycle. Terminal wiring on the TB521 base does not require rewiring, but all field wiring should be inspected for insulation integrity and correct torque on terminal screws before powering up the replacement unit.

Backplane slot addressing must be reviewed in the Control Builder Plus project file. If the original CPU occupied Slot 0 and the project references absolute I/O addresses, no address remapping is required. However, if the legacy system used a non-standard slot configuration or if additional DI581, DO581, or AI531 I/O expansion modules were added after the original commissioning, the engineer must confirm that module addresses in the program match the physical rack layout before downloading the application.

Firmware compatibility is another key checkpoint. The GJR2365700R1010 ships with a validated firmware version. If the existing project was compiled under an older version of PS501 Control Builder Plus, a firmware upgrade on the CPU may be required before the project can be downloaded without errors. KNMKS recommends requesting the firmware version datasheet at the time of order to cross-reference against the customer’s existing software environment.

HMI screen compatibility should also be confirmed. Facilities using CP600 or CP620 operator panels connected via Ethernet or serial link to the original CPU will need to verify that the panel project’s communication driver settings — IP address, baud rate, and station number — match the configuration loaded onto the replacement GJR2365700R1010. In most cases, the HMI project requires no modification; only the CPU’s IP address assignment needs to be confirmed or reassigned during commissioning.

For systems undergoing broader modernization — not just a CPU swap — the GJR2365700R1010 serves as a stable anchor point for phased upgrades. Engineers can retain existing field wiring and I/O modules such as the DI581-S or AI531 while upgrading the CPU and communication infrastructure. Where PROFINET integration is required for connection to a higher-level SCADA or MES system, an additional CM589-PNIO communication module can be added to the rack alongside the GJR2365700R1010 without disrupting existing Modbus or PROFIBUS segments.

All GJR2365700R1010 units supplied by KNMKS undergo pre-shipment functional testing, including power-on verification, communication port validation, and memory integrity checks. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Stock is maintained for immediate dispatch, with same-day shipping available for orders confirmed before 14:00 CST.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of a legacy AC500 control cabinet begins well before the replacement CPU arrives on site. A structured pre-migration audit should document every module in the rack: the existing CPU, all I/O expansion modules such as DI581 digital input and AI531 analog input cards, the CP502 or CP504 power supply module, and any communication modules handling PROFIBUS or serial links to field devices. This audit forms the baseline against which the GJR2365700R1010 installation is validated.

Terminal wiring on the TB521 or TB541 base is one of the most time-sensitive elements of the retrofit. Because the GJR2365700R1010 uses the same terminal base as the original AC500 CPU, field wiring does not need to be disturbed. However, technicians should photograph and document all wiring before beginning work, and should verify that no wires have migrated from their labeled terminals due to vibration or previous maintenance activity.

Where the control cabinet also houses a CP620 HMI panel, the panel’s communication configuration — including the CPU’s Ethernet IP address and any serial port parameters — must be recorded before the old CPU is removed. After the GJR2365700R1010 is installed and powered, the IP address is assigned via Control Builder Plus or the CPU’s front-panel configuration interface, and the HMI communication link is re-established and tested before the system is returned to automatic mode.

For facilities adding PROFINET connectivity as part of the upgrade, a CM589-PNIO communication module can be inserted into an adjacent rack slot. This allows the GJR2365700R1010 to participate in a PROFINET network alongside existing PROFIBUS DP segments, enabling integration with modern SCADA systems without replacing field devices. Signal isolators may be required at the interface between legacy 4-20 mA analog loops and new digital I/O modules if the retrofit includes I/O modernization alongside the CPU replacement.

Programming cable connectivity should also be confirmed. The GJR2365700R1010 supports USB and Ethernet programming interfaces compatible with PS501 Control Builder Plus. If the site laptop uses an older serial programming cable, an adapter or updated cable set should be sourced before the maintenance window begins to avoid delays during the commissioning phase.

Downtime Control During System Migration

Minimizing production downtime during a CPU replacement requires a disciplined pre-migration preparation process. The application program should be backed up from the original CPU — via SD card extraction or an online upload through Control Builder Plus — at least 48 hours before the planned maintenance window. This backup should be verified by compiling it successfully in the engineering software before the old CPU is removed from service.

During the physical swap, the GJR2365700R1010 can be pre-configured offline: IP address, station name, and communication parameters can all be set in the project file and downloaded to the new CPU before it is installed in the rack. This approach reduces the time the rack spends unpowered and limits exposure to environmental conditions in the control cabinet.

Once the replacement CPU is installed and powered, the commissioning sequence should follow a structured checklist: confirm power supply output voltage, verify communication link status LEDs on the CPU and any CM589-PNIO or PROFIBUS modules, download the application program, and perform a controlled I/O force test on a representative sample of DI581 and DO581 channels before releasing the system to automatic operation. HMI screens on the CP600 or CP620 panel should be verified for correct data display and alarm acknowledgment functionality before the maintenance window is closed.

By following this sequence, most AC500 CPU replacements using the GJR2365700R1010 can be completed within a four-hour maintenance window, including pre-checks, physical installation, program download, and functional verification. KNMKS technical support is available during the commissioning phase for customers who require remote guidance on firmware configuration or communication parameter setup.

Retrofit Support FAQ

Q: Is the GJR2365700R1010 a direct drop-in replacement for the PM554 and PM564 CPU modules?
A: Yes. The GJR2365700R1010 installs into the same TB521 or TB541 terminal base used by the PM554 and PM564 without any mechanical modification. The existing application program can be downloaded directly after installation, provided the firmware version on the replacement CPU is compatible with the PS501 project file version. KNMKS can provide firmware version details at the time of order to allow pre-verification.

Q: Does the replacement CPU require rewiring of field terminals?
A: No rewiring is required. The GJR2365700R1010 uses the same terminal base as the original AC500 CPU. Field wiring connected to the TB521 or TB541 base remains undisturbed during the CPU swap. Technicians should inspect and re-torque terminal screws as a precaution, but no wiring changes are needed for a standard CPU replacement.

Q: How is the unit tested before shipment, and what does the support terms cover?
A: Every GJR2365700R1010 unit undergoes pre-shipment functional testing covering power-on verification, communication port validation (PROFIBUS DP, Modbus RTU, Modbus TCP), and memory integrity checks. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Support requests are processed directly through KNMKS with replacement units dispatched from stock.

Q: What is the typical lead time, and is stock available for urgent requirements?
A: KNMKS maintains stock of the GJR2365700R1010 for immediate dispatch. Same-day shipping is available for orders confirmed before 14:00 CST. For urgent plant breakdown situations, please contact [email protected] or call +86 18359268345 to confirm real-time stock availability and arrange priority dispatch.
