ABB GJR2363900R1000 88VT02B-E Maintenance-Proven Spare Part

Overview

ABB GJR2363900R1000 88VT02B-E Maintenance-Proven Spare Part for Factory Uptime

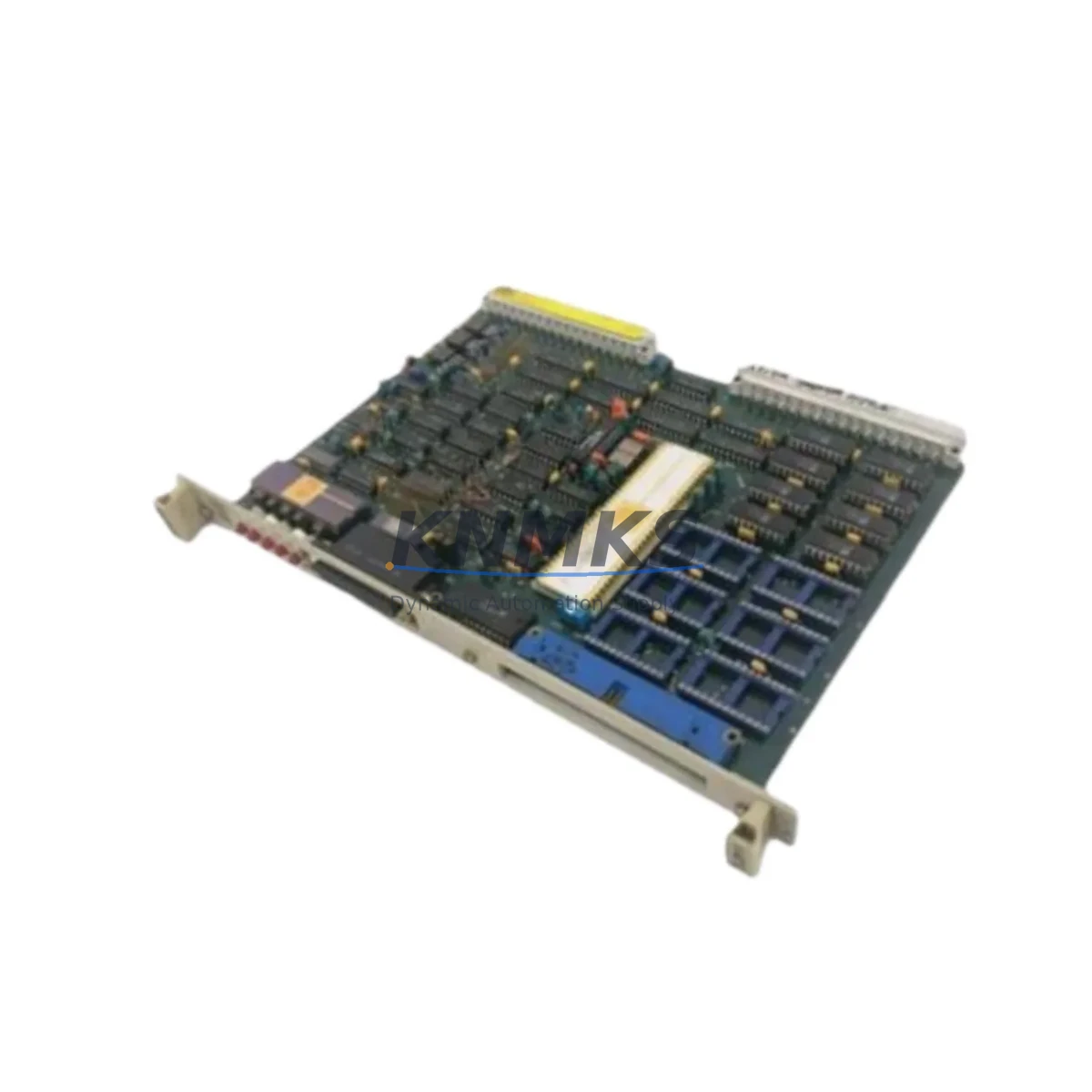

The ABB GJR2363900R1000 (also identified as 88VT02B-E) is a proven printed circuit board module designed for the ABB AC500 PLC platform — one of the most widely deployed programmable logic controller families in energy, petrochemical, water treatment, and discrete manufacturing environments. Sourced as an original ABB spare, this PCB module is stocked specifically to support maintenance engineers and procurement teams who cannot afford extended downtime during fault isolation, scheduled overhauls, or emergency replacements.

Whether you are executing a routine control cabinet inspection, responding to an unplanned trip, or building a strategic spare parts inventory for a critical production line, the GJR2363900R1000 delivers the electrical integrity and firmware compatibility required to restore system operation with minimal intervention. Each unit dispatched from KNMKS undergoes pre-shipment functional verification and is backed by a support terms confirmed by quotation, giving your maintenance team confidence from the moment the part arrives on site.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the GJR2363900R1000 in an AC500 control cabinet is rarely an isolated task. Experienced maintenance engineers treat a PCB module swap as an opportunity to audit the surrounding electrical environment and prevent secondary failures that could trigger another unplanned shutdown within weeks of the initial repair.

Before or during replacement of this module, the following components in the same control cabinet or electrical loop should be inspected and, where necessary, replaced as part of the same maintenance window:

• AC500 CPU Module (e.g., PM573, PM583 series): Verify firmware version compatibility with the replacement PCB. A CPU running outdated firmware may fail to recognize the new module or generate persistent diagnostic faults on the AC500 system bus.
• 24 VDC Power Supply Module (e.g., ABB CP-E series or equivalent): Measure output voltage under load. An aging power supply with marginal regulation is a common root cause of intermittent PCB faults. Replace if output ripple or voltage drop exceeds ABB-specified tolerances.
• AC500 Backplane / Rack Assembly: Inspect backplane connector pins for oxidation, mechanical damage, or contamination. A degraded backplane contact can cause the replacement GJR2363900R1000 to exhibit the same fault symptoms as the original failed unit.
• Digital I/O Modules (e.g., DC532, DC522 series): During the cabinet inspection, verify that adjacent I/O modules are not generating overcurrent conditions that could stress the PCB’s internal bus interface. Check LED status indicators and review the AC500 diagnostic log.
• Communication Module (e.g., CM572-DP PROFIBUS or CM589-PNIO PROFINET): If the GJR2363900R1000 failure was accompanied by communication loss, inspect the fieldbus communication module for firmware faults or connector integrity issues before restoring the system to automatic mode.
• Panel Fuses and Circuit Protection: Verify that all fuse ratings in the 24 VDC distribution circuit are correct and that no fuse shows signs of thermal stress. Undersized or degraded fuses can cause voltage transients that damage sensitive PCB components over time.

Procurement engineers building a strategic spare parts list for AC500-based systems should consider holding at least one GJR2363900R1000 per critical production line, alongside a matched CPU module spare and a backup power supply unit. This three-component buffer covers the most statistically frequent failure modes in AC500 control cabinets and supports a target mean-time-to-repair (MTTR) of under four hours for most fault scenarios.

Site Replacement Workflow

The following workflow is recommended for maintenance engineers replacing the GJR2363900R1000 in an operational AC500 system. This procedure is designed to minimize downtime, preserve system configuration, and confirm full restoration before returning the line to production.

1. Pre-replacement preparation: Back up the AC500 CPU program and configuration using ABB Automation Builder or the applicable engineering tool. Record the current firmware version of the CPU and all installed modules. Confirm that the replacement GJR2363900R1000 carries a compatible hardware revision.
2. Safe isolation: Follow site lockout/tagout (LOTO) procedures. De-energize the control cabinet and allow capacitors to discharge before opening the enclosure. Verify zero-energy state with a calibrated voltage tester.
3. Module extraction: Release the backplane locking mechanism and carefully extract the faulty module. Inspect the backplane slot and connector for damage before inserting the replacement unit.
4. Installation and power-up: Seat the GJR2363900R1000 firmly into the backplane slot. Restore power in sequence — power supply first, then CPU, then I/O and communication modules. Monitor the AC500 diagnostic LEDs during startup.
5. Configuration restore and verification: Download the backed-up program to the CPU. Verify all I/O points, communication links, and process values against the pre-fault baseline. Confirm that no new diagnostic faults are present in the AC500 system log.
6. Return to service: Conduct a supervised trial run under manual control before switching to automatic mode. Document the replacement in the site maintenance log, including the part number, serial number, date, and technician name.

This workflow applies equally to planned annual overhauls and emergency fault recovery scenarios. For legacy AC500 systems where the original hardware revision is no longer in production, KNMKS can advise on compatible replacement options and cross-reference alternative ABB part numbers to maintain system continuity without requiring a full PLC upgrade.

Spare Parts Support FAQ

Q1: Is the GJR2363900R1000 compatible with all AC500 CPU variants?
The GJR2363900R1000 is designed for the ABB AC500 platform, but compatibility depends on the specific CPU model and firmware revision installed in your system. Before ordering, provide your CPU part number and current firmware version to our technical team at [email protected]. We will confirm compatibility and advise on any firmware update requirements prior to installation.

Q2: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or environmental conditions outside ABB’s specified ratings. To initiate a support terms claim, contact [email protected] with your order number, a description of the fault, and any available diagnostic data from the AC500 system log. Replacement or repair will be arranged promptly.

Q3: Can KNMKS support long-term or blanket purchase orders for this part?
Yes. KNMKS operates a committed stocking program for MRO and OEM customers who require guaranteed availability of critical spare parts over a 12–36 month horizon. Blanket orders and scheduled release agreements are available for the GJR2363900R1000 and other AC500 spare modules. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock options.

Q4: How is the unit tested before shipment?
Every GJR2363900R1000 dispatched by KNMKS undergoes a pre-shipment functional verification procedure. This includes power-on testing, backplane interface checks, and a review of the unit’s operational history where applicable. Units that do not pass verification are not dispatched. A test report is available upon request for customers with quality assurance documentation requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
