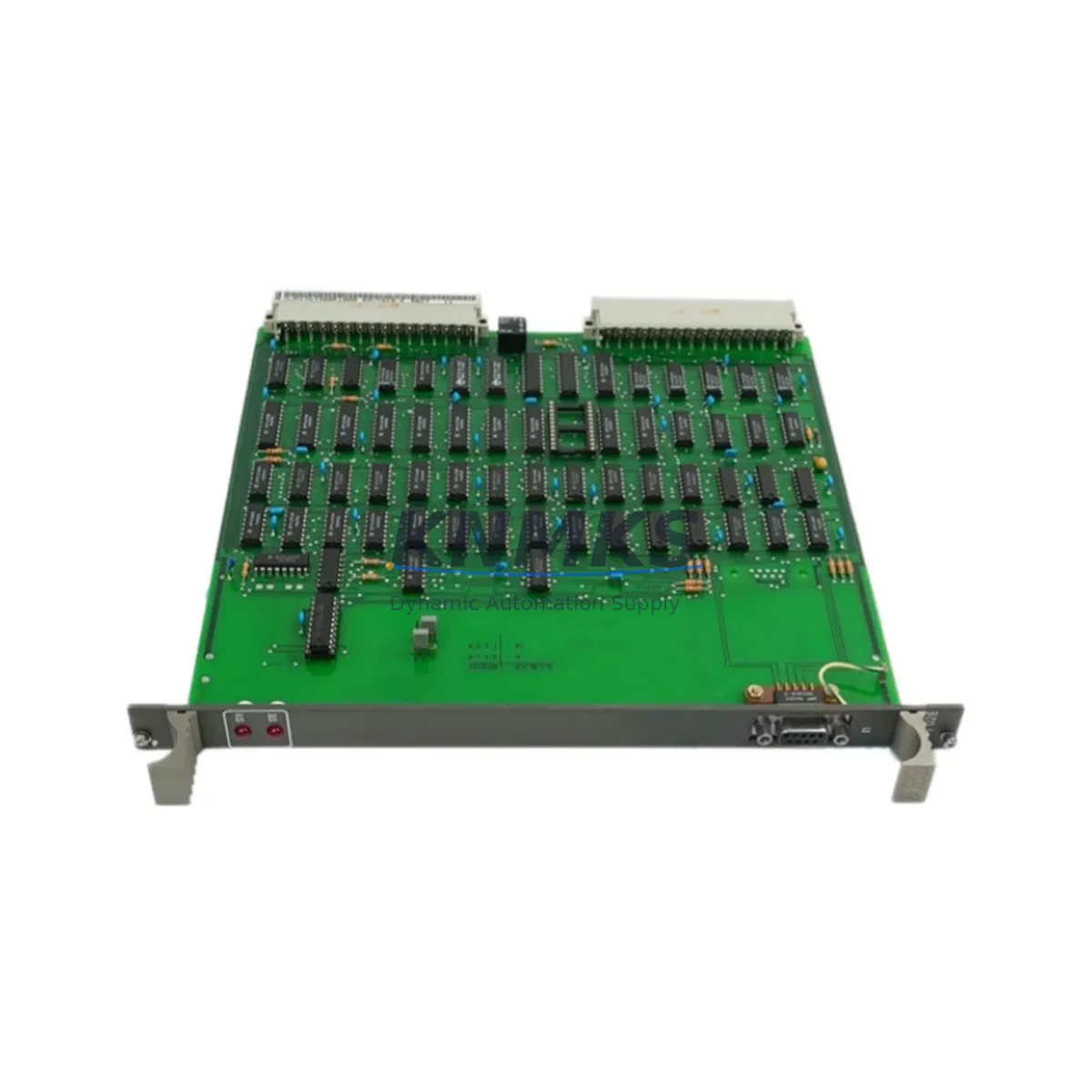

ABB GJR2363900R1000 88VT02A-E Fail-Safe I/O Module

Overview

ABB GJR2363900R1000 88VT02A-E Fail-Safe I/O Module: Fault Protection and Critical Industrial Field Reliability

The ABB GJR2363900R1000 88VT02A-E is a safety-enhanced digital I/O module engineered for the ABB AC500 PLC platform, purpose-built to deliver uncompromising fail-safe performance in the most demanding industrial control environments. Designed to meet the rigorous requirements of continuous production, critical interlock circuits, and high-availability control architectures, this module provides the fault-tolerant signal integrity that modern industrial safety systems demand. Whether deployed in heavy-duty control cabinets, high electromagnetic interference (EMI) zones, dusty or humid process areas, or high-temperature and high-vibration machinery enclosures, the GJR2363900R1000 88VT02A-E maintains stable, predictable I/O behavior — eliminating the risk of spurious trips, signal drift, and unplanned process shutdowns.

At the core of its safety architecture, the module incorporates hardware-level diagnostics that continuously monitor channel integrity, detecting open-circuit faults, short-circuit conditions, and cross-wiring errors before they can propagate into the control loop. This proactive fault detection capability is essential in safety instrumented systems (SIS) where a single undetected failure can escalate into a process hazard. The module’s fail-safe output behavior ensures that upon detection of a critical fault or loss of communication with the AC500 CPU — such as the ABB PM573-ETH or PM591-ETH CPU modules — all outputs revert to a pre-defined safe state, preventing uncontrolled actuator movement or relay chatter that could damage downstream equipment or endanger personnel.

Signal stability under electrical stress is a defining characteristic of the 88VT02A-E. The module’s EMI-hardened design suppresses conducted and radiated interference from variable frequency drives (VFDs), high-current contactors, and arc welding equipment commonly found in steel mills, mining conveyors, and port crane systems. Surge immunity compliant with IEC 61000-4-5 standards protects the I/O channels from transient voltage spikes on field wiring, while the module’s galvanic isolation architecture prevents ground loop currents from corrupting digital signal states. In power systems with unstable supply voltage — a frequent challenge in remote substations and offshore platforms — the module maintains correct operation across its full rated supply range without requiring external voltage conditioning.

For control cabinet integrators, the GJR2363900R1000 88VT02A-E slots directly into the AC500 I/O bus without additional interface hardware, simplifying cabinet layout and reducing wiring complexity. It operates alongside other AC500 family modules such as the ABB TU515 terminal unit, which provides the field wiring connection point, and the ABB CI501-PNIO PROFINET communication interface, enabling seamless integration into PROFINET-based distributed control architectures. When paired with the ABB SD802F safety digital output module in a safety loop, the system achieves the redundancy and diagnostic coverage required for SIL 2 or SIL 3 rated safety functions under IEC 61508. The module’s compact DIN-rail form factor and hot-swap capability — supported by the AC500 platform — allow maintenance teams to replace a faulty unit during a planned maintenance window without a full system shutdown, dramatically reducing mean time to repair (MTTR) in critical production lines.

Thermal management is addressed through the module’s wide operating temperature range, making it suitable for outdoor switchgear enclosures in tropical climates as well as cold-storage facility control rooms. Conformal coating on the PCB assembly provides additional protection against condensation and corrosive atmospheric contaminants, extending service life in chemical processing plants and wastewater treatment facilities where airborne acids and alkalis accelerate component degradation. All units are subjected to a comprehensive factory acceptance test (FAT) protocol prior to shipment, including functional I/O verification, insulation resistance testing, and communication bus integrity checks, ensuring that every module arrives ready for immediate installation and commissioning.

KNMKS maintains dedicated stock of the GJR2363900R1000 88VT02A-E to support both planned capital projects and emergency breakdown replacements. Our inventory management system tracks stock levels in real time, and our logistics team is equipped to process urgent orders for same-day or next-day dispatch to minimize production downtime. Each unit is supplied with a support terms confirmed by quotation covering manufacturing defects and premature component failure, backed by our technical support team who can assist with installation verification, parameter configuration, and compatibility confirmation for your specific AC500 system revision.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet built around the ABB AC500 platform requires a layered protection strategy that addresses power quality, signal integrity, communication reliability, and thermal management simultaneously. The GJR2363900R1000 88VT02A-E serves as the field interface layer of this strategy, but its effectiveness is maximized when integrated with complementary protection and control components.

On the power supply side, pairing the AC500 system with an ABB CP-E 24/10.0 power supply unit ensures a stable, regulated 24 VDC rail that compensates for mains voltage fluctuations and provides sufficient current headroom for all I/O modules under worst-case load conditions. For cabinets installed in areas with frequent lightning strikes or heavy industrial switching transients, an upstream ABB OVR surge protective device (SPD) on the incoming AC supply line provides the first line of defense against destructive voltage spikes before they reach the PLC power supply.

Communication reliability in distributed control architectures is maintained through the ABB CI501-PNIO PROFINET interface module, which provides deterministic, real-time data exchange between the AC500 CPU and remote I/O stations. In safety-critical applications where communication loss must trigger a defined safe state, the module’s watchdog timeout function — configured via ABB Automation Builder software — ensures that the GJR2363900R1000 88VT02A-E outputs de-energize within a specified reaction time if the PROFINET heartbeat is lost, preventing undefined actuator states during network faults.

For emergency stop and safety interlock circuits, the ABB JOKAB SMILE safety relay series provides the hardwired safety layer that operates independently of the PLC program, ensuring that critical machine guarding functions remain active even during PLC firmware updates or CPU restarts. The 88VT02A-E’s safety-rated digital inputs interface directly with these relay outputs, providing the PLC with real-time status feedback on safety circuit integrity without compromising the hardwired safety function.

Cabinet thermal management is addressed through proper selection of ABB enclosure climate control units, including thermostat-controlled fan-and-filter assemblies that maintain internal cabinet temperature within the operating range of all installed modules. Excessive cabinet temperature is one of the leading causes of premature I/O module failure in foundry and cement plant environments, and proactive thermal management directly extends the service life of the GJR2363900R1000 88VT02A-E and associated AC500 components.

Critical Industrial Safety Applications

The ABB GJR2363900R1000 88VT02A-E is deployed across a wide spectrum of safety-critical industrial applications where control system reliability directly impacts personnel safety, environmental compliance, and production continuity.

In petrochemical and refinery environments, the module serves as the field I/O interface for emergency shutdown (ESD) systems, monitoring high-pressure vessel level switches, flame detectors, and gas detection sensors. Its SIL-rated architecture ensures that a detected hazardous condition results in a deterministic, fail-safe response — closing isolation valves and de-energizing ignition sources — within the required safety response time defined in the process hazard analysis (PHA).

In electric power generation and substation automation, the module interfaces with protection relay digital outputs, circuit breaker auxiliary contacts, and transformer tap changer position sensors. Its high noise immunity prevents false I/O state changes caused by the intense electromagnetic fields generated during high-voltage switching operations, ensuring that SCADA systems receive accurate real-time status data for grid management decisions.

In underground and open-cut mining operations, the module controls conveyor belt interlock systems, ventilation fan safety circuits, and dewatering pump control panels. Its wide operating temperature range and conformal-coated PCB allow reliable operation in the humid, dust-laden atmospheres of underground drives and surface crushing plants, where standard industrial modules frequently suffer from insulation degradation and contact corrosion.

In water and wastewater treatment facilities, the module manages pump station motor control center (MCC) interfaces, chemical dosing system interlocks, and UV disinfection system safety circuits. Its galvanic isolation prevents ground potential differences between geographically separated pump stations from corrupting digital signal states, a common failure mode in large treatment plant distributed control systems.

In metallurgical and steel production plants, the module is integrated into rolling mill emergency stop circuits, ladle transfer car control systems, and fume extraction fan safety interlocks. The high-vibration environment of heavy rolling equipment demands the robust mechanical design and conformal coating that the 88VT02A-E provides, ensuring that solder joint fatigue and connector fretting do not cause intermittent I/O faults that could trigger unplanned mill stops.

In port and marine terminal automation, the module controls ship-to-shore crane anti-collision systems, spreader position interlocks, and quay crane overload protection circuits. Its EMI hardening is particularly valuable in port environments where high-power VHF radio transmitters, radar systems, and high-current crane drive systems create a challenging electromagnetic environment for sensitive control electronics.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the ABB GJR2363900R1000 88VT02A-E?
Every unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and premature component failure under normal operating conditions. In the event of a support terms claim, our technical team will assess the returned unit and provide either a repaired or replacement module to minimize your system downtime. Support terms support is available via email at [email protected] or by phone at +86 18359268345.

Q2: What pre-shipment testing is performed on each module?
All GJR2363900R1000 88VT02A-E modules undergo a comprehensive factory acceptance test (FAT) before dispatch. This includes full functional verification of all digital I/O channels, insulation resistance testing between signal channels and chassis ground, AC500 communication bus integrity verification, and visual inspection for physical damage or connector contamination. Test records are available upon request for quality-critical applications.

Q3: Is this module compatible with all AC500 CPU and terminal unit variants?
The GJR2363900R1000 88VT02A-E is designed for the ABB AC500 I/O platform and is compatible with AC500 V2 and V3 CPU modules including the PM573, PM591, PM592, and PM595 series, when used with appropriate terminal units such as the TU515 or TU516. Compatibility with specific firmware revisions and Automation Builder software versions should be confirmed against the ABB AC500 system compatibility matrix. Our technical team can assist with compatibility verification for your specific system configuration.

Q4: Can KNMKS support long-term supply and emergency replacement requirements?
Yes. KNMKS maintains dedicated stock of the GJR2363900R1000 88VT02A-E to support both planned maintenance schedules and emergency breakdown replacements. We understand that unplanned I/O module failures in critical production environments require immediate response, and our logistics team is equipped to process urgent orders for same-day or next-day dispatch. For customers with high-availability requirements, we recommend establishing a consignment stock arrangement to ensure zero lead-time availability of critical spare modules.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

GJR2363900R1000 88VT02A-E
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB GJR2363900R1000 88VT02A-E
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
