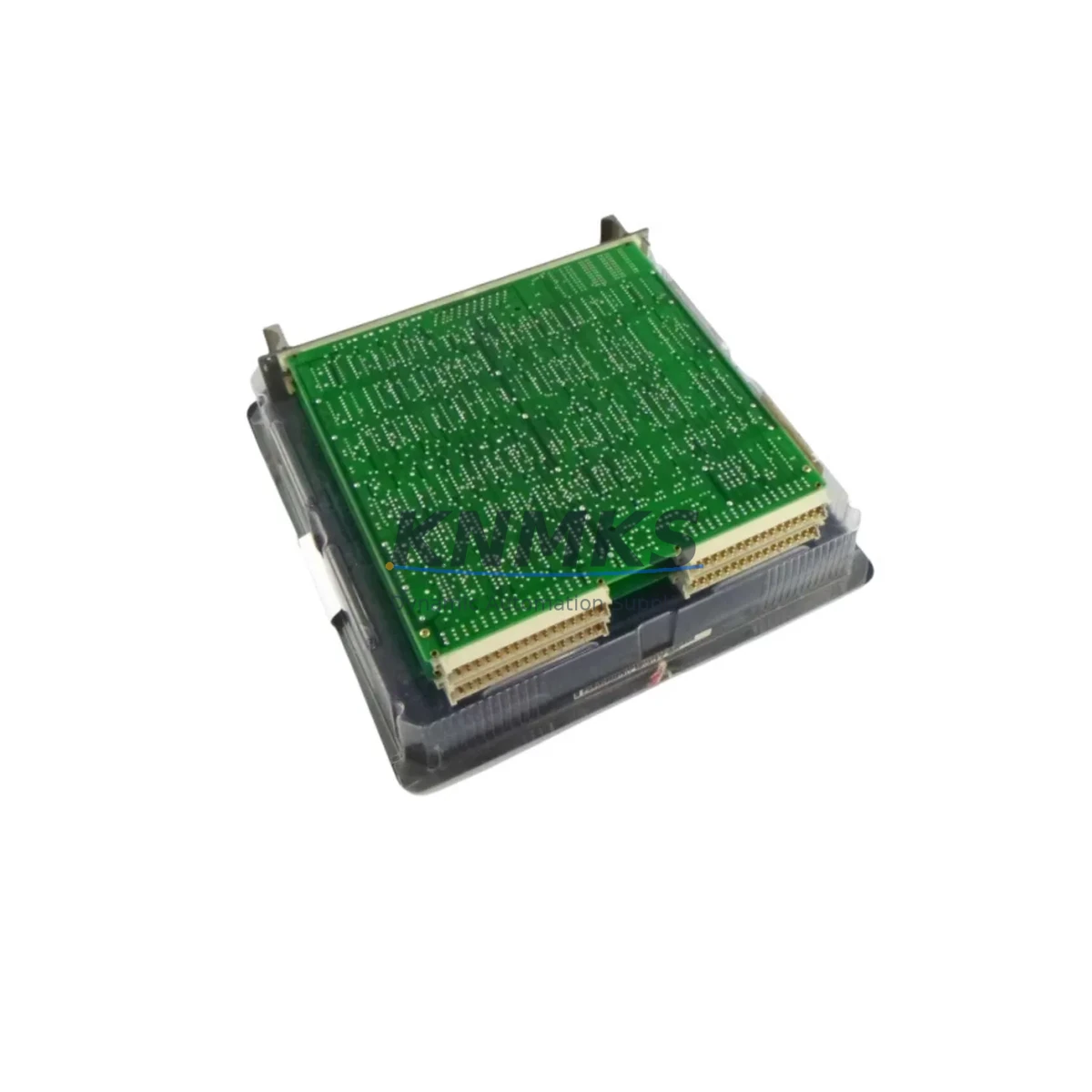

ABB GJR234100R1210 Fail-Safe Communication Module

Overview

ABB GJR234100R1210 Fail-Safe Communication Module: Fault Protection and Critical Industrial Field Reliability

The ABB GJR234100R1210 is a high-integrity communication module engineered for the AC500 PLC platform, purpose-built to sustain uninterrupted control loop integrity in the most demanding industrial environments. Where process continuity is non-negotiable — continuous chemical reactors, power distribution switchgear, heavy-load motor control centers, and safety-instrumented interlock systems — this module delivers the deterministic, fault-tolerant communication backbone that keeps critical machinery online and personnel safe.

Designed to operate within ABB’s AC500 modular architecture, the GJR234100R1210 integrates directly with the CPU and I/O expansion backplane, maintaining synchronized data exchange even under conditions of high electromagnetic interference, voltage transients, and mechanical vibration. Its shielded signal path and onboard surge suppression circuitry actively attenuate conducted and radiated EMI, preventing signal drift and spurious trip events that can cascade into unplanned shutdowns. In environments where variable-frequency drives, high-current contactors, and arc-flash-prone switchgear operate in close proximity, this level of EMI immunity is not optional — it is a fundamental safety requirement.

The module’s thermal management design sustains reliable operation across an extended ambient temperature range, making it equally suited to outdoor substations in tropical climates and enclosed control cabinets in steel mill environments where radiated heat from furnace proximity elevates enclosure temperatures well beyond standard ratings. Ingress protection and conformal coating options further extend service life in dusty, humid, or chemically aggressive atmospheres typical of water treatment facilities, offshore platforms, and mining headframes.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable industrial control depends on a coordinated ecosystem of components, not a single module in isolation. The GJR234100R1210 performs at its highest safety margin when deployed alongside complementary ABB AC500 platform components that share the same backplane architecture and safety philosophy.

Within the control cabinet, the ABB PM573-ETH CPU module serves as the central processing unit, executing the safety logic scan cycle that the GJR234100R1210 feeds with real-time field data. Pairing these two components ensures deterministic latency between field signal acquisition and control output — a critical requirement in emergency shutdown (ESD) and burner management system (BMS) applications. The ABB TB521-ETH terminal base provides the physical backplane interface, securing the module’s mechanical and electrical connection under vibration and thermal cycling conditions that would cause intermittent contact failures in lesser mounting systems.

Power quality is a primary failure vector in industrial control cabinets. The ABB PS501 24VDC power supply module, designed specifically for the AC500 rack, delivers regulated, filtered DC power with built-in overload and short-circuit protection, preventing the voltage sag events that can corrupt active communication sessions and trigger nuisance resets. For installations where mains power quality is poor — common in heavy industrial sites with large motor starting loads — supplementing with an ABB UPS module or an external surge protective device (SPD) rated to IEC 61643-11 Class II provides an additional layer of transient immunity.

On the field side, ABB SM560-S safety I/O modules extend the fail-safe architecture from the CPU through to the sensor and actuator layer, ensuring that the entire control loop — from field instrument to final control element — maintains SIL-rated integrity. For communication-intensive applications requiring gateway functionality between PROFIBUS DP and higher-level SCADA or DCS networks, the ABB CI590-CS31-HA fieldbus coupler complements the GJR234100R1210 by handling protocol translation without introducing latency penalties that could compromise interlock response times.

Critical Industrial Safety Applications

The GJR234100R1210 has demonstrated sustained reliability across the full spectrum of process-critical and safety-critical industrial sectors.

In petrochemical and refinery operations, this module supports emergency shutdown system (ESD) controllers and high-integrity pressure protection systems (HIPPS), where communication failure between the safety PLC and field instruments must be detected and annunciated within the process safety time (PST) defined by the SIL assessment. Its deterministic communication cycle and diagnostic coverage make it a dependable component in IEC 61511-compliant safety loops.

In power generation and transmission substations, the module integrates with protection relay coordination systems and automatic voltage regulator (AVR) control panels, where EMI from high-voltage switching events and capacitor bank operations represents a persistent threat to communication integrity. The GJR234100R1210’s hardened signal path maintains data fidelity under these conditions, preventing false trip signals that could cause unnecessary generation outages.

In mining and mineral processing, the module controls conveyor interlock systems, crusher protection circuits, and ventilation safety systems in environments characterized by heavy dust loading, ground vibration from blasting, and wide ambient temperature swings between surface and underground installations. Its extended temperature rating and vibration compliance ensure continuous operation without the thermal derating or mechanical fatigue failures that affect commercial-grade alternatives.

In water and wastewater treatment, the GJR234100R1210 supports SCADA-connected pump station controllers and chemical dosing system PLCs, where communication dropouts can result in regulatory non-compliance events or, in worst cases, public health incidents. Its high-humidity tolerance and corrosion-resistant construction address the aggressive atmospheric conditions present in chlorination and aeration facilities.

In metallurgical and steel production environments, the module operates within rolling mill drive control systems and ladle furnace automation panels, where radiated heat, electromagnetic noise from arc furnaces, and mechanical shock from heavy rolling loads create one of the most hostile operating environments in industrial automation. The GJR234100R1210’s robust design margins provide the reliability buffer required to sustain continuous production without unplanned communication-related stoppages.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the GJR234100R1210?
The support terms confirmed by quotation cover all manufacturing defects and functional failures occurring under normal operating conditions as specified in the ABB AC500 system documentation. It includes replacement or repair of the module at no additional cost. Support requests are supported with documented pre-shipment test records provided upon request.

Q2: What pre-shipment testing is performed before dispatch?
Every GJR234100R1210 unit undergoes a full functional verification test prior to shipment. This includes communication integrity verification on an AC500 test rack, power-on self-test (POST) confirmation, and visual inspection for physical damage. Test results are logged and available for traceability documentation upon customer request.

Q3: Is the GJR234100R1210 compatible with all AC500 CPU generations?
The GJR234100R1210 is designed for the ABB AC500 platform. Compatibility is confirmed with AC500 V2 and V3 CPU modules including the PM573, PM583, PM591, and PM595 series. For specific firmware version compatibility or integration with legacy AC500 V1 hardware, consult the ABB AC500 system compatibility matrix or contact our technical team prior to ordering.

Q4: Can long-term supply continuity be guaranteed for critical maintenance programs?
Yes. We maintain forward buffer stock of the GJR234100R1210 specifically to support planned maintenance programs, annual shutdown schedules, and emergency replacement requirements. For customers operating multiple AC500-based systems, we offer long-term supply agreements with reserved inventory allocation, ensuring parts availability is not disrupted by OEM lead time fluctuations or end-of-life transitions.
