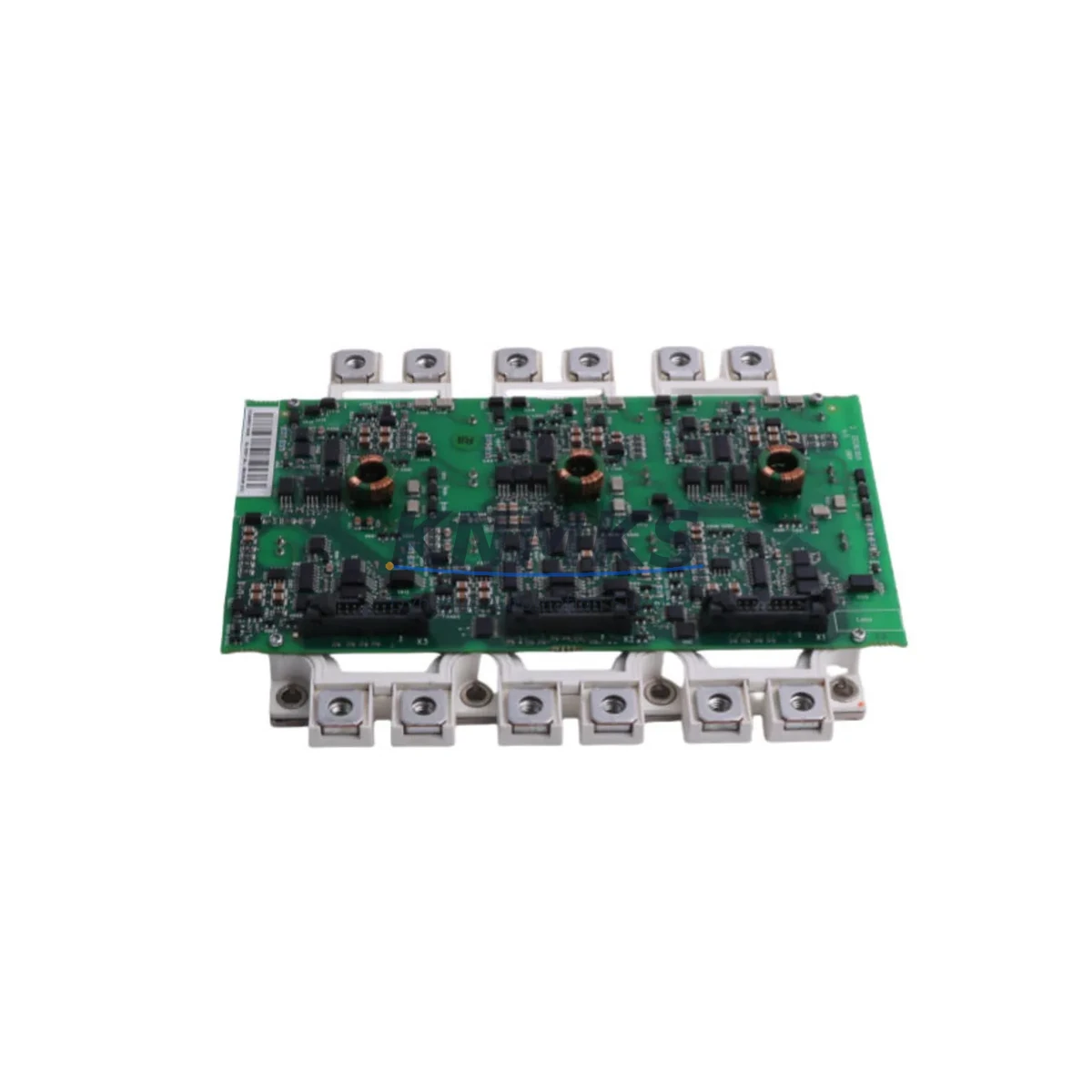

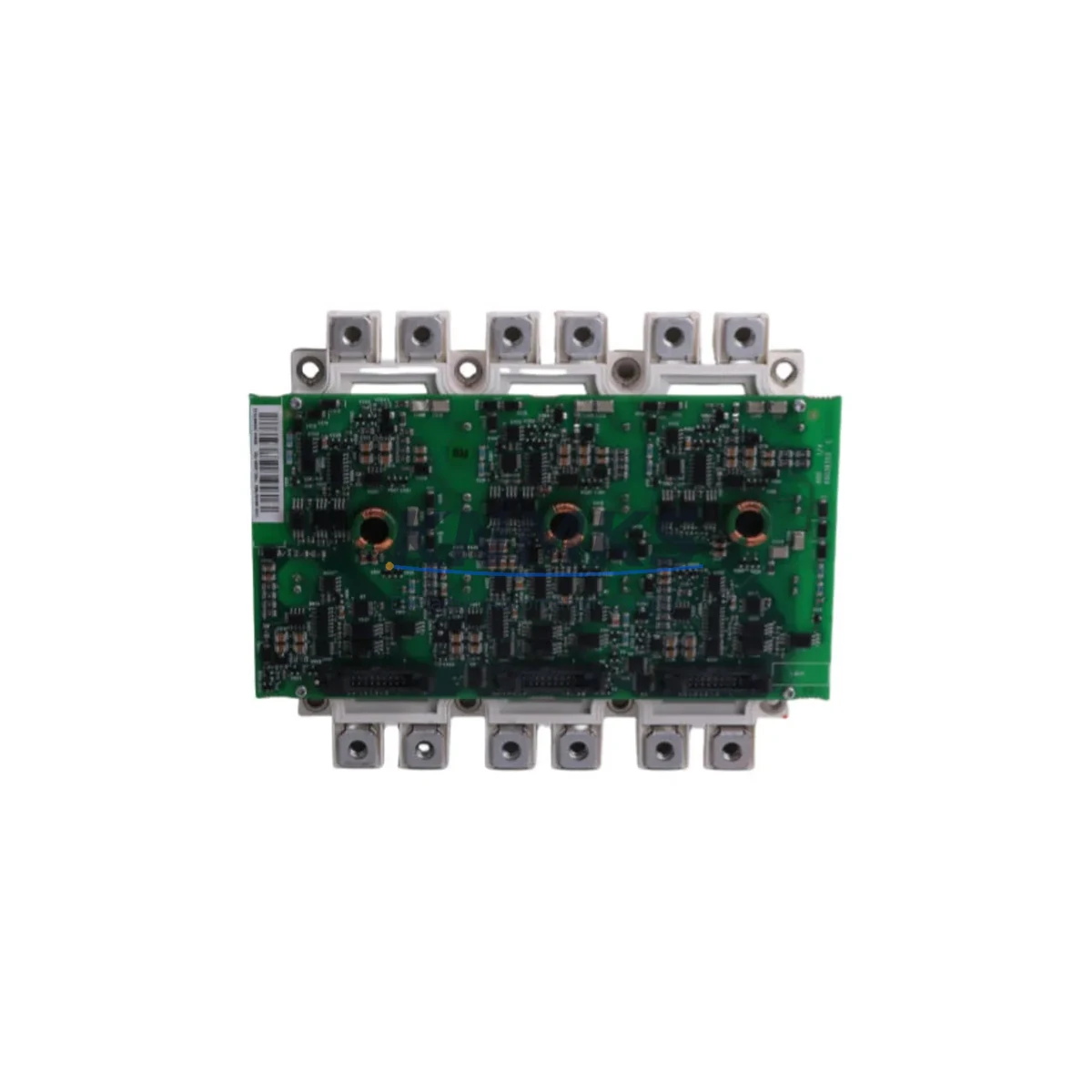

ABB FS450R17KE3’AGDR-72C Fail-Safe IGBT Power Module

Overview

ABB FS450R17KE3’AGDR-72C Fail-Safe IGBT Power Module: Fault Protection and Critical Industrial Field Reliability

The ABB FS450R17KE3’AGDR-72C is a high-performance, safety-rated IGBT six-pack power module engineered for continuous operation in the most demanding industrial control environments. Rated at 1700V / 450A and paired with the AGDR-72C gate driver unit, this module delivers robust fault protection, precise switching control, and sustained reliability across heavy-duty drive cabinets, critical interlock circuits, and high-power conversion systems where unplanned downtime carries severe operational and safety consequences.

Designed to meet the rigorous demands of industrial automation, the FS450R17KE3’AGDR-72C addresses the full spectrum of field failure modes: control loop interruption, spurious tripping, signal drift under thermal stress, DC bus voltage fluctuation, communication anomalies, surge and transient overvoltage, cabinet overheating, and unscheduled production stops. Its integrated gate driver architecture ensures that switching events remain precisely timed even under high electromagnetic interference (EMI) conditions common in variable frequency drive (VFD) enclosures, motor control centers (MCCs), and high-current rectifier cabinets.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In high-power drive cabinets and safety-critical control enclosures, a single component failure can cascade into full-line shutdown, equipment damage, or personnel hazard. The ABB FS450R17KE3’AGDR-72C is engineered as a cornerstone of a layered cabinet protection strategy. Its integrated AGDR-72C gate driver provides active desaturation detection and short-circuit shutdown within microseconds, preventing destructive overcurrent events before they propagate to connected loads or upstream switchgear.

When deployed alongside ABB AGDR-61C or AGDR-71C gate driver boards in multi-axis drive systems, the FS450R17KE3’AGDR-72C maintains synchronized switching across all phases, eliminating the risk of phase imbalance that can induce motor winding stress or torque ripple in precision motion applications. For DC bus protection, pairing this module with ABB SACE Tmax XT series circuit breakers or compatible DC fuse assemblies ensures coordinated fault isolation without nuisance tripping under normal transient load conditions.

In cabinets subject to high electromagnetic interference — such as those housing ACS880 or ACS580 series variable frequency drives — the FS450R17KE3’AGDR-72C’s shielded gate signal path and low-inductance internal busbar layout suppress conducted and radiated EMI at the source, protecting adjacent ABB AC500 PLC I/O modules and fieldbus communication cards from signal corruption. For thermal management in sealed or poorly ventilated enclosures, the module’s low junction-to-case thermal resistance (Rth j-c ≤ 0.033 K/W) combined with a properly sized liquid-cooled or forced-air heatsink assembly maintains junction temperatures within safe operating limits even at sustained full-load current, directly reducing the risk of thermal runaway and cabinet overheating events.

Power supply stability is equally critical: integrating the FS450R17KE3’AGDR-72C with a regulated ABB CP series 24V DC power supply for gate driver auxiliary power ensures that undervoltage lockout (UVLO) thresholds are never breached during grid voltage dips, preventing false turn-on events that could damage the module or connected motor loads.

Critical Industrial Safety Applications

The ABB FS450R17KE3’AGDR-72C is deployed across the most safety-sensitive sectors of industrial automation, where control interruption is not merely a productivity issue but a safety and regulatory compliance concern.

Petrochemical and Refinery Plants: In compressor drive systems and pump motor control centers operating in Zone 2 classified areas, the FS450R17KE3’AGDR-72C’s short-circuit protection and UVLO functions prevent uncontrolled motor runaway during process upsets, supporting SIL-rated safety instrumented system (SIS) interlock requirements.

Electric Power Generation and Transmission: In STATCOM, SVG, and active front-end (AFE) rectifier systems, the module’s 1700V blocking voltage and 450A continuous current rating provide the headroom needed to handle grid fault ride-through events without module failure, maintaining reactive power compensation continuity during voltage sags.

Mining and Mineral Processing: Conveyor belt drives, hoist systems, and crusher motor controllers in underground and surface mining operations demand components that withstand high vibration, dust ingress, and wide ambient temperature swings. The FS450R17KE3’AGDR-72C’s IP54-rated housing and wide operating temperature range (-40°C to +85°C ambient) make it a proven choice for these environments.

Water and Wastewater Treatment: Pump and blower VFD systems in water treatment facilities require continuous, unattended operation. The module’s integrated fault detection and protection circuitry reduces the risk of unplanned pump trips that could compromise treatment process continuity or cause overflow events.

Metallurgy and Steel Production: Rolling mill main drive inverters and ladle furnace electrode regulators operate under extreme thermal and electrical stress. The FS450R17KE3’AGDR-72C’s robust thermal design and active clamping capability protect against the voltage spikes generated by sudden load changes in these high-inertia drive applications.

Port Crane and Ship Propulsion Systems: Shore-to-ship power converters and crane hoist drives require IGBT modules that can handle regenerative braking energy and frequent load reversals without degradation. The FS450R17KE3’AGDR-72C’s six-pack configuration simplifies inverter assembly and reduces the number of inter-module connections, improving overall system reliability in marine and port environments.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB FS450R17KE3’AGDR-72C?
Every unit is covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair support is provided promptly to minimize field downtime.

Q2: What pre-shipment testing is performed on each unit?
Each FS450R17KE3’AGDR-72C undergoes a full functional test including gate driver signal verification, IGBT switching performance check, and high-voltage insulation test (≥ 4000V AC) before dispatch. Test records are available upon request for quality audit purposes.

Q3: Is this module compatible with existing ABB ACS880 and ACS580 drive platforms?
Yes. The FS450R17KE3’AGDR-72C with integrated AGDR-72C gate driver is a direct fit for ABB ACS880 series high-power drive inverter stages and compatible with ACS580 platform power stacks where the 1700V/450A rating applies. Always verify the exact drive model’s power module BOM before installation.

Q4: Can long-term supply continuity be guaranteed for this part?
Yes. We maintain multi-region stock of the FS450R17KE3’AGDR-72C to support both planned maintenance schedules and emergency replacement requirements. Rapid global dispatch is available, and our procurement team actively monitors supply chain status to ensure sustained availability for critical spare parts programs.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

FS450R17KE3'AGDR-72C

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB FS450R17KE3'AGDR-72C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
