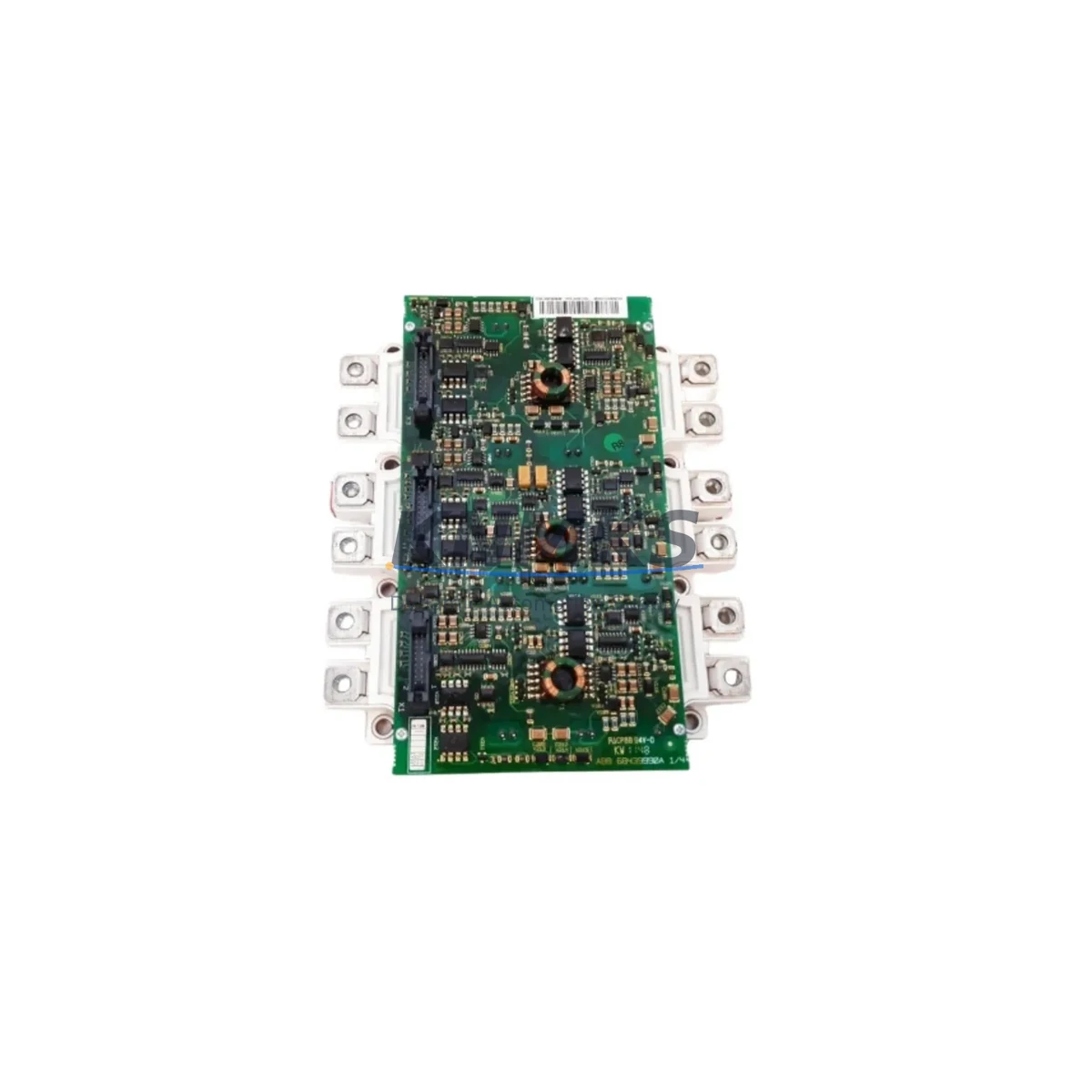

ABB FS300R17KE3/AGDR-76C Fail-Safe IGBT Power Module

Overview

ABB FS300R17KE3/AGDR-76C Fail-Safe IGBT Power Module: Fault Protection and Critical Industrial Field Reliability

The ABB FS300R17KE3/AGDR-76C is a high-performance, fail-safe IGBT power module rated at 300A / 1700V, engineered for demanding industrial power conversion and drive control applications where unplanned downtime is not an option. Designed and manufactured by ABB — a global leader in industrial automation and power electronics — this module integrates the FS300R17KE3 IGBT stack with the AGDR-76C gate drive unit, forming a tightly coupled, protection-ready assembly that delivers consistent switching performance under the harshest field conditions.

In continuous production environments such as petrochemical plants, power generation facilities, metallurgical furnaces, port crane drives, and heavy mining conveyors, power module failures cascade rapidly into process shutdowns, equipment damage, and safety incidents. The FS300R17KE3/AGDR-76C addresses this risk through its robust short-circuit withstand capability, integrated desaturation detection, and active clamping circuitry — all of which work together to suppress fault propagation before it reaches downstream control loops or safety interlocks.

The AGDR-76C gate driver provides isolated, high-speed gate signal conditioning with built-in fault feedback, ensuring that the IGBT stack responds correctly to both normal switching commands and abnormal overcurrent or overvoltage events. This is critical in variable frequency drive (VFD) cabinets and medium-voltage converter systems where signal integrity directly determines whether a controlled shutdown or a destructive fault occurs. The driver’s optical isolation architecture eliminates ground loop interference and significantly reduces susceptibility to high electromagnetic interference (EMI) environments — a common challenge in arc furnace control rooms, large motor drive panels, and switchgear-dense substations.

Thermal management is equally critical in high-power IGBT applications. The FS300R17KE3 module’s low thermal resistance junction-to-case design, combined with the AGDR-76C’s temperature monitoring feedback, allows the system to operate reliably across wide ambient temperature ranges without triggering nuisance trips. In water treatment pump drives, desalination plant inverters, and offshore platform power systems — where cooling infrastructure may be limited or subject to marine humidity — this thermal stability translates directly into extended mean time between failures (MTBF) and reduced maintenance intervals.

When integrated into a well-designed control cabinet, the FS300R17KE3/AGDR-76C pairs naturally with complementary protection and conditioning components. Surge protection devices on the DC bus, such as ABB’s OVR series or equivalent varistor-based clamp modules, guard against voltage transients from grid switching events. On the control signal side, signal isolators and Zener barrier assemblies protect the AGDR-76C’s logic inputs from field-side surges. For applications requiring redundant power supply architectures, ABB CP series 24VDC power supplies with redundancy modules ensure that gate driver auxiliary power remains stable even during primary supply interruptions. In safety-rated drive systems, the FS300R17KE3/AGDR-76C is often deployed alongside ABB’s ACS880 drive platform or equivalent medium-voltage drive controllers, where the module serves as the core switching element within a validated, SIL-rated power conversion chain. Thermal interface materials, such as phase-change pads or high-conductivity silicone compounds, are recommended between the module base and heatsink to maintain the low junction-to-case thermal resistance specified in the datasheet.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including gate drive signal integrity checks, insulation resistance testing, and visual inspection for transport damage. This ensures that the module arrives at your facility ready for installation without requiring additional incoming inspection beyond your standard acceptance protocol. Long-term spare parts availability is a core commitment: KNMKS maintains stock of the FS300R17KE3/AGDR-76C to support multi-year maintenance contracts, planned outage kits, and emergency replacement scenarios across global sites.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the FS300R17KE3/AGDR-76C within a high-reliability control cabinet requires a layered protection strategy that addresses every potential failure vector. At the power input stage, DC bus surge arresters and film capacitor banks absorb switching transients and prevent voltage spikes from reaching the IGBT collector terminals. The AGDR-76C gate driver’s isolated power supply input should be fed from a dedicated, regulated 24VDC rail — ideally backed by an ABB CP-S or equivalent redundant power supply module — to ensure that gate drive capability is maintained even during brief auxiliary power disturbances.

On the signal conditioning side, fiber optic or optically isolated command interfaces between the control PLC and the AGDR-76C eliminate the risk of common-mode noise injection from high-power switching events. In cabinets housing multiple drive axes, such as those found in multi-motor crane control systems or rolling mill main drives, cross-coupling of switching noise between adjacent IGBT modules is a known reliability risk. Proper cable segregation, shielded gate drive wiring, and ferrite bead suppression on auxiliary signal lines are all recommended practices when the FS300R17KE3/AGDR-76C is installed alongside other high-power switching devices, such as ABB’s 5SNA or 5SNE series press-pack IGBTs or equivalent competitor modules from Infineon or Mitsubishi Electric.

For thermal protection, cabinet-level temperature monitoring using PT100 sensors or NTC thermistors mounted on the heatsink adjacent to the module base provides early warning of cooling system degradation before junction temperatures approach critical limits. Integrating this thermal data into the site SCADA or DCS system enables predictive maintenance scheduling and eliminates the risk of thermal runaway-induced module failure during peak production periods.

Critical Industrial Safety Applications

The ABB FS300R17KE3/AGDR-76C is deployed across a wide range of safety-critical and continuous-process industrial environments:

Petrochemical and Refinery Plants: In compressor drive systems and pump VFDs operating in Zone 2 classified areas, the module’s robust short-circuit protection and fault feedback capability ensure that drive faults are contained and reported to the safety PLC without propagating into the process control loop. This is essential for maintaining SIL 2 or SIL 3 rated safety functions in emergency shutdown (ESD) systems.

Power Generation and Grid Tie: In static frequency converters, excitation systems, and STATCOM installations, the 1700V voltage rating provides adequate margin for 690V AC bus applications with full consideration of transient overvoltage events from grid switching. The module’s low switching losses contribute to high converter efficiency and reduced thermal load on the cooling system.

Mining and Mineral Processing: Conveyor belt drives, ball mill motors, and hoisting systems in underground and open-cut mines demand power modules that can withstand high vibration, dust ingress, and wide ambient temperature swings. The FS300R17KE3’s robust mechanical construction and the AGDR-76C’s sealed housing make this assembly well-suited for these environments when installed in appropriately rated enclosures.

Water Treatment and Desalination: Variable speed pump drives in water treatment plants and desalination facilities operate continuously with minimal maintenance access. The module’s long MTBF and KNMKS’s support terms confirmed by quotation with pre-shipment testing reduce the risk of in-service failures that would require costly emergency maintenance callouts.

Metallurgy and Steel Production: Arc furnace electrode regulators, rolling mill main drives, and ladle furnace power supplies represent some of the most electrically hostile environments in industrial automation. The FS300R17KE3/AGDR-76C’s EMI immunity and short-circuit withstand capability are directly relevant to these applications, where grid disturbances and load transients are frequent and severe.

Port and Maritime Operations: Ship-to-shore crane drives, rubber-tyred gantry (RTG) crane systems, and offshore platform power converters require power modules that can operate reliably in high-humidity, salt-laden air environments. Proper conformal coating of the AGDR-76C PCB and sealed module housing are recommended for these deployments.

Safety and Quality FAQ

Q1: What support terms does KNMKS provide for the ABB FS300R17KE3/AGDR-76C?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and premature failure under normal operating conditions as specified in the ABB datasheet. KNMKS provides replacement or repair support for warranted failures, minimizing your site downtime exposure.

Q2: What pre-shipment testing is performed before dispatch?
Each FS300R17KE3/AGDR-76C assembly undergoes gate drive signal integrity verification, insulation resistance testing between power and control circuits, and a full visual inspection for mechanical damage, connector integrity, and labeling accuracy. A test report is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with existing ABB ACS880 or ACS6000 drive platforms?
The FS300R17KE3/AGDR-76C is designed for use within ABB’s medium-voltage and high-power drive architectures. Compatibility with a specific drive platform depends on the drive’s power stack design and gate driver interface requirements. KNMKS recommends cross-referencing the drive’s service manual or contacting our technical team with your drive model and serial number for confirmation before ordering.

Q4: Can KNMKS support long-term spare parts supply for multi-year maintenance contracts?
Yes. KNMKS maintains stock of the FS300R17KE3/AGDR-76C and can support planned outage kits, annual maintenance contracts, and emergency replacement orders for global industrial sites. Long-term supply agreements are available for customers with multi-site or multi-year spare parts requirements. Contact our team to discuss stocking arrangements tailored to your maintenance schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

FS300R17KE3/AGDR-76C

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB FS300R17KE3/AGDR-76C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
