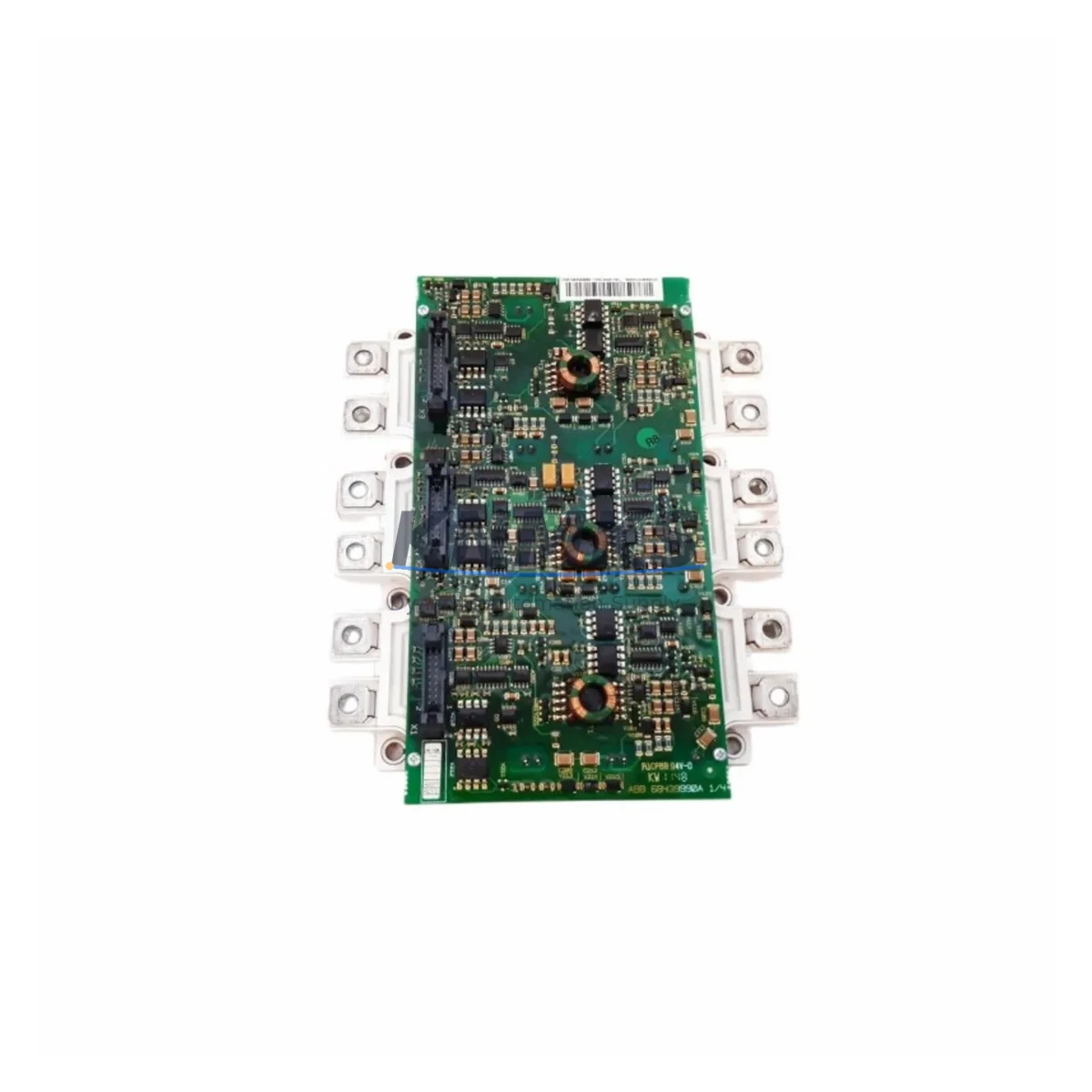

ABB FS225R12KE3/AGDR-71C Migration-Ready IGBT Gate Driver

Overview

ABB FS225R12KE3/AGDR-71C Migration-Ready IGBT Gate Driver for Legacy Control Systems

The ABB FS225R12KE3/AGDR-71C is a high-performance IGBT gate driver board engineered for the ACS800 series of industrial AC drives. As ABB progressively phases out legacy drive components, facilities running ACS800 platforms face increasing pressure to source validated, drop-in replacements that preserve existing control logic, wiring topology, and drive performance without triggering a full system overhaul. This unit is stocked, pre-shipment tested, and backed by a support terms confirmed by quotation — making it a reliable solution for both emergency breakdowns and planned retrofit programs.

The FS225R12KE3 is the IGBT power module at the core of the gate driver assembly, while the AGDR-71C is the dedicated gate driver board that interfaces directly with the ACS800 inverter section. Together, they form a matched pair critical to the drive’s switching performance, thermal management, and fault protection. When either component fails, the entire inverter section is compromised — resulting in drive trips, output phase loss, or uncontrolled deceleration. Sourcing a pre-matched, factory-equivalent assembly eliminates the risk of mismatched gate timing or threshold voltage drift that can occur when components are replaced individually from different production batches.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful replacement of the FS225R12KE3/AGDR-71C within an operating ACS800 drive requires careful pre-work across several system layers. Before removing the failed assembly, engineers should document the existing DC bus voltage level, confirm that the RDCU-02C or RMIO-11C control board is functioning correctly, and verify that the AINT-02C auxiliary interface board shows no secondary fault codes. A failed gate driver can mask upstream faults in the control section — replacing the IGBT assembly without clearing these faults will result in immediate re-trip on power-up.

Wiring and terminal verification is equally critical. The AGDR-71C connects to the inverter section via a short fiber optic harness; inspect the HFBR connectors for contamination or mechanical damage before re-use. The DC bus capacitor bank — typically a BAMU or BCBL capacitor module in ACS800 frame sizes R6 and above — should be pre-charged and verified at correct voltage before gate driver commissioning. If the drive has been de-energized for an extended period, a controlled pre-charge sequence using the existing charging resistor circuit is mandatory to avoid capacitor stress.

For facilities running multiple ACS800 units on a common DC bus or regenerative braking configuration, the ARBI-01 or ARBI-02 brake chopper interface board must remain active and correctly parameterized during the retrofit. Drives sharing a common DC bus require synchronized gate timing across all inverter sections — a mismatch introduced by a non-equivalent gate driver can cause circulating currents and nuisance tripping across the entire drive line.

Panel builders and system integrators performing cabinet-level upgrades should also confirm available installation space. The FS225R12KE3 module occupies a fixed footprint on the ACS800 heatsink assembly; no alternative mounting positions exist. Confirm that the cooling fan assembly — typically an NXFL or equivalent forced-air unit — is operational before commissioning, as the IGBT module is rated for continuous operation only with adequate airflow. If the drive cabinet also houses an IOEC-04 or IOEC-07 I/O extension module for process feedback signals, verify that these modules remain powered and communicating during the gate driver swap to avoid process interlocks triggering an emergency stop on the connected machinery.

Downtime Control During System Migration

Minimizing production downtime during an ACS800 gate driver replacement depends on preparation, not speed. The most effective approach is to pre-stage the FS225R12KE3/AGDR-71C assembly alongside a printed copy of the existing drive parameter set — exported via DriveWindow or DriveStudio before the drive is de-energized. This ensures that if the RDCU control board loses its parameter memory during the power cycle, restoration is immediate rather than requiring a full recommissioning sequence.

For critical process applications — pumps, compressors, hoists, or extruders — consider scheduling the replacement during a planned maintenance window rather than responding reactively to a drive fault. A reactive replacement under production pressure increases the risk of incorrect fiber optic harness routing, missed thermal paste application, or incomplete DC bus discharge verification. Each of these errors can cause immediate re-failure or, in the worst case, a secondary fault that damages the RDCU or RMIO control board — significantly extending the outage.

Where a spare ACS800 drive chassis is available, a bench-swap approach — replacing the gate driver on the spare unit and hot-swapping the entire drive — reduces in-cabinet work time to under 30 minutes. This approach is particularly effective in R6 frame configurations where the drive is mounted on a swing-out panel or withdrawable chassis. After installation, perform a no-load test run at reduced speed before reconnecting the motor load, and confirm that the drive’s output current waveform is symmetrical across all three phases using a clamp meter or the drive’s built-in diagnostics via the CDP312R control panel.

Retrofit Support FAQ

Q: Is the FS225R12KE3/AGDR-71C a direct drop-in replacement for all ACS800 frame sizes?
A: This assembly is compatible with ACS800 R6, R7, and R8 frame sizes that originally specified the FS225R12KE3 IGBT module. Smaller frame sizes (R2–R5) use different IGBT ratings and gate driver variants. Confirm your drive’s frame size and original BOM before ordering.

Q: Does replacing the gate driver require any changes to the drive’s parameter settings?
A: No parameter changes are required for a like-for-like gate driver replacement. The AGDR-71C operates at the hardware level and does not interact with the drive’s application software or fieldbus configuration. However, we recommend exporting and re-uploading the full parameter set as a precaution after any major hardware replacement.

Q: What pre-shipment testing is performed on this unit?
A: Each FS225R12KE3/AGDR-71C assembly undergoes gate signal integrity verification, switching threshold measurement, and insulation resistance testing before dispatch. A test report is available on request. Units are shipped in anti-static packaging with mechanical protection for the IGBT module baseplate.

Q: What is the support terms coverage and lead time?
A: All units carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and premature failure under normal operating conditions. In-stock units ship within 2 business days. For urgent requirements, contact [email protected] or call +86 18359268345 to confirm same-day dispatch availability.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

FS225R12KE3/AGDR-71C
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB FS225R12KE3/AGDR-71C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
