ABB FIO-11 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB FIO-11 Maintenance-Proven Spare Part for Factory Uptime

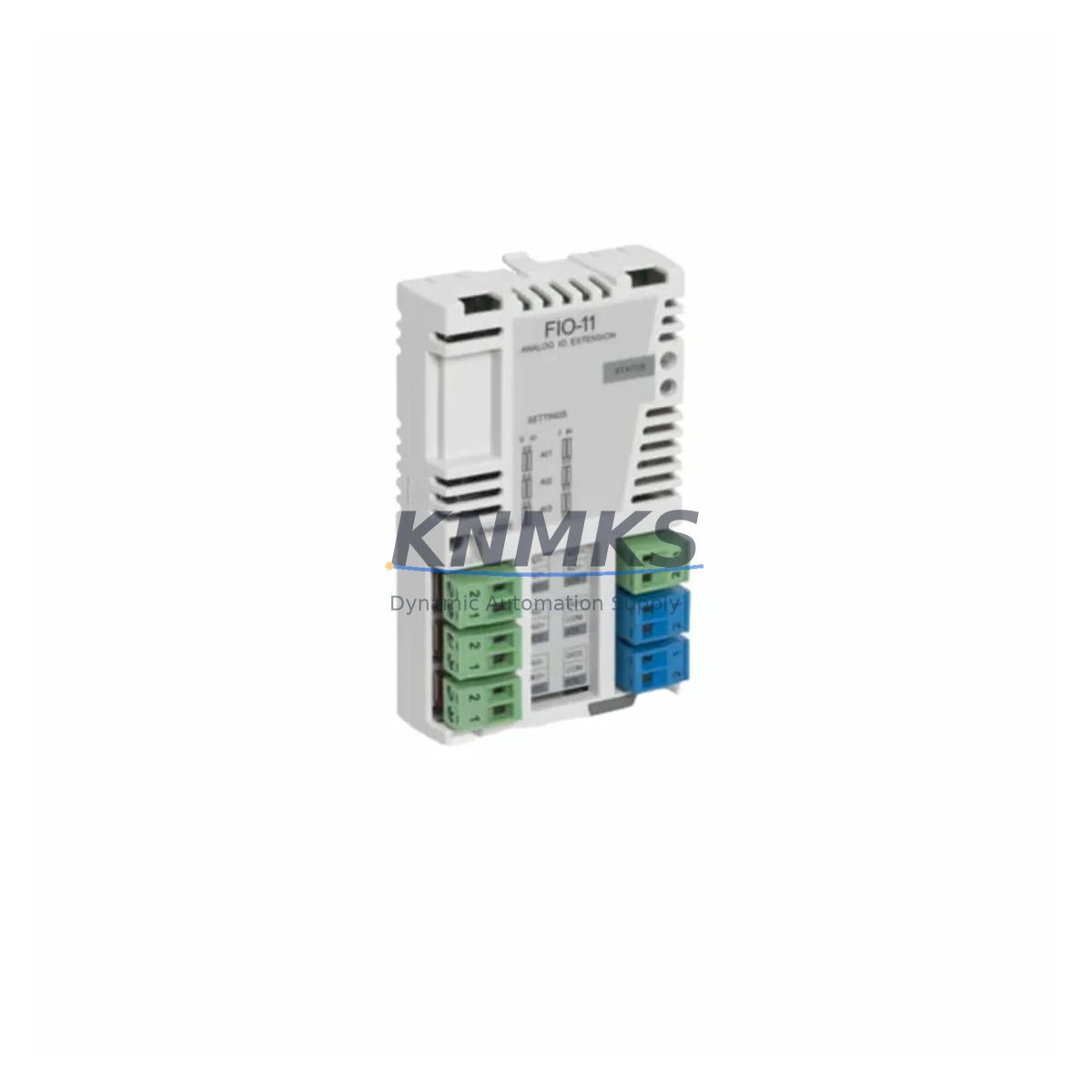

The ABB FIO-11 is an analog I/O extension option module designed for ABB ACS series variable speed drives, including the ACS550 and ACS800 platforms. As a field-replaceable option module, the FIO-11 expands the drive’s analog signal handling capacity — adding two analog inputs and two analog outputs — enabling precise process control in demanding industrial environments such as HVAC, water treatment, pulp and paper, oil and gas, and general manufacturing. Maintaining a ready stock of the FIO-11 is a proven strategy for minimizing unplanned downtime when drive option modules fail during production or scheduled outages.

Each unit supplied by KNMKS is sourced as an original ABB spare, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. Multi-region stock ensures fast global dispatch for both emergency replacements and planned maintenance windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the FIO-11, the surrounding drive system should be inspected holistically to prevent repeat failures and ensure a clean return to service. The FIO-11 interfaces directly with the ACS550 or ACS800 control board, so the integrity of the option slot connector and the control board itself — such as the RMIO-11C or RMIO-02C — should be verified before installing the new module.

Analog signal wiring connected to the FIO-11 terminals is a common source of noise and drift faults. Shielded signal cables should be inspected for continuity, correct grounding at one end, and freedom from mechanical damage. If the drive cabinet has been in service for more than five years, it is advisable to simultaneously inspect the RAIO-01 or RAIO-03 analog I/O extension boards if fitted, as these share the same signal environment and age similarly.

Power quality feeding the drive should be confirmed: the ACH550 or ACS800 input fuses, input choke, and EMC filter capacitors are worth checking during the same maintenance window. A degraded EMC filter can introduce common-mode noise that corrupts analog signals and causes erratic process control — a fault that is often misdiagnosed as an option module failure. The NPBA-12 PROFIBUS adapter or NMBP-01 Modbus adapter, if installed in an adjacent option slot, should also be reseated and verified for communication integrity, since vibration and thermal cycling can loosen option slot connectors over time.

For sites running ACS800 multi-drive systems, the RDCO-03 or RDCO-04 drive-to-drive communication fiber optic modules should be inspected alongside the FIO-11 replacement, as communication faults can mask or trigger analog I/O alarms. Terminal blocks on the control wiring side — particularly the X1 and X2 terminal rows — should be re-torqued to specification and checked for oxidation or loose ferrules.

Procurement engineers should consider holding a minimum of two FIO-11 units per site as a strategic buffer, particularly for facilities operating multiple ACS550 or ACS800 drives in critical process loops. Lead times for option modules can extend during peak demand periods, and a single unplanned failure without a spare on hand can result in days of lost production. KNMKS maintains multi-region stock to support both emergency same-day dispatch and long-term supply agreements for scheduled maintenance programs.

Site Replacement Workflow

Step 1 — Isolation: Follow site LOTO (Lockout/Tagout) procedures. De-energize the ACS550 or ACS800 drive and wait for the DC bus to discharge fully (minimum 5 minutes after power-off, confirm with a calibrated voltmeter at the DC bus terminals).

Step 2 — Documentation: Photograph the existing FIO-11 wiring and terminal assignments before disconnection. Record the drive parameter set (upload via DriveWindow or DriveStudio if available) to preserve analog I/O scaling parameters stored in the drive memory.

Step 3 — Module Removal: Disconnect all signal wiring from the FIO-11 terminal block. Release the option module locking tab and slide the FIO-11 out of option slot D2. Inspect the slot connector for bent pins or contamination.

Step 4 — New Module Installation: Confirm the replacement FIO-11 part number matches the original. Slide the new module firmly into slot D2 until the locking tab engages. Reconnect signal wiring per the documented terminal assignments.

Step 5 — Parameter Restore and Commissioning: Power up the drive and verify that the FIO-11 is recognized (check parameter group 15 for ACS550 or equivalent for ACS800). Restore analog I/O scaling parameters. Run a signal loop test on each analog input and output channel before returning the drive to automatic control.

Step 6 — Return to Service: Document the replacement in the site maintenance log, including the new module serial number and support terms start date. Update the spare parts inventory record.

Spare Parts Support FAQ

Q1: Is the FIO-11 compatible with both ACS550 and ACS800 drives?
Yes. The FIO-11 is designed for option slot D2 on both the ACS550 and ACS800 series. Always verify the drive’s option slot configuration and firmware version against the FIO-11 hardware manual (3AFE68784921) before installation to confirm compatibility with your specific drive revision.

Q2: How do I verify the FIO-11 is genuine and has been tested before shipment?
All FIO-11 units supplied by KNMKS are original ABB spare parts sourced through verified supply channels. Each unit undergoes pre-shipment functional testing covering analog input and output channel verification. A test report is available on request. The support terms confirmed by quotation runs from the date of dispatch and covers manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended inventory strategy for sites with multiple ACS drives?
For facilities operating three or more ACS550 or ACS800 drives with FIO-11 modules installed, KNMKS recommends holding a minimum of two spare units on-site. For critical process applications (continuous production, water treatment, power generation), a standing supply agreement with scheduled quarterly replenishment ensures stock is always available without tying up excessive capital in slow-moving inventory.

Q4: Can KNMKS support long-term supply for the FIO-11 given ABB’s product lifecycle?
Yes. KNMKS maintains multi-region stock of the FIO-11 and monitors ABB product lifecycle announcements to provide advance notice of end-of-availability. For customers with large installed bases, we offer long-term supply agreements and last-time-buy advisory services to ensure continuity of spare parts availability beyond the standard product lifecycle.
