ABB FIO-11 68679079 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB FIO-11 68679079 Maintenance-Proven Spare Part for Factory Uptime

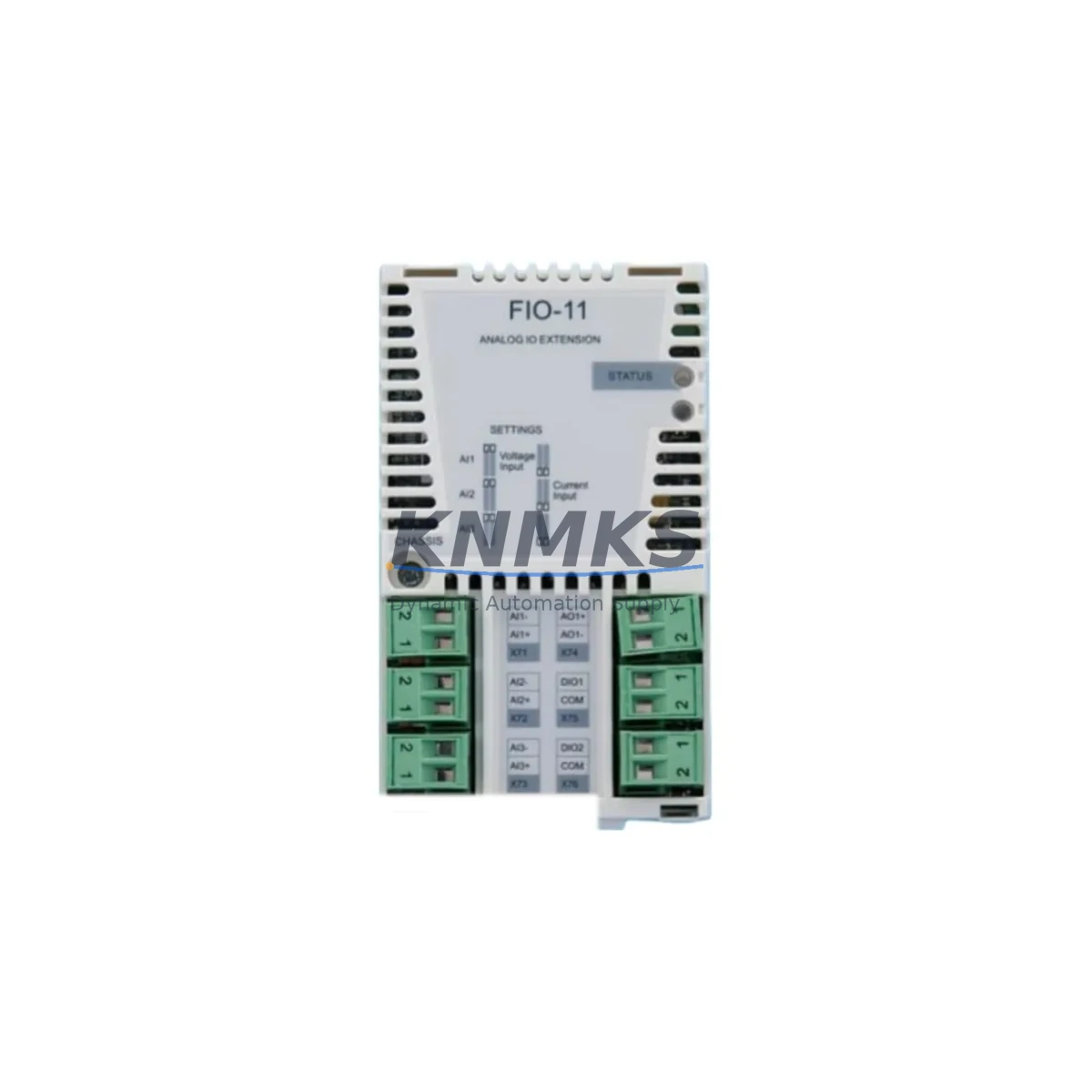

The ABB FIO-11 (part number 68679079) is an original analogue I/O extension module from ABB’s FIO Series, engineered for seamless integration with ACS800 and ACS880 variable speed drives. In industrial facilities where drive-controlled motors govern conveyor lines, compressors, pumps, and HVAC systems, the FIO-11 plays a critical role in expanding analogue signal capacity — enabling precise process feedback, speed reference inputs, and real-time monitoring of field instrumentation. Holding a verified spare in your maintenance inventory is one of the most effective strategies to eliminate unplanned downtime caused by I/O module failure.

For maintenance engineers managing aging ACS800 fleets or transitioning to ACS880 platforms, the FIO-11 68679079 provides a direct, back-to-back compatible replacement path. Its standardised slot-mount design and ABB-native firmware compatibility mean that field replacement can be completed within a single maintenance window — without drive reconfiguration or software re-commissioning in most standard applications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the FIO-11 68679079 is identified as a fault source during drive diagnostics — or flagged during a scheduled control cabinet inspection — experienced maintenance engineers know that replacing the I/O module alone is rarely sufficient for a complete and reliable restoration. A thorough site assessment should accompany every FIO-11 replacement to prevent repeat failures and ensure the drive system returns to full operational integrity.

Begin by inspecting the ACS800 or ACS880 drive’s main control board (RMIO or ZCU), which interfaces directly with the FIO-11 via the option slot bus. A degraded control board can cause intermittent I/O faults that mimic module failure. Simultaneously, verify the RDIO-01 digital I/O extension module if it is installed alongside the FIO-11 — both modules share the same option slot architecture and are often replaced as a pair during major overhauls.

Check all analogue signal wiring connected to the FIO-11’s AI and AO terminals. Shielded twisted-pair cables should be inspected for insulation damage, loose ferrules, and correct shield grounding at a single point. Faulty field wiring is a leading cause of premature I/O module failure and signal drift. If the drive is connected to a PROFIBUS or MODBUS RTU communication module (such as the RPBA-01 or RMBA-01), confirm that the fieldbus network remains stable after the FIO-11 swap, as option slot changes can occasionally trigger bus address conflicts.

For drives operating in high-vibration or high-humidity environments, inspect the drive’s internal 24 VDC auxiliary power supply and the SNAT 601 CNT or equivalent snubber/filter board for signs of capacitor aging or thermal stress. Degraded auxiliary power is a common root cause of option module instability. Additionally, review the drive’s input fuses and surge protection components — particularly if the FIO-11 failure was preceded by a power quality event or upstream fault.

Finally, if the ACS800 or ACS880 is connected to an ACS-AP-I or ACS-AP-L HMI panel, verify that the panel firmware version is compatible with the restored I/O configuration. Mismatched HMI firmware can prevent correct parameter display of analogue channel values after module replacement.

Site Replacement Workflow

Step 1 — Isolation and Safety: Follow LOTO (Lockout/Tagout) procedures. De-energise the drive and wait for the DC bus to discharge fully (minimum 5 minutes after power-off, or confirm with a DC voltmeter at the drive terminals).

Step 2 — Module Removal: Open the drive’s option slot cover. Carefully extract the faulty FIO-11 module by releasing the retention latch. Note the slot position (Slot 1, 2, or 3) for reinstallation reference.

Step 3 — Visual Inspection: Inspect the option slot connector on the drive for bent pins, corrosion, or debris. Clean with dry compressed air if necessary.

Step 4 — FIO-11 68679079 Installation: Insert the replacement FIO-11 firmly into the same option slot until the latch clicks. Reconnect all analogue signal cables to the correct AI/AO terminals per the original wiring diagram.

Step 5 — Parameter Verification: Power up the drive and navigate to the I/O configuration parameters (Group 11–15 on ACS800, or equivalent on ACS880). Confirm that the FIO-11 is recognised by the drive firmware and that all analogue channel assignments match the process requirements.

Step 6 — Functional Test: Apply a known analogue reference signal to each AI channel and verify the drive’s response. Confirm AO channel outputs with a calibrated milliammeter. Log the test results in the site maintenance record.

This workflow supports a typical replacement time of under 60 minutes for a trained technician, minimising production downtime and enabling rapid line recovery.

Spare Parts Support FAQ

Q1: Is the ABB FIO-11 68679079 compatible with both ACS800 and ACS880 drives?
Yes. The FIO-11 68679079 is designed for ABB’s FIO Series option slot architecture, which is shared across ACS800 and ACS880 drive families. However, always verify the specific drive firmware version and option slot assignment before installation, as certain ACS880 configurations may require parameter updates to recognise the module correctly.

Q2: What is included with the FIO-11 68679079 and how is it tested before shipment?
Each FIO-11 68679079 unit is individually tested for electrical continuity, analogue channel functionality, and option slot interface integrity prior to dispatch. Units are shipped in ESD-safe packaging with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. A test report is available upon request.

Q3: How should the FIO-11 68679079 be stored as a long-term spare?
Store in a dry, temperature-controlled environment (recommended: 10°C–40°C, relative humidity below 75% non-condensing). Keep in original ESD packaging and avoid stacking heavy items on top of the module. Inspect annually for any signs of corrosion on the connector pins. For critical production lines, maintaining at least one FIO-11 unit on-site is strongly recommended to support same-day replacement capability.

Q4: Can KNMKS supply the FIO-11 68679079 on a long-term or blanket order basis?
Yes. KNMKS supports long-term supply agreements and blanket purchase orders for the FIO-11 68679079 and related ABB FIO Series modules. This is particularly beneficial for maintenance programmes managing multiple ACS800 or ACS880 drives across several sites. Contact our team to discuss stock reservation, lead time commitments, and volume pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

FIO-11 68679079
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB FIO-11 68679079
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
