ABB FF300R12KE3 Maintenance-Proven Spare Part for Factory Uptime

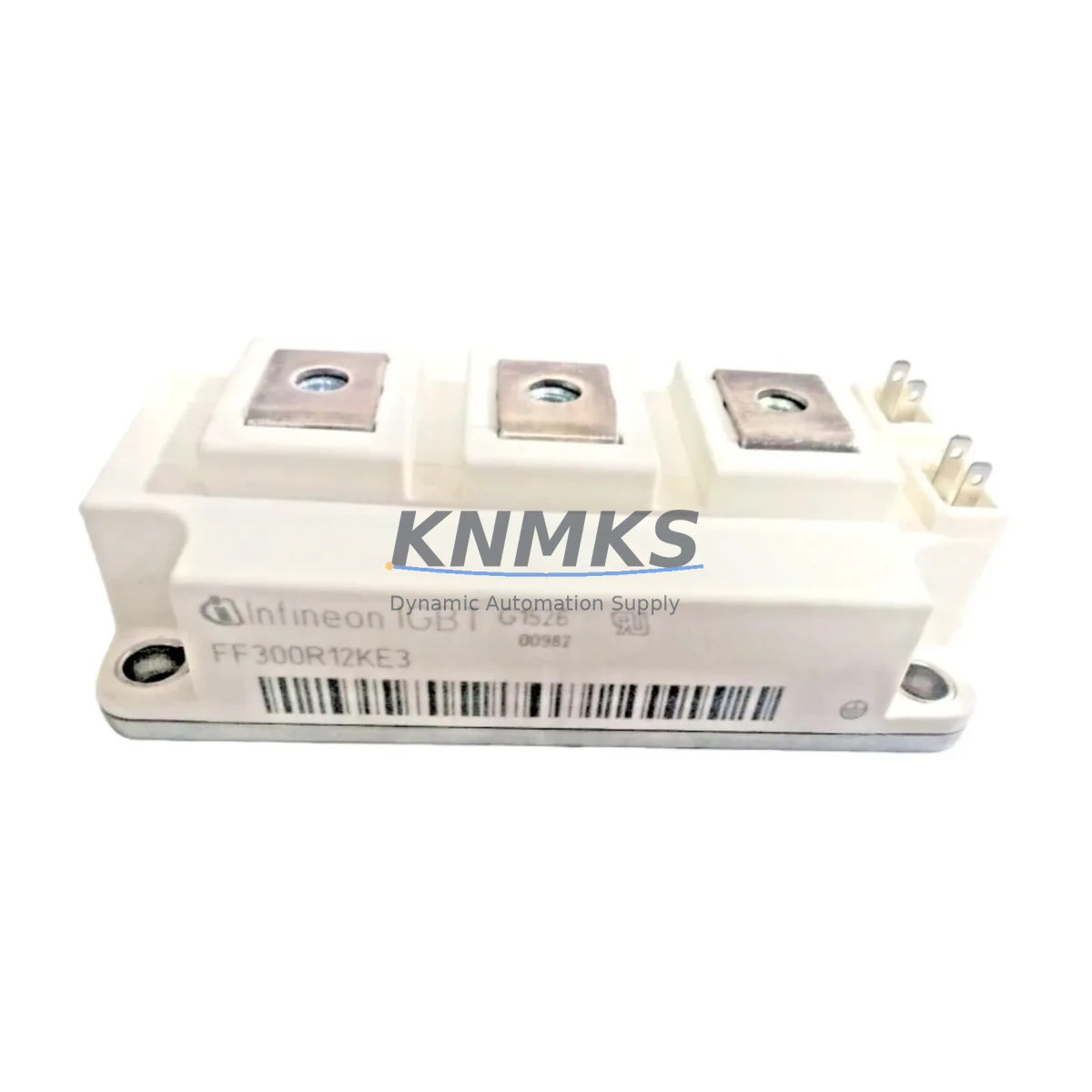

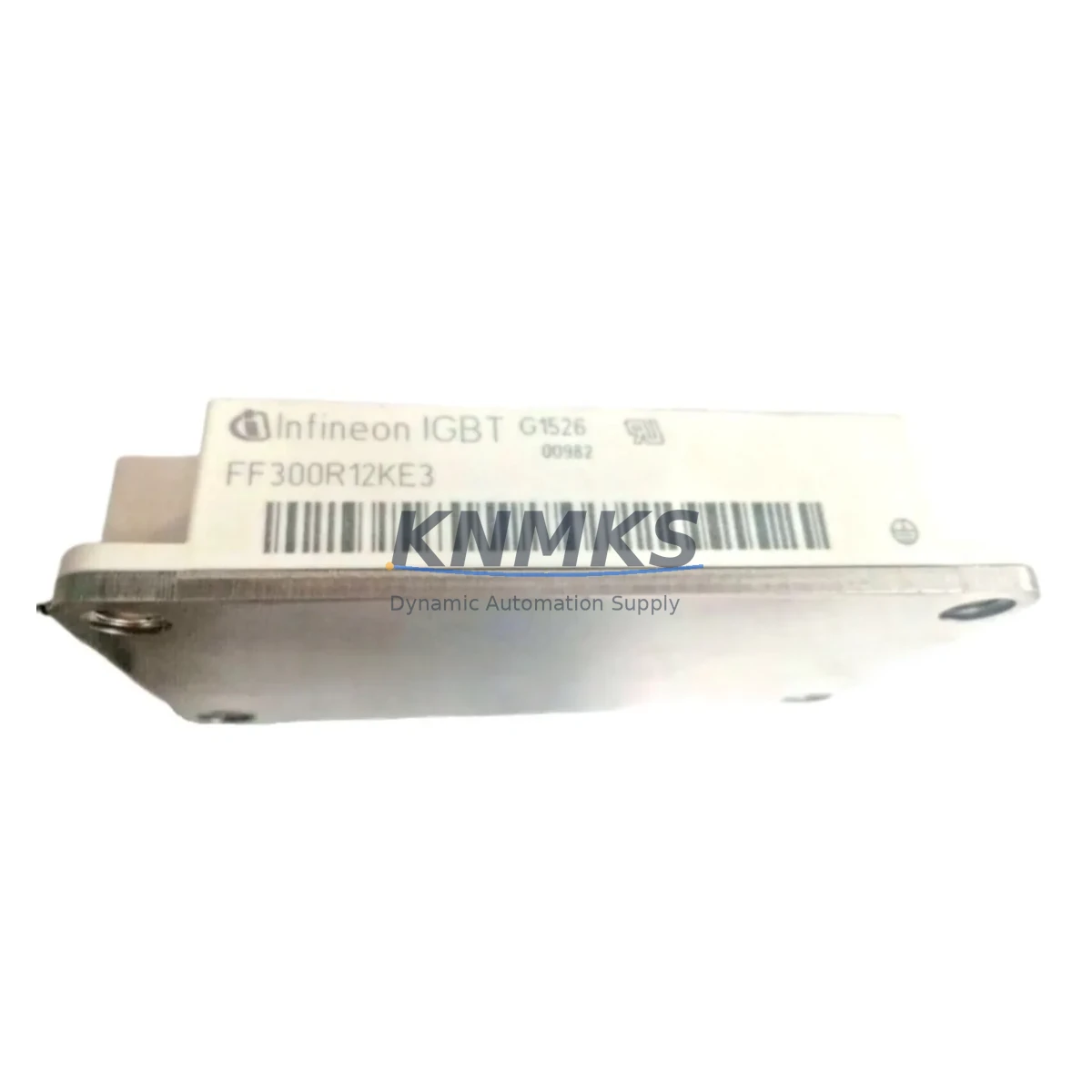

The ABB FF300R12KE3 is a 300A / 1200V EconoPACK 3 IGBT power module engineered for high-reliability industrial applications including AC motor drives, regenerative inverters, UPS systems, and industrial power conversion equipment. As a maintenance-proven original spare part, the FF300R12KE3 is a critical component in sustaining factory uptime across energy, manufacturing, petrochemical, and infrastructure sectors. KNMKS maintains verified stock of this module with full pre-shipment electrical testing and a support terms confirmed by quotation, ensuring your replacement program is backed by a dependable long-term supply commitment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing drives and inverter cabinets that rely on the FF300R12KE3, a structured spare parts strategy is essential to minimize unplanned downtime. During routine cabinet inspections, the IGBT module should be evaluated alongside its supporting components to ensure the entire power conversion circuit remains within specification.

When replacing the FF300R12KE3, the gate driver board — typically an ABB AGDR-81C or equivalent driver card — should be inspected and tested independently. A faulty gate driver is a common root cause of IGBT failure and must be ruled out before installing a new module. Similarly, the DC bus capacitor bank and pre-charge resistor assembly should be checked for capacitance drift and ESR degradation, as these directly affect the voltage stress seen by the IGBT during switching transients.

The snubber capacitors and DC bus fuses (such as the ABB OFAF or equivalent semiconductor protection fuses rated for the DC link voltage) must be verified for continuity and correct rating. A blown fuse that is replaced without identifying the root cause will result in repeat module failure. In multi-axis or common DC bus configurations, the ABB RDCU-02C or RDCU-12C control unit should be checked for fault logs that may indicate overcurrent or short-circuit events preceding the module failure.

For systems using fiber-optic gate signal transmission, the DDCS communication fiber cables and RDCO-03C optical communication modules should be inspected for signal integrity. Degraded optical links can cause spurious gate pulses that stress the IGBT beyond its safe operating area. In cabinet environments with high ambient temperature or poor ventilation, the thermal interface material (TIM) between the FF300R12KE3 and the heatsink should be renewed at every module replacement using a high-performance silicone-free compound to maintain optimal thermal conductivity.

Procurement engineers should maintain a minimum buffer stock of one FF300R12KE3 per critical drive axis, particularly in continuous-process industries where a single drive failure can halt an entire production line. KNMKS supports long-term supply agreements with guaranteed lead times, enabling predictive maintenance programs without the risk of spot-market procurement delays.

Site Replacement Workflow

Replacing the FF300R12KE3 in the field requires a systematic approach to ensure system compatibility and safe recommissioning. Begin by isolating the drive from the AC supply and discharging the DC bus capacitors fully — confirm zero voltage on the DC link terminals using a calibrated meter before any contact with internal components.

Remove the faulty module by unbolting the heatsink fasteners and disconnecting the gate, emitter, collector, and auxiliary terminals in the correct sequence per the drive service manual. Clean the heatsink mounting surface thoroughly and apply fresh thermal interface material in a uniform layer. Install the new FF300R12KE3, torque all fasteners to specification, and reconnect all terminals with correct polarity.

Before energizing, perform a static gate-emitter resistance check and verify that the collector-emitter blocking voltage is within specification using a curve tracer or equivalent instrument. Power up the gate driver in isolation first, confirm correct output pulse timing, then apply DC bus voltage incrementally if the drive supports pre-charge control. Run the drive at reduced load for an initial burn-in period and monitor heatsink temperature and output current waveforms to confirm correct operation.

This workflow is equally applicable when upgrading from legacy EconoPACK 3 modules from other manufacturers, as the FF300R12KE3 maintains full pin and footprint compatibility with the standard EconoPACK 3 platform, reducing retrofit engineering time and eliminating the need for mechanical modifications to the existing heatsink assembly.

Spare Parts Support FAQ

Q1: What is the expected service life of the FF300R12KE3 in a typical industrial drive application?
Under normal operating conditions — junction temperature within rated limits, correct gate drive parameters, and adequate heatsink cooling — the FF300R12KE3 is designed for a service life exceeding 10 years in continuous industrial duty. Actual lifespan depends on thermal cycling frequency, switching frequency, and load profile. Preventive replacement at scheduled maintenance intervals (typically every 5–7 years in high-cycle applications) is recommended to avoid unplanned failures.

Q2: How do I verify compatibility before installing the FF300R12KE3 as a replacement for an existing module?
Confirm that the existing module uses the EconoPACK 3 package footprint and that the drive’s DC link voltage and maximum output current are within the FF300R12KE3’s 1200V / 300A ratings. Cross-reference the original module part number against the drive’s service documentation. KNMKS provides pre-sales compatibility verification support — contact admin@knmks.com with your drive model and existing module part number for confirmation before ordering.

Q3: Does KNMKS test the FF300R12KE3 before shipment, and what does the support terms confirmed by quotation cover?
Yes. Every FF300R12KE3 unit shipped by KNMKS undergoes full electrical parameter testing including Vces, Vge(th), Ic, and thermal resistance verification prior to dispatch. The support terms confirmed by quotation cover manufacturing defects and parameter deviations from the published datasheet. It does not cover damage resulting from incorrect installation, gate driver mismatch, or operation outside rated conditions. Support requests are supported with replacement or documented resolution support at KNMKS’s discretion.

Q4: Can KNMKS support long-term supply commitments for the FF300R12KE3 for ongoing maintenance programs?
Yes. KNMKS offers long-term supply agreements for the FF300R12KE3 and related EconoPACK 3 series modules, including scheduled delivery programs aligned with your annual maintenance calendar. This eliminates spot-market procurement risk and ensures consistent part availability for multi-site maintenance operations. Contact admin@knmks.com or call +86 18359268345 to discuss volume pricing and supply terms.
