Overview

ABB FDCO-01 3AUA0000107392 Migration-Ready Fiber Optic Module for Legacy Control Systems

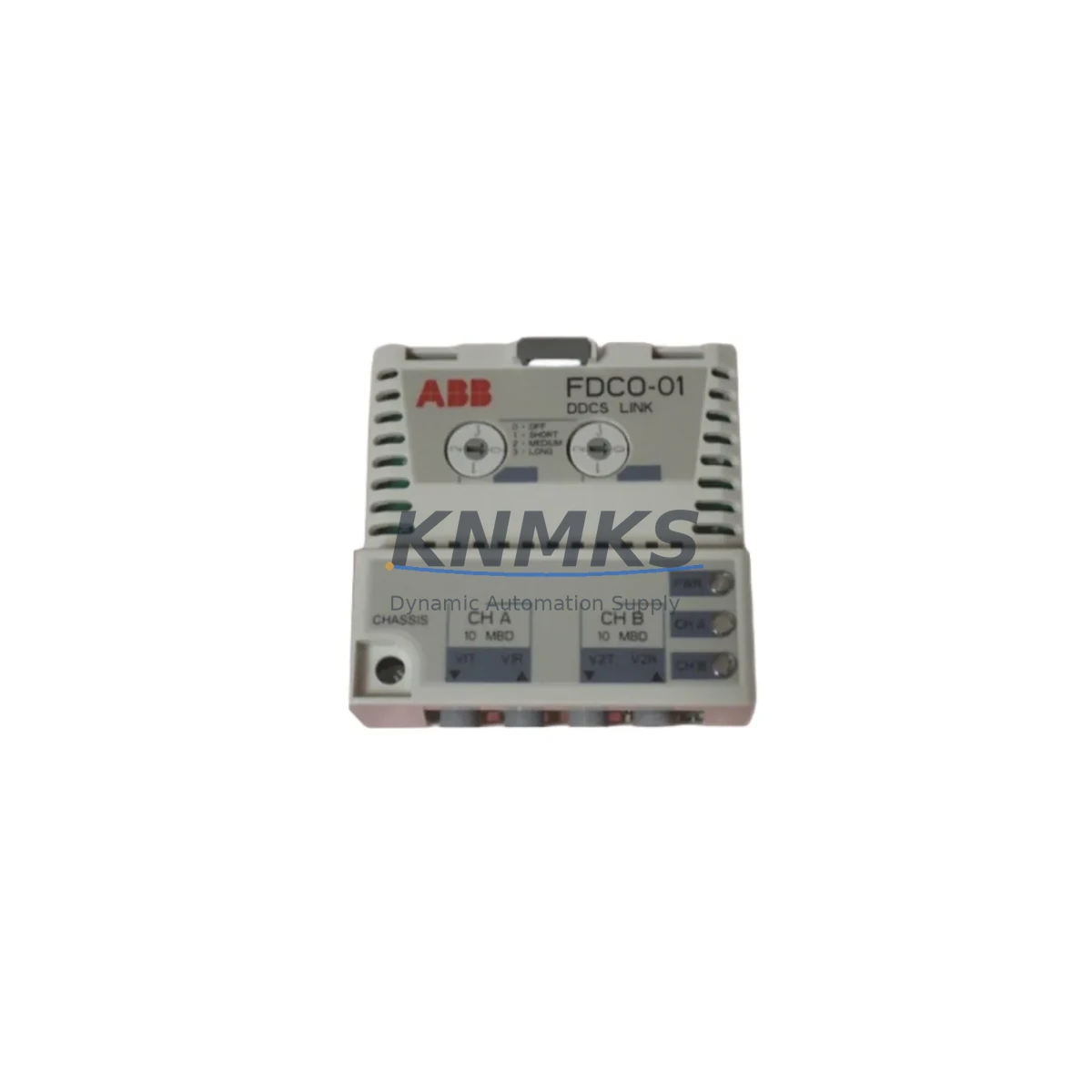

The ABB FDCO-01 (part number 3AUA0000107392) is a fiber optic communication module designed for the ACS800 series variable frequency drives, providing DDCS (Distributed Drives Communication System) connectivity between the drive control unit and external master controllers or I/O extension modules. As legacy ACS800 installations age and original spare parts become increasingly scarce, the FDCO-01 has become a critical component in both direct replacement scenarios and broader drive system modernization projects.

For maintenance engineers managing aging automation infrastructure, sourcing a verified FDCO-01 with confirmed firmware compatibility and pre-shipment testing is essential to avoiding extended unplanned downtime. Our stock units are inspected, function-tested, and shipped with a support terms confirmed by quotation covering both hardware integrity and communication performance under normal operating conditions.

The FDCO-01 installs into the option slot of compatible ACS800 drive units and establishes the fiber optic DDCS link that allows the drive to participate in a multi-drive or distributed I/O architecture. When replacing a failed or end-of-life unit, engineers must confirm the slot assignment (typically slot 1 or slot 2 depending on the drive frame size), verify that the DDCS node address is correctly set via DIP switches or drive parameters, and ensure the fiber cable routing and connector type (HFBR-style plastic optical fiber) match the existing installation. Mismatch in node addressing is one of the most common commissioning errors during FDCO-01 replacement and can cause the master controller — often an AC800M or a Freelance DCS node — to fail to recognize the drive on the DDCS ring.

In retrofit planning contexts, the FDCO-01 is frequently encountered alongside the RDCO-02 or RDCO-03 communication adapter boards, which handle DeviceNet or PROFIBUS-DP connectivity respectively. When a site is migrating from a pure DDCS topology to a hybrid fieldbus architecture — for example, integrating newer drives with PROFIBUS capability into an existing ACS800 ring — the FDCO-01 may be retained on legacy drives while newer drives use RPBA-01 PROFIBUS adapters. This mixed-protocol approach requires careful attention to the master controller’s communication configuration and scan cycle timing to avoid data inconsistency between drive groups.

Power supply integrity is another critical checkpoint during FDCO-01 replacement. The module draws its operating power from the drive’s internal 24 VDC auxiliary supply rail. Before installation, verify that the drive’s SMIO board or AINT board is supplying stable 24 VDC to the option slot. A degraded internal power supply — common in drives that have been in continuous service for over ten years — can cause intermittent FDCO-01 faults even with a new module installed. In such cases, the AINT board or the drive’s main control board may also require inspection or replacement as part of the same maintenance window.

For sites running ABB’s DriveWindow or DriveWindow Light software for drive parameterization and monitoring, the FDCO-01’s DDCS link is the communication path used during online parameter upload and download. Ensuring the fiber optic link is fully operational before attempting a parameter restore from backup is essential — particularly when recovering a drive after a control board replacement, where the parameter set must be reloaded to restore the original speed reference scaling, torque limits, and process-specific application macros.

In multi-drive systems where the ACS800 units are coordinated through a master follower configuration or a torque-sharing scheme, the FDCO-01 carries the real-time speed and torque reference signals between drives. A failed or degraded fiber optic module in this topology can cause the follower drive to lose synchronization, resulting in process upsets or mechanical stress on coupled loads such as winders, conveyors, or multi-motor crane drives. Replacement should be planned during a scheduled maintenance window with the process offline, and the DDCS ring should be verified end-to-end using the drive’s built-in diagnostics before returning the system to production.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful FDCO-01 retrofit begins well before the module arrives on site. The first step is a full audit of the existing DDCS ring topology: document the number of nodes, the fiber cable lengths between nodes, and the current node address assignments. In larger installations, the DDCS ring may connect not only ACS800 drives but also NDIO-02 digital I/O extension modules or NAIO-03 analog I/O modules mounted in the drive cabinet. These I/O extension modules share the same fiber optic ring and must remain addressed and powered during the drive maintenance window to avoid losing field signal monitoring.

The drive cabinet layout should also be reviewed for physical installation space. While the FDCO-01 itself is compact, the fiber cable routing inside the cabinet must allow for the minimum bend radius of the plastic optical fiber — typically 25 mm — to avoid signal attenuation. In older cabinets where cable management has been modified over the years, it is common to find fiber cables routed too tightly around cable duct corners, which can cause intermittent communication errors that are difficult to diagnose without a fiber power meter.

If the retrofit is part of a broader control system upgrade — for example, migrating from an older AC800M DCS to a newer System 800xA architecture — the FDCO-01 may need to coexist with updated communication infrastructure during a phased cutover. In this scenario, the RPBA-01 PROFIBUS adapter or the FENA-21 Ethernet adapter may be installed in a second option slot on the same drive, allowing the drive to communicate simultaneously over DDCS and the new fieldbus during the transition period. This dual-communication approach requires careful parameter configuration to ensure that the correct reference source and feedback path are active at each phase of the cutover.

For sites where the ACS800 drives are controlled by a Freelance DCS or a third-party SCADA system via the DDCS link, the HMI faceplate configuration and tag mapping should be verified after FDCO-01 replacement. Drive status words, fault codes, and process values are transmitted over the DDCS link and mapped to HMI tags in the controller configuration. A node address change or a DDCS ring reconfiguration can shift these mappings and cause incorrect process displays or missed fault alarms until the HMI configuration is updated.

Downtime Control During System Migration

Minimizing downtime during an FDCO-01 replacement requires a structured pre-work checklist completed before the maintenance window begins. The drive’s current parameter set should be uploaded and saved using DriveWindow or a compatible backup tool at least 24 hours before the planned outage, ensuring that a verified backup exists independently of the drive’s internal memory. The DDCS node address and ring topology should be documented, and the replacement FDCO-01 should be pre-configured with the correct node address setting before the drive is de-energized.

During the replacement, the drive should be fully de-energized and the DC bus voltage verified to be below 50 VDC before the option slot cover is removed. The fiber optic connectors should be cleaned with an appropriate fiber optic cleaning tool before insertion to prevent contamination-related signal loss. After installation, the drive should be powered up in a controlled sequence — auxiliary power first, then main power — and the DDCS communication status verified in the drive’s diagnostic parameters before the process is restarted.

If the DDCS ring includes multiple drives, the ring should be verified end-to-end by checking the communication status of each node from the master controller before returning any drive to automatic control. In master-follower configurations, the follower drives should be verified to be receiving valid speed and torque references from the master before the process load is applied. This sequential verification approach — rather than a simultaneous restart of all drives — significantly reduces the risk of a process upset caused by a residual communication fault that was not detected during the initial power-up check.

Our pre-shipment testing protocol verifies DDCS communication function, fiber optic transmitter and receiver power levels, and option slot connector integrity on every FDCO-01 unit before dispatch. This reduces the risk of receiving a non-functional module and eliminates one variable from the on-site commissioning process, allowing the maintenance team to focus on the installation and configuration steps rather than module verification.

Retrofit Support FAQ

Q: Is the FDCO-01 (3AUA0000107392) a direct drop-in replacement for a failed unit in an ACS800 drive?
A: Yes. The FDCO-01 is a direct replacement for any failed or end-of-life FDCO-01 module in an ACS800 drive with a compatible option slot. No drive firmware update is required. The node address must be set to match the original configuration before the drive is powered up. Our units are pre-tested for DDCS communication function and shipped with a support terms confirmed by quotation.

Q: What should I verify before installing the replacement FDCO-01?
A: Confirm the option slot assignment (slot 1 or slot 2), verify the 24 VDC auxiliary supply from the drive’s AINT or SMIO board, document the existing DDCS node address, and ensure the fiber cable connectors are clean and undamaged. Upload the drive’s parameter set as a backup before de-energizing the drive.

Q: Can the FDCO-01 coexist with other communication adapters such as the RPBA-01 or FENA-21 in the same drive?
A: Yes, provided the drive has a second available option slot. The FDCO-01 occupies one slot, and a second adapter such as the RPBA-01 PROFIBUS adapter or FENA-21 Ethernet adapter can be installed in the other slot. Drive parameters must be configured to define the active reference source and feedback path for each communication channel.

Q: What is your stock availability and lead time for the FDCO-01 3AUA0000107392?
A: We maintain in-stock inventory of the FDCO-01 to support urgent maintenance and planned retrofit projects. Units are dispatched after pre-shipment function testing. Contact our team at [email protected] or +86 18359268345 for current stock levels and delivery timelines. All units are covered by a support terms confirmed by quotation from the date of shipment.
