ABB F4332D 3HAC024322-001 Fail-Safe EMI Filter Industrial Control

Overview

ABB F4332D 3HAC024322-001 Fail-Safe EMI Filter Industrial Control: Fault Protection and Critical Field Reliability

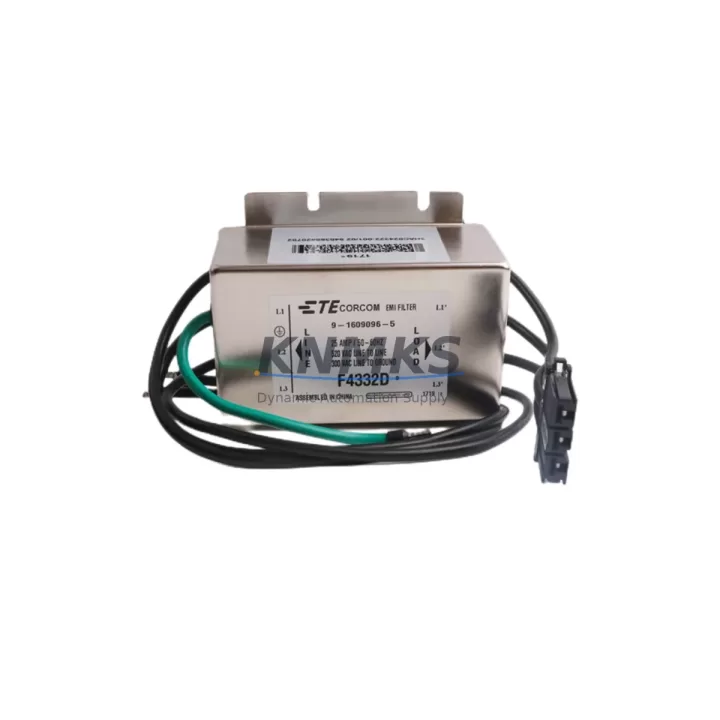

The ABB F4332D 3HAC024322-001 is a precision-engineered electromagnetic interference (EMI) filter designed for deployment in ABB IRB series robot controllers and demanding industrial control cabinets. In continuous production environments where control interruption carries direct safety and financial consequences, this filter serves as a critical line of defense — suppressing conducted EMI, attenuating surge transients, and preserving signal integrity across the entire drive and servo control chain.

Industrial sites operating heavy-duty servo drives, frequency converters, and multi-axis robot controllers generate significant high-frequency noise on shared power rails. Without effective EMI filtering at the cabinet inlet, this noise propagates into sensitive control logic, causing signal drift, spurious trips, communication anomalies on PROFIBUS or DeviceNet backbones, and — in worst cases — unplanned shutdowns of safety-critical processes. The F4332D 3HAC024322-001 is rated and validated specifically for ABB’s IRB robot platform, ensuring full electromagnetic compatibility (EMC) compliance and stable operation under the electrical stress profiles typical of these systems.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Effective cabinet-level protection in ABB robot installations requires a layered approach. The F4332D 3HAC024322-001 EMI filter is typically installed at the power inlet stage of the IRC5 or IRB controller cabinet, working in coordination with the ABB DSQC 661 axis computer board and the ABB DSQC 652 digital I/O unit to ensure that filtered, stable power reaches all control logic layers. In high-load welding or press-tending cells, the filter operates alongside ABB ACS800 series drive modules, which themselves generate substantial switching noise — making upstream EMI suppression non-negotiable for reliable operation.

In cabinets where multiple servo axes share a common DC bus, the ABB 3HAC026254-001 drive unit and associated brake resistor assemblies introduce additional transient energy that must be managed at the filter stage. For installations in humid, dusty, or chemically aggressive environments — common in food processing, mining, and chemical plant automation — the F4332D’s robust construction ensures that filter performance does not degrade under ingress or condensation stress. Pairing this filter with an ABB DSQC 508 fieldbus adapter or PROFIBUS DP communication module further protects the communication backbone from noise-induced data corruption, preserving the integrity of safety interlocks and process feedback signals.

Critical Industrial Safety Applications

The ABB F4332D 3HAC024322-001 is deployed across a wide range of safety-critical and continuous-process industrial environments:

Petrochemical and Refinery Automation: In ATEX-adjacent control rooms and DCS-integrated robot cells, EMI filtering is mandatory to prevent spurious valve actuations or sensor misreads caused by variable-frequency drive harmonics. This filter ensures that robot controller logic remains isolated from power-line disturbances generated by large pump and compressor drives.

Electric Power and Substation Environments: High-voltage switching events in substations create severe conducted transients. Robot systems used for inspection, cable handling, or switchgear assembly in these environments depend on upstream EMI filters to maintain control loop stability and prevent nuisance trips of safety relays.

Mining and Mineral Processing: Continuous operation under heavy vibration, dust ingress, and fluctuating generator power makes EMI filtering essential. The F4332D supports uninterrupted robot operation in ore handling, drilling support, and conveyor automation applications where downtime carries significant production cost.

Water and Wastewater Treatment: Variable-speed pump drives and aeration blowers generate persistent low-frequency harmonics. Robot systems used for sampling, valve actuation, or maintenance tasks in these plants benefit from the filter’s attenuation characteristics, which protect sensitive measurement and control signals.

Metallurgy and Heavy Manufacturing: In arc furnace environments, induction heating lines, and rolling mill automation, electromagnetic noise levels are extreme. The F4332D provides the first line of EMC defense for robot controllers operating in these high-interference zones, reducing the risk of axis faults, encoder signal loss, and emergency stops.

Port and Marine Automation: Salt-laden air, humidity, and the electrical noise from large crane drives and shore power systems challenge robot controller reliability. EMI filtering at the cabinet inlet is a standard protective measure in these installations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the F4332D 3HAC024322-001?
The support terms covers all manufacturing defects and functional failures under normal operating conditions for 12 months from the date of dispatch. If the unit fails to perform its specified EMI attenuation function within this period, we provide replacement or documented resolution support. Support requests are processed with priority to minimize your downtime.

Q2: What pre-shipment testing is performed on this EMI filter?
Every F4332D 3HAC024322-001 unit undergoes functional verification and insulation resistance testing before dispatch. We confirm filter continuity, leakage current within specification, and physical integrity of all terminals and mounting hardware. A test record is available upon request.

Q3: Is this filter compatible with all ABB IRB robot controller variants?
The F4332D 3HAC024322-001 is validated for ABB IRB series controllers using the IRC5 cabinet platform. Compatibility with specific IRB models (IRB 1600, IRB 2600, IRB 4600, IRB 6640, and related variants) should be confirmed against your controller’s BOM or service manual. Our technical team can assist with cross-referencing if you provide your controller serial number or cabinet revision.

Q4: Can you support long-term or repeat supply of this part?
Yes. We maintain stock of ABB robotics spare parts including the F4332D 3HAC024322-001 and related drive and control components. For OEM integrators, system integrators, and plant maintenance teams requiring scheduled or blanket orders, we offer supply agreements with guaranteed lead times and priority allocation. Contact our sales team to discuss your annual volume requirements.
