ABB ED1202B HEDT300355R1 Maintenance-Proven Spare Part

Overview

ABB ED1202B HEDT300355R1 Maintenance-Proven Spare Part for Factory Uptime

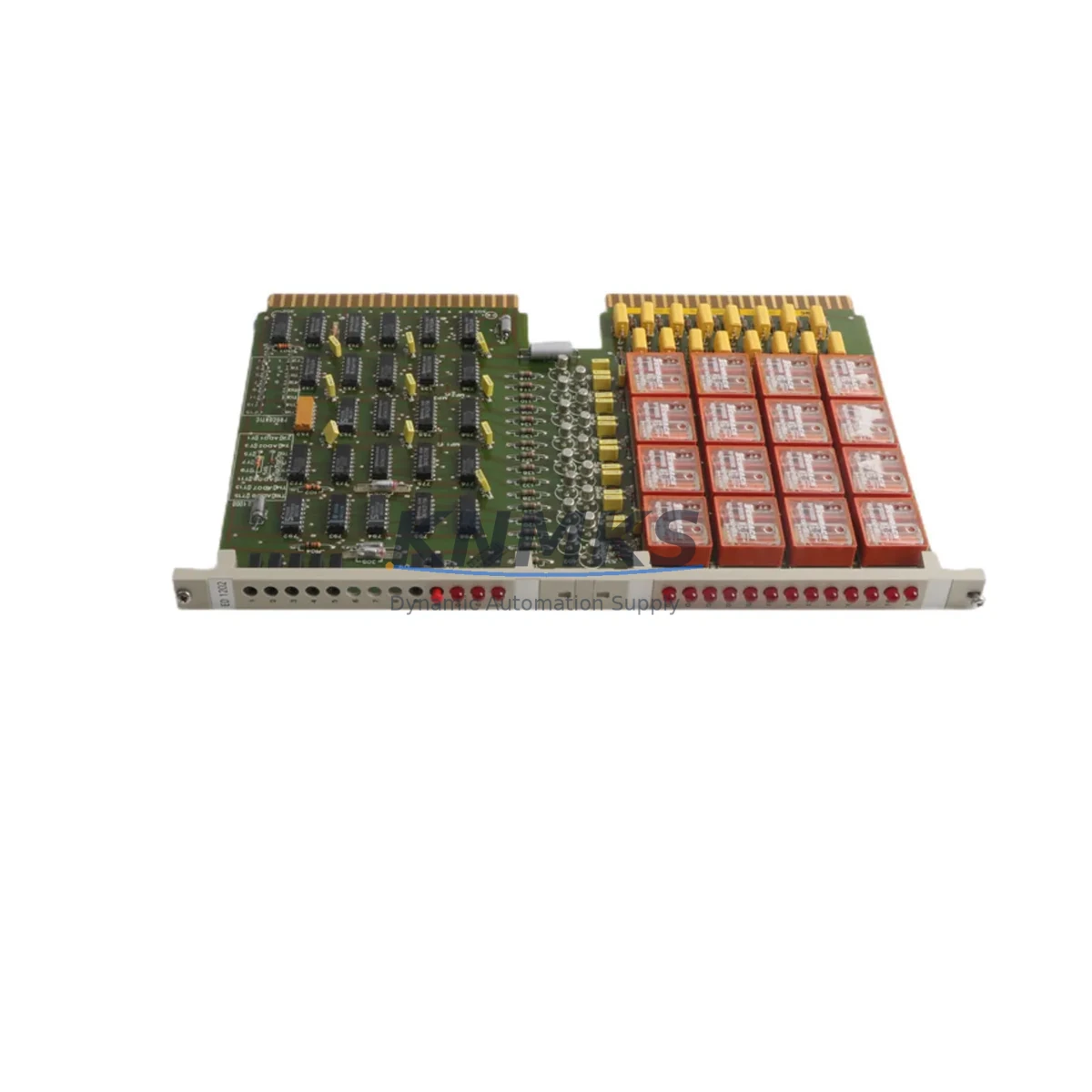

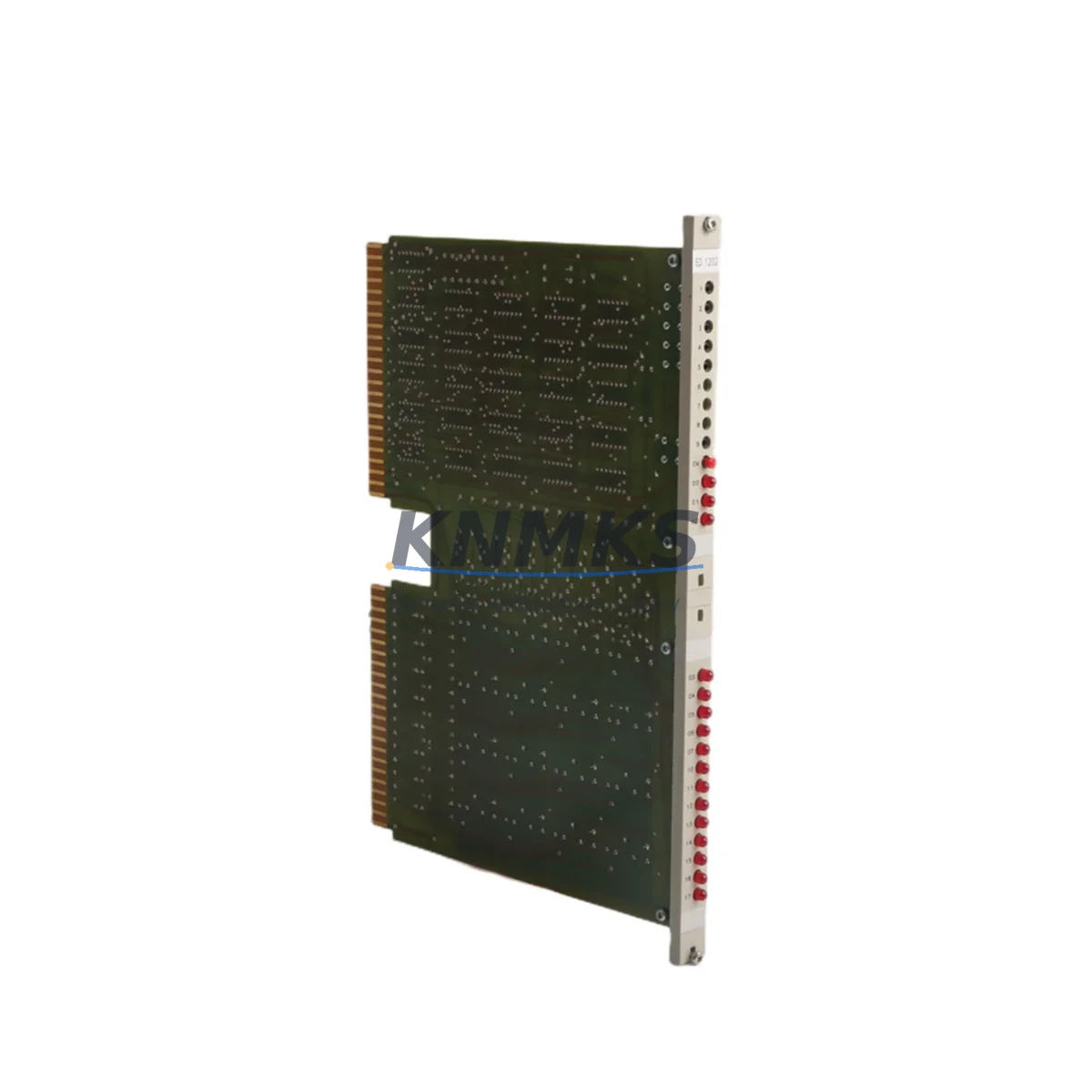

The ABB ED1202B HEDT300355R1 (also referenced as HE693655-307/16) is an original DCS PC board module engineered for the ABB Advant MOD 300 distributed control system. Designed for continuous industrial operation, this board serves as a critical spare in power generation, chemical processing, pulp and paper, and heavy manufacturing environments where unplanned downtime carries significant operational and financial consequences.

Maintenance engineers and spare parts procurement teams rely on the ED1202B HEDT300355R1 to restore MOD 300 controller functionality rapidly following board-level failures. Its direct compatibility with the MOD 300 backplane eliminates the need for firmware reconfiguration or hardware adaptation, enabling same-shift replacement and immediate system recovery. Each unit supplied by KNMKS is sourced from verified industrial channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation.

For aging MOD 300 installations where OEM support has been discontinued, maintaining a dedicated stock of this board — alongside complementary modules — is the most cost-effective strategy for extending system life and protecting production continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the ED1202B HEDT300355R1 is identified as a failure point during routine control cabinet inspection or fault isolation, a thorough maintenance review should extend beyond the board itself. Experienced maintenance engineers recommend simultaneously inspecting the MOD 300 power supply module that feeds the affected rack — voltage irregularities are a leading cause of premature PC board degradation. The MOD 300 backplane connector pins and bus integrity should be verified before installing the replacement board to prevent repeat failures.

I/O modules seated in adjacent slots — particularly ABB MOD 300 analog input/output boards — should be checked for signal drift or communication errors that may have been masked by the primary board fault. If the system includes ABB MOD 300 communication modules handling fieldbus or serial links, their status logs should be reviewed as part of the same maintenance window.

Terminal blocks and field wiring connected to the affected board should be inspected for loose terminations, corrosion, or insulation breakdown. Fuse holders and protective devices within the control cabinet should be tested to confirm they are within rated parameters. Where signal isolators are used between field instruments and the DCS input cards, their calibration and isolation resistance should be verified. For installations with ABB MOD 300 HMI operator stations, confirming that the station re-establishes full communication after board replacement is a standard post-maintenance acceptance step.

Procurement engineers building annual spare parts budgets for MOD 300 systems should consider stocking at least one ED1202B HEDT300355R1 per critical controller rack, alongside a matched set of power supply and I/O spares, to ensure sub-4-hour recovery capability for any single-board failure scenario.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use the MOD 300 diagnostic interface or HMI alarm summary to confirm the ED1202B HEDT300355R1 as the failed component. Document the slot address and rack ID before proceeding.

Step 2 — Safe Isolation: Follow site lock-out/tag-out (LOTO) procedures. De-energize the affected rack section. Verify zero voltage at the board connector using a calibrated meter.

Step 3 — Board Removal: Release the board retention latch, extract the ED1202B HEDT300355R1 carefully, and inspect the backplane connector for damage or contamination before insertion of the replacement unit.

Step 4 — Replacement Installation: Insert the new ED1202B HEDT300355R1 into the correct slot. Confirm full seating. Re-energize the rack and observe the board status LEDs for normal initialization sequence.

Step 5 — System Verification: From the MOD 300 engineering workstation or HMI, confirm that the replacement board is recognized, all associated I/O points are online, and no residual alarms remain. Perform a functional loop check on critical I/O channels before returning the process to automatic control.

Step 6 — Documentation: Record the replacement in the site maintenance log, including the new board serial number, installation date, and post-replacement test results. Update the spare parts inventory accordingly.

This workflow supports direct substitution of legacy ED1202B variants without system reconfiguration, minimizing downtime and maintaining full MOD 300 system compatibility.

Spare Parts Support FAQ

Q1: Is the ED1202B HEDT300355R1 compatible with all MOD 300 rack configurations?
The ED1202B HEDT300355R1 is designed for the ABB Advant MOD 300 standard backplane. Compatibility should be confirmed against your specific rack revision and firmware version. KNMKS technical support can assist with compatibility verification prior to order placement.

Q2: What pre-shipment testing is performed on each unit?
Each ED1202B HEDT300355R1 undergoes functional testing before dispatch to verify board-level operation. Units that do not pass testing are not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the module’s rated specifications. Support requests are processed directly through KNMKS.

Q4: Can KNMKS support long-term supply of the ED1202B HEDT300355R1 for multi-year maintenance contracts?
Yes. KNMKS maintains ongoing sourcing relationships for ABB MOD 300 series components and can support blanket purchase orders, scheduled deliveries, and consignment stock arrangements for facilities with recurring spare parts requirements. Contact admin@knmks.com to discuss long-term supply terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

ED1202B HEDT300355R1 HE693655-307/16

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB ED1202B HEDT300355R1 HE693655-307/16
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
