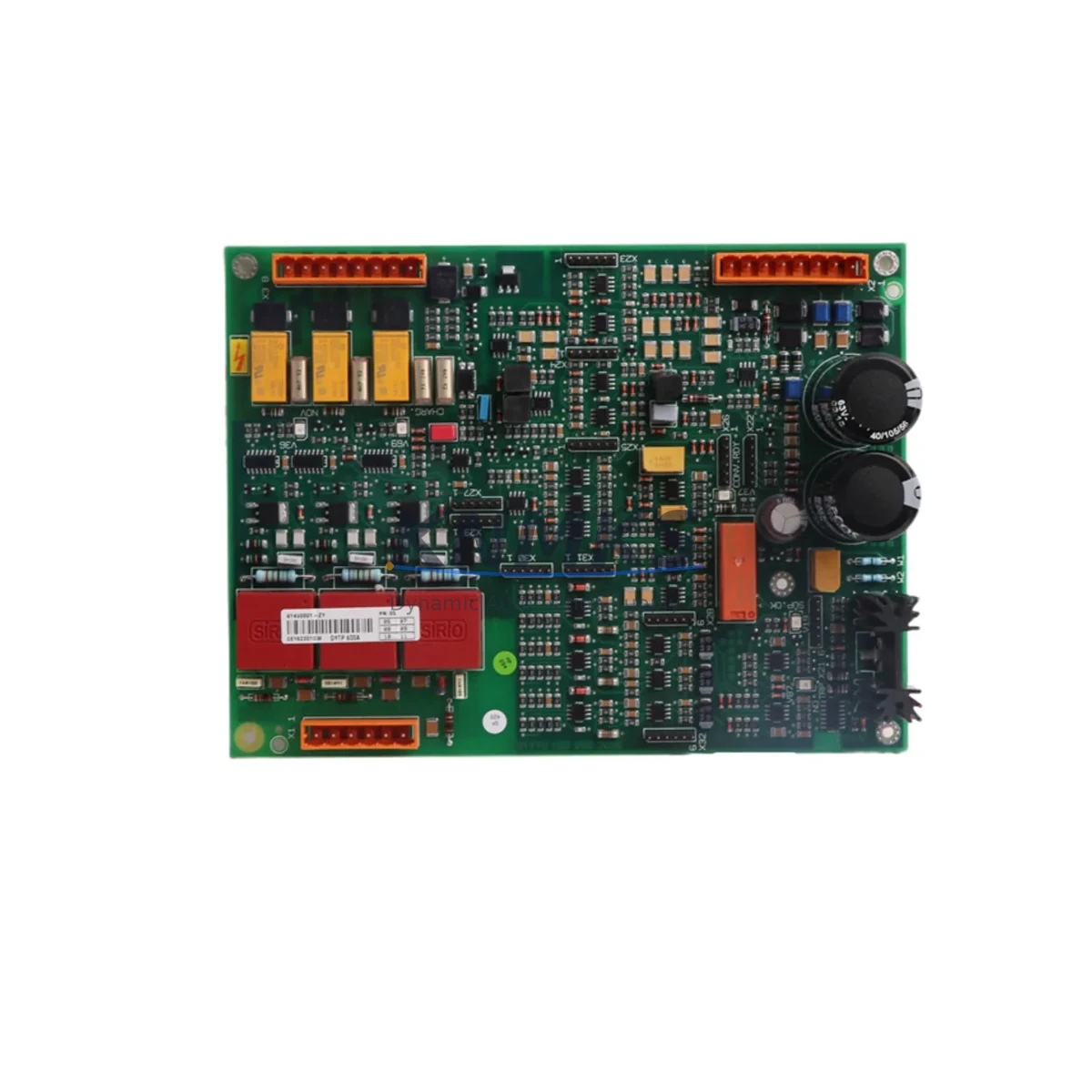

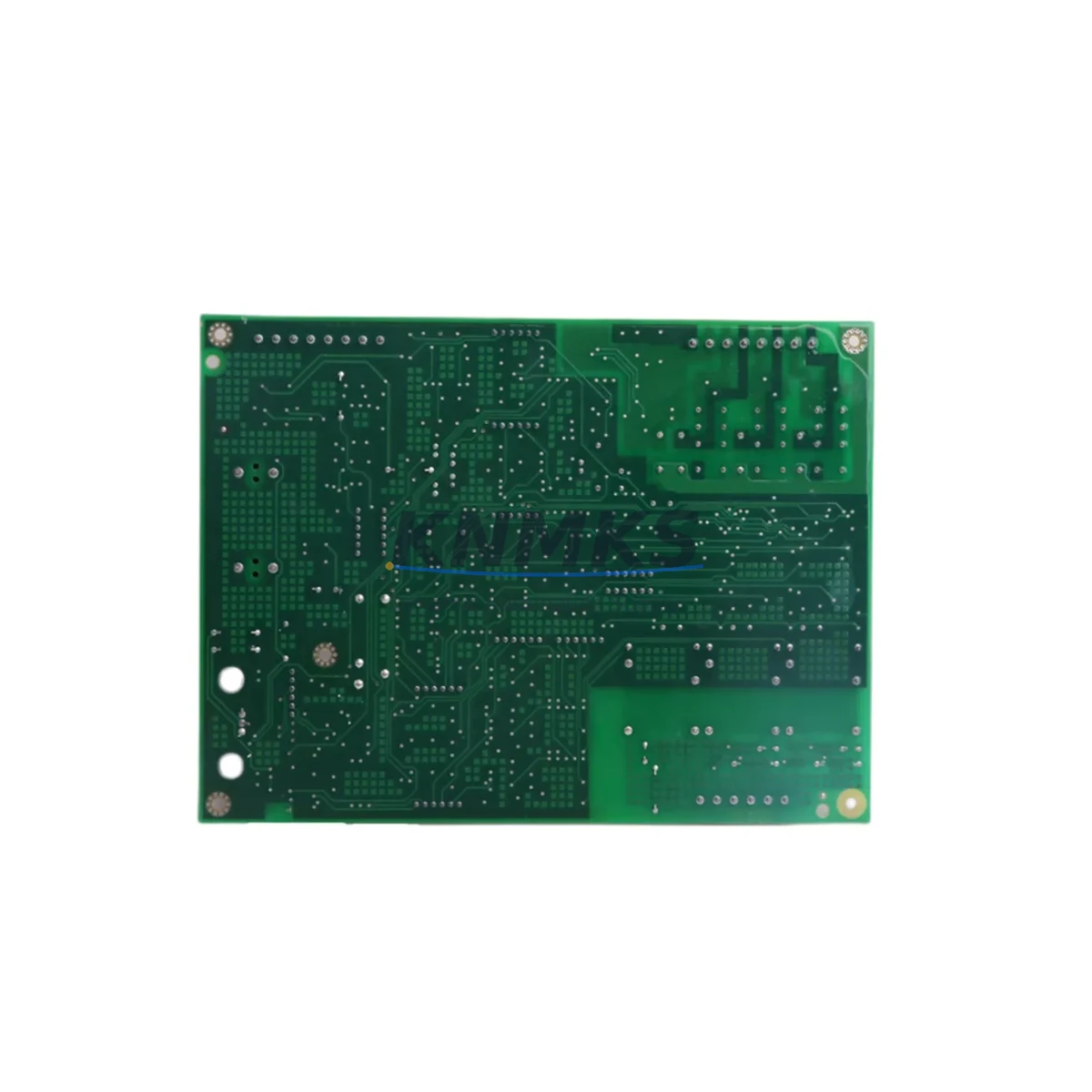

ABB DYTP600A 6143001-ZY Migration-Ready Drive Control Board

Overview

ABB DYTP600A 6143001-ZY Migration-Ready Drive Control Board for Legacy Control Systems

The ABB DYTP600A 6143001-ZY is a drive control board engineered for the MASTERDRIVES MC and VC platform — one of ABB’s most widely deployed variable frequency drive families in heavy industrial environments. As the MASTERDRIVES series approaches end-of-life and OEM support windows close, facilities running legacy motor control centers, conveyor systems, pump stations, and crane drives face increasing pressure to source verified replacement boards before unplanned downtime forces emergency shutdowns.

This board serves as a direct migration-ready replacement for failed or degraded control boards within the MASTERDRIVES MC/VC chassis. It restores full drive functionality without requiring a complete drive replacement, preserving existing cabinet wiring, terminal layouts, and motor parameter sets. For plants operating multiple MASTERDRIVES units across production lines, maintaining a verified spare of the DYTP600A 6143001-ZY significantly reduces mean time to repair (MTTR) and protects against supply chain disruptions affecting discontinued ABB components.

Before installation, engineers should confirm the following against the existing drive configuration: DC bus voltage rating, control board firmware revision, PROFIBUS DP node address settings, and the terminal strip wiring map for analog and digital I/O signals. The MASTERDRIVES MC/VC platform uses a backplane connector interface that must be inspected for pin damage or oxidation prior to seating the replacement board. Incorrect firmware versions can cause parameter incompatibility with existing drive datasets stored in the ACS600 or MASTERDRIVES operator panel — always back up drive parameters via the CDP312 control panel or DriveWindow software before swapping the control board.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the DYTP600A 6143001-ZY into an operating production environment requires a structured pre-outage planning process. Begin by auditing the full MASTERDRIVES cabinet: document the installed SDCS-POW-1 or SDCS-POW-2 power supply board output voltages, inspect the SDCS-CON-1 or SDCS-CON-2 control interface board for firmware version labels, and photograph all terminal wiring before disconnection. If the drive communicates over PROFIBUS DP to a Siemens S7-300 or S7-400 PLC, note the GSD file version and node address — these must be re-entered after the board swap.

For drives integrated into a larger DCS or SCADA architecture via an NPBA-12 PROFIBUS adapter module or NMBP-01 Modbus adapter, confirm that the communication module is seated in the correct option slot and that its configuration parameters are saved separately. These adapter modules are independent of the control board and typically survive the swap without reconfiguration, but their connection to the new board should be verified during commissioning.

If the MASTERDRIVES unit is part of a multi-drive system sharing a common DC bus, the replacement sequence must account for the pre-charge circuit and the DC bus capacitor bank. Coordinate with the site electrical team to ensure the common DC bus is fully discharged before removing the faulty board. In systems where an ACS600 or ACS800 drive operates in parallel on the same bus, isolate that unit before beginning work on the MASTERDRIVES chassis.

HMI screens built on ABB Panel Builder or third-party SCADA platforms that display drive status via PROFIBUS should be tested in simulation mode before the live cutover. Verify that all drive status words, fault codes, and speed reference signals map correctly to the new board’s register layout. If the plant uses a RDCO-01 or RDCO-02 communication option board for DriveBus or DDCS fiber-optic communication, confirm that the fiber connections are intact and that the master drive recognizes the follower after the board replacement.

For facilities managing a broader spare parts strategy, it is advisable to stock complementary components alongside the DYTP600A 6143001-ZY: the SDCS-CON-2 control board for ACS600 platforms, SDCS-POW-1 power supply boards, NPBA-12 PROFIBUS adapter modules, and RMIO-11C motor control boards for ACS800 systems. Maintaining these alongside the DYTP600A ensures that a single-board failure does not cascade into a multi-component replacement event under time pressure.

Downtime Control During System Migration

Minimizing production downtime during a MASTERDRIVES control board replacement depends on three factors: pre-outage preparation, on-site spare availability, and a disciplined commissioning sequence. With the DYTP600A 6143001-ZY pre-tested and available from stock, the physical swap can typically be completed within a planned maintenance window of two to four hours, assuming parameter backup, terminal documentation, and firmware verification are completed in advance.

To protect the original program logic, always export the full parameter set from the drive before disconnecting power. Use the CDP312 control panel’s parameter upload function or connect a laptop running DriveWindow Light to capture the complete dataset. Store this backup on a USB drive kept with the drive cabinet documentation. If the drive has a custom application macro or a modified standard macro, verify that the macro file is also saved — some MASTERDRIVES configurations use application-specific macros that are not part of the standard parameter set.

During the board swap, maintain field control continuity by switching the process to manual control at the DCS or PLC level before isolating the drive. This prevents the process from entering an uncontrolled state while the drive is offline. For critical applications such as cooling water pumps, boiler feed systems, or compressor drives, coordinate with the operations team to confirm that bypass valves or standby equipment are in service before beginning the outage.

After installing the DYTP600A 6143001-ZY, restore the parameter set, verify the PROFIBUS node address, and perform a no-load test run before reconnecting the motor. Confirm that all fault codes are cleared, that the drive responds correctly to speed references from the PLC, and that analog feedback signals are within expected ranges. A motor ID run should be performed if the motor data parameters were lost or if the replacement board has a different firmware revision than the original. Document the commissioning results and update the site maintenance record before returning the drive to automatic control.

Retrofit Support FAQ

Q1: Is the DYTP600A 6143001-ZY a direct drop-in replacement for the original MASTERDRIVES MC/VC control board?
Yes. The DYTP600A 6143001-ZY is designed as a board-level replacement for the MASTERDRIVES MC and VC platform. The backplane connector, mounting points, and I/O terminal layout are compatible with the original chassis. Verify that the hardware revision suffix (-ZY) matches your existing board before installation. No chassis modification is required.

Q2: What pre-shipment testing is performed, and what does the support terms confirmed by quotation cover?
Each DYTP600A 6143001-ZY unit undergoes functional testing prior to shipment to verify board-level operation. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental contamination. Support requests are processed through our sales team at admin@knmks.com.

Q3: How do I handle PROFIBUS communication reconfiguration after the board swap?
After installing the replacement board, the PROFIBUS DP node address must be re-entered using the CDP312 control panel or DriveWindow software. The node address is stored on the control board, not in the PROFIBUS adapter module, so it is lost when the board is replaced. Confirm the correct address from your PLC network configuration or the original drive commissioning documentation before powering up the drive.

Q4: Do you maintain stock of the DYTP600A 6143001-ZY, and what is the typical lead time?
Yes, we maintain inventory of the DYTP600A 6143001-ZY to support urgent replacement requirements. Standard orders ship within 1–3 business days. For large-quantity orders or multi-site procurement programs, contact our team at admin@knmks.com or +86 18359268345 to confirm availability and lead time.
