ABB DSTX180 3BUR980025R1 Fail-Safe DCS Termination Module

Overview

ABB DSTX180 3BUR980025R1 Fail-Safe DCS Termination Module: Fault Protection and Critical Industrial Field Reliability

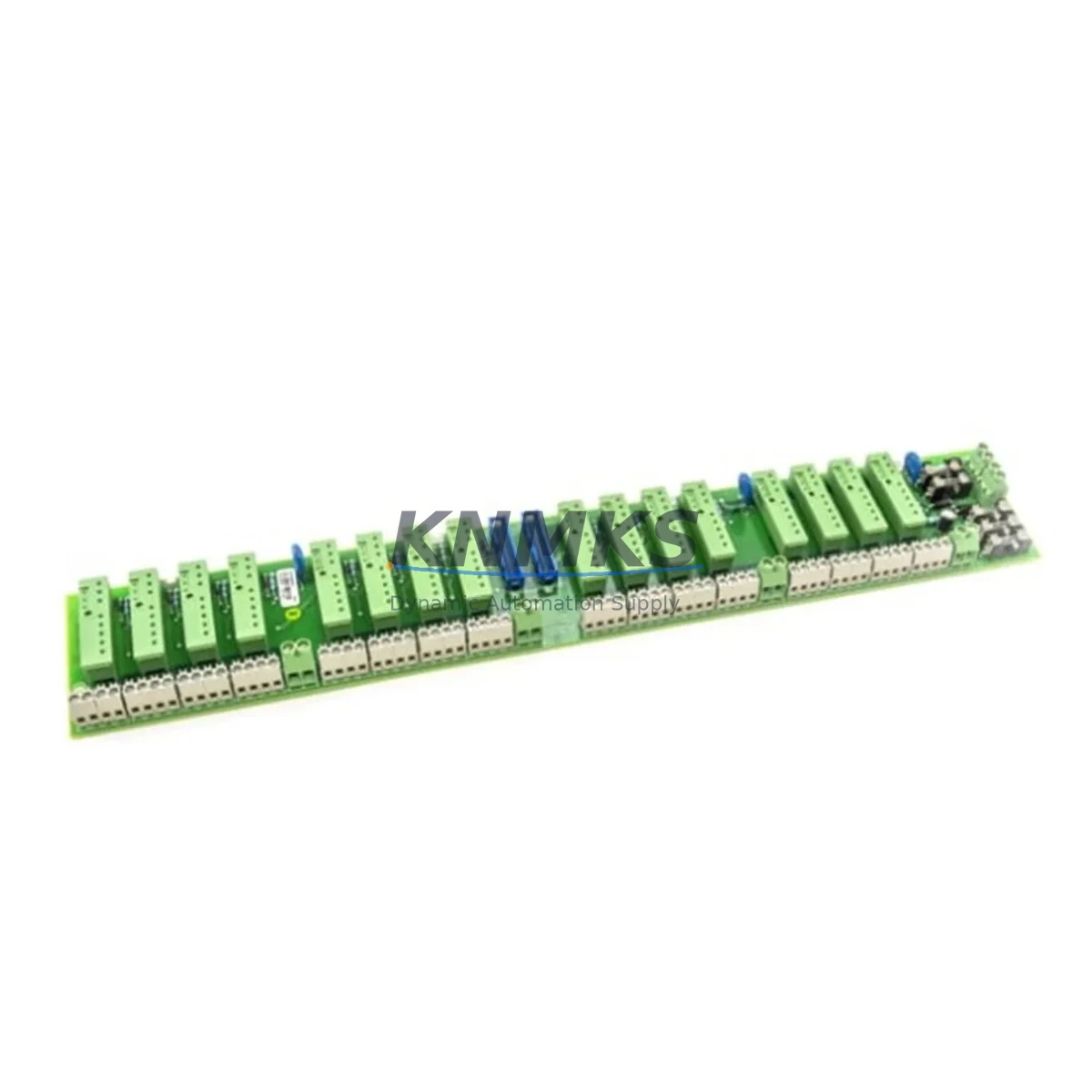

The ABB DSTX180 (Part No. 3BUR980025R1) is a precision-engineered DCS termination module designed for the ABB AC 450 Distributed Control System. In continuous production environments where unplanned downtime carries severe operational and safety consequences, the DSTX180 serves as a critical interface layer between field instrumentation and the DCS controller backplane. Its robust termination architecture eliminates loose-wire faults, signal drift, and intermittent connection failures that are among the leading causes of spurious trips and control loop interruptions in process industries.

Manufactured in Germany under ABB’s stringent quality standards, the DSTX180 3BUR980025R1 is built to withstand the demanding conditions of industrial control cabinets — including high electromagnetic interference (EMI), voltage transients, thermal cycling, and mechanical vibration. Its shielded terminal design provides reliable signal integrity for analog and digital I/O channels, ensuring that process variables are accurately transmitted to the AC 450 controller without noise-induced errors or ground loop interference. In high-EMI environments such as variable frequency drive (VFD) panels, motor control centers, and high-voltage switchgear rooms, this level of signal fidelity is non-negotiable for safe and stable process control.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered AC 450 control cabinet, the DSTX180 3BUR980025R1 does not operate in isolation — it is part of a layered protection architecture. Field signals arriving at the termination module are typically conditioned upstream by surge protection barriers and signal isolators before being routed to the DSTX180’s terminals. The ABB DSAI130 analog input module and DSDI110 digital input module rely on clean, stable termination to deliver accurate process data to the controller. Any degradation at the termination layer — whether from corroded terminals, loose wiring, or transient overvoltage — propagates directly into the control loop and can trigger false alarms or unsafe states.

Power supply stability is equally critical. The AC 450 system’s DSPU110 processor unit and associated I/O modules depend on a regulated 24 VDC bus; fluctuations caused by inadequate power filtering or undersized power supply units can induce resets and communication timeouts. Pairing the DSTX180 with a properly rated ABB or third-party redundant power supply unit ensures that the termination module and its associated I/O channels remain energized even during mains disturbances. For communication integrity, the DSTX180 works in conjunction with the AC 450’s DSMB170 Modulebus communication board, which handles data exchange between the I/O modules and the main controller. Maintaining clean termination at the DSTX180 level directly reduces the risk of Modulebus communication errors, CRC faults, and watchdog timeouts that can force the system into a safe-state shutdown.

In cabinets located near high-power equipment, additional EMC measures — such as ferrite cores on signal cables and proper cable segregation between power and signal wiring — complement the DSTX180’s built-in shielding. For safety interlock circuits, the termination module’s reliable field connection ensures that Emergency Shutdown (ESD) signals and Safety Instrumented System (SIS) inputs are transmitted without ambiguity, supporting the overall Safety Integrity Level (SIL) requirements of the installation.

Critical Industrial Safety Applications

The ABB DSTX180 3BUR980025R1 is deployed across a wide range of critical process industries where control system reliability directly impacts personnel safety, environmental compliance, and production continuity.

In petrochemical and refinery plants, the DSTX180 supports continuous monitoring of reactor temperatures, pressure transmitters, and flow controllers within AC 450-based DCS architectures. Any termination fault in these environments can mask a developing process upset, delaying operator response and increasing the risk of a hazardous release. The module’s surge-protected terminals are particularly valuable in areas where lightning-induced transients or static discharge from product flow can damage unprotected field wiring.

In power generation and grid infrastructure, the DSTX180 is used in turbine control panels and boiler management systems where the AC 450 DCS coordinates fuel flow, steam pressure, and load dispatch. Signal integrity at the termination layer is essential for maintaining stable PID control loops and preventing turbine trips caused by spurious input signals.

In mining and mineral processing operations, the module operates in environments characterized by heavy vibration, airborne dust, and wide temperature swings. Its robust mechanical construction and secure terminal clamping prevent the contact resistance increases that commonly develop in vibration-prone installations, ensuring that conveyor interlocks, crusher protection circuits, and slurry pump controls remain reliable over extended maintenance intervals.

In water and wastewater treatment facilities, the DSTX180 supports the AC 450’s management of dosing pumps, aeration blowers, and filtration sequences. High humidity and condensation in pump station control rooms make reliable termination especially important, as moisture ingress into poorly sealed terminal blocks is a leading cause of insulation resistance degradation and ground faults.

In metallurgical and steel production environments, the module withstands the intense electromagnetic interference generated by arc furnaces and induction heating equipment, maintaining stable analog signal transmission for temperature and position control loops that are critical to product quality and furnace safety.

Safety and Quality FAQ

Q1: What support terms does the DSTX180 3BUR980025R1 carry, and what does it cover?
All DSTX180 3BUR980025R1 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the confirmed support period, we provide a replacement or documented resolution support. Contact admin@knmks.com for support requests.

Q2: What outgoing inspection and testing is performed before shipment?
Every DSTX180 unit undergoes a full functional inspection prior to dispatch, including visual examination for physical damage, terminal integrity checks, and verification of part number and revision markings against the order specification. Units are packed in anti-static, moisture-resistant packaging to prevent transit damage.

Q3: Is the DSTX180 3BUR980025R1 compatible with all AC 450 system configurations?
The DSTX180 is designed specifically for the ABB AC 450 DCS platform. Compatibility depends on the specific I/O module type and cabinet configuration in your installation. We recommend verifying the module revision and system documentation before installation. Our technical team can assist with compatibility confirmation — contact admin@knmks.com or +86 18359268345.

Q4: Can KNMKS support long-term or repeat supply of the DSTX180 for ongoing maintenance programs?
Yes. KNMKS maintains stock of the DSTX180 3BUR980025R1 and other ABB AC 450 spare parts to support planned maintenance, emergency replacements, and long-term service agreements. We can provide supply commitments for critical spare parts programs. Contact our sales team to discuss volume pricing and scheduled delivery arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSTX180 3BUR980025R1

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DSTX180 3BUR980025R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
