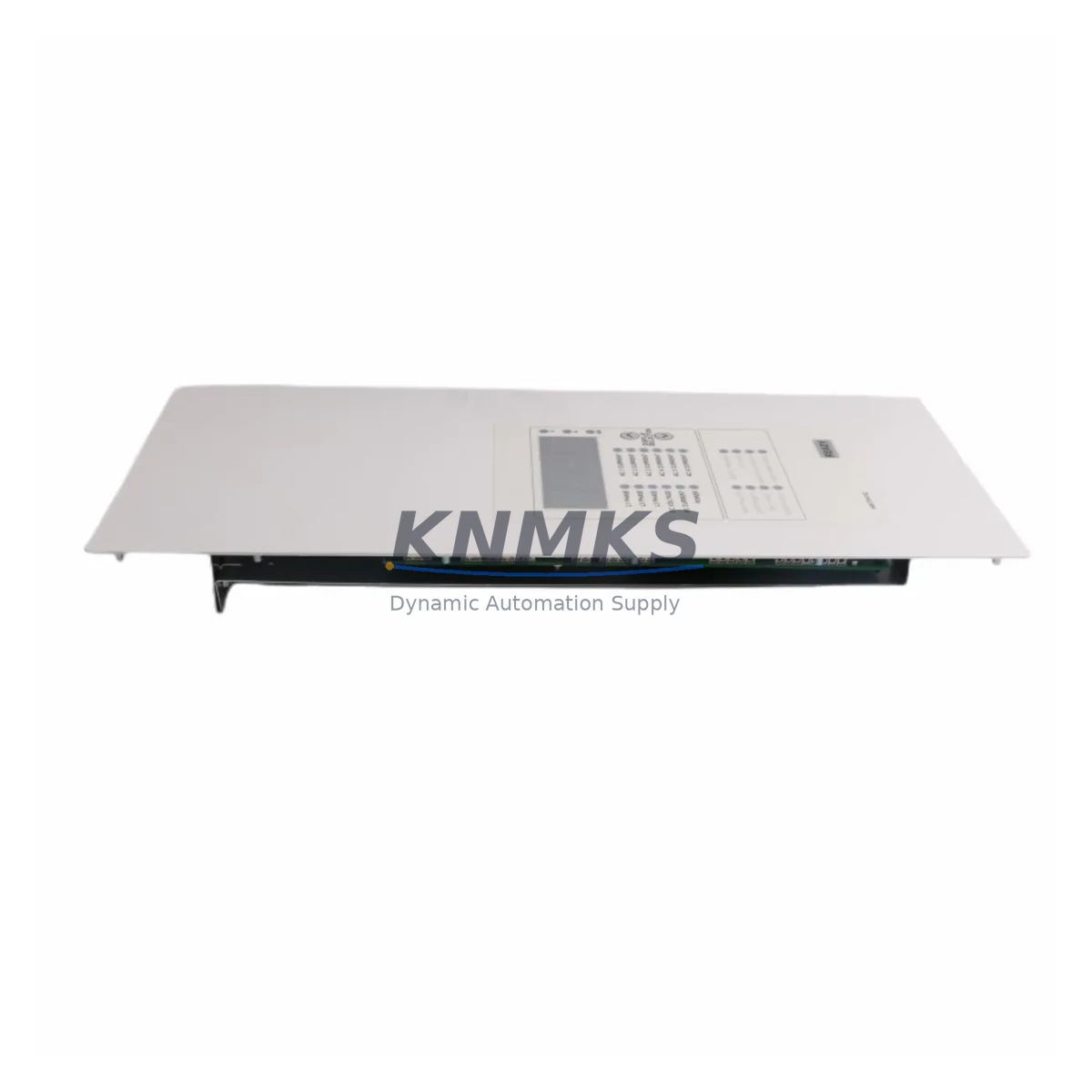

ABB DSSB-01C 68300746C Migration-Ready DSU Board

Overview

ABB DSSB-01C 68300746C Migration-Ready DSU Board for Legacy Control Systems

The ABB DSSB-01C (part number 68300746C) is a DSU (Drive Synchronization Unit) control board engineered for the ACS800 series variable frequency drive platform. As legacy ACS800 installations approach end-of-support milestones, procurement teams and retrofit engineers increasingly rely on verified spare inventory to sustain production continuity without committing to full drive replacement. The DSSB-01C serves as a direct drop-in replacement for failed or degraded DSU boards within the ACS800 control architecture, preserving existing wiring harnesses, backplane connections, and firmware compatibility while eliminating the need for panel redesign or PLC reprogramming.

Each unit supplied by KNMKS undergoes pre-shipment functional verification against ACS800 drive specifications, including power rail integrity checks, communication link validation, and I/O signal mapping confirmation. This testing protocol is designed to reduce commissioning time on-site and minimize the risk of secondary failures during system restart. All units are backed by a support terms confirmed by quotation covering manufacturing defects and functional performance under rated operating conditions.

For facilities operating multiple ACS800 drives across production lines, maintaining a buffer stock of DSSB-01C boards is a recognized best practice in spare parts lifecycle management. Drive control boards of this type typically have a procurement lead time of 8–20 weeks through OEM channels when stock is depleted, making third-party verified inventory a critical risk mitigation strategy for maintenance planners targeting 12–36 month supply horizons.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ACS800 DSU board replacement requires a structured pre-work checklist that extends beyond the board itself. Before removing the failed DSSB-01C, engineers should back up the drive parameter set using the ACS800 control panel or DriveWindow software, noting the active motor control mode (DTC or scalar), speed reference source, and any application macro in use. If the drive is part of a multi-drive system connected via DDCS fiber-optic links, the communication node address and master/follower configuration must be documented to avoid link conflicts after restart.

Terminal block wiring on the ACS800 I/O board — typically an RDIO-01 or RAIO-01 analog/digital I/O extension module — should be photographed and labeled before any disconnection. These I/O modules interface directly with the control board stack and must be reseated correctly to restore signal integrity. If the installation includes an RDCO-01 or RDCO-02 DDCS communication adapter, verify that the fiber-optic cable routing is undisturbed during board extraction, as bent or kinked fiber can introduce intermittent communication faults that are difficult to diagnose post-commissioning.

Power supply capacity within the control cabinet should be confirmed before energizing the replacement board. The ACS800 internal SMPS (switch-mode power supply) section feeds the control board stack; if the original failure was caused by a power transient, the APBU-44C or APBU-12C pulse encoder interface board and the AINT-02 inverter control board should also be inspected for latent damage before the system is returned to service. Overlooking adjacent board health is a common source of repeat failures in retrofit projects.

For installations where the ACS800 drives an HMI panel running ABB’s DriveWindow or a third-party SCADA system via Modbus RTU or PROFIBUS-DP, confirm that the communication adapter — such as an RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter — is correctly configured after the board swap. HMI screen tag mappings tied to drive parameter addresses should be validated against the restored parameter set to ensure display accuracy and alarm function integrity.

Where installation space is constrained — particularly in retrofit scenarios where the ACS800 is mounted in an existing MCC (motor control center) or a legacy control cabinet not originally designed for this drive frame — confirm physical clearance for the replacement board and verify that ventilation paths are unobstructed. Thermal management is a primary factor in control board longevity, and inadequate airflow is a leading cause of premature DSU board failure in retrofit environments.

Downtime Control During System Migration

Minimizing unplanned downtime during a DSU board replacement on an ACS800 drive requires preparation that begins well before the maintenance window opens. The most effective approach is to pre-stage the replacement DSSB-01C board alongside a printed copy of the drive’s parameter backup, a fiber-optic cleaning kit for DDCS connections, and the appropriate torque specifications for control board mounting hardware. Having these materials ready at the point of work eliminates the delays that typically extend a planned 2-hour replacement into a multi-shift event.

Where the process cannot tolerate a full drive shutdown, consider whether a bypass contactor arrangement is in place or can be temporarily activated to maintain motor operation on direct-on-line starting while the drive is isolated for board replacement. This approach is particularly relevant in water treatment, HVAC, and continuous process applications where the driven load cannot be stopped without broader system impact.

After installing the replacement DSSB-01C, the recommended restart sequence is: restore parameters from backup, verify motor nameplate data entries, run the motor identification routine if the drive control mode is DTC, confirm speed reference and start/stop command sources, and perform a no-load test run before reconnecting the driven equipment. This sequence protects the original program logic, preserves existing control interlocks, and reduces the risk of mechanical damage to the driven load during the first powered run. KNMKS pre-shipment testing confirms board functionality before dispatch, further reducing the probability of a failed first start and the associated additional downtime.

Retrofit Support FAQ

Q1: Is the DSSB-01C 68300746C a direct replacement for all ACS800 DSU board variants?
The DSSB-01C with part number 68300746C is the current revision of the ACS800 DSU control board. It is compatible with the standard ACS800 backplane and connector layout. If your existing installation uses an earlier DSSB board revision, confirm the revision suffix against the drive’s hardware documentation before ordering. In most cases, the 68300746C revision is backward compatible, but firmware version alignment should be verified.

Q2: What commissioning steps are required after installing the replacement board?
After physical installation, restore the drive parameter backup using the ACS800 control panel keypad or DriveWindow PC tool. Verify motor control mode, speed reference source, start/stop command wiring, and communication adapter settings. If no parameter backup is available, re-enter motor nameplate data and run the motor identification routine. Confirm all I/O signals are active and HMI communication is restored before returning the drive to automatic operation.

Q3: How do I confirm wiring compatibility before replacing the board?
The DSSB-01C uses the standard ACS800 control board connector and terminal layout. Compare the connector positions on the replacement board against the existing board before removal. Photograph all wiring connections, particularly on any attached I/O extension modules such as RDIO-01 or RAIO-01, before disconnecting. No rewiring is required for a like-for-like replacement under standard installation conditions.

Q4: What does the support terms confirmed by quotation cover, and what is the typical lead time?
All DSSB-01C 68300746C units supplied by KNMKS are covered by a support terms confirmed by quotation against manufacturing defects and functional performance failures under rated operating conditions. Units are pre-tested before shipment to confirm operational status. Stock is maintained for prompt dispatch; contact [email protected] or +86 18359268345 to confirm current availability and lead time for your order quantity.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSSB-01C 68300746C
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB DSSB-01C 68300746C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
