ABB DSQC652 Fail-Safe Digital I/O for Industrial Control

Overview

ABB DSQC652 Fail-Safe Digital I/O for Industrial Control

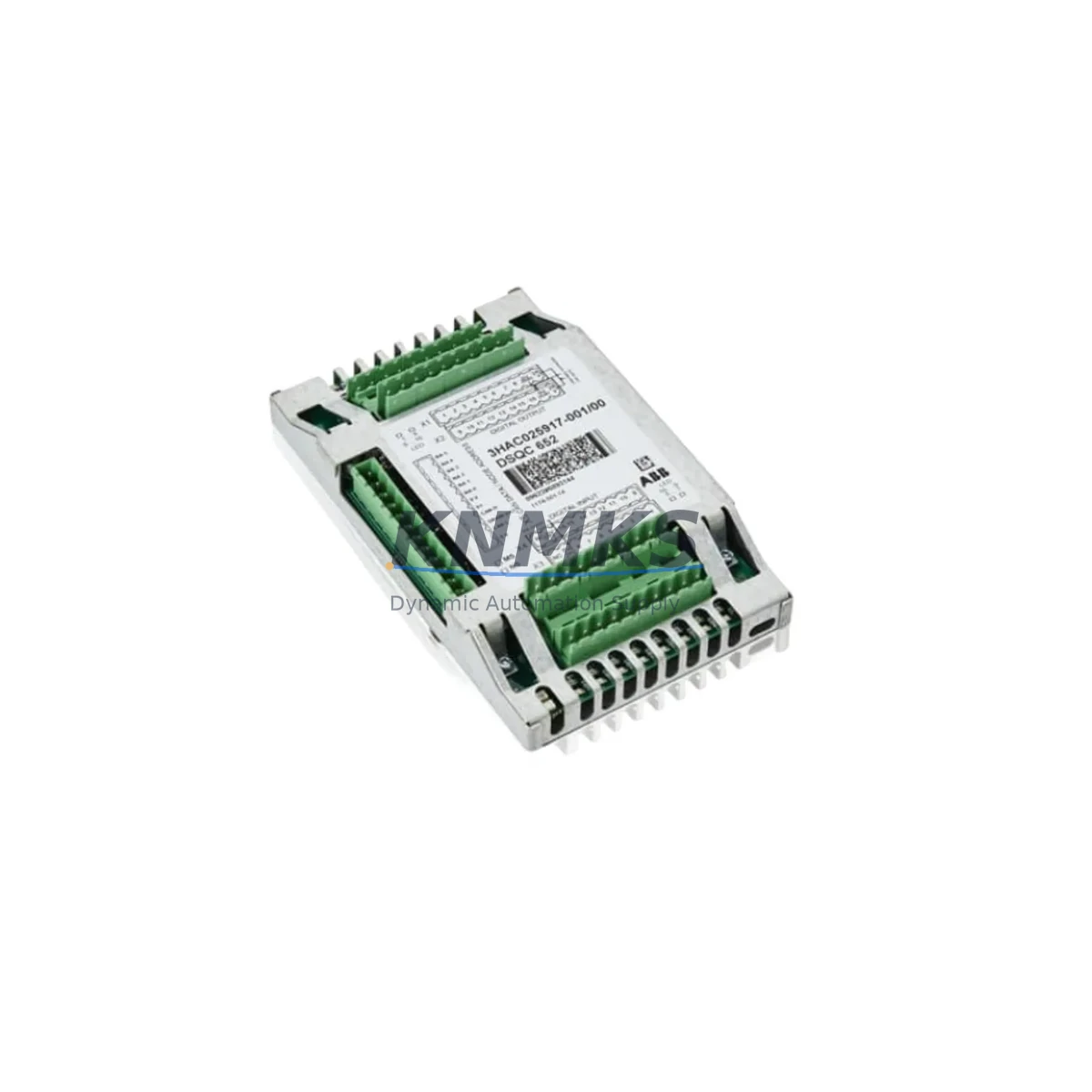

The ABB DSQC652 (Part No. 3HAC025917-001) is a 16-channel digital input / 16-channel digital output I/O module engineered for the ABB IRC5 robot controller platform. Designed to operate reliably in demanding industrial environments — including high electromagnetic interference, vibration, dust, humidity, and wide temperature swings — this module is a cornerstone of fail-safe signal management in robotic and automated production cells. Whether you are maintaining a continuous automotive welding line, a palletizing station in a food-processing plant, or a precision assembly cell in electronics manufacturing, the DSQC652 delivers the signal integrity and fault isolation that critical interlock circuits demand.

As a direct OEM-equivalent spare, this unit is sourced, inspected, and pre-shipment tested to confirm full electrical functionality before dispatch. Each module carries a support terms confirmed by quotation and is available from in-stock inventory to support urgent breakdown recovery and planned annual maintenance schedules alike.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

When replacing the DSQC652 in an IRC5 control cabinet, a disciplined inspection of the surrounding electrical environment is essential to prevent repeat failures and ensure long-term signal reliability. Begin by verifying the 24 VDC power supply module (such as the ABB DSQC661 or equivalent IRC5 power distribution unit) — voltage ripple or transient spikes from an aging PSU are a leading cause of premature I/O module degradation. Confirm that all field wiring terminals and terminal blocks are torqued to specification and free of oxidation, particularly in humid or coastal installations.

Inspect the IRC5 backplane and module bus connectors for bent pins or contamination before seating the replacement DSQC652. In high-EMI environments — common in arc welding cells or near large VFDs — verify that cable shielding and grounding straps are intact and bonded correctly to the cabinet earth bar. If the installation includes a DSQC643 DeviceNet communication module or a DSQC688 Ethernet/IP adapter, confirm that fieldbus termination resistors are correctly installed and that network diagnostics show no CRC errors after the I/O module swap.

For cells with safety-rated interlock circuits, cross-check the status of the ABB SafeMove safety controller board and any associated emergency-stop relay modules in the safety chain. A degraded I/O module can mask latent faults in adjacent safety relays; replacing the DSQC652 is an ideal opportunity to perform a full safety-circuit functional test. Finally, review the IRC5 teach pendant (FlexPendant) event log for historical I/O fault codes — these records help distinguish a module hardware fault from a field-device wiring issue and reduce diagnostic time on the next service visit.

Critical Industrial Safety Applications

The ABB DSQC652 is deployed across a broad range of safety-critical and production-critical industrial environments where unplanned downtime carries significant operational and financial consequences:

• Automotive Body-in-White Welding: Manages interlock signals between robot cells, fixture clamps, and weld gun control circuits. Signal integrity directly affects weld quality and collision avoidance.
• Petrochemical and Refinery Automation: Controls valve actuator feedback and emergency shutdown (ESD) interlock signals in Zone 2 classified areas where false trips or missed signals carry safety consequences.
• Power Generation and Utilities: Interfaces with turbine control and generator protection systems where continuous I/O availability is mandatory for grid stability.
• Mining and Mineral Processing: Operates in high-vibration, high-dust environments on conveyor control and crusher interlock circuits, where robust optical isolation prevents ground-loop interference from corrupting signals.
• Water Treatment and Pumping Stations: Manages pump start/stop interlocks and level-sensor feedback in high-humidity enclosures where condensation resistance is critical.
• Port and Container Handling: Supports crane and spreader control logic where reliable digital I/O is essential for load-cycle safety and anti-sway interlock functions.
• Electronics and Semiconductor Assembly: Provides clean, noise-free I/O signals in precision pick-and-place and dispensing cells where signal drift can cause yield loss.

Across all these applications, the DSQC652’s optically isolated channels and built-in transient suppression make it the preferred replacement choice for maintenance engineers who cannot afford a second failure after a repair.

Safety and Quality FAQ

Q1: Is this ABB DSQC652 tested before shipment?
Yes. Every unit undergoes a full electrical functional test — including channel-by-channel DI/DO verification, isolation resistance check, and supply voltage tolerance test — before packaging. A test record is available upon request. The module ships with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q2: Is this module compatible with all IRC5 cabinet variants?
The DSQC652 (3HAC025917-001) is compatible with the ABB IRC5 Single Cabinet, IRC5 Dual Cabinet, and IRC5 Compact controller configurations. It is not designed for the older S4C+ platform. If you are unsure of your cabinet generation, provide your robot serial number and we will confirm compatibility before shipment.

Q3: How do I verify the DSQC652 is the root cause of my I/O fault before ordering?
In RobotStudio or the FlexPendant, navigate to the I/O configuration panel and check for persistent channel fault flags on the DSQC652 unit. If individual channels show permanent HIGH or LOW states regardless of field-device status, and swapping field wiring to a known-good channel confirms the fault follows the module — not the field device — the module is the likely cause. Our technical team can assist with remote fault-log review if needed.

Q4: Can you support long-term supply for multi-site maintenance contracts?
Yes. We maintain buffer stock of the DSQC652 and related IRC5 spare modules to support annual maintenance contracts, multi-site refurbishment projects, and OEM end-of-life (EOL) replacement programs. Blanket purchase orders and scheduled delivery arrangements are available. Contact our sales team to discuss volume pricing and guaranteed lead-time agreements for your maintenance planning horizon.
