ABB DSQC652 3HAC025917-001 Maintenance-Proven Spare for IRC5

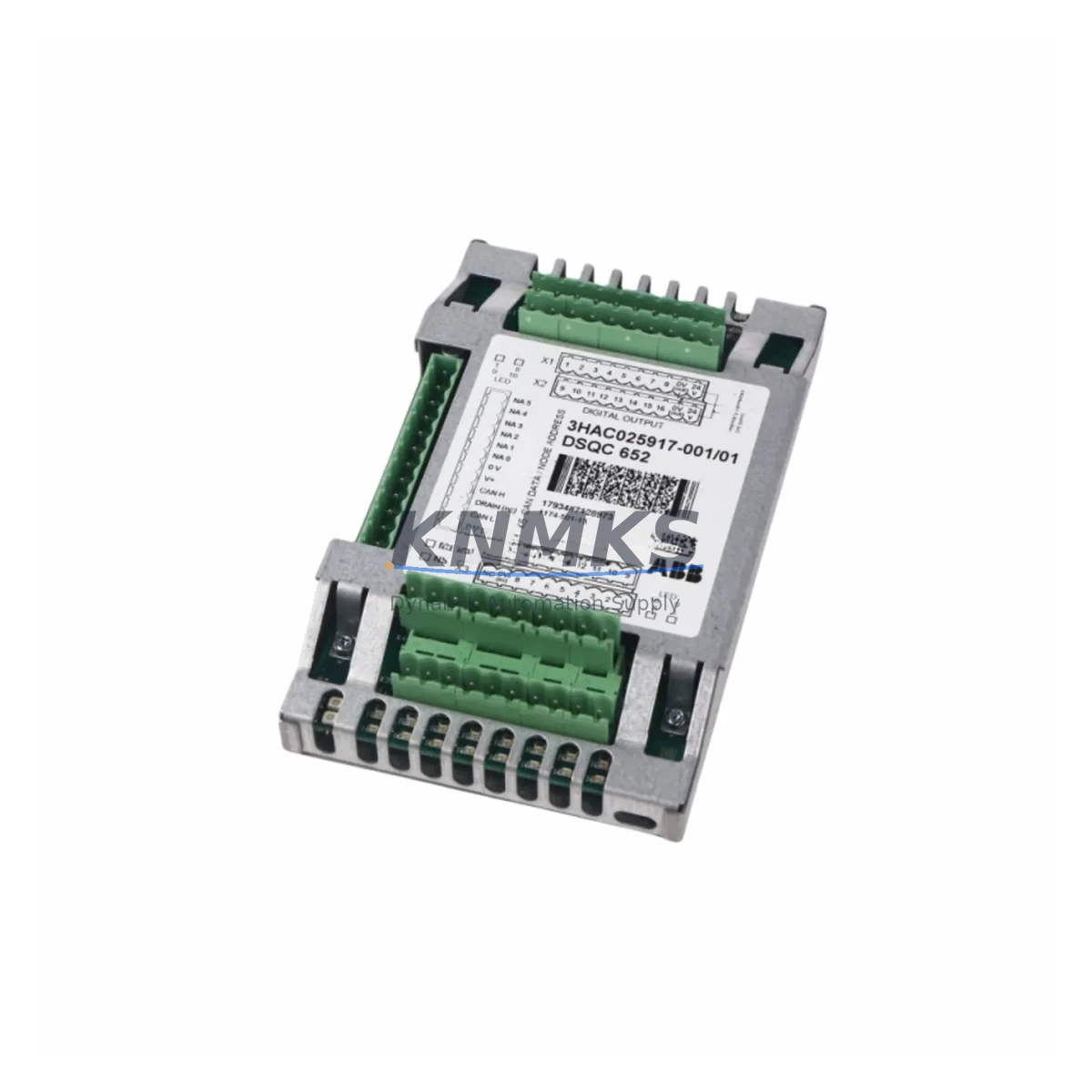

The ABB DSQC652 (part number 3HAC025917-001) is a factory-original digital I/O module designed for the ABB IRC5 robot controller platform. Widely deployed across automotive, metal fabrication, food processing, and general manufacturing lines, this module serves as the primary interface between the IRC5 controller and field-level digital signals — managing 16 digital inputs and 16 digital outputs at 24VDC logic levels. When this module fails or degrades, the entire robot cell loses I/O communication, triggering an immediate production halt. Maintaining a verified spare on the shelf is the single most effective strategy for minimizing unplanned downtime in IRC5-based automation systems.

Every DSQC652 unit supplied by KNMKS is sourced from authorized channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. Our inventory is maintained across multiple regional stock points to support urgent replacement orders with short lead times — critical for maintenance teams operating under tight recovery windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DSQC652 failure is diagnosed during a robot cell inspection or fault alarm response, the replacement workflow rarely ends with the I/O module alone. Experienced maintenance engineers know that a digital I/O fault in an IRC5 system can cascade from or co-occur with issues in adjacent components. Before returning the cell to production, a thorough inspection should cover the following areas:

Power Supply Integrity: The IRC5 controller relies on the ABB DSQC661 (3HAC026253-001) power supply unit to deliver stable 24VDC to the I/O backplane. A degraded or intermittently failing DSQC661 can cause repeated DSQC652 faults that appear as module failures but are actually supply-side issues. Always verify output voltage stability under load before installing a replacement I/O module.

Backplane and Slot Connectors: The IRC5 backplane — the internal communication and power distribution board — should be inspected for bent pins, oxidation, or mechanical damage at the DSQC652 slot. A damaged backplane connector will cause the new module to fail immediately or intermittently. If the backplane shows wear, the ABB DSQC608 or equivalent backplane assembly should be evaluated for replacement as part of the same maintenance event.

Field Wiring and Terminal Blocks: The 16 digital input and 16 digital output channels connect to field devices — sensors, solenoids, safety relays, and actuators — through terminal blocks and cable harnesses. Inspect all field-side wiring for insulation damage, loose terminations, and ground faults. A shorted output channel can damage the DSQC652 output driver circuitry; replacing the module without correcting the field fault will result in repeat failure.

Safety and Interlock Relays: Many IRC5 installations route emergency stop, safety gate, and light curtain signals through the DSQC652 digital inputs. If the robot was halted due to a safety interlock trip coinciding with an I/O fault, verify the condition of the associated safety relay modules — such as the ABB JSHD4 safety board or third-party safety relays in the cabinet — before re-enabling the cell.

DeviceNet Communication: The DSQC652 communicates over the IRC5 internal DeviceNet network. If the module replacement does not restore normal I/O communication, the ABB DSQC651 (DeviceNet master module) should be checked for firmware compatibility and node address conflicts. A misconfigured DeviceNet node address is a common commissioning error after module swap.

Fuses and Overcurrent Protection: The IRC5 cabinet includes fuse protection for I/O supply circuits. After a DSQC652 failure — particularly one caused by an output short — inspect and replace any blown fuses in the 24VDC I/O supply circuit before powering up the replacement module. Skipping this step risks immediate damage to the new spare.

Site Replacement Workflow

Replacing the DSQC652 in an IRC5 controller is a structured process that, when followed correctly, minimizes downtime and eliminates the risk of repeat failure:

1. Fault Confirmation: Retrieve the IRC5 event log via the FlexPendant or RobotStudio. Confirm the fault code references the DSQC652 module (typically I/O board communication loss or output driver fault). Document the node address and slot position of the failed module.

2. Safe Isolation: Follow your site LOTO (Lockout/Tagout) procedure. De-energize the IRC5 cabinet and verify zero voltage on the 24VDC bus before opening the cabinet door.

3. Module Removal: Disconnect the field wiring connectors from the DSQC652. Note the connector positions and cable labels before removal. Extract the module from the backplane slot — it is retained by a locking lever on most IRC5 configurations.

4. Backplane Inspection: Before inserting the replacement DSQC652, inspect the backplane slot connector for damage. Clean with dry compressed air if contamination is present.

5. Replacement Installation: Insert the new DSQC652 into the correct backplane slot. Reconnect all field wiring connectors in their original positions. Verify connector seating and locking.

6. Power-Up and Verification: Restore power to the IRC5 cabinet. Monitor the FlexPendant for I/O board recognition. Confirm all 16 digital inputs and 16 digital outputs are responding correctly using the I/O diagnostic screen. Run a controlled test cycle before returning the robot to automatic production mode.

7. Documentation: Record the replacement in your maintenance log, including the date, failed module serial number, replacement part number (3HAC025917-001), and post-replacement test results. Update your spare parts inventory accordingly.

This workflow applies equally to planned annual maintenance replacements and emergency breakdown recovery scenarios. Keeping a pre-tested DSQC652 spare on site reduces the replacement cycle from days (waiting for procurement) to hours (immediate swap and verification).

Spare Parts Support FAQ

Q1: Is the DSQC652 (3HAC025917-001) compatible with all IRC5 controller variants?
The DSQC652 is designed for the ABB IRC5 platform, including the Single Cabinet Controller, Dual Cabinet Controller, and Panel Mounted Controller variants. Compatibility depends on the IRC5 system software version and backplane configuration. For IRC5 systems with RobotWare 5.x or 6.x, the DSQC652 is a standard supported I/O module. Contact our technical team with your IRC5 serial number and RobotWare version for confirmation before ordering.

Q2: What pre-shipment testing is performed on each DSQC652 unit?
Every DSQC652 unit dispatched by KNMKS undergoes functional verification prior to shipment. This includes power-on testing, digital input channel response verification, digital output channel activation testing, and DeviceNet communication check where test equipment permits. Units that do not pass all test criteria are not dispatched. Test records are available upon request for quality-critical procurement.

Q3: What does the support terms confirmed by quotation cover, and how is a support terms claim handled?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions consistent with ABB IRC5 installation specifications. It does not cover damage caused by incorrect installation, field wiring faults, overvoltage events, or physical mishandling. To initiate a support terms claim, contact [email protected] with your order reference, a description of the failure symptom, and the IRC5 event log if available. We will arrange return logistics and replacement dispatch.

Q4: Can KNMKS support long-term or recurring supply of DSQC652 spares for multi-site maintenance programs?
Yes. KNMKS supports blanket order arrangements and scheduled replenishment programs for maintenance teams managing multiple IRC5 installations. We maintain multi-region stock to reduce lead time risk for critical spare parts. For annual maintenance budgeting, procurement teams can request a formal quotation with lead time commitments and volume pricing. Contact [email protected] or +86 18359268345 to discuss your program requirements.
