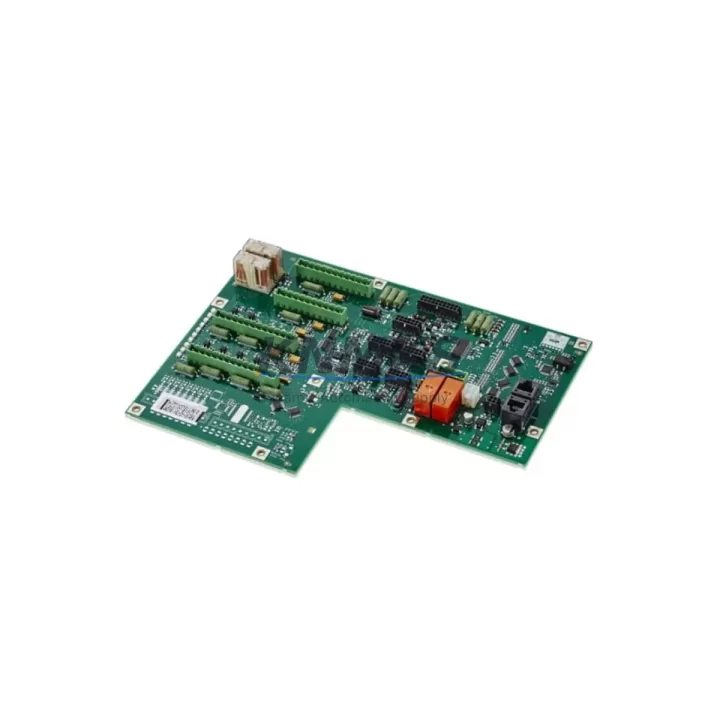

ABB DSQC643 3HAC024488-001 Migration-Ready Operator Panel

Overview

ABB DSQC643 3HAC024488-001 Migration-Ready Operator Panel for Legacy IRC5 Control Systems

The ABB DSQC643 (part number 3HAC024488-001) is a critical operator panel board used in ABB IRC5 robot controller cabinets. As ABB progressively phases out legacy IRC5 hardware, maintenance engineers and system integrators face increasing pressure to source verified replacement units that can be installed without re-engineering the control architecture. This listing provides a migration-ready DSQC643 operator panel that has been pre-shipment tested, wiring-verified, and confirmed compatible with standard IRC5 single-cabinet and dual-cabinet configurations.

The DSQC643 serves as the primary human-machine interface board within the IRC5 controller, managing the FlexPendant connection port, emergency stop relay chain, mode selector switch interface, and status LED logic. When this board fails or becomes unavailable through OEM channels, the entire robot cell is at risk of unplanned downtime. Sourcing a verified replacement from KNMKS allows maintenance teams to restore full operation without waiting for extended OEM lead times that can stretch 8–20 weeks for discontinued components.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DSQC643 in an active production environment requires careful coordination across several interdependent components. Before removing the failed panel board, maintenance engineers should document the current wiring layout at the X1 and X2 terminal blocks, photograph the mode selector switch cable routing, and confirm the FlexPendant cable condition. A damaged FlexPendant cable can cause the replacement DSQC643 to report communication faults that are incorrectly attributed to the new board.

The IRC5 controller’s main computer — typically a DSQC639 or DSQC1000 depending on the RobotWare generation — communicates with the DSQC643 via the internal backplane bus. Engineers should verify that the main computer firmware version is consistent with the operator panel hardware revision. In mixed-generation IRC5 cabinets where a DSQC639 main computer has been previously upgraded to a DSQC1000, the operator panel interface behavior may differ slightly and should be validated during commissioning.

The IRC5 power distribution board (DSQC609 or equivalent) supplies 24VDC to the operator panel section. Before installing the replacement DSQC643, confirm that the 24VDC rail is within tolerance (±5%) and that no upstream fuse on the DSQC609 has blown — a common root cause of operator panel failures that is frequently misdiagnosed as a panel board fault. Similarly, the I/O module rack (which may include DSQC651 or DSQC652 digital I/O boards) should be checked for any address conflicts that could affect the safety relay chain logic after the panel replacement.

For IRC5 cabinets that also include a DSQC688 fieldbus adapter (DeviceNet, PROFIBUS, or EtherNet/IP), the communication link status should be verified post-installation to confirm that the safety PLC or upstream DCS has re-established handshake with the robot controller. In some plant configurations, the E-stop relay chain from the DSQC643 feeds directly into a safety relay module or safety PLC input — this interlock must be re-validated after any operator panel replacement to comply with ISO 10218 and local machinery safety regulations.

If the IRC5 cabinet includes an integrated IRC5 Panel Board Unit (PBU) or a teach pendant holder bracket, confirm that the mechanical mounting of the replacement DSQC643 does not interfere with cable management channels. The installation space within the IRC5 door panel is standardized, but cable tie positions and ferrite core placements vary by cabinet generation and should be restored to their original configuration.

Downtime Control During System Migration

Minimizing downtime during a DSQC643 replacement begins with preparation before the robot cell is taken offline. The original robot program, system parameters, and I/O configuration should be backed up to a USB drive using RobotStudio or the FlexPendant backup function prior to any hardware intervention. This backup preserves the RAPID program logic, tool data, work object definitions, and safety configuration — all of which remain valid after the operator panel replacement since the DSQC643 does not store program data.

The physical replacement procedure typically requires 30–60 minutes for an experienced technician: isolating the cabinet power, removing the door panel, disconnecting the FlexPendant port connector and mode selector cables, unbolting the DSQC643 from the door frame, installing the replacement unit, and reconnecting all cables in reverse order. The IRC5 controller should then be powered up in manual mode with the FlexPendant connected to verify that the mode selector, E-stop buttons, and status LEDs respond correctly before returning the cell to automatic production mode.

Post-installation commissioning should include a full safety function test per the original machine risk assessment: verifying E-stop response time, confirming the safety relay chain continuity, and validating that the robot returns to its home position correctly after an E-stop event. These steps protect both the production line and the maintenance team, and provide documented evidence of safe recommissioning that satisfies most plant safety audit requirements.

KNMKS ships the DSQC643 with pre-shipment test records included in the package. This documentation can be retained as part of the maintenance log for the robot cell, supporting traceability requirements in ISO 9001-compliant manufacturing environments. Stock is maintained in our warehouse for immediate dispatch, with global shipping available to minimize the total time from fault detection to restored production.

Retrofit Support FAQ

Q: Is the DSQC643 (3HAC024488-001) a direct drop-in replacement for my existing IRC5 operator panel?
A: Yes. The DSQC643 is a direct mechanical and electrical replacement for the original IRC5 operator panel board. No wiring modifications or bracket adapters are required for standard IRC5 single-cabinet and dual-cabinet configurations. Confirm your RobotWare version before installation to ensure firmware compatibility.

Q: Has this unit been tested before shipment?
A: Yes. Every DSQC643 unit shipped by KNMKS undergoes pre-shipment functional testing including power-on verification, FlexPendant port continuity check, and E-stop relay chain validation. A test record is included with each shipment.

Q: What support terms is provided, and what does it cover?
A: All units carry a support terms confirmed by quotation from the date of invoice. The support terms covers hardware defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or physical impact. KNMKS provides direct technical support for support requests.

Q: Do you maintain stock for immediate dispatch?
A: Yes. The DSQC643 (3HAC024488-001) is stocked in our warehouse and available for same-day or next-business-day dispatch depending on order time. Global shipping is supported. Contact [email protected] or +86 18359268345 for lead time confirmation and volume pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSQC643 3HAC024488-001
IRC5 Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: ABB DSQC643 3HAC024488-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
