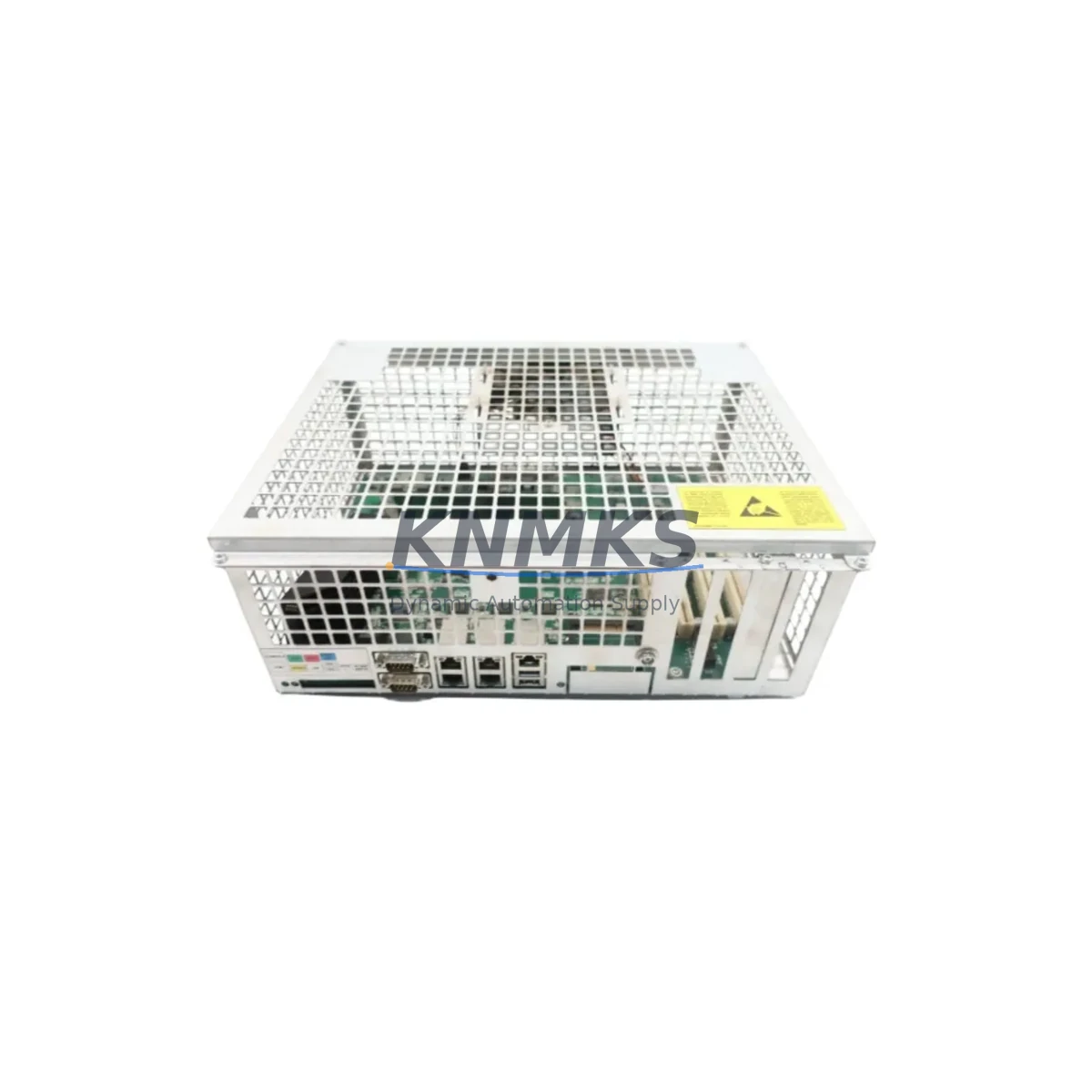

ABB DSQC639 3HAC041443-003 Fail-Safe IRC5 Main Computer

Overview

ABB DSQC639 3HAC041443-003 Fail-Safe IRC5 Main Computer: Fault Protection for Critical Industrial Reliability

The ABB DSQC639 (3HAC041443-003) is the central processing unit of the ABB IRC5 robot controller family, engineered to sustain uninterrupted robot operation in the most demanding industrial environments. As the core computational node of the IRC5 cabinet, this main computer module governs motion planning, I/O coordination, safety interlock execution, and real-time communication across the entire robot control architecture. In continuous production lines, automotive body shops, foundry cells, and hazardous-area installations where unplanned downtime carries severe operational and safety consequences, the DSQC639 delivers the processing stability and fault-tolerance that mission-critical automation demands.

Designed to operate reliably under high electromagnetic interference, fluctuating supply voltages, elevated cabinet temperatures, and mechanical vibration, the DSQC639 integrates hardware-level surge protection and robust signal conditioning to prevent control interruption caused by power transients or EMI coupling from adjacent drives and contactors. Its architecture supports deterministic cycle execution, ensuring that safety-rated interlock signals — including emergency stop chains, safeguarding zone monitoring, and axis-level torque supervision — are processed without latency drift or missed scan cycles. This determinism is non-negotiable in applications where a delayed or missed safety response can result in equipment damage or personnel injury.

The module is fully compatible with the ABB IRC5 single-cabinet and multi-cabinet configurations and supports seamless integration with the DSQC643 I/O module for expanded digital and analog field connectivity, the DSQC662 fieldbus adapter for PROFIBUS-DP or DeviceNet communication, and the DSQC679 teach pendant interface unit for operator-level diagnostics and program management. In high-availability installations, the DSQC639 works in conjunction with the DSQC609 power supply unit to maintain stable 24 VDC logic power even during mains fluctuations, reducing the risk of mid-cycle controller resets that can corrupt program state or trigger uncontrolled axis movement.

For installations operating in dusty, humid, or chemically aggressive atmospheres — common in cement plants, water treatment facilities, mining conveyors, and port crane automation — the DSQC639’s conformal-coated PCB construction and sealed connector interfaces provide a meaningful barrier against contamination-induced leakage currents and corrosion failures. When paired with the DSQC652 digital I/O board and appropriate cabinet filtration, the IRC5 system maintains signal integrity across extended operating cycles without requiring frequent preventive cleaning interventions.

In petrochemical and power generation facilities where continuous process availability is a regulatory and commercial imperative, the DSQC639 supports rapid fault diagnosis through structured error logging accessible via RobotStudio and the IRC5 FlexPendant. Maintenance engineers can isolate faults to the module level within minutes, enabling targeted spare-part replacement rather than full controller changeout. Stocking a verified replacement DSQC639 — cross-referenced as 3HAC025097-001 in earlier IRC5 revisions — as a critical spare eliminates the multi-week lead times associated with OEM procurement channels and keeps robot cells operational through scheduled and unscheduled maintenance windows alike.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable IRC5 control cabinet is a system-level achievement, not a single-component outcome. The DSQC639 main computer anchors the architecture, but sustained cabinet reliability depends on the integrity of every layer around it. The DSQC609 power supply unit provides regulated 24 VDC logic power with built-in overvoltage and short-circuit protection, shielding the DSQC639 from mains-side disturbances that would otherwise cause controller resets or memory corruption. Upstream of the PSU, a properly rated surge protective device (SPD) on the incoming AC feed prevents lightning-induced or switching transients from propagating into the cabinet’s sensitive electronics.

On the I/O side, the DSQC652 digital I/O board and DSQC643 I/O module provide optically isolated field interfaces that decouple the DSQC639’s logic circuits from field-side voltage spikes generated by inductive loads — solenoid valves, motor starters, and relay coils that switch frequently in high-cycle automation cells. This isolation is critical in foundry and press-shop environments where heavy machinery switching creates recurring EMI events capable of corrupting I/O state registers if unmitigated.

For multi-robot or distributed control architectures, the DSQC662 fieldbus adapter maintains deterministic PROFIBUS-DP or DeviceNet communication between the IRC5 controller and plant-level PLCs or SCADA systems, ensuring that safety interlock status — including zone entry detection and robot hold signals — is transmitted without packet loss or timing jitter. Cabinet thermal management, supported by properly sized ventilation and temperature monitoring, completes the protection strategy by preventing the thermal throttling and component degradation that elevated operating temperatures accelerate in high-duty-cycle robot installations.

Critical Industrial Safety Applications

The ABB DSQC639 is deployed across a broad spectrum of safety-critical and production-critical industrial environments. In automotive body-in-white welding lines, it governs spot-welding robots operating at cycle times under 60 seconds, where any controller fault triggers a full-line stoppage with significant throughput and quality consequences. The module’s deterministic scan cycle and robust safety interlock processing ensure that safeguarding zone violations result in immediate, reliable axis halt without false trips that would degrade line OEE.

In petrochemical and refinery installations, IRC5-controlled robots perform inspection, valve actuation, and material handling in areas classified for explosive atmospheres. The DSQC639’s reliable execution of safety-rated stop functions — including Category 0 and Category 1 stops per IEC 60204-1 — is essential for maintaining SIL-compliant interlock performance in these environments. Unplanned controller failures in such settings carry not only production costs but potential regulatory and safety consequences.

In mining and mineral processing facilities, robots equipped with IRC5 controllers handle ore sampling, conveyor loading, and hazardous material transfer in high-dust, high-vibration environments. The DSQC639’s conformal coating and robust connector design support extended MTBF in these conditions, reducing the frequency of unplanned maintenance interventions that require personnel to enter restricted zones. Similarly, in port and shipyard automation, where salt-laden air and temperature cycling accelerate corrosion, the module’s construction quality supports multi-year service intervals when installed within appropriately rated enclosures.

For water and wastewater treatment plants operating continuous 24/7 processes, the availability of a verified replacement DSQC639 in the site spare-parts inventory is a standard risk mitigation practice. With a confirmed support terms confirmed by quotation and pre-shipment functional testing, each unit supplied by KNMKS enters service with documented baseline performance, supporting the traceability requirements of ISO 55000-aligned asset management programs.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the DSQC639?
The support terms confirmed by quotation cover functional failure of the module under normal operating conditions consistent with ABB IRC5 installation specifications. This includes processing faults, communication interface failures, and I/O coordination errors attributable to the module itself. Support requests are supported by direct technical review, and replacement units are dispatched from verified stock to minimize site downtime.

Q2: What pre-shipment testing is performed on each DSQC639 unit?
Every DSQC639 unit undergoes full functional verification prior to dispatch, including power-on self-test confirmation, communication interface validation, and safety interlock response testing where applicable. This pre-shipment testing protocol ensures that units arrive at site in confirmed working condition, eliminating the risk of receiving a latent-fault module that fails on first installation — a critical concern in safety-rated robot applications.

Q3: Is the DSQC639 compatible with all IRC5 controller variants and software versions?
The DSQC639 (3HAC041443-003) is compatible with the ABB IRC5 single-cabinet, multi-cabinet, and paint controller variants. It is cross-referenced with the earlier 3HAC025097-001 revision. Compatibility with specific RobotWare software versions should be confirmed against the IRC5 system software release notes. KNMKS technical support can assist with version compatibility queries prior to order placement.

Q4: Can KNMKS support long-term or repeat supply of the DSQC639 for multi-site spare-parts programs?
Yes. KNMKS maintains in-stock inventory of the DSQC639 and supports structured spare-parts supply agreements for customers operating multiple IRC5 robot installations across single or multi-site facilities. Long-term supply arrangements include priority allocation, consistent lead times, and documentation support for asset management and maintenance planning programs. Contact [email protected] to discuss volume and program requirements.
