ABB DSQC627 3HAC020446-001 Migration-Ready Power Supply

Overview

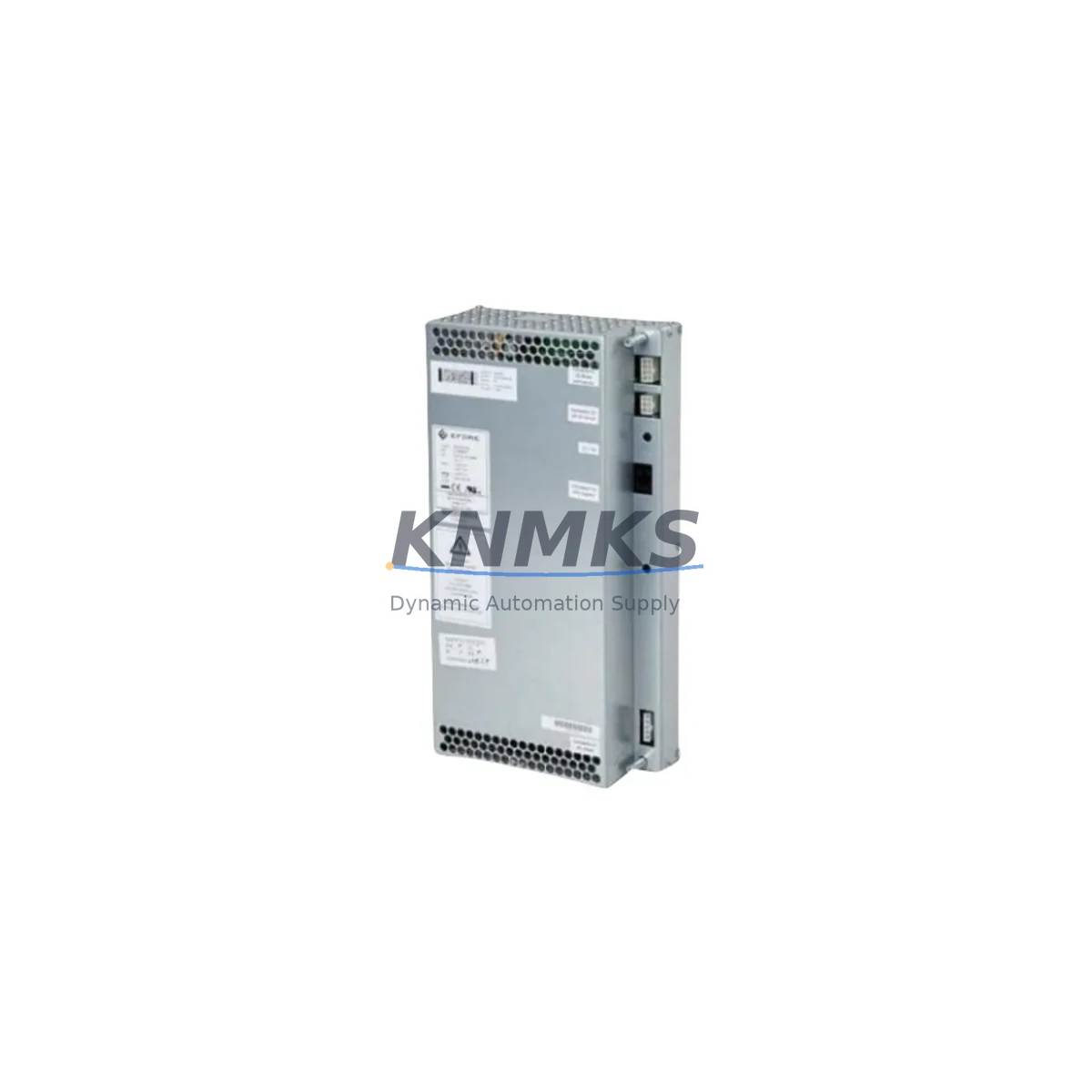

ABB DSQC627 3HAC020446-001 Migration-Ready Power Supply for Legacy Control Systems

The ABB DSQC627 (part number 3HAC020446-001) is a primary power supply module designed for the ABB IRC5 robot controller family. As automation facilities worldwide face the challenge of maintaining aging IRC5 cabinets — many of which were commissioned in the mid-2000s and are now approaching or past their original design lifecycle — the DSQC627 has become one of the most frequently requested replacement components in the ABB robotics spare parts market. Whether you are managing a planned retrofit, responding to an unplanned power supply failure, or executing a broader control cabinet modernization program, the DSQC627 provides a verified, drop-in compatible solution that minimises engineering risk and reduces total downtime.

The DSQC627 supplies regulated DC power to the IRC5 controller’s internal backplane, distributing voltage rails to the drive system, I/O modules, and communication boards. Its role is central to the stability of the entire control architecture. When a DSQC627 fails or degrades, symptoms typically include erratic axis behaviour, unexpected E-stop faults, loss of communication with the FlexPendant teach pendant, and intermittent RAPID program execution errors. Identifying and replacing the power supply promptly is critical to restoring production continuity.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DSQC627 replacement begins well before the module arrives on site. Maintenance engineers should start by auditing the full IRC5 cabinet configuration, including the DSQC652 axis computer board, the DSQC643 I/O module cluster, and any DSQC688 DeviceNet or DSQC679 Profibus communication boards installed in the backplane. Each of these components draws regulated power from the supply rail, and a degraded DSQC627 may have caused secondary stress on adjacent boards. It is advisable to inspect connector J1 and J2 on the backplane interface for signs of heat discolouration or pin oxidation before completing the swap.

Terminal wiring on the incoming AC side must be verified against the original cabinet wiring diagram. IRC5 cabinets installed in older facilities may have been wired to local voltage standards that differ from the module’s rated input range. Confirm that the three-phase supply, neutral, and protective earth connections match the DSQC627 input specification. If the cabinet also houses a DSQC608 safety board or a DSQC611 panel board, verify that their 24 VDC feeds remain stable after the new power supply is energised.

For facilities running multi-robot cells, where a single IRC5 dual-cabinet configuration controls two or more manipulators, the power supply replacement should be coordinated with a full cell shutdown rather than a single-robot isolation. This ensures that shared I/O signals and interlock logic managed by the DSQC377B I/O unit are not left in an indeterminate state during the changeover. Document the current robot program checksum and backup the RAPID module library before beginning any hardware work.

Installation space within the IRC5 cabinet is generally sufficient for a direct DSQC627 swap without panel modification. However, if the cabinet has been retrofitted with additional third-party components — such as external signal isolators, added terminal blocks, or supplementary HMI interface modules — verify that airflow around the power supply slot remains unobstructed. Thermal management is a common cause of premature power supply failure in densely populated control cabinets.

Downtime Control During System Migration

Minimising production downtime during a DSQC627 replacement requires a structured pre-outage preparation process. Before scheduling the maintenance window, ensure that a verified replacement unit is physically on-site and has passed incoming inspection. Relying on expedited shipping during an active breakdown introduces unnecessary risk, particularly for facilities operating on just-in-time production schedules.

Prior to de-energising the IRC5 cabinet, perform a full RAPID program backup using the FlexPendant or RobotStudio offline programming environment. Save the system parameters, tool data, work object definitions, and I/O configuration to an external USB drive or network share. This backup is your primary recovery asset if the controller requires a cold restart or if the RobotWare system files need to be reloaded after the power supply swap.

The physical replacement procedure for the DSQC627 typically takes 30 to 60 minutes for a trained technician familiar with the IRC5 cabinet layout. After installation, perform a controlled power-on sequence: energise the main circuit breaker, observe the controller boot sequence on the FlexPendant, and confirm that all axis drives initialise without fault codes. Run a slow-speed jog cycle on each axis before returning the robot to automatic mode. This commissioning sequence protects the original program logic and confirms that the new power supply is delivering stable voltage to all downstream modules.

For facilities where extended downtime is not acceptable, consider maintaining a pre-tested DSQC627 as a dedicated hot-spare in your local spare parts inventory. Given the age profile of IRC5 installations globally, lead times for new ABB spare parts can extend to several weeks. Having an in-stock, pre-shipment tested unit available on-site is the most effective strategy for downtime control in safety-critical or high-throughput production environments.

Retrofit Support FAQ

Q: Is the DSQC627 (3HAC020446-001) a direct replacement for the DSQC609?
A: In most IRC5 configurations, yes. The DSQC627 supersedes earlier power supply revisions including the DSQC609. However, you should verify the backplane connector layout and output voltage rail assignments against your specific cabinet wiring diagram before completing the swap. If your cabinet was manufactured before 2006, consult the IRC5 product manual for your RobotWare version.

Q: Does replacing the DSQC627 require a firmware update or parameter re-download?
A: In standard IRC5 configurations, a direct DSQC627 replacement does not require a firmware update or RAPID parameter re-download. The module is hardware-compatible with RobotWare 5.x and 6.x. A cold restart of the controller is required after installation, and you should confirm that all system parameters load correctly from the controller’s internal memory before resuming production.

Q: What pre-shipment testing is performed on the DSQC627 before delivery?
A: Each DSQC627 unit is function-tested and load-tested prior to shipment. Testing covers input voltage acceptance across the rated range, output voltage stability under simulated load, and connector integrity verification. A test report is available on request. All units are covered by a support terms confirmed by quotation against manufacturing defects and functional failure from the date of delivery.

Q: What is the typical lead time and do you maintain stock?
A: We maintain in-stock inventory of the DSQC627 / 3HAC020446-001 to support urgent replacement and planned maintenance requirements. Standard orders ship within 1–3 business days. For bulk orders or long-term spare parts programme requirements, contact our sales team to discuss stock reservation and scheduled delivery options.
