ABB 3HNA006493-001 Spare Part for IRC5 IRB52 Uptime

Overview

ABB 3HNA006493-001 Spare Part for IRC5 IRB52 Uptime

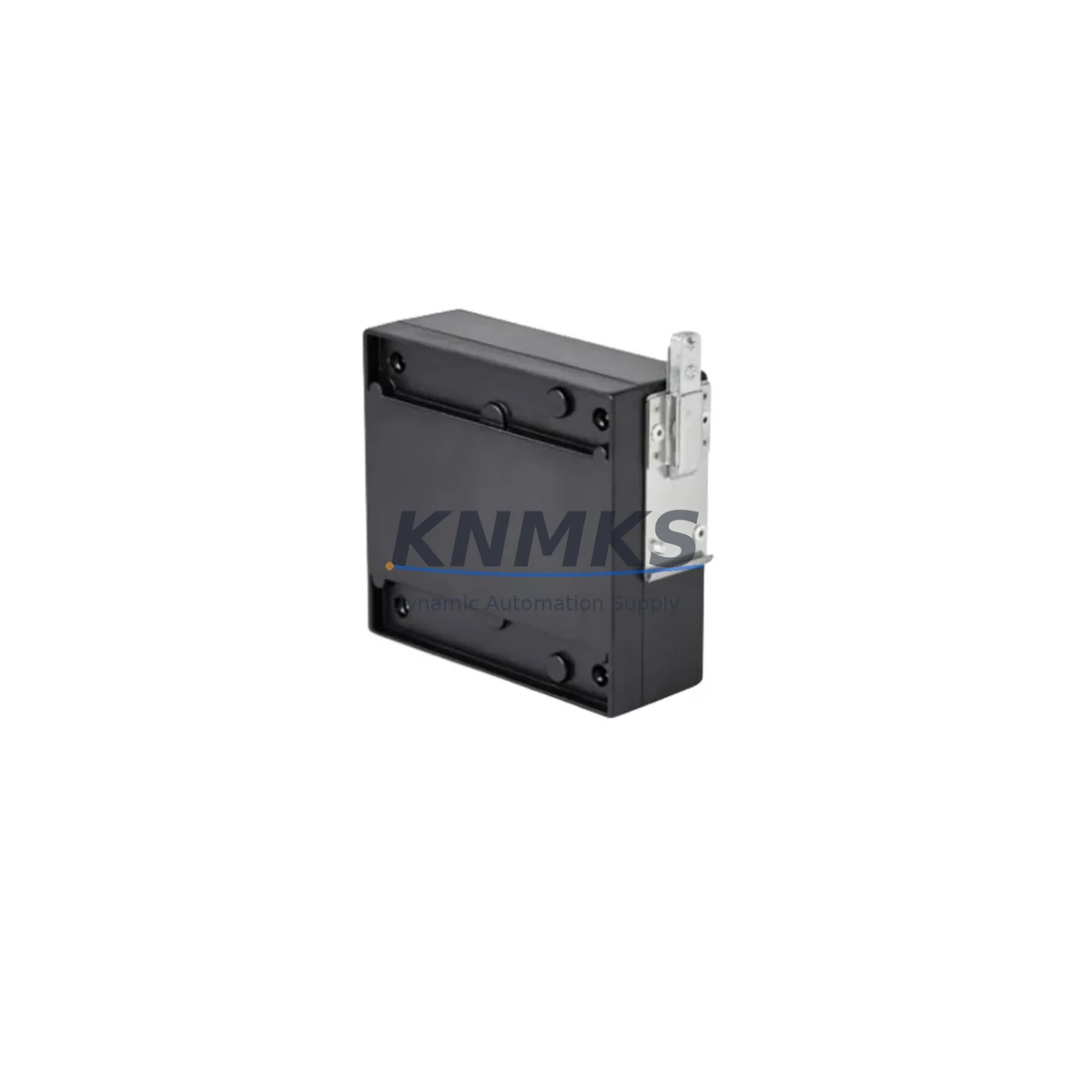

The ABB 3HNA006493-001 is an original power supply unit (PSU) designed for the IRC5 robot controller platform, specifically validated for use with the IRB52 compact painting robot series. In industrial environments where production continuity is non-negotiable, maintaining a verified spare of this PSU in your maintenance inventory is a fundamental risk-control measure. Power supply failures are among the most common causes of unplanned robot downtime, and the 3HNA006493-001 is the direct OEM-equivalent replacement that restores full IRC5 controller functionality without requiring firmware reconfiguration or hardware adaptation.

Maintenance engineers working on ABB IRC5 cabinets will recognize this unit as a critical component in the controller’s internal power distribution architecture. The PSU provides regulated DC voltage rails to the drive modules, I/O boards, and communication interfaces within the IRC5 enclosure. When this unit degrades or fails, symptoms typically include controller boot failures, axis drive faults, unexpected E-stop triggers, and loss of communication with the teach pendant. Replacing the 3HNA006493-001 with a verified original spare eliminates these failure modes and restores the controller to full operational status.

During a site replacement, maintenance teams should also inspect the IRC5 axis computer board (DSQC1000 or equivalent), the drive unit cooling fans, and the internal DC bus fuse assembly. It is equally important to verify the integrity of the 24VDC auxiliary power circuit, which feeds the safety relay board and the FlexPendant interface. If the PSU failure was caused by an upstream surge or short circuit, the safety relay module and the I/O unit (such as the DSQC652 digital I/O board) should be tested before returning the robot to production. Overlooking these associated components risks a repeat failure within a short operating cycle.

For facilities running multiple IRB52 units in a paint booth or assembly cell, procurement engineers should consider maintaining a minimum buffer stock of one 3HNA006493-001 PSU per three robots. The IRC5 controller platform is widely deployed across automotive, electronics, and general manufacturing sectors, and OEM lead times for this component can extend beyond acceptable downtime windows. Sourcing from a verified distributor with pre-shipment testing and a support terms confirmed by quotation provides the procurement assurance needed to support annual maintenance planning cycles.

The 3HNA006493-001 is also relevant in scenarios where the IRC5 cabinet is being refurbished or upgraded as part of a broader robot lifecycle extension program. When combined with a replacement DSQC400 I/O board, updated axis computer firmware, and recalibrated resolver cables, this PSU replacement contributes to a comprehensive controller overhaul that can extend the operational life of an IRB52 installation by several years — deferring capital expenditure on new robot procurement while maintaining production throughput.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for IRC5-based robot cells requires a systems-level approach. The 3HNA006493-001 PSU does not operate in isolation — it powers and stabilizes the entire controller electronics stack. When scheduling a PSU replacement, maintenance engineers should simultaneously inspect the following components to ensure the controller returns to full health:

• DSQC652 Digital I/O Board: Verify all 24VDC I/O channels are responding correctly after PSU replacement. A degraded PSU can cause latent I/O faults that only manifest under load.
• IRC5 Safety Relay Module: Confirm E-stop chain continuity and safety relay response times meet ABB specification after power restoration.
• FlexPendant Cable Assembly: Inspect the teach pendant cable for insulation damage, particularly at the cabinet entry gland, as PSU surges can stress the cable shield.
• Axis Drive Cooling Fans: Check fan operation and airflow across the drive modules. Overheating caused by fan failure can accelerate PSU degradation.
• Internal DC Bus Fuse Assembly: Replace any blown fuses and document the fault cause before returning the system to service.
• Resolver Signal Cables: Verify resolver feedback integrity on all axes using the ABB service tool, as power interruptions can occasionally corrupt axis calibration data.

Maintaining a documented spare parts list that includes the 3HNA006493-001 alongside these associated components ensures that your maintenance team can execute a complete controller restoration within a single planned maintenance window, minimizing unplanned production loss.

Site Replacement Workflow

Replacing the ABB 3HNA006493-001 in an IRC5 cabinet is a structured process that, when executed correctly, can be completed within a standard maintenance shift without requiring ABB field service intervention.

Step 1 — Pre-Replacement Verification: Before powering down the IRC5 cabinet, back up the robot program, system parameters, and calibration data using the FlexPendant or RobotStudio. Confirm that the backup is complete and accessible on an external storage device.

Step 2 — Safe Isolation: Isolate the IRC5 cabinet from mains power using the main disconnect switch. Apply lockout/tagout (LOTO) procedures in accordance with your site safety protocol. Allow the internal capacitors to discharge for a minimum of five minutes before opening the cabinet.

Step 3 — PSU Removal: Disconnect all DC output connectors and the AC input connector from the 3HNA006493-001. Note the connector positions and cable routing before removal. Unscrew the PSU mounting fasteners and carefully extract the unit from the cabinet.

Step 4 — New Unit Installation: Install the replacement 3HNA006493-001 in the reverse order. Ensure all connectors are fully seated and the mounting fasteners are torqued to specification. Verify that no cables are pinched or routed across sharp edges.

Step 5 — Power-On and Verification: Restore mains power and observe the IRC5 boot sequence. Confirm that all axis drives initialize correctly, the FlexPendant connects without error, and the safety relay chain is active. Run a slow-speed test cycle on all axes before returning the robot to production speed.

Step 6 — Documentation: Record the replacement in the maintenance log, including the date, technician name, part number, and post-replacement test results. Update the spare parts inventory to reflect the consumed unit and initiate a reorder if buffer stock falls below the minimum threshold.

Spare Parts Support FAQ

Q1: Is the 3HNA006493-001 compatible with all IRC5 controller variants?
The 3HNA006493-001 is specifically validated for the IRC5 controller as used with the IRB52 painting robot. Compatibility with other IRC5 variants should be confirmed against the specific controller hardware revision. Contact our technical team with your controller serial number for a compatibility check before ordering.

Q2: How is the unit tested before shipment?
Every 3HNA006493-001 unit undergoes a functional load test prior to shipment. The test verifies output voltage stability, ripple within specification, and correct response to load transients. A test report is available upon request.

Q3: What is the lead time and can I source this unit for long-term stock?
Units are available from in-stock inventory for immediate dispatch. For facilities requiring buffer stock or annual maintenance contracts, we support bulk procurement with staggered delivery schedules. Long-term supply agreements are available for customers managing fleets of IRC5-based robots.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Support requests are processed with a replacement unit dispatched upon receipt and inspection of the returned part.
