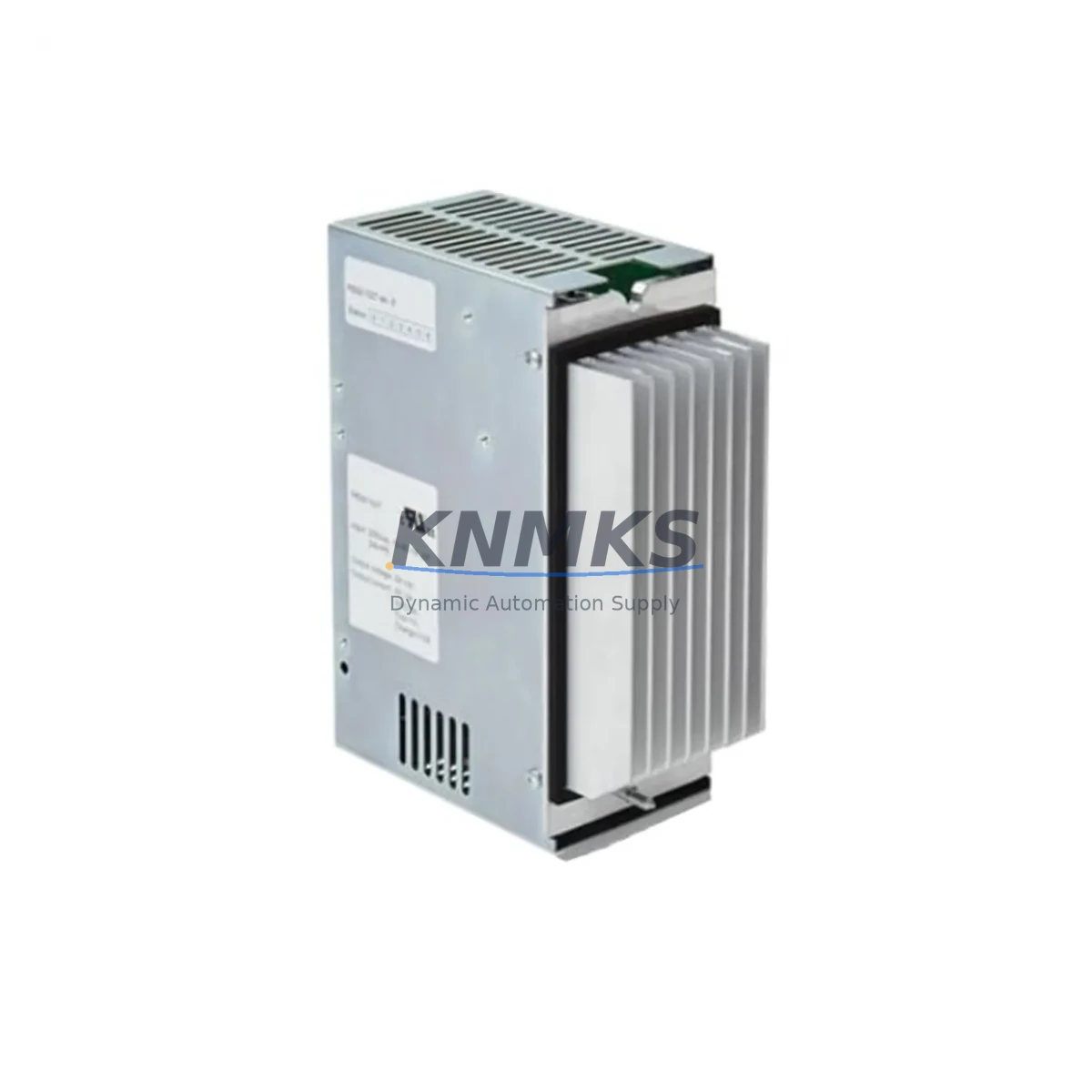

ABB DSQC604 Migration-Ready Power Supply for IRC5: Legacy System Retrofit & Compatibility Upgrade

The ABB DSQC604 is a critical power supply module designed for the IRC5 robot controller cabinet, one of ABB’s most widely deployed industrial robot control platforms. As production lines age and original DSQC604 units reach end-of-life or become discontinued through standard supply channels, maintenance engineers and system integrators face increasing pressure to source verified replacement units that maintain full electrical and mechanical compatibility with existing IRC5 cabinet configurations.

This DSQC604 unit is supplied as a migration-ready replacement, meaning it has been inspected, function-tested, and confirmed compatible with the IRC5 controller architecture before shipment. Whether you are managing a planned retrofit of an aging robot cell, responding to an unplanned failure on a production line, or building a strategic spare parts inventory to extend the operational life of your ABB robot fleet, the DSQC604 provides a direct drop-in solution without requiring cabinet redesign or software reconfiguration.

When planning a DSQC604 replacement, engineers should verify the incoming power supply voltage range (typically 200–600 VAC three-phase input), confirm the DC output rail specifications match the existing backplane load requirements, and inspect the terminal block wiring layout against the original cabinet drawings. The DSQC604 connects to the IRC5 main computer board and drive system via a standardized internal connector harness; any deviation in connector pinout between firmware generations should be cross-referenced against the IRC5 product manual revision in use at the site.

In many retrofit scenarios, the DSQC604 is replaced alongside the DSQC609 battery unit, which maintains SRAM memory backup for the robot program during power interruptions. If the DSQC609 has not been replaced within the recommended service interval, it is advisable to replace both modules simultaneously to avoid a secondary unplanned outage shortly after the power supply swap. Similarly, the DSQC611 axis computer and DSQC662 fieldbus communication module should be inspected for firmware version alignment when the controller is opened for maintenance, as mixed firmware environments can introduce communication instability on DeviceNet or PROFIBUS networks.

For IRC5 cabinets operating in multi-robot or coordinated motion configurations, the DSQC604 replacement procedure must account for the system’s MultiMove configuration. The replacement unit must be installed and powered up before the IRC5 system controller re-establishes communication with all connected mechanical units. Technicians should document the existing I/O signal mapping, particularly for digital I/O modules such as the DSQC651 or DSQC652, before initiating the swap to ensure that PLC-side signal assignments remain intact after the controller restarts.

HMI panels connected to the IRC5 via the FlexPendant interface should be disconnected prior to the power supply replacement and reconnected only after the controller has completed its boot sequence. This prevents false error states from being logged in the event log during the transition period. If the site uses a PC-based monitoring interface connected via the IRC5 service port, the connection should be re-established after the controller is confirmed stable to verify that all program modules, configuration parameters, and calibration data have been retained correctly.

Installation space within the IRC5 cabinet is standardized for the DSQC604 form factor, so no mechanical modification is required for a direct replacement. However, technicians should confirm that the cabinet ventilation path is unobstructed and that the cooling fan assembly is functional before commissioning the new unit, as thermal management directly affects the long-term reliability of the power supply in high-duty-cycle applications.

All DSQC604 units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. Each unit undergoes outgoing functional testing prior to dispatch. Stock is maintained to support both emergency single-unit orders and bulk procurement for planned maintenance programs.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DSQC604 retrofit begins with a thorough audit of the IRC5 cabinet’s current configuration. Before ordering the replacement unit, the maintenance team should record the existing RobotWare version, the installed fieldbus option modules (such as the DSQC662 for PROFIBUS or the DSQC688 for EtherNet/IP), and the current I/O module population including any DSQC651 digital I/O or DSQC652 combination I/O modules installed in the cabinet.

Power capacity planning is essential when the IRC5 cabinet supports multiple drive modules or external axis controllers. The DSQC604 must supply adequate DC power to all installed modules simultaneously; if additional I/O expansion modules or a DSQC378 power distribution board have been added to the cabinet since original commissioning, the total load should be recalculated against the DSQC604’s rated output capacity before proceeding with the replacement.

For sites where the IRC5 controller is integrated with a Siemens S7 or Allen-Bradley ControlLogix PLC via a fieldbus network, the PLC program should be placed in a safe hold state before the robot controller is powered down for the swap. This prevents the PLC from generating fault alarms or initiating safety interlocks due to loss of communication with the robot controller during the replacement window.

After the DSQC604 is installed and the IRC5 has completed its boot sequence, the commissioning technician should verify axis calibration data, confirm that all I/O signals are responding correctly, and perform a dry-run of the robot program at reduced speed before returning the cell to full production. If the site uses a DSQC1000 main computer or a later-generation IRC5 Compact controller, the same verification procedure applies.

Downtime Control During System Migration

Minimizing unplanned downtime during a DSQC604 replacement requires preparation before the maintenance window begins. The robot program, system parameters, and I/O configuration should be backed up to a USB memory device using the IRC5 FlexPendant backup function prior to any hardware intervention. This ensures that if an unexpected issue arises during the swap, the system can be restored to its last known good state without requiring manual re-entry of configuration data.

For production environments where the IRC5 robot is part of a synchronized line with upstream and downstream equipment, the replacement should be coordinated with the line PLC operator to ensure that buffer stocks are adequate to absorb the planned downtime window. A typical DSQC604 direct replacement, performed by an experienced technician with the replacement unit on hand, can be completed within 30 to 60 minutes including functional verification.

If the site does not have a spare DSQC604 in inventory and is responding to an unplanned failure, KNMKS maintains ready stock to support expedited shipment. Orders placed with confirmed shipping details are processed on the same business day. The support terms confirmed by quotation cover the replacement unit from the shipment date, providing assurance for the post-retrofit operational period.

To further reduce risk, sites managing multiple IRC5 cabinets are encouraged to maintain at least one DSQC604 as a strategic spare. Given the age profile of IRC5 installations globally, the probability of a second failure within a multi-robot facility increases as the fleet ages, and having a verified spare on-site eliminates the lead time risk entirely.

Retrofit Support FAQ

Q: Is this DSQC604 a direct replacement for all IRC5 cabinet variants?
A: Yes. The DSQC604 is compatible with the IRC5 Single Cabinet, Dual Cabinet, and Panel Mounted controller variants. No mechanical or electrical modification is required for a direct swap. Confirm the RobotWare version installed at your site if you have any concerns about firmware-level compatibility.

Q: Does the replacement require any software reconfiguration or re-teaching of the robot program?
A: No software reconfiguration is required for a direct DSQC604 replacement. The robot program, system parameters, and calibration data are stored on the DSQC1000 main computer board, not on the power supply module. As long as the main computer and DSQC609 battery backup are functional, all data will be retained through the power cycle.

Q: What pre-shipment testing is performed on each unit?
A: Every DSQC604 unit supplied by KNMKS undergoes a functional outgoing test prior to dispatch. This includes verification of DC output rail voltages and basic power-on functionality. Units that do not pass testing are not shipped. All units are covered by a support terms confirmed by quotation from the shipment date.

Q: What is the typical lead time and do you maintain stock?
A: KNMKS maintains inventory of the DSQC604 to support both emergency and planned procurement. In-stock orders are processed on the same business day. Contact [email protected] or +86 18359268345 for real-time stock confirmation and shipping options.
