ABB DSQC602 3HAC12816-1 Migration-Ready Power Supply for Legacy Control Systems

Overview

ABB DSQC602 3HAC12816-1 Migration-Ready Power Supply for Legacy Control Systems

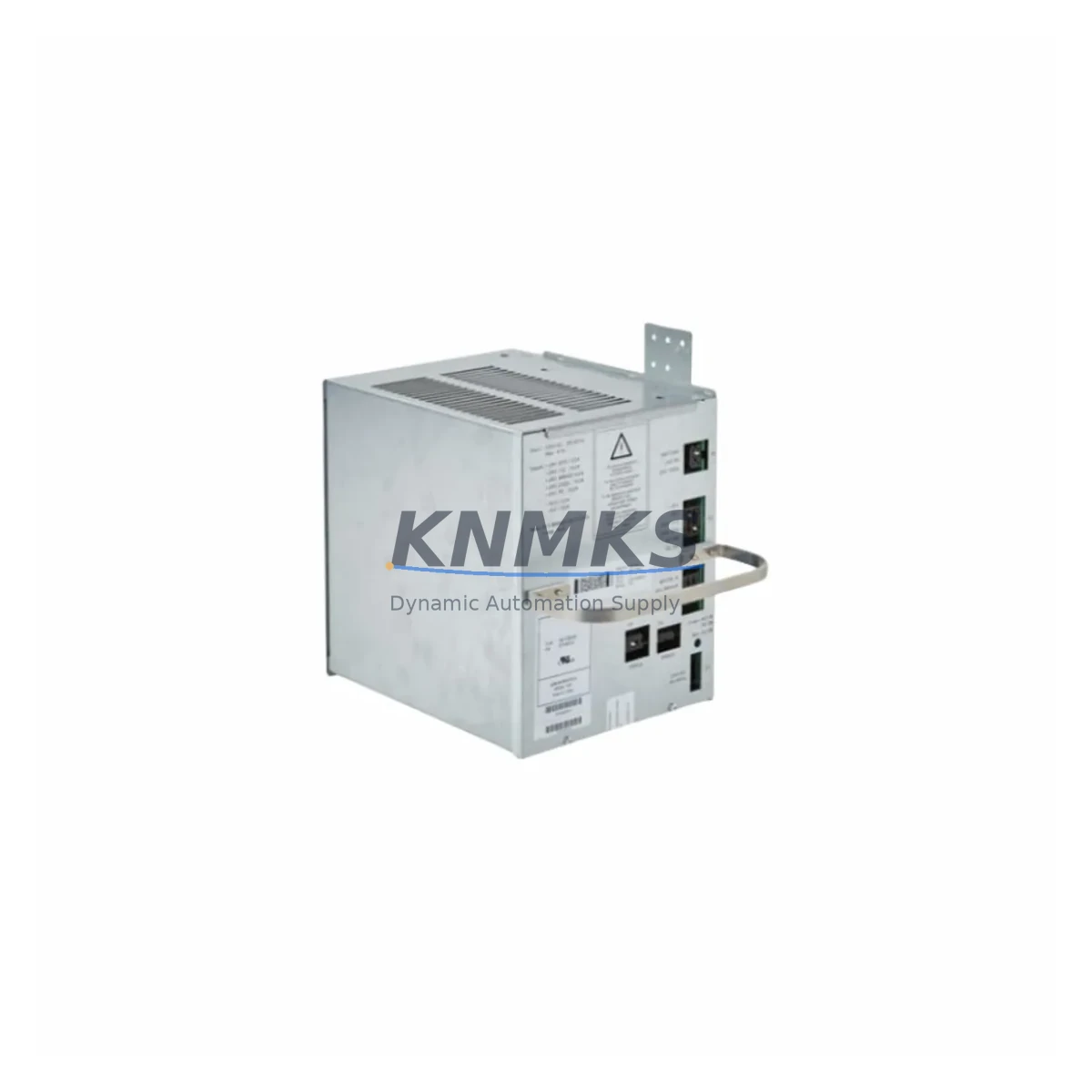

The ABB DSQC602 (part number 3HAC12816-1) is a mission-critical power supply module designed for ABB IRC5 robot controllers. As industrial facilities worldwide accelerate the modernization of aging automation infrastructure, the DSQC602 has become one of the most sought-after retrofit components for engineers managing legacy robot cells, multi-axis welding lines, and material handling systems originally commissioned in the early 2000s. Whether you are replacing a failed unit, building a spare parts buffer, or executing a phased control system upgrade, the DSQC602 delivers the electrical stability and form-factor compatibility that IRC5-based installations demand.

Sourced directly from verified supply channels and subjected to pre-shipment functional testing, every DSQC602 unit shipped by KNMKS is backed by a support terms confirmed by quotation. Stock is maintained across regional distribution hubs to support urgent replacement timelines and minimize unplanned downtime on production-critical robot cells.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DSQC602 in an active IRC5 robot cell requires a structured approach that accounts for the interdependencies between the power supply and the broader control architecture. Before initiating the swap, engineers should verify the available power capacity at the cabinet’s main disconnect, confirm that the terminal block wiring on the existing DSQC602 matches the replacement unit’s pinout, and document the current I/O address assignments to avoid conflicts after restart.

In multi-robot installations, the IRC5 Dual Cabinet Controller shares a common power distribution rail between the main computer module (DSQC639 or DSQC1000) and the drive system. A degraded DSQC602 can cause intermittent faults across the DSQC611 axis computer and the DSQC662 I/O module, making it critical to isolate the power supply as the root cause before ordering replacement components. Field engineers frequently encounter situations where a failing power supply generates cascading alarms across the teach pendant (FlexPendant) and the DSQC679 panel board, masking the true fault origin.

For facilities running DeviceNet or PROFIBUS fieldbus topologies, the communication link between the IRC5 controller and external PLCs or SCADA systems must be verified after the power supply replacement. The DSQC602 powers the communication backplane, and any interruption during the swap can cause node address conflicts on the fieldbus segment. It is recommended to capture a full network topology snapshot — including node addresses, baud rates, and termination resistor positions — before taking the controller offline.

Where the retrofit involves upgrading from an older IRC5 variant to a current-generation cabinet, engineers should also assess whether the existing DSQC508 safety module and DSQC643 brake control board are compatible with the replacement power supply’s output rail specifications. Mismatched rail voltages are a common source of post-retrofit commissioning delays and should be resolved during the planning phase rather than on the shop floor.

KNMKS maintains ready stock of complementary IRC5 components — including axis computers, I/O modules, communication boards, and safety modules — to support complete cabinet refurbishment projects without extended lead times.

Downtime Control During System Migration

Unplanned downtime during a power supply replacement on an IRC5 robot cell can cascade into significant production losses, particularly in high-throughput welding, assembly, or palletizing applications. A disciplined pre-swap protocol is the most effective tool for compressing the maintenance window to the minimum viable duration.

Begin by creating a full backup of the IRC5 system parameters using RobotStudio or the FlexPendant backup utility. This preserves the robot program, tool data, work object definitions, I/O configuration, and safety zone settings — all of which must be intact after the power supply is restored. Store the backup on an external USB drive and verify the file integrity before proceeding.

Next, photograph or document the existing terminal wiring on the DSQC602 before disconnecting any cables. Label each wire with its terminal designation using adhesive markers. This step eliminates the most common source of post-replacement commissioning errors: incorrect rewiring of the 24 VDC auxiliary output, the emergency stop circuit, or the main contactor control lines.

With the replacement DSQC602 installed and wiring verified, restore power in stages — first confirming that the 24 VDC rail is stable before enabling the main drive power. Monitor the FlexPendant for any residual fault codes and clear them systematically. Run the robot through a slow-speed program verification cycle before returning the cell to full production speed. This staged restart approach protects the original program logic, maintains field control continuity, and reduces the risk of a secondary fault triggering an extended outage.

For facilities without in-house IRC5 expertise, KNMKS provides pre-shipment functional testing documentation and remote commissioning guidance to support field teams during the replacement process.

Retrofit Support FAQ

Q: Is the DSQC602 (3HAC12816-1) a direct drop-in replacement for earlier IRC5 power supply variants?
A: Yes. The DSQC602 is mechanically and electrically compatible with the IRC5 cabinet backplane and replaces earlier variants such as the DSQC506 without requiring adapter brackets or wiring modifications. Confirm the cabinet generation (M2004 or later) before ordering.

Q: What pre-shipment testing is performed on DSQC602 units?
A: Every unit undergoes functional power-on testing to verify output rail voltages, inrush current behavior, and fault indicator response before shipment. Test records are available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: How do I verify firmware compatibility before installing the replacement DSQC602?
A: Check the active RobotWare version on the IRC5 FlexPendant under System Info. The DSQC602 is compatible with RobotWare 5.x and 6.x. If the installed RobotWare version is below 5.12, consult ABB service documentation for any known power supply firmware dependencies before proceeding.

Q: What is the typical lead time and stock availability for the DSQC602?
A: KNMKS maintains buffer stock of the DSQC602 across multiple regional warehouses to support urgent replacement requirements. Standard orders ship within 1–3 business days. Contact [email protected] or call +86 18359268345 to confirm current stock levels and expedited shipping options.
