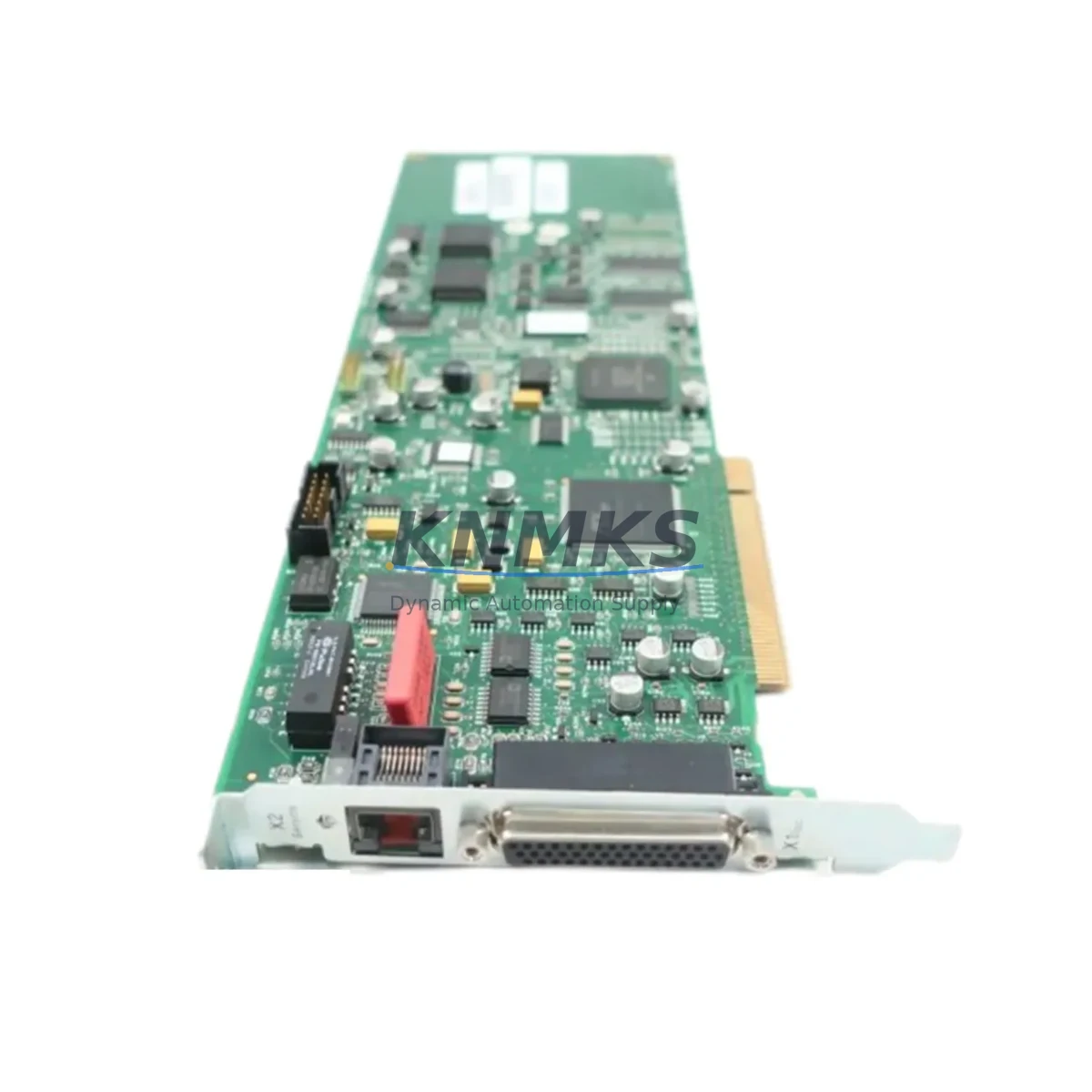

ABB DSQC532B 3HAC023447-001 Fail-Safe I/O Board IRC5

Overview

ABB DSQC532B 3HAC023447-001 Fail-Safe I/O Board IRC5: Fault-Protection and Critical Industrial Field Reliability

The ABB DSQC532B (part number 3HAC023447-001) is a dedicated Safety I/O Computer Board engineered for the ABB IRC5 robot controller platform. Designed to operate at the heart of safety-critical control architectures, this board manages the bidirectional exchange of safety signals between the robot controller and field-level protective devices — including emergency stop circuits, safety gates, light curtains, and dual-channel interlocks. In continuous production environments where an unplanned shutdown carries significant financial and operational consequences, the DSQC532B delivers the deterministic, fail-safe signal processing that modern industrial safety standards demand.

Unlike general-purpose I/O modules, the DSQC532B is purpose-built for functional safety. Its internal logic enforces cross-channel monitoring and self-diagnostic routines that detect signal drift, contact welding, and wiring faults before they can propagate into a dangerous machine state. This architecture directly reduces the risk of spurious trips, missed safety events, and nuisance shutdowns — three of the most common causes of unplanned downtime in robotic welding, press-tending, and palletising cells.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The DSQC532B does not operate in isolation. Its reliability is maximised when the surrounding IRC5 cabinet is equipped with a coherent protection strategy. The ABB DSQC609 power distribution board works in tandem with the safety I/O board to regulate and monitor internal cabinet power rails; voltage anomalies detected at the DSQC609 level can be correlated with safety-state changes logged by the DSQC532B, enabling faster root-cause analysis during incident review. Similarly, the ABB DSQC662 fieldbus adapter — commonly deployed for DeviceNet or Profibus connectivity — feeds process-level signals into the IRC5 backplane, and any communication interruption on this adapter will be reflected in the safety board’s interlock state, preventing the robot from resuming motion under an unverified network condition.

For cabinet thermal management, the ABB DSQC508 axis computer board generates significant heat during high-duty-cycle operation. Ensuring adequate cabinet ventilation and monitoring the thermal sensors associated with the DSQC508 protects the DSQC532B from operating above its rated temperature envelope — a common cause of premature safety board failure in foundry and press-shop environments. On the power supply side, the ABB DSQC604 system power supply provides the stabilised 24 VDC rail that the safety I/O board depends on; surge events or brownouts at the DSQC604 output can induce false safety trips, making a quality surge-protected UPS upstream of the IRC5 cabinet an important companion investment. Finally, the ABB DSQC643 drive module and its associated brake control circuitry interact directly with the safety board’s STO (Safe Torque Off) output — correct wiring and periodic verification of this interface is essential for machinery directive compliance in CE-marked installations.

Critical Industrial Safety Applications

The DSQC532B is deployed across a wide range of safety-critical industrial sectors. In petrochemical and refinery environments, ABB IRC5-controlled robots perform inspection, valve actuation, and sample handling in zones where a safety interlock failure could trigger a process shutdown or, in the worst case, a hazardous release. The board’s dual-channel architecture ensures that a single-point wiring fault cannot silently disable the emergency stop function.

In electric power generation and substation facilities, robotic maintenance systems rely on the DSQC532B to enforce safe-distance interlocks when personnel access restricted areas. The board’s EMI tolerance is particularly valuable in these environments, where high-voltage switching generates broadband electromagnetic noise that can corrupt safety signals on lesser-grade hardware.

In mining and mineral processing plants, IRC5 robots are used for explosive-charge handling, ore sampling, and conveyor maintenance. The DSQC532B’s self-diagnostic capability means that a degraded safety channel is flagged before the next production shift begins, rather than being discovered during an incident investigation. Water and wastewater treatment facilities operating 24/7 depend on the board’s ability to maintain safety interlock integrity in high-humidity, chemically aggressive atmospheres where connector corrosion and moisture ingress are persistent threats.

Steel mills and aluminium smelters present some of the harshest operating conditions for any electronic component — radiant heat, vibration from rolling mills, and airborne metallic dust. IRC5 cabinets in these facilities are typically specified with enhanced sealing, and the DSQC532B’s robust design ensures that safety I/O performance is maintained across the full thermal cycle of a smelting shift. In port and container terminal automation, where robotic crane and AGV systems operate continuously, the board supports the safety architecture that prevents collisions between automated equipment and maintenance personnel — a function that cannot tolerate intermittent failures.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover, and how is a claim processed?
The support terms covers functional failure of the DSQC532B under normal operating conditions within an ABB IRC5 controller for a period of 12 months from the date of shipment. If the board fails to perform its specified safety I/O functions, we will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault symptom.

Q2: What outgoing inspection and testing is performed before shipment?
Every DSQC532B unit undergoes a full functional test prior to dispatch. This includes power-on verification, safety channel continuity checks, and confirmation that the board’s self-diagnostic routines complete without fault codes. Units that do not pass inspection are quarantined and not shipped. A test record is retained for traceability.

Q3: Is this board compatible with all IRC5 controller variants, including MultiMove and paint-shop configurations?
The DSQC532B / 3HAC023447-001 is the standard safety I/O board for the ABB IRC5 platform. It is compatible with single-cabinet IRC5, IRC5 Panel Mounted Controller (PMC), and IRC5 MultiMove configurations. For paint-shop (EX-rated) variants, please confirm the specific cabinet revision with our technical team before ordering, as some explosion-proof enclosures use a modified board revision.

Q4: Can you support long-term supply for maintenance and spare-parts programmes?
Yes. We maintain stock of the DSQC532B and related IRC5 spare boards to support planned maintenance schedules, insurance-spare programmes, and emergency breakdown requirements. For customers operating multiple IRC5 cells, we recommend holding at least one DSQC532B as a critical spare to minimise mean time to repair (MTTR) in the event of a safety board failure. Contact us to discuss volume pricing and reserved-stock arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSQC532B
IRC5 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DSQC532B
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
